Automatic calibration with LED-guided scripted instructions
-
Intelligent plug-in electrochemical sensor with automatic gas type and range recognition
-
Microprocessor-supervised electronics with encapsulated ITM module
-
Four character alpha/numeric LED display for readings and menu-driven features
-
Non-intrusive magnetic programming interface for field calibration without area declassification
-
Internal intrinsically safe barrier circuit eliminating need for flame arrestors
-
Temperature compensated galvanic cell for O2 deficiency sensors
-
Diffusion-limited electrochemical cells for long service life
-
4-20mA analog output with Modbus RS-485 serial communication
-
Extended I/O circuit protection and on-board power supplies
-
Field-replaceable intelligent plug-in sensor cartridge
-
AutoZero and AutoSpan calibration functions
-
Fault diagnostic and failsafe features with LED fault indication
-
Extensive cross-gas interference data available
-
Modular mechanical design with splash guard and adapter assembly
DM-700 toxic replacement cell
$0.00

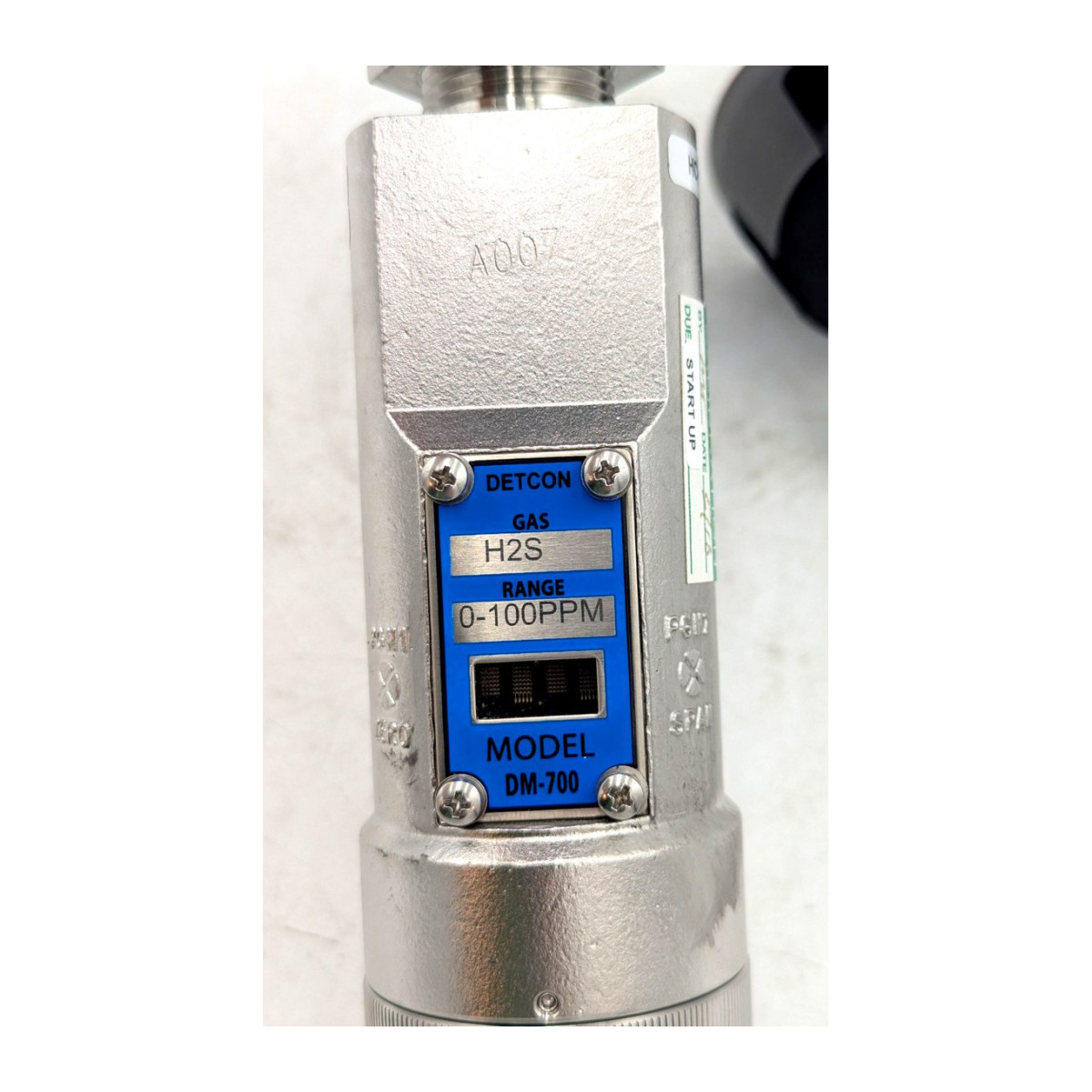

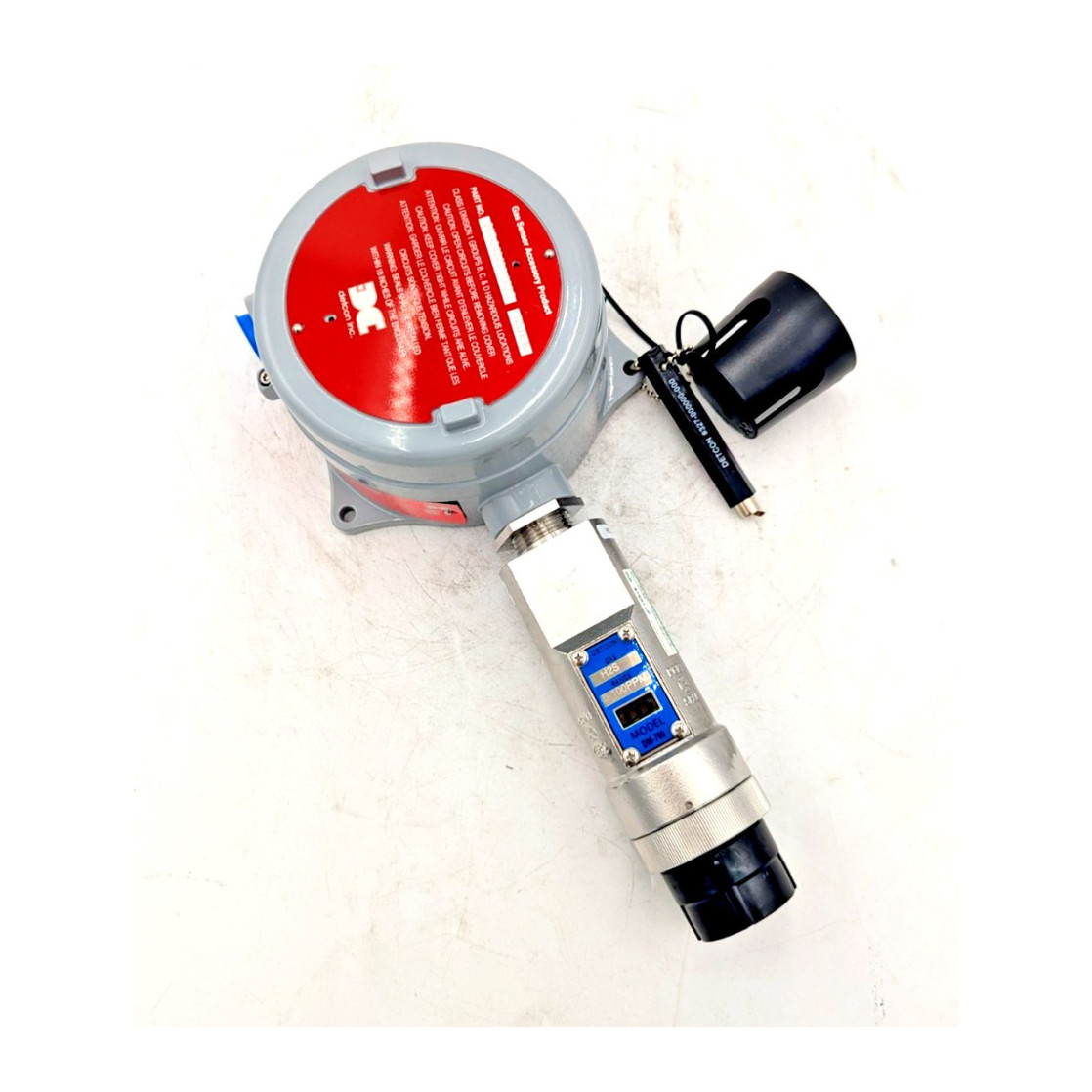

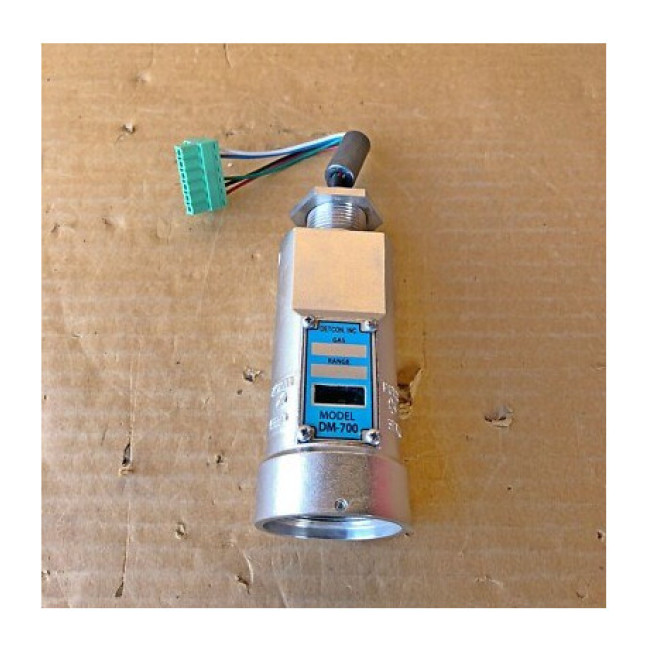

Teledyne Detcon DM-700 toxic replacement cell is a field-replaceable electrochemical smart sensor for detecting toxic gases and oxygen deficiency in industrial safety applications.
Detcon Model DM-700 toxic gas and O2 deficiency sensors are non-intrusive smart sensors designed to detect and monitor a wide range of toxic gases and oxygen deficiency in air. Features include electrochemical cell technology with detection ranges from 0-1ppm to 0-10,000ppm for toxic gases and 0-100ppm to 0-25% by volume for O2 deficiency. The sensor includes a four-character alphanumeric LED display, microprocessor-supervised electronics in explosion-proof casting (ITM), automatic calibration via magnetic programming tool, standard 4-20mA analog output, and Modbus RS-485 serial output. Modular mechanical design with field-replaceable intelligent plug-in sensor. Operates from -20°C to +50°C. Factory calibrated with 2-year warranty and up to 2.5-year expected service life.
Description
DM-700 toxic replacement cell
Detcon Model DM-700 toxic gas and O2 deficiency sensors are non-intrusive smart sensors designed to detect and monitor a wide range of toxic gases and oxygen deficiency in air. Features include electrochemical cell technology with detection ranges from 0-1ppm to 0-10,000ppm for toxic gases and 0-100ppm to 0-25% by volume for O2 deficiency. The sensor includes a four-character alphanumeric LED display, microprocessor-supervised electronics in explosion-proof casting (ITM), automatic calibration via magnetic programming tool, standard 4-20mA analog output, and Modbus RS-485 serial output. Modular mechanical design with field-replaceable intelligent plug-in sensor. Operates from -20°C to +50°C. Factory calibrated with 2-year warranty and up to 2.5-year expected service life.
Features
Specifications
- Toxic Gas Detection Ranges
- 0-1ppm up to 0-10,000ppm
- O2 Deficiency Detection Ranges
- 0-100ppm up to 0-25% by volume
- Operating Temperature Range
- -20°C to 50°C (-4° to +122°F)
- Output Signals
- 4-20mA DC analog, Modbus RS-485
- Power Supply
- 11.5-30VDC (24VDC typical)
- Electrical Classifications
- Class I Division 1 Groups A B C D, Class I Zone 1 Group IIC, II 2G Ex d ib IIC Gb
- Sensor Service Life
- Up to 2-3+ years (2.5 years in ambient air at 20.9% O2)
- Enclosure Material
- Electro-polished 316 Stainless Steel
- LED Display
- Four character alpha/numeric
- Mounting
- 3/4″ Female NPT threaded connection
- Dielectric Strength
- 500VRMS between circuit and enclosure for minimum 1 minute at maximum 5mA
- Maximum Safe Location Voltage
- Um=250V
