Monitors VOCs (PID), H2S, CO, O2, SO2, PH3, Cl2, NH3, NO2, HCN, ClO2, O3 and combustibles
-
Water-resistant design
-
Integral concussion-proof boot
-
Continuous LCD shows simultaneous gas concentrations for up to five gases
-
0-1000 ppm measurement of VOCs (Volatile Organic Compounds)
-
Smaller and over 50% lighter than competitive instruments
-
Integral motorized pump option for remote sampling
-
Two power options: AA alkaline or rechargeable hot-swappable battery pack
-
95 dB alarm tone with two bright wide-angled alarm bars
-
Internal vibrating alarm for high noise areas
-
Multi-language support in English, French, German, Spanish, and Portuguese
-
Four alarm levels: instantaneous Low and High Alarm, TWA (time-weighted average), STEL (short-term exposure limit)
-
Compatible with MicroDock II automatic test and calibration station
-
Records TWA, STEL, and maximum exposures
-
Full function self-test of sensor, battery and circuit integrity, and audible/visual alarms
-
User selectable field options including password protection, safe and stealth modes
-
Datalogging capable

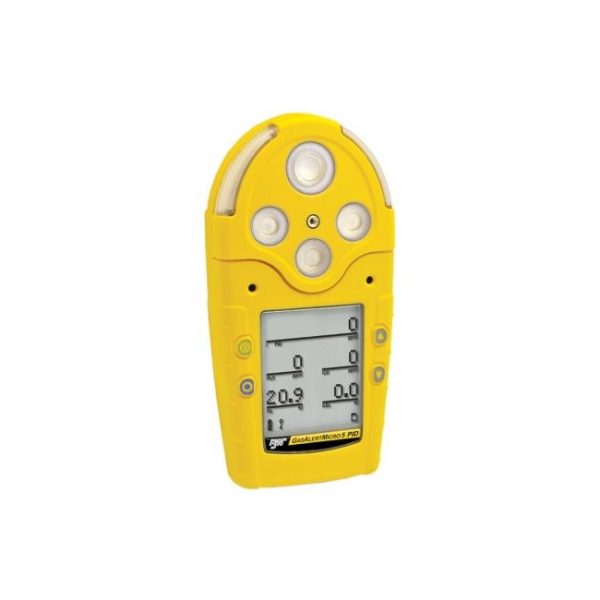

GasAlertMicro 5 PID lamp
$0.00
Honeywell GasAlertMicro 5 PID lamp is a replacement 10.6 eV lamp for the Micro 5 PID VOC option portable gas detector.
GasAlertMicro 5 PID is a compact, lightweight portable gas detector that monitors up to five atmospheric hazards including volatile organic compounds (VOCs) via photoionization detection, plus H2S, CO, O2, SO2, PH3, Cl2, NH3, NO2, HCN, ClO2, and O3. Features water-resistant design, integral concussion-proof boot, triple alarms (audible 95dB, visual, vibrating), LCD display, datalogging capability, and optional motorized pump for remote sampling up to 66 feet. Compatible with MicroDock II automatic calibration station. Powered by AA alkaline or rechargeable battery pack with 20-hour runtime.
Description
GasAlertMicro 5 PID lamp
GasAlertMicro 5 PID is a compact, lightweight portable gas detector that monitors up to five atmospheric hazards including volatile organic compounds (VOCs) via photoionization detection, plus H2S, CO, O2, SO2, PH3, Cl2, NH3, NO2, HCN, ClO2, and O3. Features water-resistant design, integral concussion-proof boot, triple alarms (audible 95dB, visual, vibrating), LCD display, datalogging capability, and optional motorized pump for remote sampling up to 66 feet. Compatible with MicroDock II automatic calibration station. Powered by AA alkaline or rechargeable battery pack with 20-hour runtime.
Features
Specifications
- Weight
- 13.1 ounce av / 370 gram
- Instrument Size
- 5.7 x 2.9 x 1.5 in. / 14.5 x 7.4 x 3.8 cm
- Maximum Temperature
- 122 degree Fahrenheit / 50 degree Celsius
- Minimum Temperature
- -20 degree Celsius / -4 degree Fahrenheit
- Humidity Range
- 0%-99% percent
- Sensor Range
- H2S (0-500ppm), CO (0-1000ppm), O2 (0-30%vol), SO2 (0-150ppm), PH3 (0-5ppm), NH3 (0-100ppm), NO2 (0-100ppm), HCN (0-30ppm), Cl2 (0-50ppm), ClO2 (0-1ppm), O3 (0-1ppm), CO2 (0-50000ppm), LEL (0-100%LEL)
- VOC Measurement Range
- 0-1000 ppm
- Alarm Type
- Audible (95 dB), Vibrating, Visual
- Alarm Settings
- Low, High, STEL, TWA, OL (Over Limit)
- Battery Run Time
- 20 hours
- Batteries Included
- Yes
- Datalogging
- 4.4 months at 5 second
- Display Type
- LCD
- Sampling Pump Range
- 66 ft (20m)
- Sensor Type
- Electrochemical and Catalytic Bead Sensors, Infrared (IR), Photoionization
- Warranty
- 1 Year Including Sensors (NH3, Cl2, O3, ClO2 and PID Lamp)
- Ingress Protection
- IP65/IP66
- Calibration Procedures
- Automatic Calibration Procedure
- Calibration Gas
- Oxygen
- External Calibration
- BW MicroDock II Automatic Test and Calibration Station
- Combustible Concentration
- 0-100% LEL, 0-5.0% v/v
- Power Source
- Battery
- Languages
- English, French, German, Spanish, Portuguese
- Decibels
- 95 decibel
