Monitors up to five atmospheric hazards including oxygen, combustibles and toxic gases
-
Water-resistant design
-
Integral concussion-proof boot
-
Optional integral motorized pump for remote sampling up to 66 ft / 20 m
-
Powered by three AA alkaline batteries or hot-swappable rechargeable battery pack
-
Triple alarms: audible (95 dB), visual, and vibrating
-
Multi-language support in English, French, German, Spanish and Portuguese
-
Large user-selectable backlit LCD displaying real-time gas concentrations
-
Four alarm levels: Low, High, TWA and STEL
-
Compatible with MicroDock II Automatic Test and Calibration Station
-
Datalogging models store and recall event information
-
Full function self-test of sensors, battery and circuitry
-
PID variant measures VOCs 0-1000 ppm
-
IR variant measures CO2 0-5% vol (0-50,000 ppm)
-
User-selectable field options including password protection, safe and stealth modes
-
Continuous monitoring of gas concentrations
GasAlertMicro 5 replacement sensors (incl. PID)
$0.00

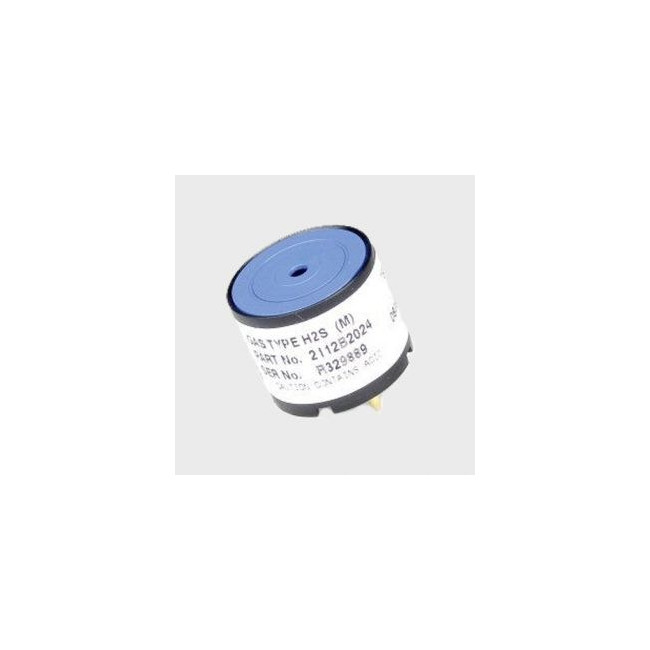

EC sensors (O2, CO, H2S, SO2, NH3, Cl2…) and PID VOC sensor modules
In stock

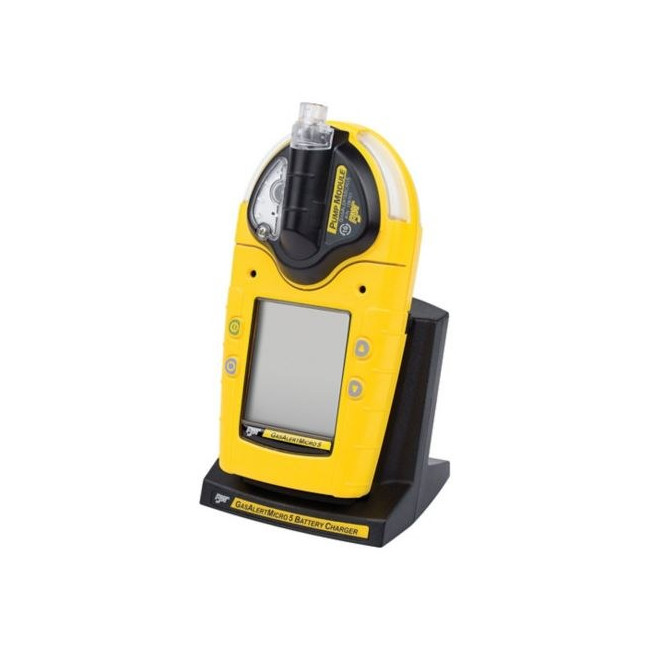

The GasAlertMicro 5 Series is a portable multi-gas detector that monitors up to five atmospheric hazards including oxygen, combustible gases, and toxic gases. Available in PID (photoionization detector) and IR (infrared) variants, it features water-resistant design, integral concussion-proof boot, and 20-hour battery runtime. The compact 13.1 oz instrument displays real-time gas concentrations on an LCD screen with audible (95 dB), visual, and vibrating alarms. It supports automatic calibration via MicroDock II station and includes datalogging capabilities.
Description
GasAlertMicro 5 replacement sensors (incl. PID)
The GasAlertMicro 5 Series is a portable multi-gas detector that monitors up to five atmospheric hazards including oxygen, combustible gases, and toxic gases. Available in PID (photoionization detector) and IR (infrared) variants, it features water-resistant design, integral concussion-proof boot, and 20-hour battery runtime. The compact 13.1 oz instrument displays real-time gas concentrations on an LCD screen with audible (95 dB), visual, and vibrating alarms. It supports automatic calibration via MicroDock II station and includes datalogging capabilities.
Features
Specifications
- Brand
- BW, Honeywell
- Weight
- 13.1 ounce, 370 gram
- Instrument Size
- 5.7 x 2.9 x 1.5 in. / 14.5 x 7.4 x 3.8 cm
- Maximum Temperature
- 122 degree Fahrenheit, 50 degree Celsius
- Minimum Temperature
- -20 degree Celsius, -4 degree Fahrenheit
- Series Name
- GasAlertMicro 5
- Sensor Range
- H2S (0-500ppm), CO (0-1000ppm), O2 (0-30%vol), SO2 (0-150ppm), PH3 (0-5ppm), NH3 (0-100ppm), NO2 (0-100ppm), HCN (0-30ppm), Cl2 (0-50ppm), ClO2 (0-1ppm), O3 (0-1ppm), CO2 (0-50000ppm), LEL (0-100%LEL)
- Humidity Range
- 0%-99% percent
- Alarm Type
- Audible (95 dB), Vibrating, Visual
- Alarm Settings
- Low, High, STEL, TWA, OL (Over Limit)
- Battery Run Time
- 20 hours
- Batteries Included
- Yes
- Calibration Procedures
- Automatic Calibration Procedure
- Calibration Gas
- Oxygen
- Datalogging
- 4.4 months at 5 second
- Display Type
- LCD
- Display Readout
- Real-Time Gas Concentrations Shown on LCD
- Sensor Type
- Electrochemical and Catalytic Bead Sensors, Infrared (IR), Photoionization
- Warranty
- 1 Year Including Sensors (NH3, Cl2, O3, ClO2 and PID Lamp), 2 Years Including Sensors
- Ingress Protection
- IP65/IP66
- Gas Type
- H2S, CO, O2, SO2, PH3, NH3, NO2, HCN, Cl2, ClO2, O3, CO2, LEL
- Decibels
- 95 decibel
- Combustible Concentration
- 0-100% LEL, 0-5.0% v/v
- Sampling Pump Range
- 66 ft (20m)
- Languages
- English, French, German, Spanish, Portuguese
- Power Source
- Battery
- Certifications
- ATEX: CE g II 1 G, ATEX: Ex d ia IIC T4, ATEX: Ga Ex ia IIC T4, Class I Div 1 Group A B C D, IECEx: Ga Ex ia IIC T4
