Detects radiation source within a few seconds
-
Gamma and neutron detection
-
Identifies ANSI N42.34 library
-
Rugged (1.0-m drop tested)
-
High resolution and low false alarms
-
Rapid visible, audible, and tactile alerts
-
Fast, two-minute start up
-
5 year factory maintenance
identiFINDER R500
$0.00

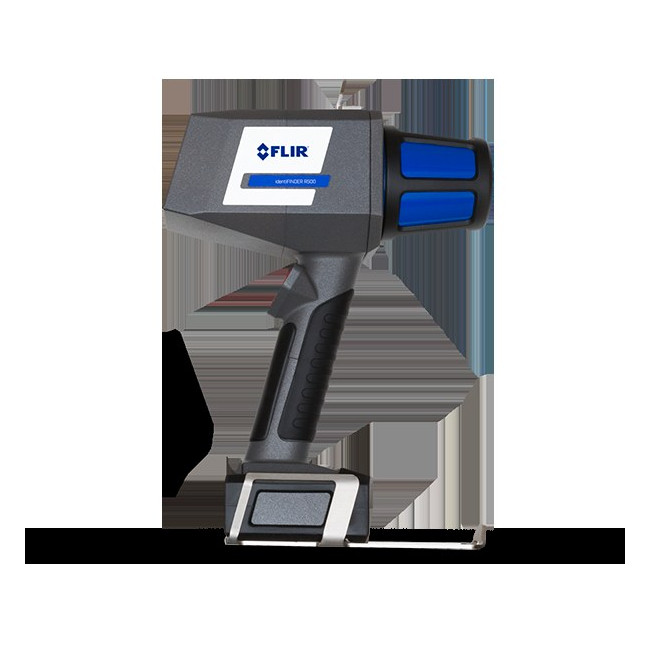

The FLIR identiFINDER R500 is a rugged radiation detection device designed for rapid identification of radioactive material at checkpoints, borders, and large cargo screening operations.
In stock
The FLIR identiFINDER R500 is the most sensitive radio-isotope identification device (RIID) available, capable of rapidly locating and identifying radioactive material in difficult monitoring scenarios. Features gamma and neutron detection, on-board Bluetooth, web server, and GPS technologies. Produces rapid visible, audible, and tactile alerts. Ideal for truck and cargo checks, large area scanning, and locating shielded sources. Rugged construction (1.0-m drop tested), high resolution detection with low false alarms, and 5-year factory maintenance included.
Description
identiFINDER R500
The FLIR identiFINDER R500 is the most sensitive radio-isotope identification device (RIID) available, capable of rapidly locating and identifying radioactive material in difficult monitoring scenarios. Features gamma and neutron detection, on-board Bluetooth, web server, and GPS technologies. Produces rapid visible, audible, and tactile alerts. Ideal for truck and cargo checks, large area scanning, and locating shielded sources. Rugged construction (1.0-m drop tested), high resolution detection with low false alarms, and 5-year factory maintenance included.
Features
Specifications
- Technology
- Radioisotope identification device (RIID)
- Product Variants
- ULCS-NG1, ULCS-NGH2, UL-LGH3, UL-LG4
- Gamma(Nal)
- 4.0×0.7in(102x19mm)
- Gamma(LaBr3)
- 1.5×1.5in(38x38mm)
- Neutrons(He-3)
- 0.7×4.2in(19x106mm)
- Gamma(High Dose Rate)
- Geiger-Müller
- Energy Range(Gamma)
- 20keV-3MeV
- Corrections
- Real-time linearization of gamma spectrum
- Gamma Spectrum
- 1024 channels;3MeV
- Dose Rate/Accuracy(Cs-137)
- 0.000nSv/h-1.00mSv/h(0nrem/h-100mrem/h)/±30%
- Scintillator Dose Rate Range
- 0nSv/h-50μSv/h(0nrem/h-5.0mrem/h)
- Geiger-Müller Dose Rate Range
- 10μSv/h-1.0mSv/h(1.0mrem/h-100mrem/h)
- Dose Range
- 0μSv-1Sv(0μrem-100rem)
- Overload Dose Rate Range
- 1mSv/h-10mSv/h(100mrem/h-1.0rem/h)
- Neutron Sensitivity
- Variants;9cps/nv;±15%
- Stabilization
- Calibration source;LED
- Typical Resolution
- Variants;≤8%FWHM;Variants;3.5%FWHM at 662 keV
- Service Interval
- 5year factory maintenance
- Sample Introduction
- Absorption of EM gamma or neutron emissions
- Threats
- Detects neutron or gamma radiation emitted from natural occurrences in the environment,special nuclear material,industrial,or medical material
- Nuclide Identification
- According to ANSI N42.34
- Sampling&Analysis
- From a few seconds to minutes
- Display&Alerts
- Transfective color LCD
- Communication
- USB2.0;mini-B socket;Bluetooth®Class2.0,≤10m range(removable)
- Data Storage
- 2GB internal memory;up to600,000 spectra
- Training Requirements
- <10mins for operator;1day for advanced user
- GPS
- 12-channelSIRFIII receiver
- Software
- On-board webserver software
- Input Voltage
- 100-240VAC(wall and car adapters and USB cable supplied)
- Battery Specs
- FLIR powerPACKultra2(LSDNiMH,rechargeable);≥8h operational battery life;recharge≤4hwhen using AC;recharge>4h when using USB
- Cold Start Time
- <2mins from cold start
- Operating Temp
- -4to122°F(-20to50°C)
- Operating Humidity
- 10to80%
- Storage Temp
- 14to95°F(-10to35°C)
- Dimensions(L×W×H)
- 8.3×5.1×12.7in(21.1×12.9×32.3cm)-with battery
- Weight
- ≤6.4lbs(≤2.9kg)
- Enclosure&Protection
- Aluminum housing;protection ratingIP54 according toIEC60529
