Heavy-duty rubber gripping surface
-
Built-in internal relief valve
-
Dual stage lifting feature keeps load stable through lift
-
Integrated heavy-duty wheels for easy travel
-
Detachable placement handle extends to 50 IN / 127 CM
-
High visibility centering stripes
-
Side handles designed to accept finger hooks or larger
-
Remote placement base assists with positioning and lifting stability
-
Conforms to EN13731-2007
-
Minimizes load drift during inflation
-
Patent-pending design
-

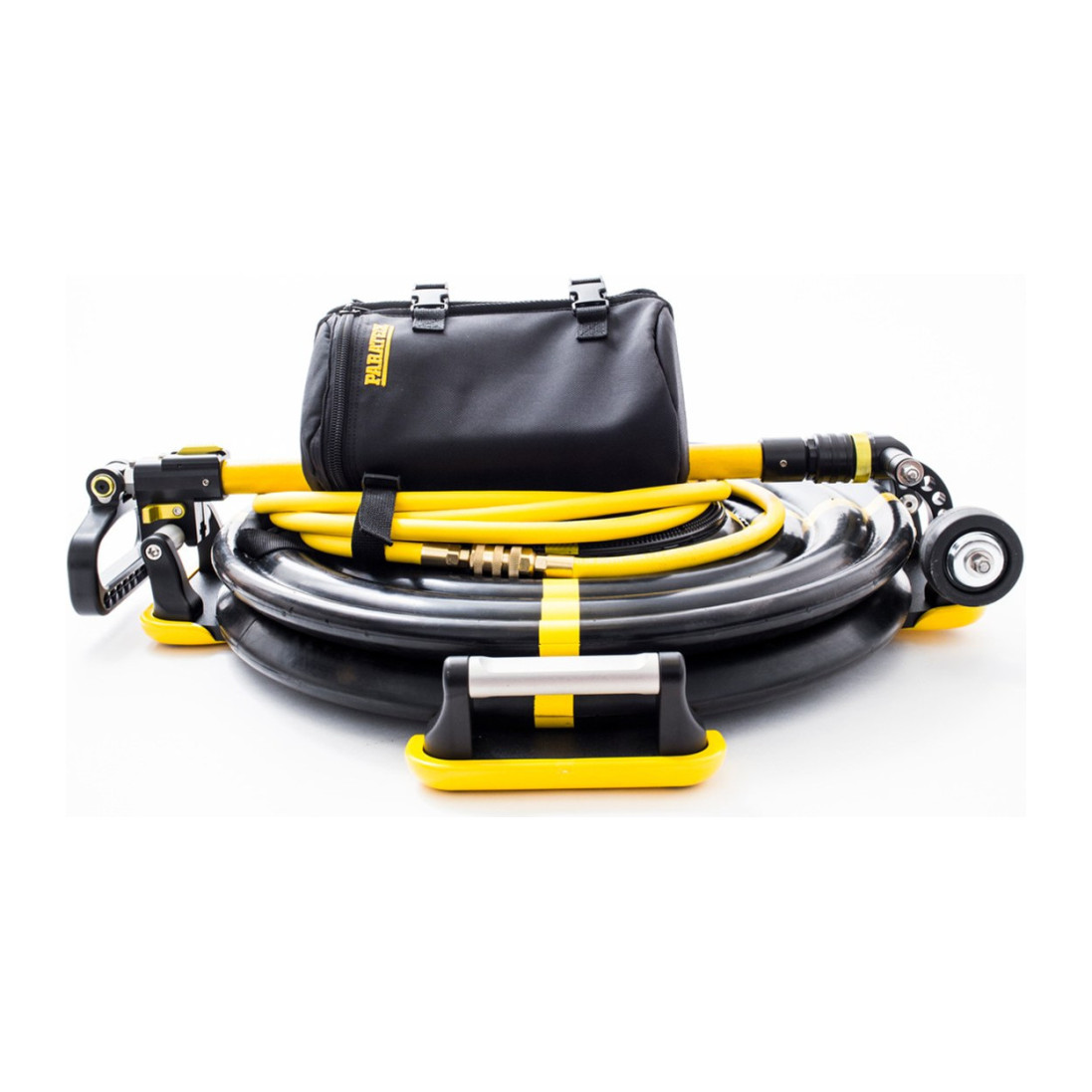

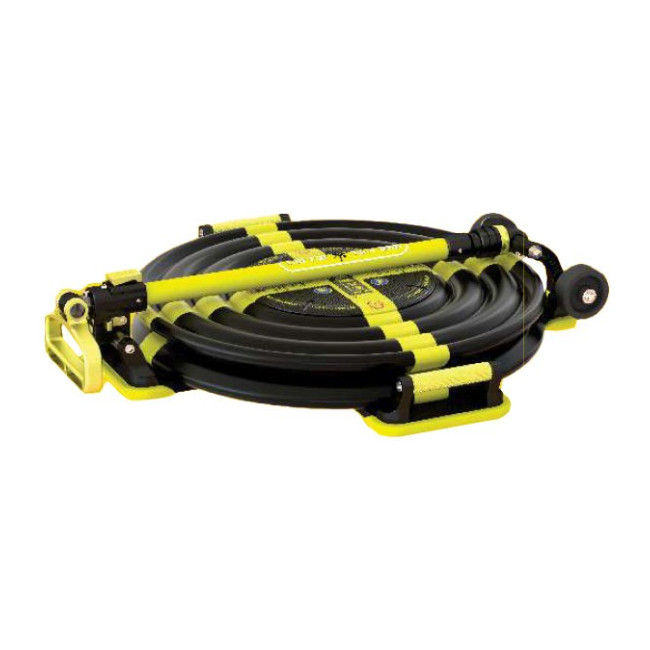

Remote lifting base doubles as storage device

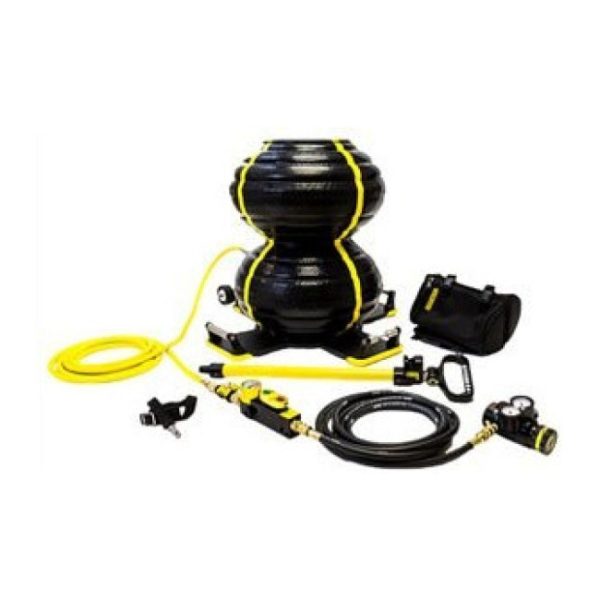

Paratech MultiForce Air Lifting Bag
$0.00
The Paratech MultiForce Air Lifting Bag is a dual-chamber pneumatic lifting system for rescue and industrial applications with 31-ton capacity and dual-stage inflation.
The Paratech MultiForce Air Lifting Bag is an advanced pneumatic lifting system designed for rescue, industrial, and heavy-duty applications. Features include a 31-ton (28.1 metric ton) lifting capacity, 26-inch (66 cm) lift height, and 4.5-inch (11.4 cm) insertion height. The innovative dual-stage lifting feature keeps loads stable during inflation to minimize drift. Built-in internal relief valves prevent over-inflation. The remote placement base with integrated heavy-duty wheels and telescoping pole (extends to 50 inches) allows safe remote positioning of personnel away from the load. Heavy-duty rubber gripping surface with high-visibility centering stripes. Side handles designed to accept finger hooks. Complies with EN13731-2007. Available in three configurations: Remote Placement (with wheels and pole), Basic (full-sized placement base), and Compact (reduced footprint). Working pressure: 150 PSI (10.3 BAR). Made in the USA.
Description
Paratech MultiForce Air Lifting Bag
The Paratech MultiForce Air Lifting Bag is an advanced pneumatic lifting system designed for rescue, industrial, and heavy-duty applications. Features include a 31-ton (28.1 metric ton) lifting capacity, 26-inch (66 cm) lift height, and 4.5-inch (11.4 cm) insertion height. The innovative dual-stage lifting feature keeps loads stable during inflation to minimize drift. Built-in internal relief valves prevent over-inflation. The remote placement base with integrated heavy-duty wheels and telescoping pole (extends to 50 inches) allows safe remote positioning of personnel away from the load. Heavy-duty rubber gripping surface with high-visibility centering stripes. Side handles designed to accept finger hooks. Complies with EN13731-2007. Available in three configurations: Remote Placement (with wheels and pole), Basic (full-sized placement base), and Compact (reduced footprint). Working pressure: 150 PSI (10.3 BAR). Made in the USA.
Features
Specifications
- LIFT HEIGHT
- 26 IN / 66 CM
- LIFT CAPACITY
- 31 TONS / 28.1 METRIC TONS
- INSERTION HEIGHT
- 4.5 IN / 11.4 CM
- WEIGHT (without placement device)
- 46.2 LBS / 21 KG
- WEIGHT (with placement device – Remote)
- 60.6 LBS / 27.5 KG
- WEIGHT (with placement device – Basic)
- 54.17 LBS / 24.57 KG
- WEIGHT (with placement device – Compact)
- 51.6 LBS / 23.41 KG
- LENGTH (without placement device)
- 23.75 IN / 60.33 CM
- LENGTH (with placement device – Remote)
- 30.71 IN / 78 CM
- LENGTH (with placement device – Basic)
- 28.81 IN / 73.18 CM
- LENGTH (with placement device – Compact)
- 24.46 IN / 62.13 CM
- WIDTH (without placement device)
- 23.5 IN / 59.7 CM
- WIDTH (with placement device – Remote)
- 27.98 IN / 71.1 CM
- WIDTH (with placement device – Basic)
- 27.98 IN / 71.07 CM
- WIDTH (with placement device – Compact)
- 23.63 IN / 60.02 CM
- STORAGE HEIGHT – Compact
- 4.88 IN / 12.39 CM
- STORAGE HEIGHT – Basic
- 4.88 IN / 12.39 CM
- STORAGE HEIGHT – Remote
- 6 IN / 15.3 CM
- SAFETY FACTOR (with placement device)
- 4 TO 1
- WORKING PRESSURE
- 150 PSI / 10.3 BAR
