Alpha, beta and gamma surface contamination measurement
-
Geiger-Mueller detector with 15 cm² and 2.0 mg/cm² end window
-
Units available: cps, CPM, Bq, Bq/cm², DPM, DPM/100 cm²
-
Compliant with IEC 60325 and ANSI N42.17A
-
Part of CSP™ family compatible with all CSP survey meters
-
Fully-integrated subsystem with hardware circuitry and control logic in probe
-
High voltage and data acquisition in probe independent of external device quality
-
Serial protocol communication with host instrument or PC
-
Calibration and QA measurements without instrument connection via Canberra Smart Probe Software
-
Plug and play operation once calibrated
-
Data logging capability storing index, date/time, measurement value, unit, and counting time
-
Firmware upgradeable via CSPS software, CSP/USB cable and PC

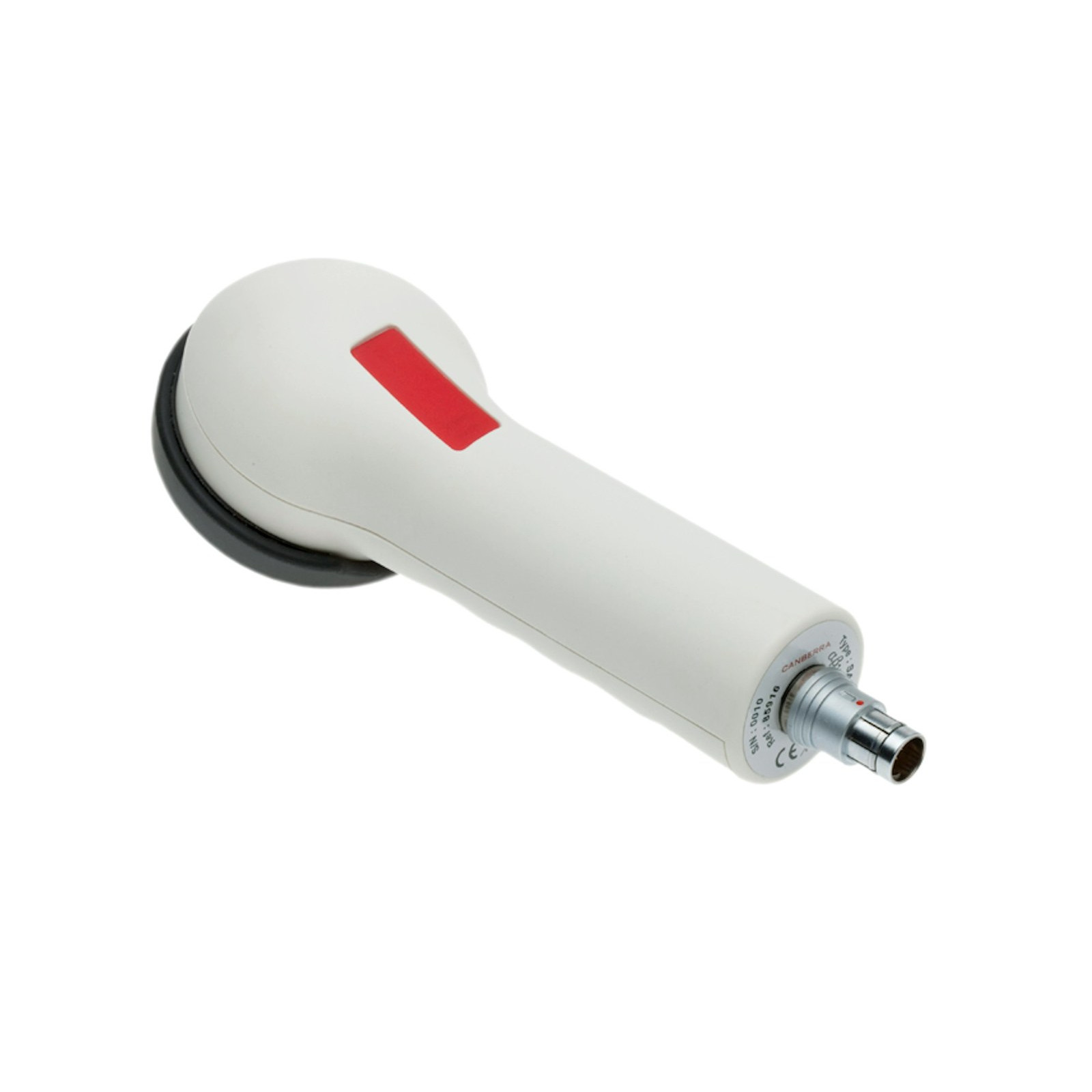

SABG-15+ Alpha/Beta/Gamma Probe
$1,078.00
The SABG-15+ is a compact smart probe from Mirion Technologies for measuring surface contamination of alpha, beta, and gamma emitters in initial survey applications.
The SABG-15+ probe is designed for the measurement of surface contamination with good sensitivity to detect alpha, beta and gamma emitters for initial survey applications. Features a Geiger-Mueller detector with 15 cm² and 2.0 mg/cm² end window. Part of the Canberra SMART Probe (CSP) family, compatible with all CSP survey meters. Includes integrated hardware circuitry (high voltage power supply, amplifier, discriminator) with intelligence located in the probe for control and storage of parameters, settings, calibrations, and alarm settings. Supports multiple measurement units: cps, CPM, Bq, Bq/cm², DPM, DPM/100 cm². Compliant with IEC 60325 and ANSI N42.17A. Stores up to 1000 data points. Firmware upgradeable via CSPS software. Connects via 1.5 or 20 meter CSP cable.
Description
SABG-15+ Alpha/Beta/Gamma Probe
The SABG-15+ probe is designed for the measurement of surface contamination with good sensitivity to detect alpha, beta and gamma emitters for initial survey applications. Features a Geiger-Mueller detector with 15 cm² and 2.0 mg/cm² end window. Part of the Canberra SMART Probe (CSP) family, compatible with all CSP survey meters. Includes integrated hardware circuitry (high voltage power supply, amplifier, discriminator) with intelligence located in the probe for control and storage of parameters, settings, calibrations, and alarm settings. Supports multiple measurement units: cps, CPM, Bq, Bq/cm², DPM, DPM/100 cm². Compliant with IEC 60325 and ANSI N42.17A. Stores up to 1000 data points. Firmware upgradeable via CSPS software. Connects via 1.5 or 20 meter CSP cable.
Features
Specifications
- Detector Type
- Geiger-Mueller
- Window Size
- 15 cm²
- Window Thickness
- 2.0 mg/cm²
- Available Units
- cps, CPM, Bq, Bq/cm², DPM, DPM/100 cm²
- Compliance
- IEC 60325 and ANSI N42.17A
- Family
- CSP™ (Canberra™ SMART Probe)
- Efficiency over 2Π – 14C
- 17%
- Efficiency over 2Π – 90Sr + 90Y
- 51%
- Efficiency over 2Π – 60Co
- 31%
- Efficiency over 2Π – 241Am
- 35%
- Data Storage Capacity
- 1000 data points
- Cable Length Options
- 1.5 meter or 20 meter CSP cable
