Remote sensor mounting up to 100 feet (30m) away from transmitter
-
Tri-color backlit LCD display with digits, bar graph and icons
-
Automatic sensor configuration
-
Fully configurable via magnetic switches
-
Two programmable alarm relays and one programmable fault relay
-
Industry standard 4-20mA output (sink or source selectable)
-
MODBUS communication for remote diagnostics and configuration
-
Flammable (catalytic or infrared), toxic and oxygen versions available
-
Stainless steel or aluminum explosion-proof housing options
-
IP66 rated as standard
-
SurecellTM electrochemical sensors
-
Poison immune infrared sensors
-
Poison resistant catalytic bead sensors
-
Long life sensors
-
Global approvals: UL, INMETRO, ATEX, IECEx, CSA, KTL, PA, GB and CCCF standards
-
Plug-in sensor replacement
-
Non-intrusive, one-man operation
-
Auto-inhibit during maintenance

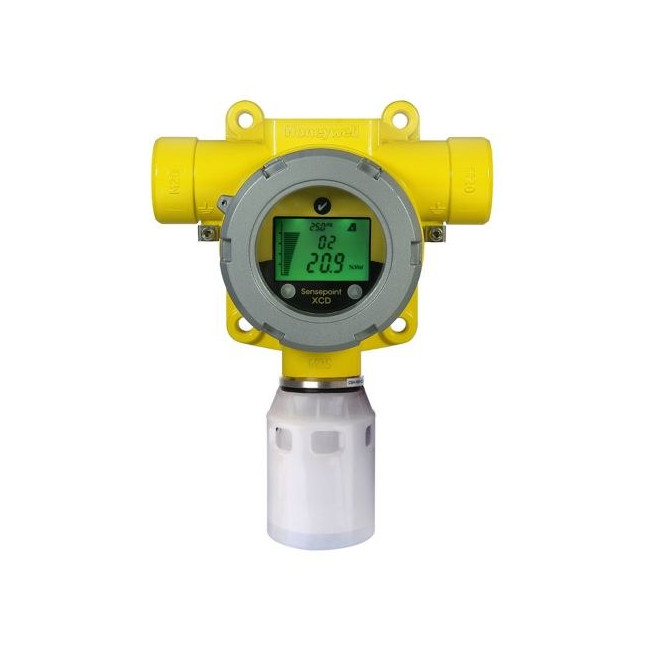

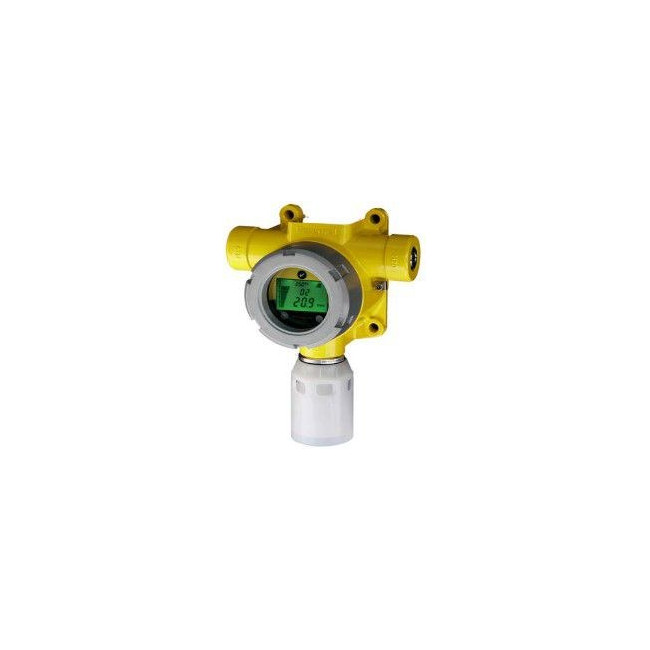

Sensepoint XCD
Honeywell Sensepoint XCD is a fixed-point gas detector transmitter for continuous monitoring of toxic, combustible, and oxygen hazards in industrial installations.
Sensepoint XCD is a comprehensive gas detector transmitter providing monitoring of combustible, toxic and Oxygen gas hazards in potentially explosive atmospheres – indoors and outdoors. Features remote toxic and Oxygen sensor mounting up to 100 feet (30m) away from the transmitter. Easy to use with sensor plug-in design and automatic configuration. Tri-color backlit LCD indicates status (green=normal, yellow=fault, red=alarm). Includes two programmable alarm relays, one programmable fault relay, industry standard 4-20mA output (sink/source selectable), and MODBUS communication. Available with catalytic, electrochemical, or infrared sensors. Proven SurecellTM electrochemical sensors and poison-resistant technology. Global approvals including ATEX, IECEx, UL, CSA, and more.
Description
Sensepoint XCD
Sensepoint XCD is a comprehensive gas detector transmitter providing monitoring of combustible, toxic and Oxygen gas hazards in potentially explosive atmospheres – indoors and outdoors. Features remote toxic and Oxygen sensor mounting up to 100 feet (30m) away from the transmitter. Easy to use with sensor plug-in design and automatic configuration. Tri-color backlit LCD indicates status (green=normal, yellow=fault, red=alarm). Includes two programmable alarm relays, one programmable fault relay, industry standard 4-20mA output (sink/source selectable), and MODBUS communication. Available with catalytic, electrochemical, or infrared sensors. Proven SurecellTM electrochemical sensors and poison-resistant technology. Global approvals including ATEX, IECEx, UL, CSA, and more.
Features
Specifications
- Brand
- Honeywell
- Product Type
- Industrial Gas
- Sub-Category
- Gas Detection Sensors & Transmitters
- Relay Included
- Yes
- Weight range
- 316 Stainless Steel: 11 lbs, Aluminium Alloy LM25: 4.4 lbs
- Minimum Temperature
- -40˚C
- Material
- 316 Stainless Steel
- Enclosure Material
- Epoxy Painted Aluminium Alloy ADC12 or 316 Stainless Steel
- Relay Output Configuration
- 3 x 5A @250 VAC
- Number of Relay Outputs
- 3
- Mounting
- Mounting Plate
- Conduit Entries
- (2) 3/4 in NPT
- Communication
- Modbus RTU, RS485
- Ingress Protection
- IP66
- Power Consumption
- Catalytic: 4.9W, Electrochemical Cells: 3.7W, IR: 3.7W
- Operating Voltage
- 12 to 32 VDC
- Industry
- Commercial Buildings, Energy, Manufacturing
