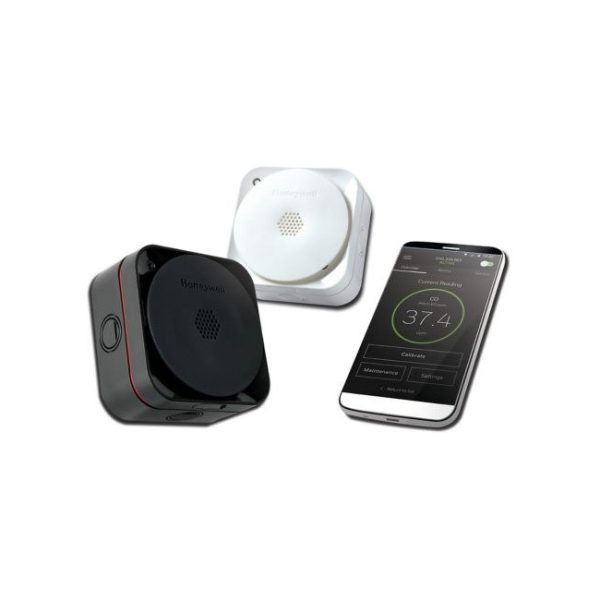

Bluetooth Low Energy (BLE) enabled smartphone app for wireless setup, commissioning, and maintenance
-
Multi-color LED visual indicators for status display (Normal, Warning, Alarm, Fault, Pairing, Connection)
-
Detects flammable, toxic gases, and oxygen with multiple selectable measuring ranges
-
Gassing port for easier bump testing in inaccessible locations
-
Optional relay output for external control systems and alarming devices
-
Selectable source or sink current for analog output enabling flexible system configuration
-
Smartphone app for automatic commissioning report generation and easy maintenance reporting
-
Simplified sensor replacement with single screw removal and app guidance
-
IP65 ingress protection suitable for washdown areas
-
Choice of 4 to 20 mA or Modbus RTU output versions
-
Diagnostic information accessible via smartphone app
Sensepoint XCL
$0.00

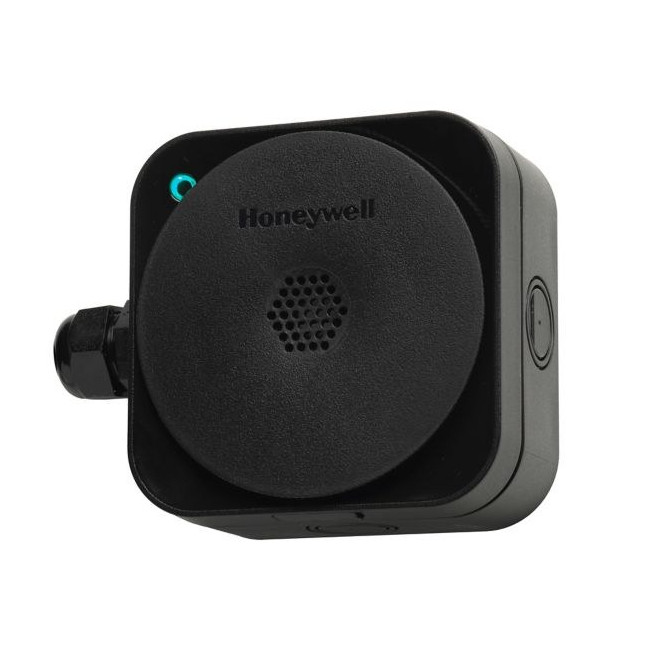

Honeywell Sensepoint XCL is a compact fixed gas detector for commercial and light industrial facilities with smartphone app-based setup and wireless commissioning.
Sensepoint XCL is a compact, fixed gas detector for commercial and light industrial use. It detects flammable, toxic gases and oxygen with Bluetooth-enabled setup that simplifies installation, commissioning, and maintenance. Features smartphone app control for wireless configuration, sensor replacement, diagnostics, and reporting. Offers flexible output options (4-20mA or Modbus), optional relay output, IP65 rating for washdown areas, and multi-color LED indicators. Everything needed for installation is included with simple drilling templates and standard toolkit setup.
Description
Sensepoint XCL
Sensepoint XCL is a compact, fixed gas detector for commercial and light industrial use. It detects flammable, toxic gases and oxygen with Bluetooth-enabled setup that simplifies installation, commissioning, and maintenance. Features smartphone app control for wireless configuration, sensor replacement, diagnostics, and reporting. Offers flexible output options (4-20mA or Modbus), optional relay output, IP65 rating for washdown areas, and multi-color LED indicators. Everything needed for installation is included with simple drilling templates and standard toolkit setup.
Features
Specifications
- Brand
- Honeywell
- Sub-Category
- Gas Detection Sensors & Transmitters
- Alarm Included
- Yes
- Display Readout
- LED Indicator
- Weight range
- 500 g
- Dimension
- 113 mm x 113 mm x 59 mm
- Humidity Range
- 15 to 90% RH (Non-Condensing)
- Analog Outputs
- 0 to 22 mA
- Relay Output Configuration
- 2 x @24 V DC/240 V AC, 5A
- Wireless Communication
- Bluetooth 4.0 (Bluetooth Low Energy)
- Maximum Pressure
- 110 kPa
- Measuring Range
- CO2 (% vol Range): 5.0% vol (Adjustable Between 1.0 and 5.0% vol); CO2 (ppm Range): 5,000 ppm (Adjustable between 1,000 and 5,000 ppm); CO: 300 ppm (Adjustable Between 50 and 1000 Ppm); Combustible: 0 to 100 % LEL (Factory Calibrated to Methane); H2: 1,000 ppm; H2S High Range: 100 ppm (Adjustable Between 50 and 200 ppm); H2S Low Range: 50 ppm (Adjustable Between 10 and 50 ppm); NH3: 200 ppm (Adjustable Between 50 and 200 ppm); NO2: 20 ppm (Adjustable Between 5 and 50 ppm); O2: 0 to 25% vol
- Digital Output
- Modbus RTU
- Minimum Temperature
- -20°C
- Maximum Operating Current
- 850 mA
- Electrical Connection
- Pluggable Rising Clamp Style, 0.5 to 1.5 sq.mm (20 to 16 AWG)
- Operating Voltage
- 24 VDC
- Ingress Protection
- IP65
- Enclosure Material
- Polycarbonate
