  • Redwave Technologies

    ThreatID

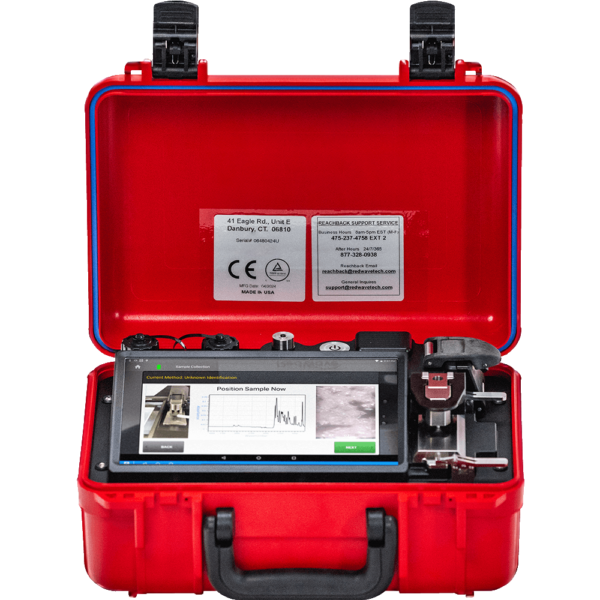

    ThreatID™ is a state-of-the-art chemical identifier, designed with input from first responders from all over the USA. The superior performance, ergonomics and usability of ThreatID™ supports higher confidence identification of unknowns, and quicker decision making.

    Add to Quote
    Facebook
    Twitter
    LinkedIn
    Pinterest

    Description

    ThreatID

    The Most Advanced FTIR Analyzer For Identifying Chemical Threats

    RedWave Technology is at the forefront of developing FTIR spectroscopic analyzers for comprehensive chemical identification. As a tightly focused company, their mission is straightforward – provide superior chemical analyzer products and exceptional technical support for hazmat responders, US military and other government organizations.

    ThreatID™ is the state-of-the-art chemical identifier, designed with input from first responders from all over the USA. The superior performance, ergonomics and usability of ThreatID™ supports higher confidence identification of unknowns, and quicker decision making.

    RedWave Technologies has developed a multi-tiered data analysis methodology for dealing with complex mixtures and identifying the hazards contributed by the major components.

    Features

    • Capable of identifying more than 23,000 solids and liquids

    • Capable of identifying more than 5,000 gases and vapors as low as 25 ppm

    • 4-meter gas cell

    • Swap from ATR to gas cell (and back) in less than 10 seconds w/ no re-alignment necessary

    • Adaptable to all sample collection methods (Tedlar bags, PID w/ outlet, syringe, canister, pump, etc.)

    • No downtime from over-saturation

    FTIR Technology

    Any substance in contact with the diamond surface is interrogated by IR energy and a spectrum is acquired that is a characteristic pattern of the substance. In seconds, this IR “fingerprint” is automatically compared with libraries of digital reference spectra – Toxic Industrial Chemicals (TICs), Narcotics (including Fentanyl), Explosives, Pesticides, Weapons of Mass Destruction, Chemical Warfare Agents, and common household chemicals.


    23,000 Substance Library

    ThreatID comes standard with more than 23,000 reference spectra of pure substances and common mixtures including WMD’s (w/ Novichok agents), explosives and drugs including fentanyl & fentanyl derivatives. All library spectra are matched to RedWave’s proprietary onboard chemical information database, ThreatAssistTM. Web-based chemical informational databases such as NIOSH, PubChem and WISER are automatically searched with push-button links for all library files as well.


    ThreatAssist

    The ThreatAssist onboard database provides additional information on any library entry such as chemical name, synonyms, common use, hazards and PPE as well as many more chemical-specific properties. With the click of a button, all information about the sample and spectrometer, including spectra, library hits, data manipulation, system health and date/time of sample acquisition can be sent via email, directly from the spectrometer.


    Specifications

    Weight
    14 lbs
    Size
    14” X 10.6” X 6.12”
    Enviromental Features
    IP67 compliant
    Interface
    Hardened 10″ touch-screen display
    Computer
    Quad-core 64-bit CPU
    Storage
    4 GB RAM, 64 GB solid state drive
    Comms/connections
    USB, WiFi, Bluetooth, Ethernet and HotSpot
    Security protocol
    WPA2
    Operating System
    Android® 7.1

    Resources

    Media

    RedWave Technology – ThreatID Overview

    ThreatID – The most powerful FTIR chemical analyzer

    THREATID-GLS Walk-Through Demo

    THREATID – Gas Cell Module Demonstration
