Simultaneous readout on 2 channels
-
Two alarm levels per channel
-
Discrete and common relays
-
NEMA 4X enclosure
-
4-20 mA outputs
-
Proven, long-life sensors for a wide variety of gases
-
Accepts any 4-20 mA transmitter input (24 VDC)
-
Easy to install, operate and expand
Beacon 200
$0.00
The Beacon 200 is a 2-channel gas detection controller with dual alarm levels per channel, designed for industrial facilities requiring fixed-point monitoring of combustibles, oxygen, hydrogen sulfide, or carbon monoxide.
In stock

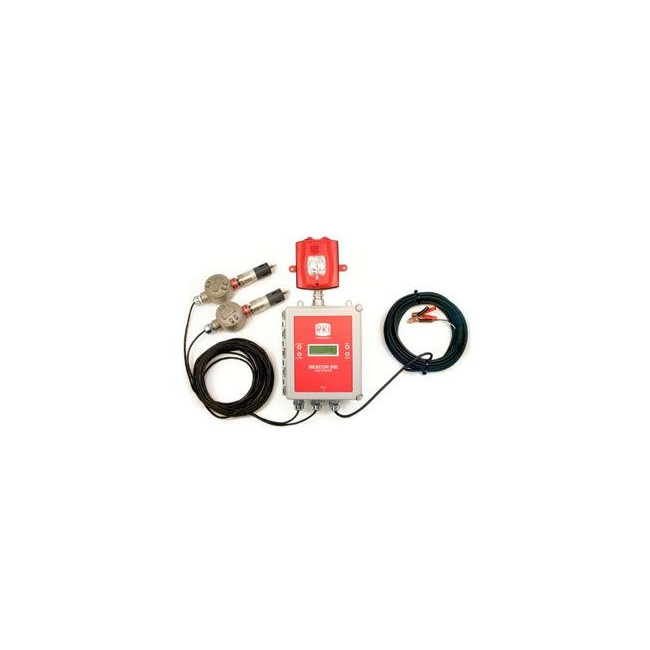

The Beacon 200 is a microprocessor-controlled fixed system controller for two points of gas detection. It features simultaneous readout on 2 channels with two alarm levels per channel, discrete and common relays, and a NEMA 4X enclosure rated for corrosion resistance. The controller accepts any 4-20 mA transmitter input (24 VDC) and can connect directly to RKI sensors for LEL combustibles, Oxygen, Hydrogen Sulfide, or Carbon Monoxide. With 10 amp rated relays, digital display with backlighting, external reset switch, and wall mounting kit included, it is designed for easy installation and operation in petrochemical plants, refineries, water treatment, utilities, parking garages, manufacturing, and other industrial applications.
Description
Beacon 200
The Beacon 200 is a microprocessor-controlled fixed system controller for two points of gas detection. It features simultaneous readout on 2 channels with two alarm levels per channel, discrete and common relays, and a NEMA 4X enclosure rated for corrosion resistance. The controller accepts any 4-20 mA transmitter input (24 VDC) and can connect directly to RKI sensors for LEL combustibles, Oxygen, Hydrogen Sulfide, or Carbon Monoxide. With 10 amp rated relays, digital display with backlighting, external reset switch, and wall mounting kit included, it is designed for easy installation and operation in petrochemical plants, refineries, water treatment, utilities, parking garages, manufacturing, and other industrial applications.
Features
Specifications
- Dimensions
- Height: 10.5″ 267 mm Width: 8.5″ 216 mm Depth: 6.3″ 158 mm
- Enclosure
- Wall mounting grey polycarbonate with hinged cover
- Conduit Connection
- 3/4″ NPT conduit hubs, 3 provided. 2 for sensor wiring and 1 for power & relay wiring
- Wiring Termination
- Screw type terminal block, 14 gauge max
- Controls
- 4 internal push buttons for setup, programming, and calibration. 1 external push button for alarm reset
- Operating Temp
- -4°F to 122°F (-10°C to 50°C)
- Storage Temp
- -4°F to 158°F (-20°C to 70°C)
- Relative Humidity
- 0 – 80% RH
- Enclosure Rating
- NEMA-4X enclosure, waterproof, chemical, and weather resistant
- Direct Wired Sensors
- LEL, Oxygen, Carbon Monoxide, Hydrogen Sulfide Remote amp not required for less than 500 feet
- 4-20 mA Sensors
- Accepts any 4-20 mA transmitter (24 VDC, 2 or 3 wire). Wiring distances up to 5000 feet
- Sampling Methods
- Diffusion and sample draw heads available
- Relays
- 7 relays – 10 amp rating (at 115 VAC), SPDT isolated contacts. 2 relays for gas alarm levels per channel, plus 2 relays for common gas alarm and 1 common relay for malfunction. Fully programmable
- 4-20 mA Output
- Signal output, 4-20 mA (into 1000 ohms impedance maximum), per channel
- 24 VDC Output
- 24 VDC (350 mA max) output provided to operate sample drawing adapters or other accessories
- Display
- Alphanumeric display with backlighting. 20 characters per line; 4 lines each
- Audible Alarm
- Built-in audible alarm, 94 dB, mounted on enclosure. Coded output: pulsing = gas alarm, steady = fail
- Visual Indicators
- 4 LED’s on the front cover for alarm status indication, pilot, and malfunction
- Optional Expansion Cards
- Individual 4-20 mA (or 1 – 5 VDC) outputs. Heavy duty relay card (4 each @ 30 amps)
- Power
- 110-240 VAC or 24 VDC standard. Battery backup option available
- Warranty
- One year materials and workmanship
