Capable of up to 8 separate channels
-
Digital display of all 8 channels simultaneously
-
Compact, weatherproof, NEMA 4X enclosure
-
85 to 264 VAC or 24 VDC operation
-
Long life sensors (2+ years typical)
-
Accepts any 4-20 mA transmitter
-
Audible alarm with reset button
-
Two programmable alarm levels per channel
-
Common alarm and fail relays
-
Relay rating 3 amps, form C
-
Low cost versatile solution

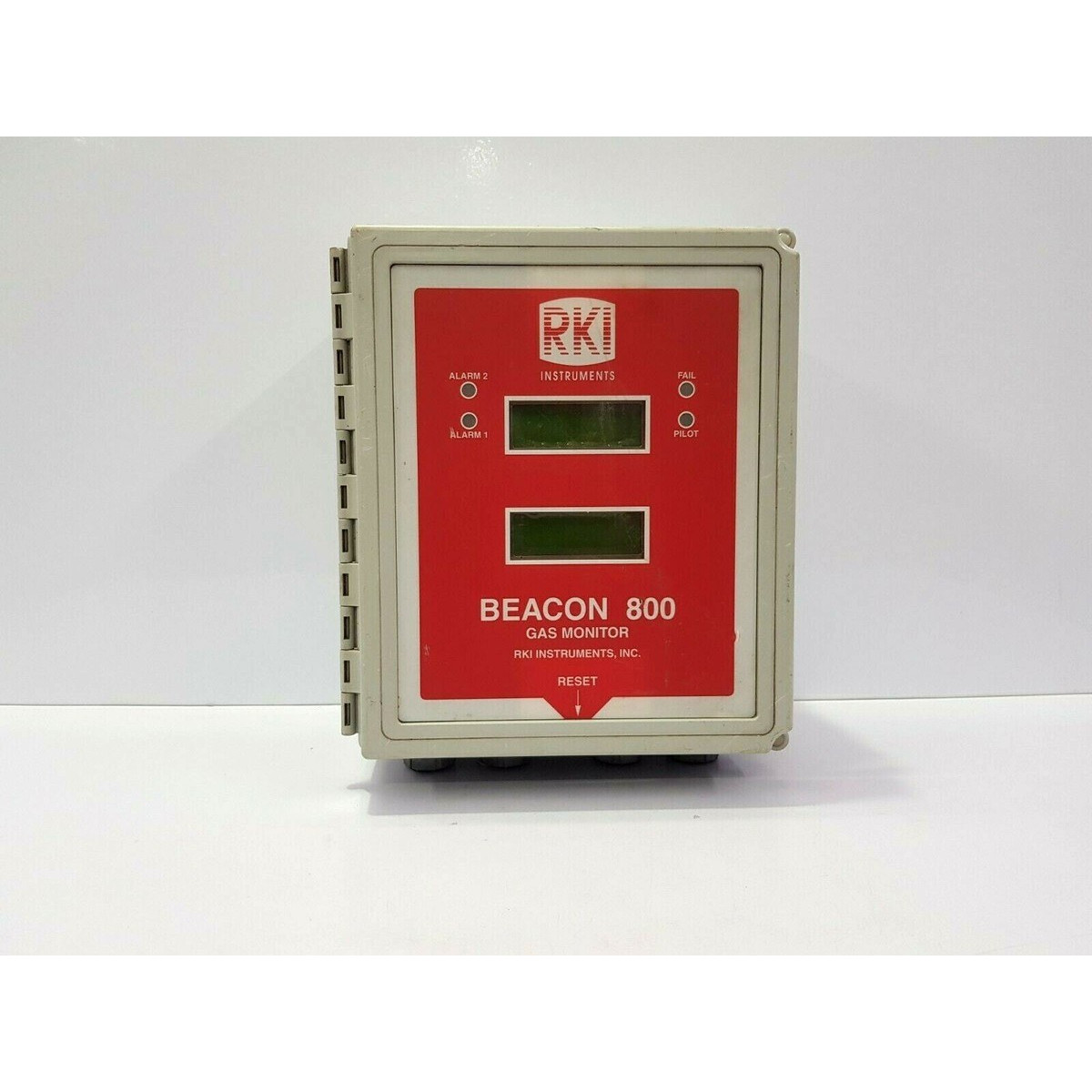

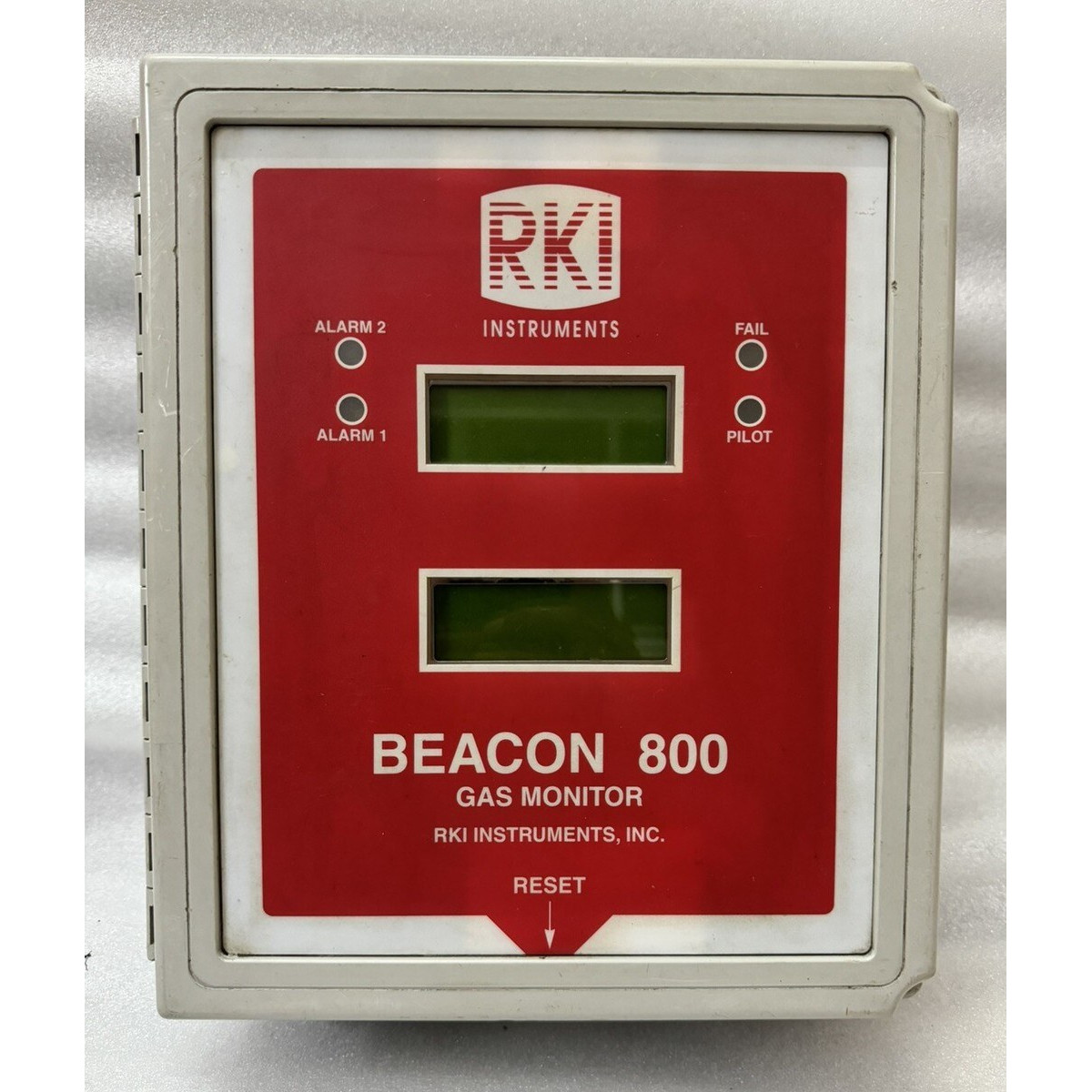

Beacon 800
$0.00

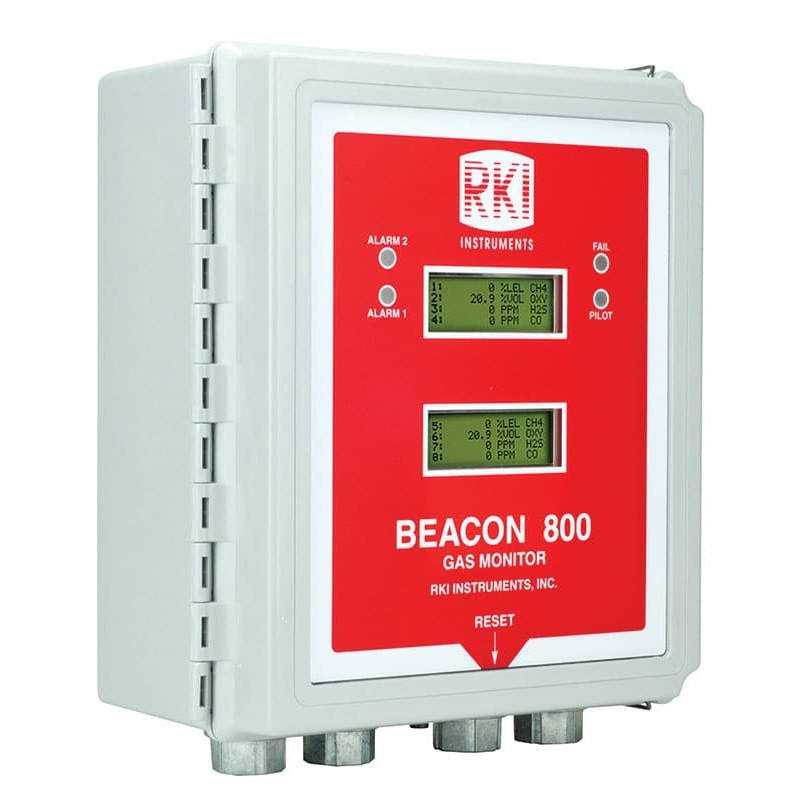

The Beacon 800 is an 8-channel fixed gas-detection controller for petrochemical, industrial, and commercial facilities requiring multi-point monitoring with dual digital displays and dual alarm levels per channel.
In stock
The Beacon 800 is a versatile, low-cost fixed system controller for one to eight points of gas detection. Microprocessor controlled, it accepts up to 8 separate 4-20 mA sensor transmitters (2 or 3 wire). Features dual large digital backlighted displays showing gas type and concentration for all 8 channels simultaneously. NEMA 4X weatherproof enclosure with wall mount installation kit. Powered by 24 VDC or 85-264 VAC. Includes audible alarm with external reset switch, two programmable alarm levels per channel, common alarm and fail relays (3 amp rating, form C). Compatible with RKI’s wide selection of standard and toxic gas detection sensors for applications including petrochemical plants, refineries, water treatment, utilities, and parking garages.
Description
Beacon 800
The Beacon 800 is a versatile, low-cost fixed system controller for one to eight points of gas detection. Microprocessor controlled, it accepts up to 8 separate 4-20 mA sensor transmitters (2 or 3 wire). Features dual large digital backlighted displays showing gas type and concentration for all 8 channels simultaneously. NEMA 4X weatherproof enclosure with wall mount installation kit. Powered by 24 VDC or 85-264 VAC. Includes audible alarm with external reset switch, two programmable alarm levels per channel, common alarm and fail relays (3 amp rating, form C). Compatible with RKI’s wide selection of standard and toxic gas detection sensors for applications including petrochemical plants, refineries, water treatment, utilities, and parking garages.
Features
Specifications
- Dimensions_Height
- 12.5″ 318 mm
- Dimensions_Width
- 11.0″ 279 mm
- Dimensions_Depth
- 6.4″ 163 mm
- Enclosure
- Wall mounting grey polycarbonate with hinged cover
- Conduit_Connection
- 3/4″ NPT conduit hubs, 4 provided for sensors, power and relay wiring
- Wiring_Termination
- Screw type terminal block, 14 gauge max
- Operating_Temp
- -4°F to 122°F (-10°C to 50°C)
- Storage_Temp
- -4°F to 158°F (-20°C to 70°C)
- Relative_Humidity
- 0 – 80% RH
- Enclosure_Rating
- NEMA-4X enclosure, waterproof, chemical, and weather resistant
- Input_4-20_mA
- Accepts any 4-20 mA transmitter (24 VDC, 2 or 3 wire). Wiring distances up to 8,000 feet
- Relays
- 2 relays per channel 10 amp rating, SPDT isolated contacts. 1 set of common relays: 2 for gas alarm levels, 1 for malfunction. Relays fully programmable for increasing or decreasing alarms, latching or self reset, normally energized or normally de-energized, time delay for alarm on and alarm off
- Display
- 2 alphanumeric displays with backlighting. 16 characters per line; 4 lines each. All 8 channels continuously displayed
- Audible
- Built-in audible alarm, 94 dB steady tone, mounted on enclosure
- Visual
- 4 visual LED alarms on front cover for alarm indications, pilot, and malfunction
- Optional_Expansion_Cards
- Individual 4-20 mA (or 1 – 5 VDC) outputs. Heavy duty relay card (4 each @ 30 amps)
- Power
- 85-264 VAC or 24 VDC standard. Battery backup option available
- Approvals
- CSA Certified to CSA C22.2 No. 1010 and ANSI/ISA S82.01
- Warranty
- One year materials and workmanship
