    Sensit GOLD G2 – Advanced Multi-Gas Leak Detector for Confined Space and Inert Gas Applications

    The GOLD G2 detects gas leaks and toxic gases in confined spaces—even in inert, oxygen-free environments. Configurable for PPM, LEL, % Volume, and more.

    Add to Quote
    Facebook
    Twitter
    LinkedIn
    Pinterest

    Description

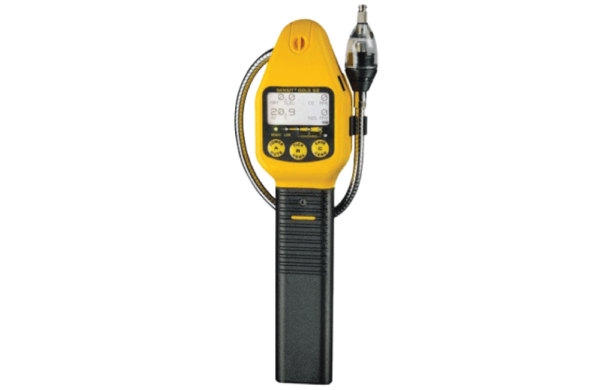

    Sensit GOLD G2

    Next-Generation Performance for Gas Detection in Any Environment

    The Sensit GOLD G2 is an advanced multi-gas detector engineered for pinpoint gas leak detection and confined space monitoring—even in oxygen-free environments. Whether you’re operating in a standard work zone or conducting inert gas operations, the GOLD G2 provides the accuracy, adaptability, and rugged performance you need.

    This versatile instrument can be configured to detect combustible gases in PPM, LEL, and percent volume, as well as a variety of toxic gases and oxygen levels, making it ideal for utilities, oil and gas, fire service, and environmental safety professionals.

    The GOLD G2 supports accurate readings across complex conditions, enabling early leak detection and safe atmospheric monitoring before and during entry. It’s a trusted tool for high-risk environments where fast, reliable gas measurement is critical to worker safety and regulatory compliance.

    Features

    • Intrinsically Safe Design (Certified)

    • Internal Pump – Fast Sampling

    • Audible “Tick” Control – Fast Leak Location

    • Lowest Cost, Long Life Sensors

    • LED Warning Lights

    • Bright Graphic Display

    • Loud Audible Alarm

    • Battery Strength Indicator

    Applications

    • Combustible Gas Leak Detection

    • Gas Leak Survey

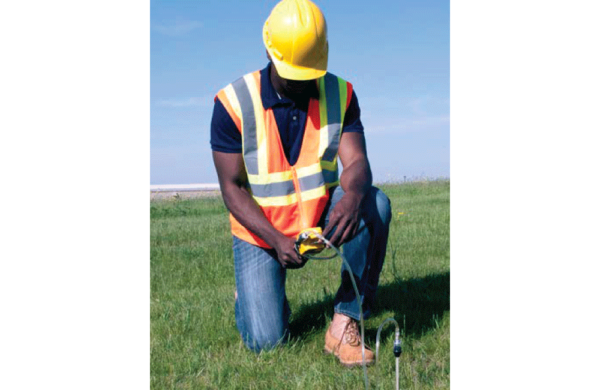

    • Underground Leak Pinpointing

    • Carbon Monoxide Investigations

    • Confined Space Monitoring

    • Combustible Gas Measurements

    • Pipeline Purging

    • Method 21 Emissions Testing

    • Inert Gas Operations

    Partial List of Gasses Sensed

    • Acetone

    • Alcohol

    • Ammonia

    • Butane

    • Gasoline

    • Halon

    • Hydrogen

    • Jet Fuel

    • Ethylene Oxide

    • Methane

    • Natural Gas

    • Propane

    • Refrigerants

    • Solvents

    Specifications

    General Specifications

    Dimensions
    11.5 x 3 x 2.32″ (29.2 x 7.6 x 5.9cm)
    Weight
    1.2lbs (544g)
    Operational Temperature
    -4 to 104°F (-20 to 40°C)
    Battery Life
    Alkaline: Approximately 18hrs continuous

    Sensor Specifications

    LEL %
    Resolution: 0.1%
    Range: 0 to 100% LEL
    Accuracy: ±10%
    Natural Gas
    Resolution: 0.1%
    Range: 5 to 100% Gas
    Accuracy: ±5%
    Propane
    Resolution: 0.1%
    Range: 2.2 to 100% Gas
    Accuracy: ±5%
    Oxygen (O2)
    Resolution: 0.1%
    Range: 0 to 25%
    Accuracy: ±0.2% or 10% (whichever is greater)

    Sensor Specifications (cont’d)

    Carbon Monoxide (CO)
    Resolution: 1ppm
    Range: 0 to 2000ppm
    Accuracy: ±5ppm or 5% (whichever is greater)
    Hydrogen Sulfide (H2S)
    Resolution: 1ppm
    Range: 0 to 100ppm
    Accuracy: ±2ppm or 5% (whichever is greater)
    Hydrogen Cyanide (HCN)
    Resolution: 1ppm
    Range: 0 to 30ppm
    Accuracy: ±1ppm or 5% (whichever is greater)

    Resources

    Media

    SENSIT GOLD G2 Multi-Gas Detector Introduction

    SENSIT GOLD G2 Multi-Gas Detector Quick Start Guide

    SENSIT GOLD G2 Calibration

    SENSIT GOLD G2 Calibration Using The SMART-CAL Calibration Station

    SENSIT GOLD G2 Tick Feature

    SENSIT GOLD G2 Leak Search Mode

    SENSIT GOLD G2 Bar Hole Test Mode

    SENSIT GOLD G2 Purge Mode
