    M 40 E3 Spreader

    M 40 E3 is a long-reach, high-force spreader that delivers a 40.1 in spreading distance, E3 smart feedback and “Shark Tooth” tips for heavy rescue and rapid large-gap extrication.

    Add to Quote
    Facebook
    Twitter
    LinkedIn
    Pinterest

    Description

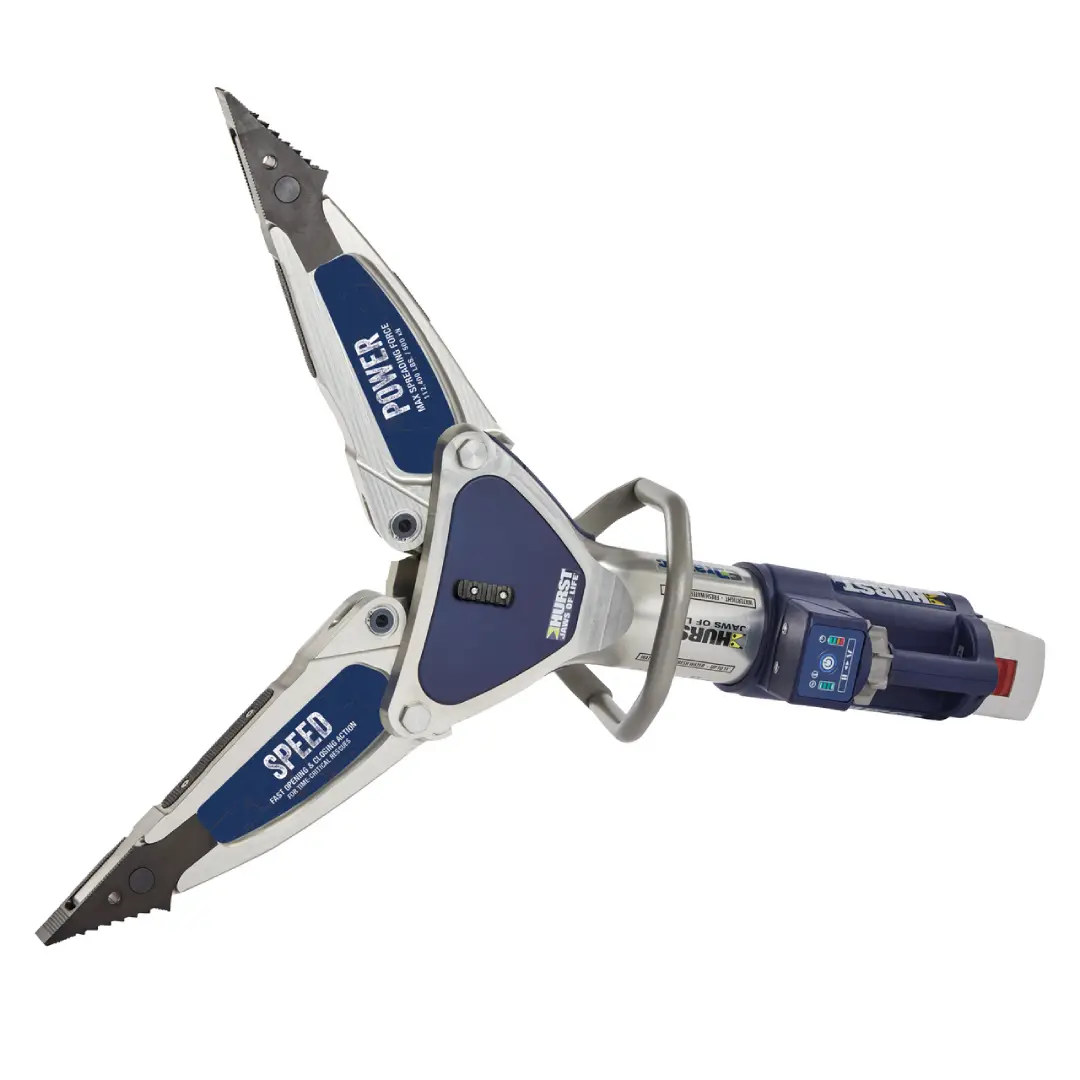

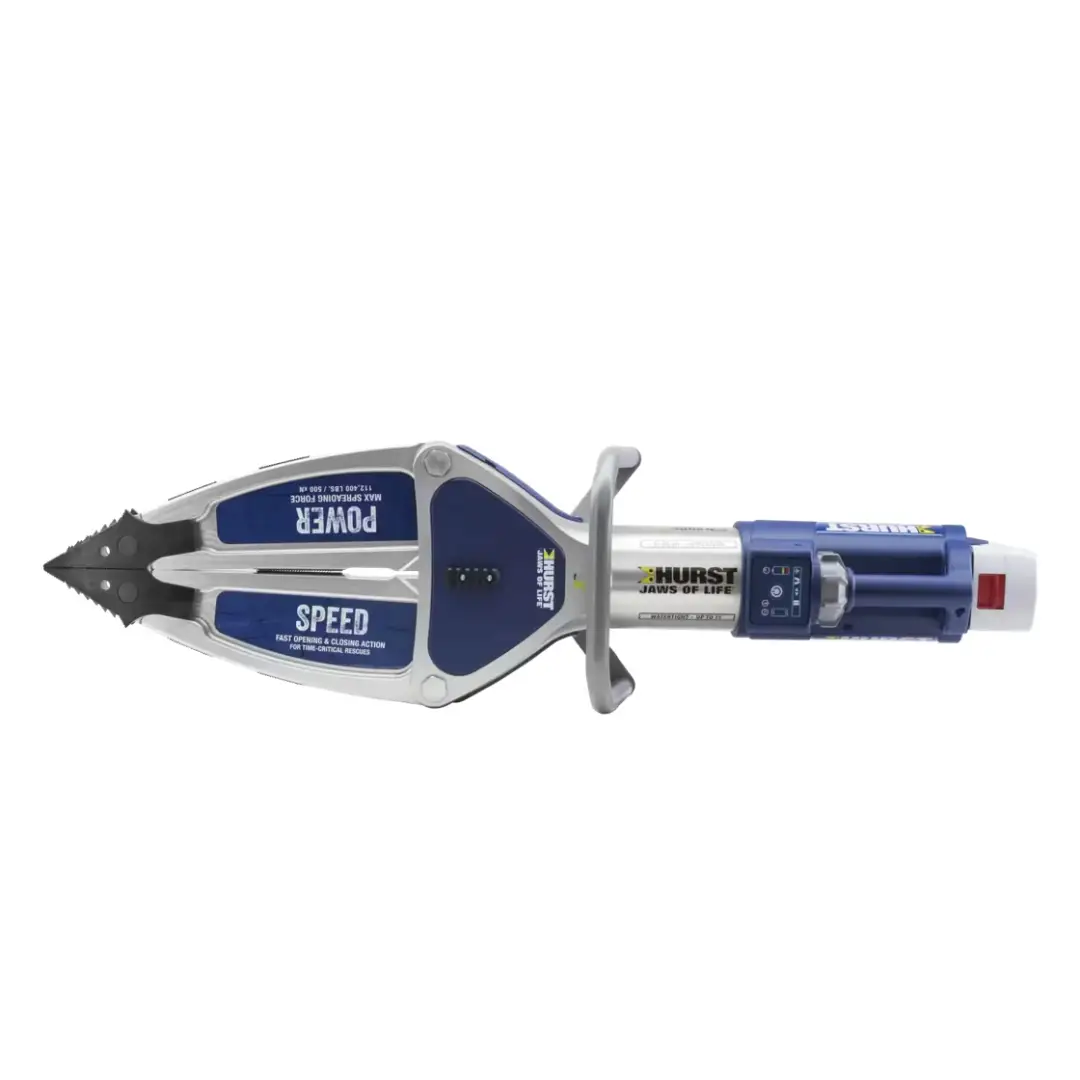

    M 40 E3 Spreader

    40 in E3 spreader for massive openings

    The HURST M 40 E3 Spreader—often called “The Mammoth”—is built to create very large openings with a single, decisive move. Its 40.1 in spreading distance lets crews rapidly move or separate major structural components, making it an excellent choice for heavy rescue, large vehicles and complex entrapments.

    Like other E3 tools, the M 40 integrates a smart dashboard that provides live tool feedback, including power output and battery status. The watertight single-cylinder body design and optional saltwater-capable batteries support operations in rain, flooding and even submerged scenarios, without sacrificing control or visibility.

    Integrated squeezing plates and “Shark Tooth” removable tips give operators multiple options for gripping, peeling and spreading high-strength materials. Despite its size, the spreader remains well-balanced and is packaged with Li-ion batteries and a charger so it’s ready for big jobs right out of the box.

    Features

    • 40.1 in spreading distance for very large openings.

    • Designed for heavy rescue, buses, trucks and complex extrications.

    • Watertight E3 design for fresh and salt water use.

    • E3 smart dashboard with real-time power and battery info.

    • “Shark Tooth” tips and built-in squeezing plates for strong grip and peeling.

    Huge Spreading Capability

    Purpose-built to make large gaps quickly.

    • Spreading distance approx. 40.1 in / 1,018 mm.

    • Max spreading force around 112,400 lbf / 500 kN.

    • Max pulling force about 11,240 lbf / 50 kN.

    E3 Smart Technology

    Dash feedback keeps crews informed during high-load spreading.

    • Displays tool load and battery status in real time.

    • Shows when a saltwater-capable battery is installed.

    • Turbo function for faster rescue cycles (per E3 configuration).

    Rugged Arms & Tips

    Designed to maintain grip and control on large, heavy components.

    • Single integrated cylinder body with squeezing plates built into the arms.

    • “Shark Tooth” removable tips with multiple rows of teeth for aggressive grip.

    • Package includes two Li-ion batteries and a charger (per kit configuration).

    Specifications

    Tool Specifications

    Model
    M 40 E3 Spreader
    Length
    43.6 in / 1,106 mm
    Width
    12.1 in / 309 mm
    Height
    9.96 in / 253 mm
    Weight
    54.9 lb / 24.9 kg (tool only)
    Spreading Distance
    40.1 in / 1,018 mm

    Performance

    Max Spreading Force
    112,400 lbf / 500 kN
    Max Pulling Force
    11,240 lbf / 50 kN
    NFPA HSF
    16,190 lbf / 72 kN
    NFPA LSF
    10,120 lbf / 45 kN
    NFPA HPF
    9,442 lbf / 42 kN
    NFPA LPF
    5,171 lbf / 23 kN

    Ratings & Power

    Standard Compliance
    NFPA 1960, 2024 edition (spreader)
    Ingress Protection
    IP58 tool rating
    Battery Platform
    E3 / EWXT 5Ah and 9Ah batteries (with optional saltwater-capable models)
    Typical Package
    Tool, two Li-ion batteries, one charger (kit dependent)

    Media

    Hurst M 40 E3 Spreader Introduction
