    Honeywell MiniRAE 3000+ – High-Range VOC Detector with 15,000 ppm PID

    MiniRAE 3000+ is a rugged VOC detector with a 15,000 ppm PID, real-time connectivity, and auto-cleaning sensor—ideal for HazMat, leak detection, and remediation.

    Add to Quote
    Facebook
    Twitter
    LinkedIn
    Pinterest

    Description

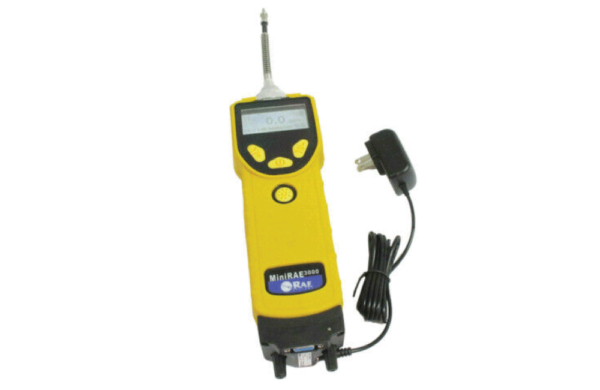

    Honeywell MiniRAE 3000+

    Advanced VOC Detection with Maximum Range, Connectivity, and Durability

    The Honeywell MiniRAE 3000+ is one of the most comprehensive and capable handheld volatile organic compound (VOC) monitors on the market today. Built with Honeywell’s patented 3rd-generation Photoionization Detector (PID) technology, this powerful monitor detects ionizable chemicals from 0 to 15,000 ppm, making it ideal for industrial hygiene, HazMat response, leak detection, and remediation applications.

    With a 3-second response time and correction factors for over 200 compounds, it provides precise real-time data. Its auto-cleaning sensor and Reflex PID Technology™ ensure optimal uptime and accuracy—even in dirty environments.

    The MiniRAE 3000+ also features real-time wireless connectivity via Bluetooth or optional Mesh Radio. Data and alarms can be transmitted up to 2 miles to a RAELink3 wireless transmitter, making it a smart solution for connected safety teams.

    Features

    • Highly accurate VOC measurements

    • Reflex PID Technology

    • VOC detection range from 0 to 15,000 ppm

    • Humidity compensation with built-in humidity and temperature sensors

    • Low maintenance — easy access to lamp and sensor

    • Low cost of ownership

    • 3-year 10.6eV lamp warranty

    • BLE module & dedicated APP for Enhanced Datalogging capability

    Proven Technology

    Third-generation patented PID Technology

    • Most advanced handheld VOC monitor on the market

    • PID measures from 0-15,000 ppm

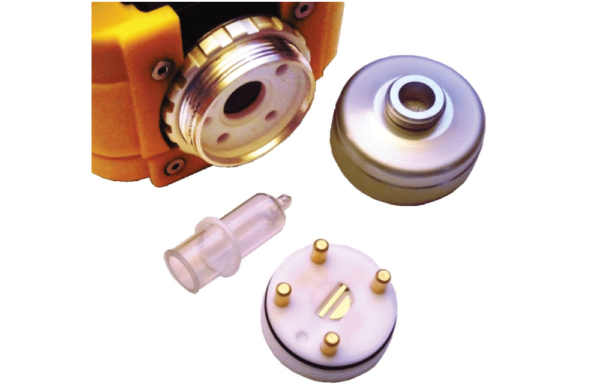

    • Patented PID lamp auto-cleaning technology

    Rapid and Accurate Results

    Results you can trust, in seconds

    • 3-second response time

    • Humidity compensation with built-in humidity and temperature sensors

    • Patented Reflex PID Technology

    Rugged and Reliable

    Rugged housing withstands use in harsh environments

    • IP67 waterproof design for easy cleaning and decontamination in water

    • Built-in flashlight

    • Strong protective removable rubber boot

    Specifications

    Instrument Specifications

    Size
    10” L x 3.0” W x 2.5” H (25.5 cm x 7.6 cm x 6.4 cm)
    Weight
    26 oz (738 g)
    Sensors
    Photoionization sensor with standard 10.6 eV or optional 9.8 eV or 11.7 eV lamp
    Battery
    Rechargeable, external field-replaceable Lithium-Ion battery pack
    Alkaline battery adapter
    Running time
    16 hours of operation (12 hours with alkaline battery adapter)
    Display Graphic
    4 lines, 28 x 43 mm, with LED backlight for enhanced display readability
    Keypad
    1 operation and 2 programming keys, 1 flashlight on/off
    Direct Readout
    Instantaneous reading
    VOCs as ppm by volume (mg/m³)
    High values
    STEL and TWA
    Battery and shutdown voltage
    Date, time, temperature
    Alarms
    95dB at 12” (30 cm) buzzer and flashing red LED to indicate exceeded preset limits
    High: 3 beeps and flashes per second
    Low: 2 beeps and flashes per second
    STEL and TWA: 1 beep and flash per second
    Alarms latching with manual override or automatic reset
    Additional diagnostic alarm and display message for low battery and pump stall
    EMC/RFI
    Compliant with EMC directive (2004/108/EC) EMI and ESD test: 100MHz to 1GHz 30V/m, no alarm
    Contact: ±4kV
    Air: ±8kV, no alarm
    IP Rating
    IP-67 unit off and without flexible probe
    IP-65 unit running
    Datalogging
    Standard 6 months at one-minute intervals

    Instrument Specifications (cont’d)

    Calibration
    Two-point or three-point calibration for zero and span
    Reflex PID Technology
    Calibration memory for 8 calibration gases, alarm limits, span values and calibration dates
    Sampling Pump
    Internal, integrated flow rate at 500 cc/mn
    Sample from 100’ (30m) horizontally or vertically
    Low Flow Alarm
    Auto pump shutoff at low-flow condition
    Communication & Data Download
    Download data and upload instrument set-up from PC through charging cradle or using BLE module and dedicated APP
    Wireless data transmission through built-in RF modem
    Wireless Network
    Mesh RAE Systems Dedicated Wireless Network
    Wireless Range (Typical)
    Up to 15ft (5m) for BLE
    EchoView Host: LOS > 660 ft (200 m)
    ProRAE Guardian & RAEMesh Reader: LOS > 660 ft (200 m)
    ProRAE Guardian & RAELink3 Mesh: LOS > 330 ft (100 m)
    Safety Certifications
    US and Canada: CSA, Classified as Intrinsically Safe for use in Class I, Division 1, Groups A, B, C, D
    Europe: ATEX II 2G EEx ia IIC T4
    Temperature
    -4° to 122° F (-20° to 50° C)
    Humidity
    0% to 95% relative humidity (non-condensing)
    Attachments
    Durable bright yellow rubber boot
    Warranty
    3 years for 10.6 eV lamp, 1 year for pump, battery, sensor and instrument
    Wireless Frequency
    ISM license-free band. IEEE 802.15.4 Sub 1GHz
    Wireless Approvals
    FCC Part 15, CE R&TTE, Others
    Radio Module
    Supports BLE or Bluetooth or RM900

    Sensor Specifications

    Gas Monitor Range Resolution Response Time T90
    VOCs 0 to 999.9 ppb
    1,000 to 15,000 ppm    		 0.1 ppm
    1 ppm    		 < 3 sec
    < 3 sec
