    • Honeywell

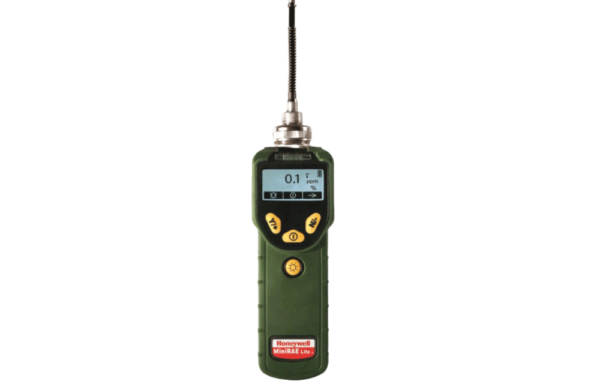

    Honeywell MiniRAE Lite+ – Rugged VOC Monitor for Leak Detection and Remediation

    MiniRAE Lite+ is a reliable, portable VOC monitor with 0–5,000 ppm PID detection, built-in flashlight, and rugged housing for environmental and industrial use.

    Add to Quote
    Facebook
    Twitter
    LinkedIn
    Pinterest

    Description

    MiniRAE Lite+

    Affordable, Reliable VOC Detection for Industrial and Environmental Professionals

    The Honeywell MiniRAE Lite+ is a durable and cost-effective handheld volatile organic compound (VOC) monitor, built for tough job sites and hazardous conditions. Designed for leak detection, environmental cleanup, and remediation, it uses an advanced photoionization detector (PID) with a detection range of 0–5,000 ppm, offering dependable real-time results with a 3-second response time.

    This monitor comes equipped with a powerful built-in flashlight, ideal for low-visibility or confined environments. The rugged, chemical-resistant housing is rated for harsh environments and approved for safe area use in North America, making it a go-to solution for field technicians, environmental specialists, and industrial safety personnel.

    With a sampling pump that can draw air from up to 100 feet, you can detect VOCs from a safe distance. The intuitive interface supports 10+ languages, and the large, glove-friendly keys and backlit display ensure ease of use in any setting—even when wearing three layers of PPE gloves.

    Features

    • Portable handheld VOC monitor

    • PID measures from 0-5,000 ppm

    • 3-second response time

    • Humidity compensation

    • 10.6 lamps for TVOC

    • Rugged housing for harsh environments

    • Logs up to 6 months of data at 1-minute intervals

    • Optional BLE module

    Proven PID technology

    The patented sensor provides the following unique features:

    • 3-second response time

    • Range up to 5,000 ppm

    • Six-month datalogging

    Rugged and Reliable

    Rugged housing withstands use in harsh environments:

    • IP-65 design

    • Strong, protective removable rubber boot

    • Big graphic display for easy overview of concentration

    Designed for service

    • Easy access to lamp and sensor in seconds without tools

    • Big graphic display for easy overview of concentration

    • Integrated flashlight for better visibility in low light

    Specifications

    Monitor Specifications

    Size
    10″ L x 3.0″ W x 2.5″ H (25.5 x 7.6 x 6.4 cm)
    Weight
    26 oz (738 g)
    Sensors
    Photoionization sensor with standard 10.6eV lamp
    Battery
    Alkaline battery adapter
    External field-replaceable lithium-ion battery pack, if specified
    Operating Hours
    12 hours of operation on alkaline battery adapter
    12 hours with lithium-ion battery pack
    Display Graphic
    4 lines, 28 x 43 mm, with LED back light
    Keypad
    1 operation and 2 programming keys, 1 flashlight on/off
    Direct Readout
    Instantaneous reading of:
    VOCs as ppm by volume
    High and low values
    Date and time
    Alarms
    95 dB buzzer (at 30 cm) and flashing red LED to indicate exceeded preset limits
    High: 3 beeps and flashes per second
    Low: 2 beeps and flashes per second
    Alarm latching with manual override or automatic reset
    Additional diagnostic alarm and display message for low battery and pump stall

    Monitor Specifications (Cont’d)

    EMI/RFI
    Highly resistant to EMI/RFI
    Compliant with EMC directive 89/336/EEC
    IP Rating
    IP-65
    Datalogging
    Standard 6 months at one-minute intervals
    Calibration
    Two-point calibration for zero and span. Patented AutoZero feature
    Sampling Pump
    Internal, integrated flow rate at 400 cc/min
    Sample from 100′ (30m) horizontally and vertically
    Low Flow Alarm
    Auto shut-off pump at low-flow condition
    Wireless Network
    * Bluetooth Low Energy (option)
    Safety Certification
    ATEX II 2G EEx ia IIC T4
    Wireless Range
    Up to 15 ft (5m) for BLE
    Operating Temperature
    -4° to 113° F (-20° to 50° C)
    Humidity
    0 to 95% relative humidity (non-condensing)
    Attachments
    Durable green rubber boot
    Warranty
    3 years for 10.6 eV lamp, 1 year for pump, battery and instrument

    Sensor Specifications

    Gas Monitor Range Resolution Response Time T90
    VOCs 0 to 999.9 ppb
    1,000 to 5,000 ppm    		 0.1 ppm
    1 ppm    		 < 3 sec
    < 3 sec

    Resources

    MiniRAE Lite Datasheet

    Media

    Rae Systems MiniRae Lite – Quickstart Guide

    Rae Systems MiniRae Lite – Calibration
