    EOTECH OGL – MIL/LE On-Gun Laser with VCSEL IR Illuminator

    The EOTECH On-Gun Laser (OGL) is a compact, rugged IR laser and illuminator built for MIL/LE operators. Featuring a powerful VCSEL diode, ergonomic adjustment lever, and durable aluminum housing, the OGL enhances aiming and situational awareness in low-light missions.

    Add to Quote
    Facebook
    Twitter
    LinkedIn
    Pinterest

    Description

    OGL

    On-Gun IR Laser and Illuminator for MIL/LE Operators

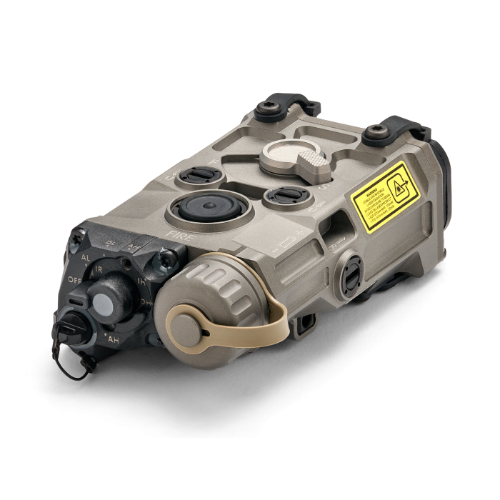

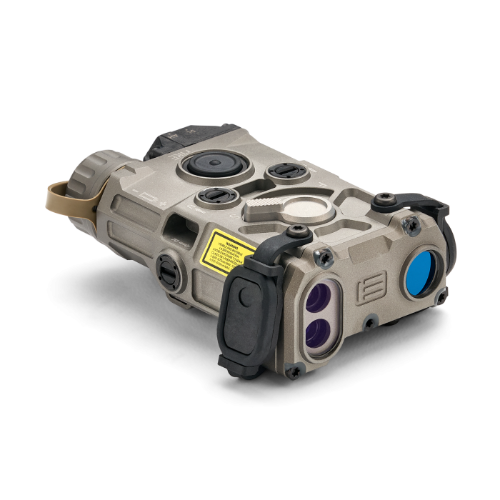

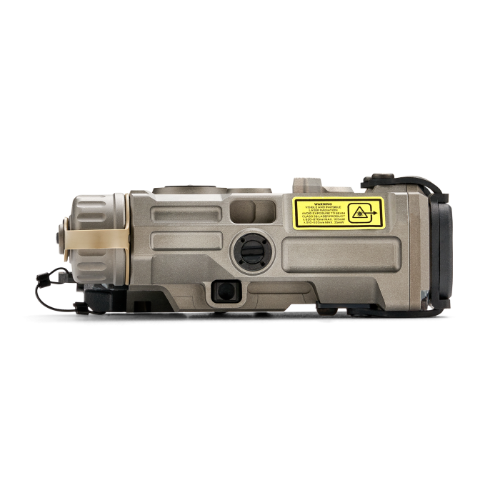

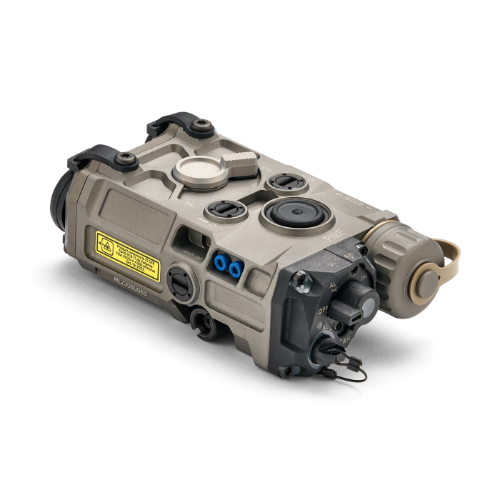

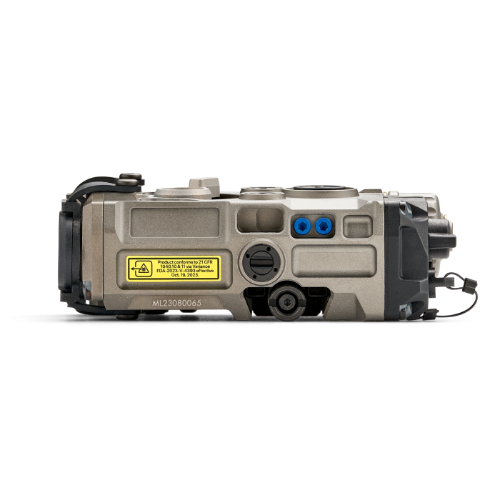

    The EOTECH On-Gun Laser (OGL) is a premium infrared aiming solution designed for professional military and law enforcement applications. Built to endure the rigors of field use, the OGL Standard Power model (MIL/LE restricted) delivers unmatched performance and user-focused ergonomics in a compact, battle-ready form. Roughly the size of a deck of cards, the OGL’s lightweight machined aluminum housing is engineered for extreme durability, without compromising weapon balance or maneuverability. Powered by a single CR123 battery, the unit provides up to 9 hours of continuous runtime—keeping operators mission-ready in extended engagements.

    At its core, the OGL uses a Vertical-Cavity Surface-Emitting Laser (VCSEL) diode for its infrared illuminator, offering a clean, high-output beam that can be seamlessly adjusted from spot to flood. Its innovative, patent-pending ergonomic adjustment lever gives users rapid beam control without breaking focus or compromising situational awareness. The EOTECH OGL delivers premium laser performance when it matters most—compact, durable, and designed for mission-critical performance under pressure.

    Features

    EOTECH On-Gun Laser (OGL)

    Features

    • Standard power (MIL/LE) mode

    • All aluminum housing for extreme durability

    • Compact design, similar in size to a deck of cards

    • Enhanced ergonomics

    • Shared optical bench for visible green and IR aiming lasers

    • VCSEL Illuminator variable beam divergence: ~23 MRAD to ~115 MRAD

    • ~0.2 MRAD windage and elevation adjustments, 50 MRAD total

    • Crane-type laser port

    • Modlite ModButton Lite 7″ switch included

    • Tethered protective caps/pattern generators

    Specifications

    Specifications

    Dimensions (L × W × H):
    4.1” × 2.3” × 1.5” / 102.9 mm × 58.2 mm × 37.8 mm

    Weight:
    8 oz / 227 grams

    Visible Aim Laser

    Specification Value Max Safety Class
    Output Power Low ≤ 4.7 mW 3R
    Output Power High ≤ 30 mW 3B
    Beam Divergence < 0.5 MRAD
    Wavelength 520 (±10) nm

    NIR Aim Laser

    Specification Value Max Safety Class
    Output Power Low ≤ 0.7 mW 3R
    Output Power High ≤ 35 mW 3B
    Beam Divergence < 0.5 MRAD
    Wavelength 850 (±10) nm

    NIR Illuminator

    Specification Value Max Safety Class
    Output Power Low ≤ 2.7 mW 3R
    Output Power High ≤ 105 mW 3B
    Beam Divergence SPOT ≥23, FLOOD ≥105 MRAD
    Wavelength 860 (+10/-30) nm
