    PackBot 510 Tactical Robot – FLIR

    FLIR PackBot 510 is a man-portable robot for EOD, CBRN, and HazMat ops, with HD video, stair-climbing, and deployment in under 2 minutes.

    Add to Quote
    Facebook
    Twitter
    LinkedIn
    Pinterest

    Description

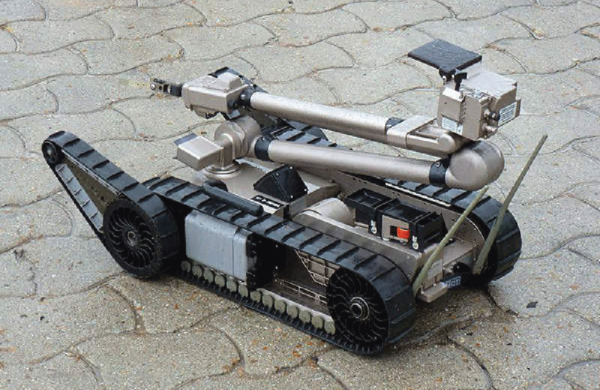

    PackBot® 510

    FLIR

    The FLIR PackBot® 510 is a compact, highly capable tactical robot trusted by defense and emergency response teams worldwide for EOD, CBRN, HazMat, and surveillance operations. With over 4,000 units deployed globally, PackBot 510 is a field-tested, mission-ready solution for complex and hazardous environments.

    The robot features a manipulator arm that lifts up to 44 lb (20 kg) and is deployable by a single operator in under two minutes. Its rugged design allows it to climb stairs, navigate narrow passages, and operate in confined or hazardous locations—all while streaming real-time video, audio, and sensor data back to the operator at a safe distance.

    Controlled via the uPoint® Multi-Robot Control System using a touchscreen tablet, PackBot 510 provides an intuitive interface for commanding multiple robots. The onboard MPU5 radio uses the Wave Relay® MANET to establish a secure, dynamic network of robots and operators for coordinated missions.

    Features

    • MAN-TRANSPORTABLE

    • MOBILE

    • POWERFUL MULTI-SENSOR CAPABILITY

    • CONTROLLABLE FROM THE UPOINT MULT-ROBOT CONTROL SYSTEM

    • SUPERIOR COMMUNICATIONS

    MAN-TRANSPORTABLE

    Deployable by one person in less than two minutes. PackBot stows neatly in vehicle, even fitting in a car’s trunk.


    CONTROLLABLE FROM THE UPOINT MULT-ROBOT CONTROL SYSTEM

    Using the touchscreen-based ruggedized tablet controller, an operator can select from across the family of connected robots.


    MOBILE

    Climbs stairs, rolls over rubble and navigates narrow passages


    SUPERIOR COMMUNICATIONS

    The MPU5 radio operating on the Wave Relay MANET, allows the robot to penetrate deeper into complex structures and further downrange than ever before.


    POWERFUL MULTI-SENSOR CAPABILITY

    Four color cameras with zoom and illumination, plus audio capability are integrated into FirstLook. Optional CBRN/ HazMat sensors available.


    Specifications

    Specifications

    Weight
    – (no batteries) – 52.7 lb (23.9 kg)
    Runtime & Charging
    Up to 4 hrs with two (2) BB-2590 batteries
    Up to 8 hrs with four (4) BB-2590 batteries
    Mobility – Speed
    Up to 5.8 mph (9.3 km/h)
    Mobility – Agility
    Zero radius turn
    Mobility – Slopes
    43° (ascend, descend) 40° Lateral
    Mobility – Stair Climbing
    40° [rise 8.5” (21.6 cm), run 10” (25.4 cm)]
    Manipulator Lift
    44 lb (20 kg) close-in
    11 lb (5 kg) at max extension of 73.5” (187 cm)



    Awareness
    four (4) cameras
    Two-way audio
    Compatible
    Connects to the Wave Relay® MANET, to form
    a robust network in which robots, operators,
    and observers seamlessly operate together.
    Expansion
    Multiple payload ports
    22 disruptors supported
    10 fully integrated HazMat/CBRN sensors
    40+ Accessories
    Controller
    Multiple controller options available, including the uPoint® Multi-Robot Control System
    Export Regulations
    EAR

    Accessories

    • FLIR LWIR Thermal Camera – the thermal image transmits directly to the robot controller.

    • Rear Flipper Kit – offers greater stability when climbing stairs or negotiating terrain.

    • Integrated CBRN sensor payloads – allow an operator to remotely monitor the environment.

    • Accessories and mounts available to support disruptors from leading manufacturers
