Manual or pneumatic extension capability
-
Square thread design for full surface contact load transfer
-
Machine-knurled non-slip locking collar
-
Adjustable in any increment up to maximum length
-
Compatible with over 20 interchangeable base plates
-

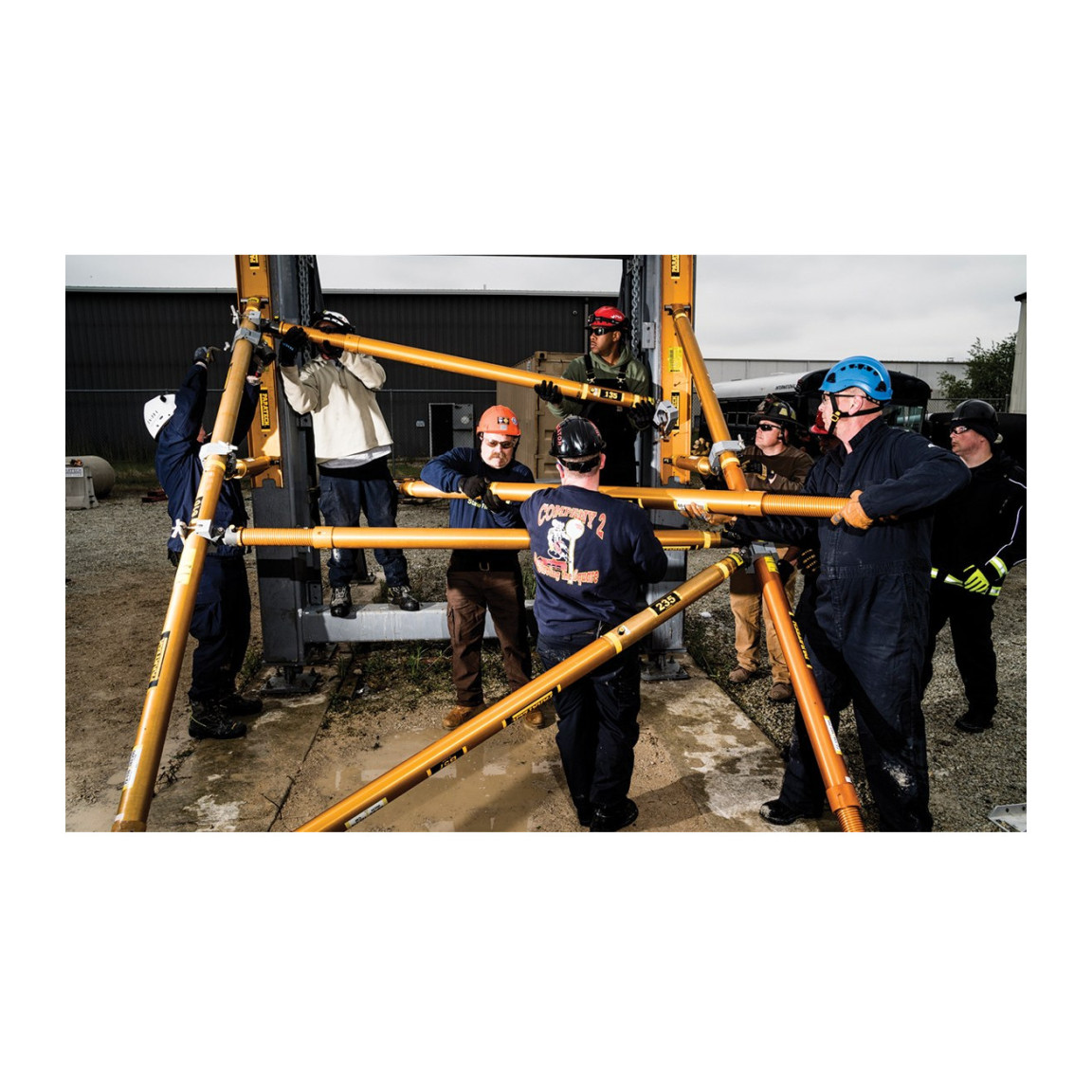

Suitable for structural collapse rescue
-
Vehicle stabilization capability
-
Trench shoring application
-
High-angle rescue support
-
Elevator shaft access and rescue
-
Confined space work
-
Hard coat anodized aluminum for strength and durability
-
Remote placement capability
-
Can be used with extensions and accessories

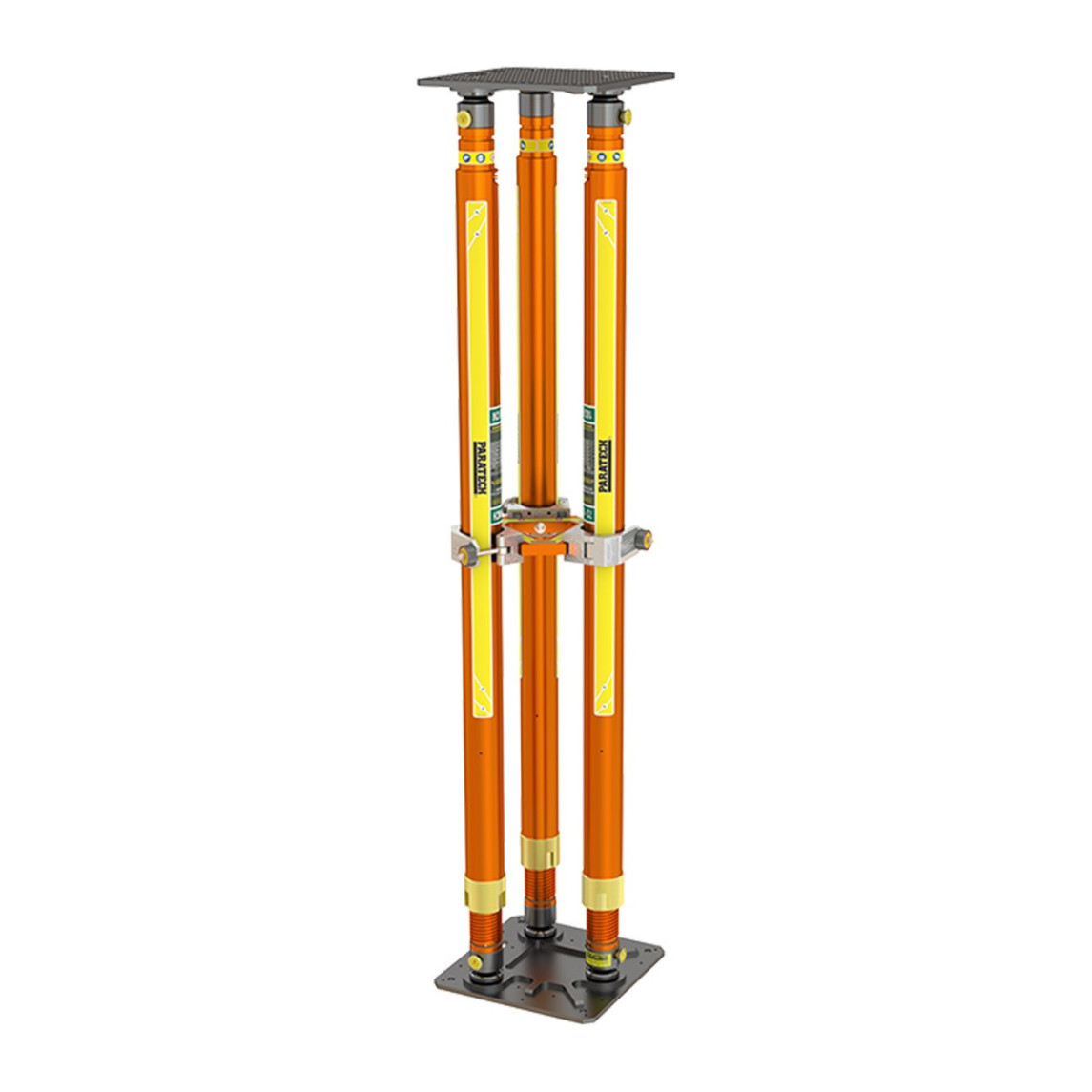

Paratech LongShore Strut System
$0.00
The Paratech LongShore Strut System is a heavy-duty aluminum strut platform for structural collapse, vehicle stabilization, trench shoring, and high-angle rescue operations.

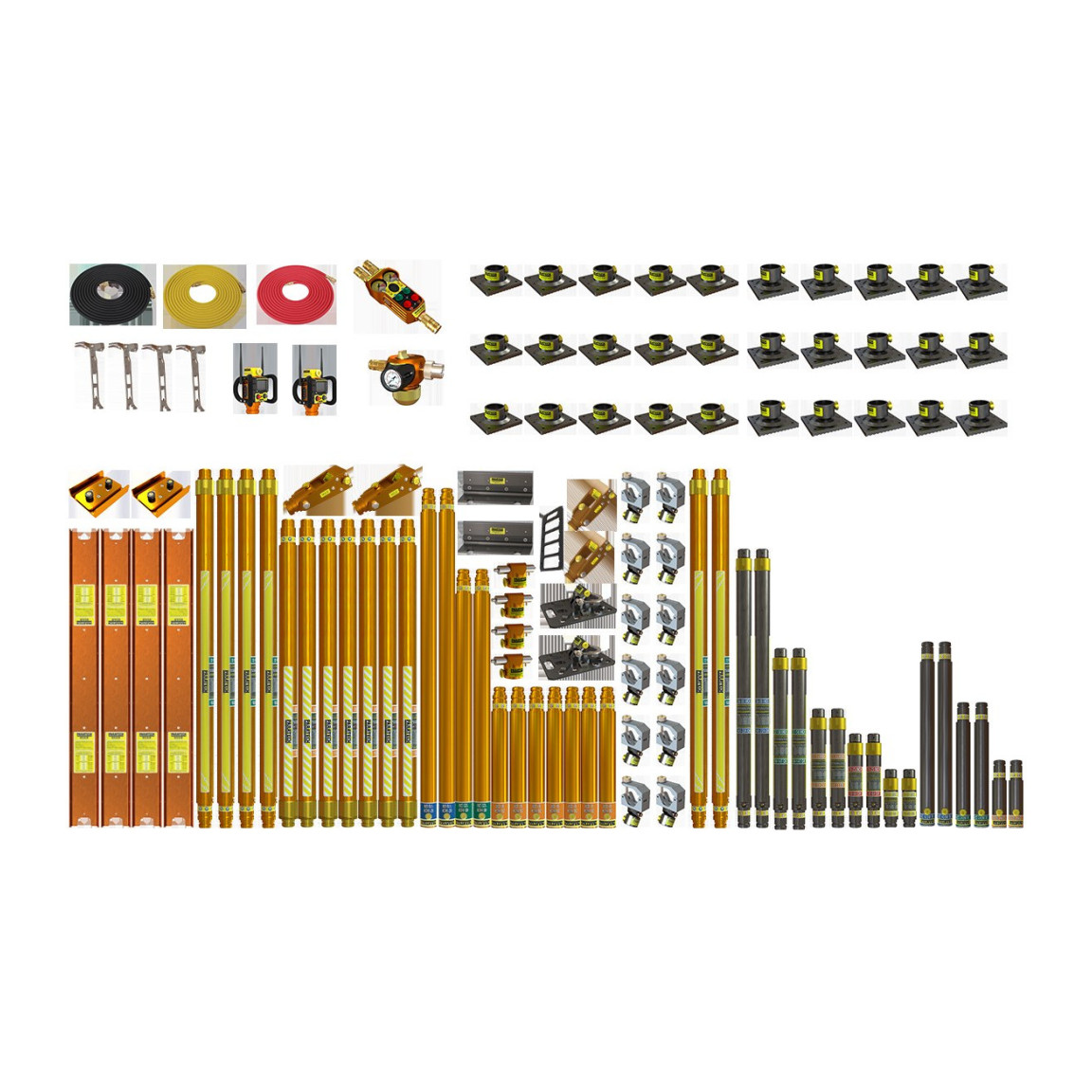

The Paratech LongShore Strut System is a comprehensive rescue support platform designed for structural collapse, vehicle stabilization, trench shoring, and high-angle rescue applications. LongShore Struts feature a 3″ diameter threaded aluminum shaft extending from a 3.5″ diameter tube, offering exceptional strength and versatility. Available in 5 sizes (203-1016) with length ranges from 26-198 inches, these struts can be extended manually or pneumatically with air, CO2, or nitrogen. The system includes machine-knurled non-slip locking collars for precision adjustments at any increment up to maximum length. All components are hard-coat anodized aluminum alloy for durability and reduced electrical conductivity. The LongShore Struts work seamlessly with over 20 interchangeable base plates and numerous accessories including extensions (12-67 inches), adjustable braces, raker rails, and specialized kits for various rescue scenarios.
Description
Paratech LongShore Strut System
The Paratech LongShore Strut System is a comprehensive rescue support platform designed for structural collapse, vehicle stabilization, trench shoring, and high-angle rescue applications. LongShore Struts feature a 3″ diameter threaded aluminum shaft extending from a 3.5″ diameter tube, offering exceptional strength and versatility. Available in 5 sizes (203-1016) with length ranges from 26-198 inches, these struts can be extended manually or pneumatically with air, CO2, or nitrogen. The system includes machine-knurled non-slip locking collars for precision adjustments at any increment up to maximum length. All components are hard-coat anodized aluminum alloy for durability and reduced electrical conductivity. The LongShore Struts work seamlessly with over 20 interchangeable base plates and numerous accessories including extensions (12-67 inches), adjustable braces, raker rails, and specialized kits for various rescue scenarios.
Features
Specifications
- Material
- Aluminum alloy, hard coat anodized
- Shaft Diameter
- 3 inch
- Tube Diameter
- 3.5 inch
- Number of Sizes
- 5
- Length Range
- 26-198 in / 66-503 cm
- Extension Options
- 4 sizes available (12, 24, 48, 67 inches)
- Locking Mechanism
- Manual spin collar
- Extension Methods
- Manual or pneumatic (air, CO2, nitrogen)
- Safety Factor – 2:1
- up to 44,000 lbs at 6 ft
- Safety Factor – 4:1
- up to 22,000 lbs at 6 ft
- Load at 16 ft (4.8m) – 4:1
- 3,000 lbs
- 5 Year Warranty
- Yes
