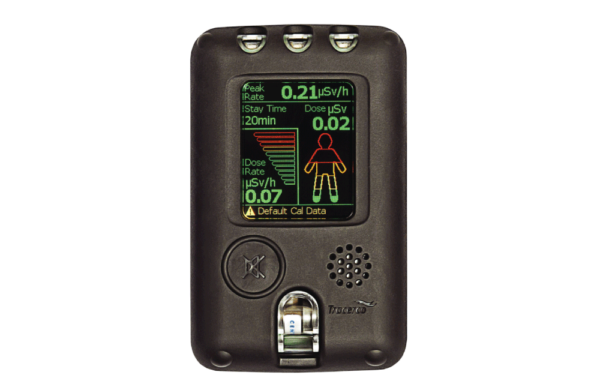

    Tracerco PED-ER+ Personal Electronic Dosimeter with GPS and Bluetooth

    The Tracerco PED-ER+ is a high-performance radiation dosimeter with extended range up to 100 R/hr. Featuring GPS tracking, Bluetooth connectivity, and a shockproof design, it’s the ideal solution for first responders, NDT workers, and CBRNe teams in hazardous environments.

    Add to Quote
    Facebook
    Twitter
    LinkedIn
    Pinterest

    Description

    PED-ER+

    Tracerco

    The Tracerco PED-ER+ offers advanced radiation monitoring, measurement, and management for professionals working in hazardous or unpredictable environments. Built to endure the toughest conditions, the PED-ER+ is weatherproof, shockproof, and drop-tested—making it the perfect fit for industrial NDT, emergency services, and CBRNe response teams.

    This device features an extended dose rate range up to 100 R/hr, and can function as both a personal dosimeter and a handheld dose rate survey meter. Designed for rapid deployment and real-time response, the PED-ER+ enhances situational awareness and supports safer decision-making in the field.

    Features

      Features

    • Handheld mode allows the device to be used as a handheld survey meter

    • Shows readings in dose rate (Sv or rem) and displays a live trend graph to show activity in real time

    • Measurement is corrected for use off-body, so personal accumulated dose is not recorded

    • An extended dose rate range of up to 1Sv/h

    • Weather, shock and drop-proof housing – ideal for rugged environments.

    • Dose rate data is logged in off-body mode, allowing data review with DoseVision

    • Pop-up alert messages display clear instructions at alarm threshold

    • Allows location data to be logged to the device alongside dose and dose rate data, that can be viewed using DoseVision

      Applications

    • Medical

    • First Responders

    • Emergency Services

    • Oil and Gas

    • Military

    • NDT

    • Mining

    • Nuclear Power

    • Border Controls

    Specifications

    Radialogical Performance

    Radiation Detected
    X-rays and gamma rays in
    range 33 keV to 1.25 MeV
    Sensor
    Single, energy compensated
    Geiger Müller tube
    Units
    Sieverts or Rem (may be selected in
    DoseVision software)
    Radiation Dose Rate
    Bargraph display
    0 to 100 mSv/h
    or 0 -10 Rem/h
    Digital numeric
    0 to 100 mSv/h
    or 0 -1000 Rem
    Accumulated Dose Rate
    Dose ‘man’ display
    0 to 10 Sv
    or 0 -1000 Rem
    Digital numeric
    0 to 10 Sv
    or 0 -1000 Rem
    Peak Radiation Dose Rate
    Digital numeric
    0 to 100 mSv/h or 0 -10 Rem/h
    Alarms
    Two alarm levels for both
    dose and dose rate
    Alarm levels set via DoseVision software.
    Dedicated LEDs for dose and dose rate
    will flash amber for first alarm level and
    red for second alarm level. Loud beep and
    powerful vibrate alerts occur during alarm
    Variation with Temperature
    Less than ± 10% over temperature
    range -20°C to +50°C.
    Dose Rate Linearity
    ± 16% over the range 2 μSv/h
    to 100 mSv/h

    Mechanical

    Case Material
    Tough polymers with antistatic
    surface properties
    Size
    10 x 6 x 2 cm
    Weight
    160 g approx

    Battery

    Battery
    Rechargeable lithium ion
    Battery Life (with screen saver on)
    Greater than 300 hours typical battery
    charge with background radiation
    and room temperature.
    Tested and passed according to EN61526.
    Low Battery Indication
    Approximately 8 hours available life left
    with background radiation.
    Tested and passed according to EN61526
    Time to Recharge
    2 hours from flat

    Enviromental

    Operating
    Temperature Range
    -20 to 50°C
    Temperature stability tested and
    passed according to EN61526.
    Humidity Range
    Up to 95%
    Tested and passed according to EN61526



    Vibration
    20 ms-2 for 15 mins in each of
    3 orthogonal directions in
    the range 10 to 33Hz.

    Tested and passed according to EN61526.
    Shock
    6 x 1 m drops onto concrete, 1 drop on
    each face of TRACERCO PED.
    Tested and passed according to EN61526.
    Microphonics
    60 x 10cm drops onto hard steel surface,
    10 shocks on each of the main 6 faces.
    Tested and passed according to EN61526.
    Ingress Protection Rating
    IP67

    Data Logging

    Memory
    125,000 data point capacity
    Includes dose measurements and alarms/fault events
    Memory Retention
    Serial non-volatile memory
    10 year data retention
    Dose Data Log Interval
    Intelligent Mode
    Log every 0.01 µSv
    Periodic Mode
    log every 1 minute
    Logging mode selected in DoseVision
    Tested and passed according to EN61526

    Resources

    PED-ER+ Datasheet
