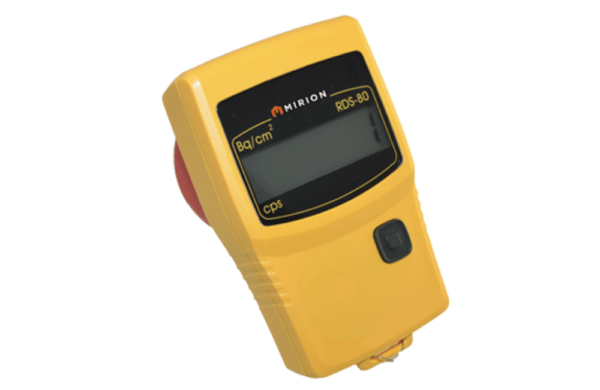

    Mirion RDS-80 Surface Contamination Meter for Radiation Detection

    The Mirion RDS-80 Surface Contamination Meter is a rugged handheld radiation detector designed for identifying abnormal surface contamination. Ideal for nuclear facilities, first responders, and decontamination teams, it features real-time alarms, data logging, and PC connectivity.

    Add to Quote
    Facebook
    Twitter
    LinkedIn
    Pinterest

    Description

    RDS-80

    Mirion Technologies

    The Mirion RDS-80 Surface Contamination Meter is a highly versatile handheld radiation detection device designed for rapid surface contamination assessments in environments where radioactive particles may pose a health risk. Engineered for accuracy and portability, it’s ideal for use in the nuclear industry, emergency response, hazmat operations, and decontamination work.

    This digital pulse rate meter detects surface contamination on personnel, equipment, and objects, and automatically converts readings to surface activity values. Its built-in alarm functions notify users of abnormal contamination levels instantly, enabling quicker decision-making and safer response.

    Features

    Features

    • Wide measurement range: up to 100,000 cps or 1,000,000 Bq/cm²

    • Standard surface contamination measurements in cps or Bq/cm²

    • Visual and audible alarms

    • Handy and easy- to- use design

    • Software for parameter setting, histogram readings and nuclide calibration complies with IEC 60325 standard

    Specifications

    Radialogical
    Radiation Detected
    alpha >2 MeV, betaEmax >100 keV, gamma and x-rays from 5 keV to 3 MeV
    Detector
    end window GM tube, 1,5-2 mg/cm²
    Measurement Range
    surface contamination 1 to 100 000 cps or 0.01 to 1 000 000 Bq/cm²
    Alarm Levels
    adjustable alarm levels for contamination level
    Cps Linearity
    +15% ±1 digit over the range. The Bq/cm² display is calculated from cps values using isotope dependent coefficients
    Electrical
    Power Supply
    2 alkaline batteries IEC LR6/AA size (recommended)
    Battery Life Time
    at least 2000 hours at normal background with alkaline cells (More than 1 year under normal operation)
    Battery Alarm
    two-step alarm for low battery voltage
    Alarm Levels
    adjustable alarm levels for contamination level
    Electromagnetic Compatibility
    CE compliant
    Temperature Range
    Operational
    -13°F – 131°F
    Storage
    -40°F – 158°F
    Functional
    Display in either cps or Bq/cm²
    Surface activity (Bq/cm²) display configurable for different isotopes
    Cps rate follow-up by audible signal with frequency proportional to activity
    Visual and audible alarm: user settable for surface activity
    Histogram capability of up to 480 points with user settable logging interval
    Backlit display with six large digits
    Built-in self-diagnostics function
    Gamma background reduction for Bq/cm² measurements
    Built-in infra-red port (IrDA)
    Mechanical
    Rugged plastic case
    GM Tube
    4.4cm (1.74in)
    Dimensions
    78 x 126 x 57 mm
    Weight (without batteries)
    280g
    Weight (with batteries)
    330g

    Resources

    RDS-80 Datasheet
