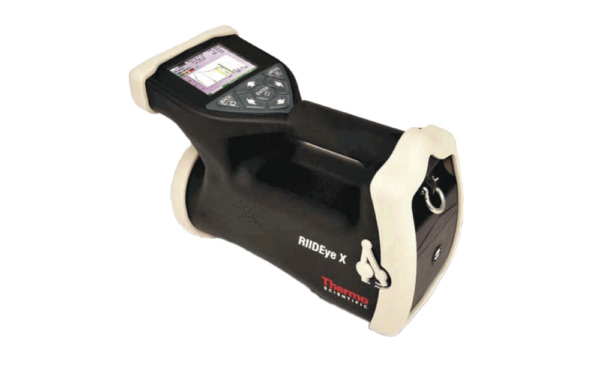

    Thermo Scientific RIIDEye Series – Handheld Radioisotope Identifier with Real-Time Gamma Analysis

    The Thermo Scientific RIIDEye Series delivers fast, accurate handheld isotope identification using patented QCC technology. Ideal for first responders, homeland security, and radiation safety professionals, the RIIDEye provides real-time gamma analysis and intuitive color-coded peak display for rapid decision-making.

    Add to Quote
    Facebook
    Twitter
    LinkedIn
    Pinterest

    Description

    RIIDEye

    Thermo Scientific

    The Thermo Scientific RIIDEye Series is a field-proven, handheld Radioisotope Identifier (RIID) engineered for professionals who need rapid, accurate, and intuitive radiation detection in the field. Equipped with patented Quadratic Compression Conversion (QCC) technology, the RIIDEye offers real-time gamma source identification with enhanced spectral resolution and isotopic clarity—supporting fast, informed response in critical scenarios.

    From homeland security operations and dirty bomb detection to environmental remediation and contamination monitoring, the RIIDEye provides fast identification of radioactive isotopes with minimal training required. The system displays color-coded energy peaks in real-time, helping users distinguish between benign and threat materials at a glance—significantly reducing adjudication time.

    Ergonomically designed with balanced weight distribution at the mid-handle, the RIIDEye supports comfortable, extended handheld use during continuous surveys. With simple controls and an intuitive interface, it’s accessible to both trained radiation specialists and first-line responders with limited experience.

    Features

    • Superior performance for ID of low activities

    • Patented QCC algorithm enables faster and more accurate ID’s

    • Color coded peaks provide more source data during and after completion of ID

    • Continuous gain stabilization with natural potassium enables accurate results in changing environment

    • Two hand operation for more remote detector use while display and controls are still at hand

    • Weight balanced at mid point of handle

    Great Performance

    While taking a gamma spectrum the RIDEye can be complemented with the gamma neutron pager RadEye GN for the highest detection performance for both fast and moderated neutrons.


    Easy to use

    With an intuitive interface and simple button design the RIIDEye can easily be used by personnel with little experience in radiation measurement.


    Color Coded Peaks

    In order to quickly alert the user to the presence of either benign or threat radioactive material, the RIID-Eye offers identification “at a glance” with the use of color coded isotopic regions.


    Specifications

    Detector
    Standard 2” x 2” NaI Scintillator, 1.5” x 1.5” LaBr and 3” x 3” and larger NaI are available
    Energy Range
    20 keV to 3 MeV
    Display
    320 x 240 high brightness 32000-color 3.5 inch LCD
    I/O
    Ethernet and removable memory card
    Battery Life
    8 hours nominal with standard battery pack
    Weight
    1.4 kg (3 lbs) with 2” x 2” NaI detector
    Dimensions (with 2″ x 2″ Nal)
    32 cm x 25 cm x 15 cm (12.6 inch x 9.8 inch x 5.8 inch)
    Temperature
    -20 °C to 50 °C (-4 °F to 122 °F)
    Controls
    Well spaced 7-key pad for simple menu use with protective gloves
    Alarms
    Audio and visual on screen
    Stabilization
    Continuous with natural potassium requiring no periodic source replacement or licensing
    Library
    Standard ANSI, medical, industrial, SNM or user defined
    Neutron Detector
    Optional dual scintillator with imbedded Lithium (NaI detectors only)
    Functions
    Isotope identification, spectral analysis, dose rate meter, source locator
