Description

SUGV (Small Unmanned Ground Vehicle)

FLIR

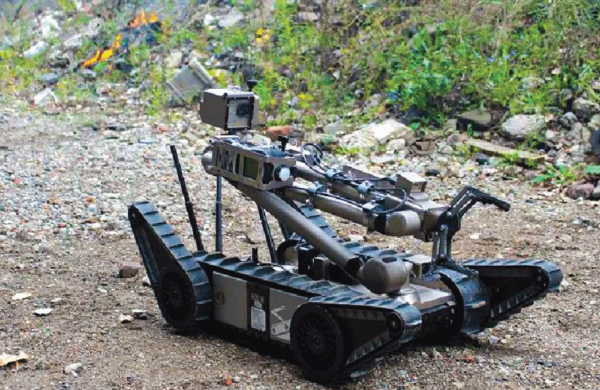

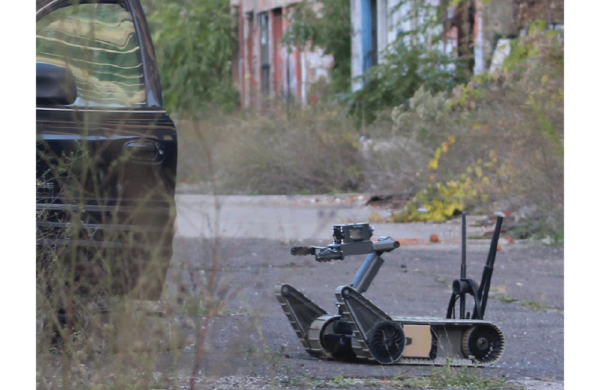

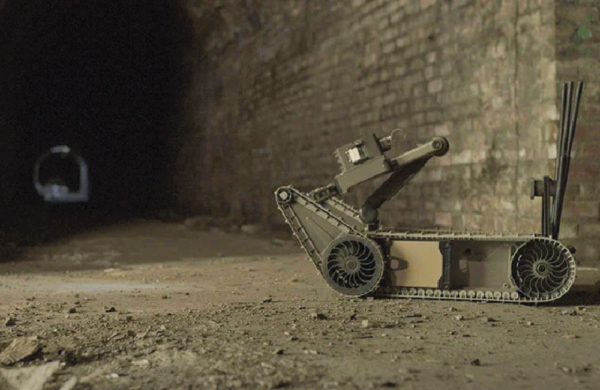

The FLIR SUGV (Small Unmanned Ground Vehicle) is a lightweight, man-portable robot engineered for dismounted operations including EOD, CBRN, reconnaissance, and HazMat response. Compact and agile, it offers powerful capabilities in a small, rugged frame ideal for urban and tactical environments.

Weighing just 30 lb (13 kg) with batteries and a manipulator arm installed, SUGV can be carried in a standard pack with 9” x 28” clearance, making it easy to deploy on foot. Once deployed, it delivers six hours of operational runtime and impressive dexterity, capable of lifting up to 22 lb (10 kg).

SUGV’s advanced vision suite includes wide-angle color, infrared, and zoom cameras, delivering real-time situational awareness while keeping operators at a safe distance. It can climb stairs, traverse tight spaces, and support a broad array of tools, disruptors, and sensor payloads.

Features

PORTABLE AND RAPIDLY DEPLOYABLE
STRONG, DEXTEROUS MANIPULATION
POWERFUL MULTI-SENSOR CAPABILITY
CONTROLLABLE FROM THE UPOINT MULT-ROBOT CONTROL SYSTEM
SUPERIOR COMMUNICATIONS

PORTABLE AND RAPIDLY DEPLOYABLE

Weighs about 30 lb (13.6 kg) with the manipulator and batteries installed.

CONTROLLABLE FROM THE UPOINT MULT-ROBOT CONTROL SYSTEM

Using the touchscreen-based ruggedized tablet controller, an operator can select from across the family of connected robots.

STRONG, DEXTEROUS MANIPULATION

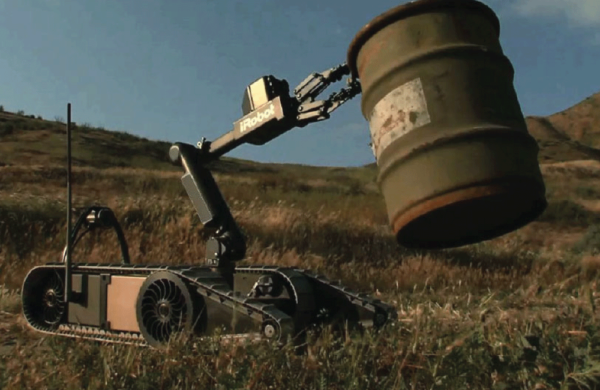

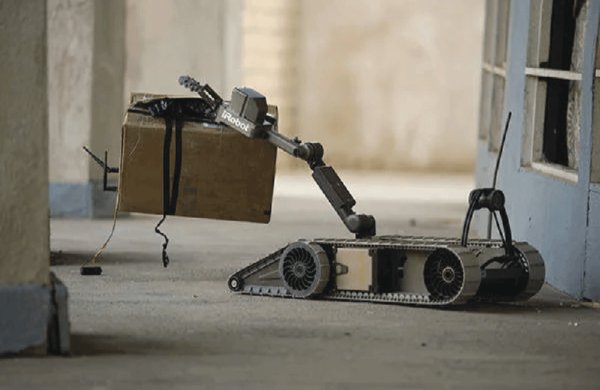

The manipulator lifts up to 22 lb (10 kg) and rotates a continuous 360 degrees. Supports optional disrupters.

SUPERIOR COMMUNICATIONS/h4>

The MPU5 radio operating on the Wave Relay MANET, allows the robot to penetrate deeper into complex structures and further downrange than ever before.

POWERFUL MULTI-SENSOR CAPABILITY

Four color cameras with zoom and illumination, plus audio capability are integrated into FirstLook. Optional CBRN/ HazMat sensors available.

Specifications

Specifications
Weight: – Mobility platform,
manipulator and 2 BB-2557
batteries – 30.6 lb (13.8 kg)
Runtime: Up to 6 hours
Mobility – Speed: Up to 6.2 mph (10 km/h)
Mobility – Agility: Zero radius turn
Mobility – Slopes: 40° (ascend, descend) 30° Lateral
Mobility – Vertical Obstacles: 12” (30.5 cm)
Mobility – Stair Climbing: 38° [rise 8” (20.3 cm), run 10” (25.4 cm)]

Manipulator Lift: >22 lb (10 kg) close-in
>12 lb (5.4 kg) at max extension
[(24” (61 cm)]
Awareness: Four (4) cameras
Compatible: Connects to the Wave Relay® MANET, to form
a robust network in which robots, operators,
and observers seamlessly operate together.
Expansion: Multiple payload ports, multiple accessories,
sensors and disruptors supported
Controller: uPoint Multi-Robot Control System
Export Regulations: EAR

Accessories

Flatbed Backpack – Accommodates SUGV, controller, batteries and accessories.
FLIR LWIR Thermal Camera- the thermal image transmits directly to the robot’s tablet controller
Adaptive Specialty Probe Tool Kit for PackBot and SUGV – four specialty tools for cutting, raking, scraping and probing IEDs and other hazards
Disruptors and the Firing Control System – accommodates recoilless disruptors.
Uses a third-party firing circuit.
