Seamless hand-produced bags with hot vulcanized elastomer construction
-
16 different bag sizes from 1.0 to 67.7 tons
-
Maximum 8 bar operating pressure with integrated safety valve
-
Vetter safety coupling system with double-locked couplings
-
Deadman switch controllers available
-
Suitable for rescue operations and load lifting
-
Cold-resistant to -20°C and heat-resistant to +55°C
-
Colored inflation hoses (red and yellow) to prevent confusion
-
Controllable from safe distance with inflation hoses up to 10 m
-

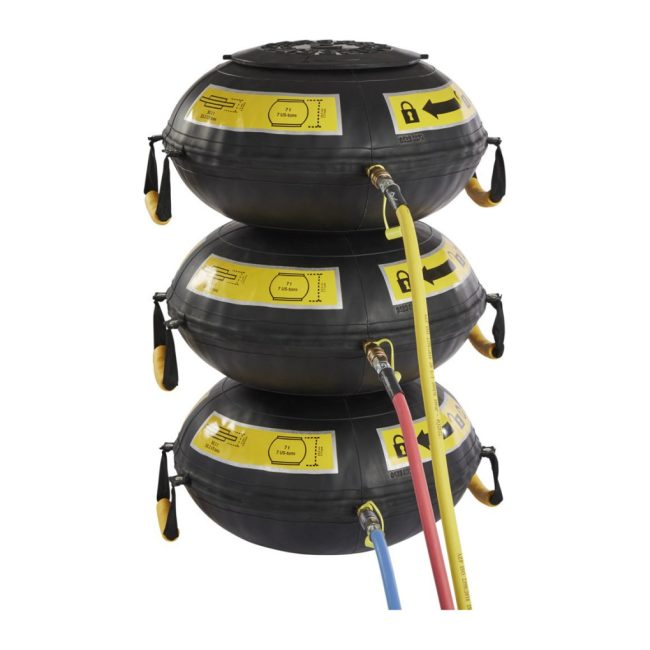

Stacking capability (maximum 2 bags vertically)
-
Plant acceptance testing for each bag
-
Compatible with various air supply sources (bottles, compressors, hand/foot pumps)

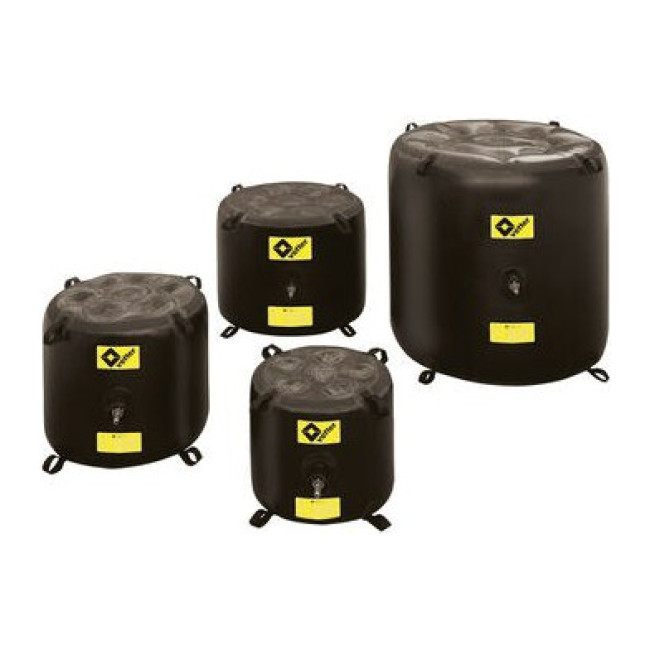

Vetter 8 bar Lifting Bag Range (SP series)
$0.00
Vetter 8 bar Lifting Bag Range SP series is a pneumatic lifting system for rescue services and industrial applications with 16 bag sizes offering lift capacities from 1.0 to 67.7 metric tons.
In stock
Operating instructions manual for Vetter Mini-Lifting Bags 8 bar SP series. Comprehensive pneumatic lifting system for rescue services and industrial applications. Features 16 different bag sizes (V1-V68) with lift capacities from 1.0 to 67.7 metric tons. Includes dual/single deadman controllers, inflation hoses (5m/10m), safety coupling system, and various compressed air supply adapters. Made from CR/Aramide material with hot vulcanization. Operating pressure: 8 bar (116 psi). Temperature range: -20°C to +55°C. Includes detailed safety instructions, maintenance protocols, technical specifications, troubleshooting guide, and EC conformity declaration per Directive 2006/42/EC.
Description
Vetter 8 bar Lifting Bag Range (SP series)
Operating instructions manual for Vetter Mini-Lifting Bags 8 bar SP series. Comprehensive pneumatic lifting system for rescue services and industrial applications. Features 16 different bag sizes (V1-V68) with lift capacities from 1.0 to 67.7 metric tons. Includes dual/single deadman controllers, inflation hoses (5m/10m), safety coupling system, and various compressed air supply adapters. Made from CR/Aramide material with hot vulcanization. Operating pressure: 8 bar (116 psi). Temperature range: -20°C to +55°C. Includes detailed safety instructions, maintenance protocols, technical specifications, troubleshooting guide, and EC conformity declaration per Directive 2006/42/EC.
Features
Specifications
- Operating pressure max. (bar)
- 8
- Operating pressure max. (psi)
- 116
- Test pressure (bar)
- 14
- Test pressure (psi)
- 203
- Temperature resistance cold
- -40 °C
- Cold flexible
- -20 °C
- Heat resistance long-term
- +90 °C
- Heat resistance short-term
- +115 °C
- Operating temperature range
- -20 °C to +55 °C
- Safety valve activation tolerance
- ±10 %
- Material
- CR/Aramide, hot vulcanized
- Lift power range
- 1.0 to 67.7 tons
- Sizes available
- 16 different sizes
