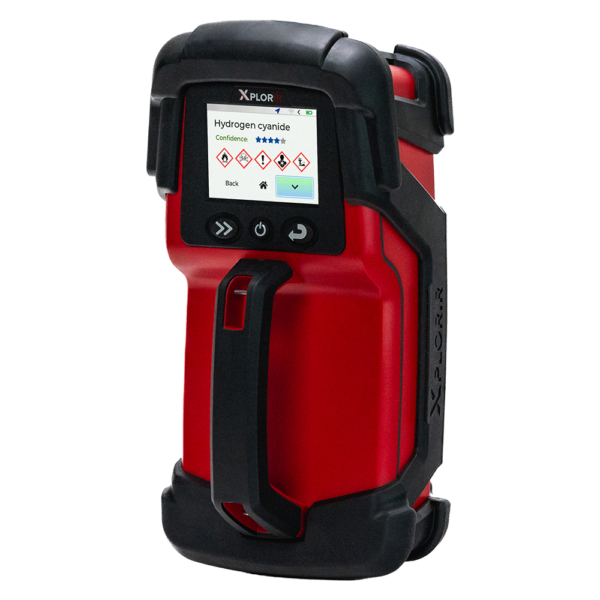

    XplorIR

    The XplorIR can identify over 5,500 gases at low part per million (ppm) concentrations. It is the first handheld FTIR identification tool with this breadth and sensitivity. The lightweight device can be used on scene, measuring the gas at its source. The XplorIR can identify many dangerous gases, including toxic industrial compounds (TICs), flammables, corrosives, industrial gases, and many other chemicals at operationally relevant levels.

    Add to Quote
    Facebook
    Twitter
    LinkedIn
    Pinterest

    Description

    XplorIR

    Continuous, automatic detectoin in real-time with on sample prep required

    The XplorIR can identify over 5,500 gases at low part per million (ppm) concentrations. It is the first handheld FTIR identification tool with this breadth and sensitivity. The lightweight device can be used on scene, measuring the gas at its source. The XplorIR can identify many dangerous gases, including toxic industrial compounds (TICs), flammables, corrosives, industrial gases, and many other chemicals at operationally relevant levels.

    While teams have many tools to detect an unknown gas, there is no compelling technology that allows responders to quickly identify a gas with a high level of accuracy. With the XplorIR, emergency response teams can quickly identify exactly what gas they are encountering so they can develop a mitigation plan.

    The core technology behind the XplorIR is FTIR spectroscopy; it has been used for more than 20 years in homeland security applications. Advancements in both optical design and computational algorithms provide unprecedented performance, allowing operation in the most rigorous conditions. The XplorIR was designed for emergency responders with significant input from emergency response teams around the country.

    Features

    • Continuous monitoring or point and shoot

    • Groundbreaking automated data analytics provides confident answers even in challenging conditions

    • Critical information displayed with every result: GHS symbols, IDLH, LEL, Ionization energy

    • Access to current XplorIR results from anywhere with the new “TeamLeader” App

    • Access to proprietary threat database

    Detect and identify more than 5,500 gasses and vapors

    • TICs

    • Petroleum Products

    • Solvents

    • Industrial Chemicals

    • VOCs

    • CWA Agents

    • Refrigerants

    • Common Gases

    Detect and identify more than 5,500 gasses and vapors

    • Less than 20 seconds for results

    • No sample prep required! Continuous, automatic detection of gasses and vapors in real-time

    Specific & Sensitive

    • Positive identification of gases and vapors using proven FTIR technology.

    • Detection and Identification at concentrations down to low ppm.

    Specifications

    Size
    5.8″ x 12″ x 5.6″
    Weight
    5.5 lbs
    Operating Temperature
    0 to 50 C
    Operating Humidity
    0-95% non-condensing
    Battery Life
    3.5 hours
    Battery Charge Time
    3 hours
    Gas Cell Volume
    38 ml
    Sample Pump
    Active, 1 l/m
    Identification Time
    < 20 seconds
    Wifi
    Yes
    Bluetooth
    Yes
    GPS
    Yes
    Screen
    Sunlight Readable, full color, 320×240
    Dynamic Atmospheric Correction
    Yes
    Libraries
    5,500 compounds, VOCs, TICs, WMD
    Ingress Protection
    5.4

    Resources

    Media

    RedWave Technology – XplorIR
