Aluminum Folding Frame Tank (ALF series, e.g. ALF-1500 EXLON)
Husky Aluminum Folding Frame Tank with Easy Lift Handles for fast-setup water shuttle and portable containment operations.
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
- Capacity Range
- 500-5000 gallons
- 1500 Gal Weight (Steel Frame)
- 138 lbs.
- 1500 Gal Folded Dimensions
- 7" x 10'3" x 29"
Overview

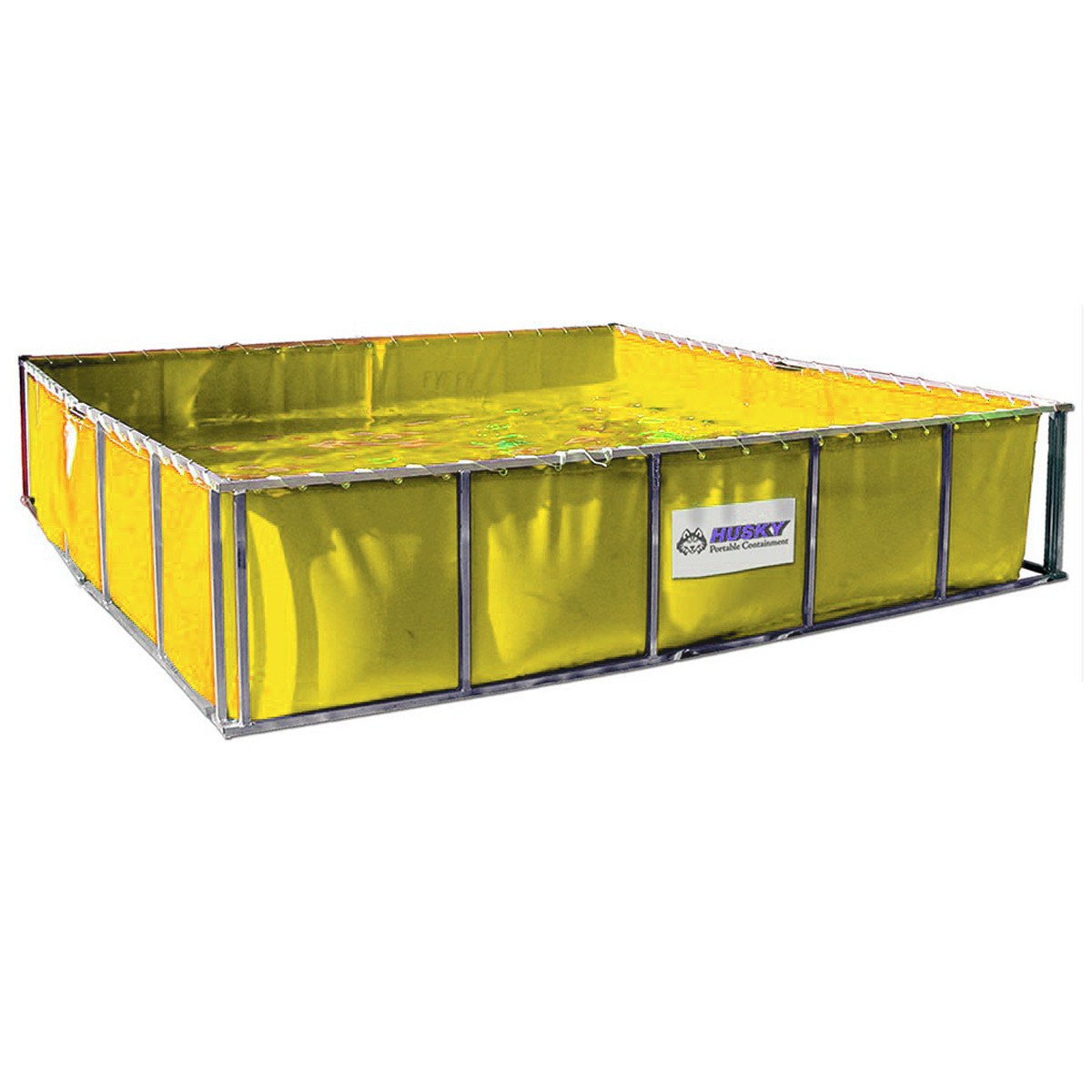

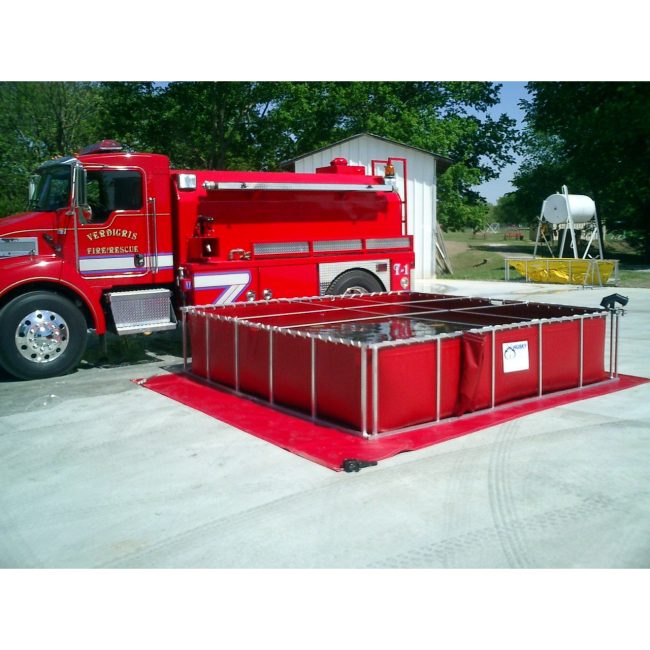

Husky Portable Containment Classic Folding Frame Water Tanks feature welded aluminum or black steel frames with pinch-free corner design for safe and quick setup/teardown. Standard equipment includes easy-lift handles for efficient draining. Tanks come with rope-attached liners secured through grommets. Available in multiple colors including yellow. Optional features include quick-release drain tubes, quick dump systems, and drain connectors for linking multiple tanks. Ideal for firefighting water shuttle operations, rural water management, and portable containment applications. Frames use rounded corners on square poles for user safety.
- Available with Vinyl or EXLON liners
- Exclusive Easy Lift Handles (US Patent No. 8,746,478 and 10,518,967)
- Quick-Release Drain Tube
- Chemical and fuel resistant materials available
- Potable NSF 61 approved materials available
- Double fold styles available
- Clear view panel liner option (12" wide reinforced clear vinyl)
- Custom sizing options
- Drain Tube mounted for inside or outside use
- Replaceable liners
- No assembly required; unfold and use
- Suitable for oil spill cleanup, chemical/fuel storage, portable/wastewater storage
- Two drain tubes standard on 2500+ gallon tanks
- Double-stitched, triple reinforced hems
- Lifetime Warranty on all welds and welded seams
- Patented pinch-free design for safe folding
- Aircraft-quality frame material
Specifications
| Performance | |
| Capacity Range | 500-5000 gallons |
| Physical | |
| Tank Height | 29" |
| Folded Width | 7 ½" |
| Aluminum Frame Material | 1"x1"x.125" 6061-T6 aircraft-quality square tube |
| Steel Frame Material | 7⁄8" od 14 gage HREW P&O round tube |
| 1500 Gal Open Dimensions | 10'3" x 10'3" x 29" |
| 1500 Gal Folded Dimensions | 7" x 10'3" x 29" |
| 1500 Gal Weight (Steel Frame) | 138 lbs. |
| 1500 Gal Weight (Aluminum Frame) | 109 lbs. |
| Vinyl Colors | Red, Yellow, Blue, Orange, Green, White, Black, Lime Green (22 oz.); Red, Yellow, Blue, Orange, Black (30 oz.) |
| EXLON Colors | Red, Yellow |
| Other | |
| Vinyl Liner Options | 22 oz., 22 oz. sides with 28 oz. floor, 30 oz. |
| EXLON Liner Options | 22 oz. |
| NSF 61 Potable Options | 30 oz. |
| Drain Tube | 10" with quick release |
| Grommets | #4 solid brass |
