BinoNV-W w/ Wilcox G24 Mount

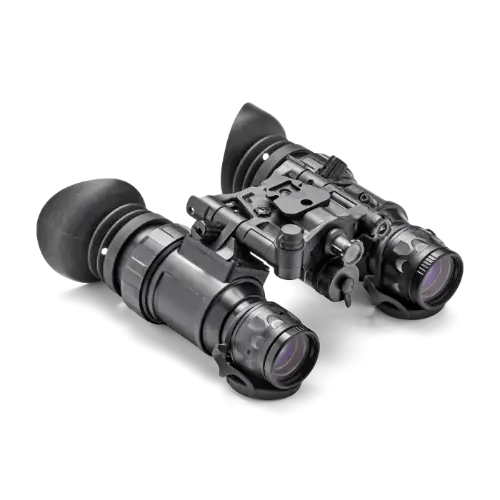

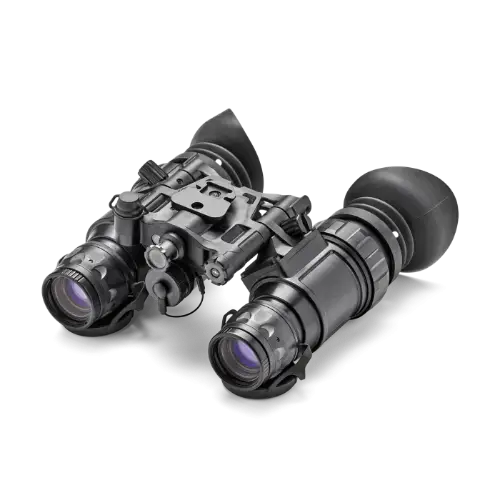

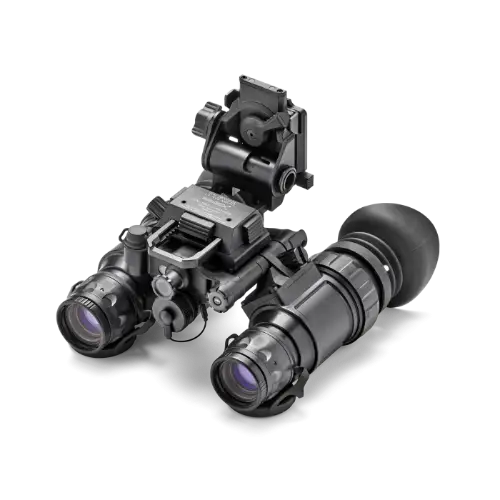

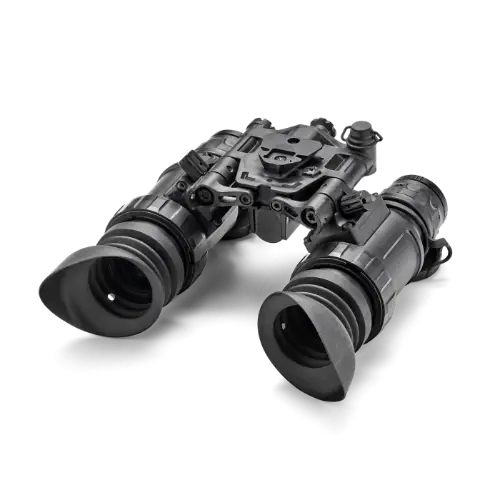

The EOTECH BinoNV-W is a rugged dual-tube night vision goggle with a class-leading 47° field of view, supplied with a Wilcox G24 mount.
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
Overview
The EOTECH BinoNV-W is a rugged, compact dual-tube night vision goggle engineered for demanding field use, with a class-leading 47° field of view for improved situational awareness in low light.
Built to MIL-STD-810G durability standards, the unit offers diopter adjustment and full articulation for a tailored fit, and supports external battery packs for extended operation.
- 47° field of view
- MIL-STD-810G durability
- Diopter adjustment and full articulation
- Includes Wilcox G24 mount; supports external battery packs
Contact FarrWest for a quote.
Specifications
| Power | |
| POWER SOURCE | 1 AA battery — Supports lithium, alkaline or rechargeable |
| BATTERY LIFE | Lithium: >25 / Alkaline: >15 |
| Physical | |
| WEIGHT | 17.6 oz/ 1.1 lbs. (500g) including battery |
| Other | |
| L X W X H | 4.1” x 3.94” x 2.9” (104 x 100 x 74mm) |
| FIELD-OF-VIEW | 47° |
| MINIMUM FOCUS DISTANCE | 9.8 in (25cm) |
| DIOPTER ADJUSTMENTS | +2 to -6 |
| WATER RESISTANT | 3 ft (1m) for 1 h; MIL-STD-810G |
| IMAGE INTENSIFICATION TUBE | Gen III White Phosphor |
| FIGURE OF MERIT (FOM) | 2376 minimum FOM |
Description
Wide Field of View Dual-Tube Night Vision Goggle with G24 Mount
The EOTECH® BinoNV-W is a next-generation, dual-tube night vision goggle that combines compact form, MIL-STD-810G ruggedness, and an industry-leading 47° field of view (FOV) for enhanced situational awareness during night operations. Engineered for special operations forces, SWAT teams, and tactical professionals, the BinoNV-W is built around a binocular design that offers superior depth perception over single-tube systems—ideal for on-foot navigation, vehicle operations, and real-time threat response.
Unlike traditional 40° systems, the BinoNV-W’s ultra-wide 47° FOV gives users a broader visual footprint, improving awareness and engagement in complex environments. Each monocular articulates independently, allowing users to flip them up as needed for flexibility and comfort during extended use. Powered by a single AA battery, the system also supports an external battery pack (optional) for extended runtime. Built-in diopter adjustments allow precise focus control for each eye, ensuring clear vision across diverse users and conditions.
