Biomeme/5
Engineered for extreme portability and accelerated workflows, the Biomeme/5 delivers rapid DNA/RNA identification at the point of need for Federal Agencies, State & Local Authorities, and Military teams. It identifies up to 60 targets from a single sample, with minimal sample preparation and confirmatory-grade molecular results, without the need for specialized lab equipment or extensive training.
Research Use OnlyThe Biomeme/5 is for Research Use Only. IVD Products are currently in development at Biomeme. Not currently for use in diagnostic procedures.
One temperature. One target.
The Biomeme/5 runs Biomeme’s DTECT® isothermal chemistry. Instead of cycling the reaction through precise temperature changes, it holds one constant temperature and adds a targeted endonuclease that is directed only at the target of interest.
Thermal cycling
Traditional PCRThe reaction is heated and cooled again and again (thermal cycling).
DTECT® isothermal
Biomeme/5One constant temperature, with a targeted endonuclease mechanism that Biomeme says eliminates non-specific amplification.
Biomeme describes DTECT® as bridging the gap: it uses the constant-temperature speed of isothermal amplification, but introduces a highly specific, targeted endonuclease mechanism.
- 01
Targeted guidance
The enzyme is directed exclusively to the specific target of interest.
- 02
Resource efficiency
Non-specific amplification is eliminated, so the reaction’s resources go toward the correct target.
- 03
Speed in the field
No thermal cycling to wait on. Biomeme lists a time to result of ~12 minutes, with a fully automated process requiring minimal sample volume.
- 04
Quantitative & qualitative
Both quantitative and qualitative results from a single run, with raw data available (Ct/Cq values).
Four steps, one instrument
Isothermal nucleic acid amplification with fully automated, integrated sample preparation, administered easily by non-lab technicians at the point of need. Instrument set-up takes under a minute.
- 01
Collect & prep
A swab-dropper bottle, fixed-volume transfer pipette and SampleDirect prep device collect and prep an environmental sample. Every Biomeme/5 panel order already includes the collection components needed to run its tests.
Simplified sample prep - 02
Load the cartridge
Each single-use cartridge is prepped with all necessary multiplexed molecular assay components, with shelf-stable lyophilized reagents.
Lyophilized cartridge - 03
Run
Start the run from the integrated touchscreen and buttons. Sample preparation and DTECT® amplification are automated inside the instrument. Training required: minimal.
Set-up <1 minute - 04
Read & share
Up to 60 DNA/RNA targets identified from the one sample, with raw Ct/Cq data. Real-time sync with the Biomeme Cloud, and an ATAK companion plugin for tactical deployment.
~12 minutes to result
The confidence of the molecular method, with the operational simplicity that previously belonged only to lateral flow immunoassays.How Biomeme describes the Biomeme/5
Detect. Train. Verify.
One instrument and one user workflow across three jobs: identifying biothreats, training responders on simulants, and confirming the instrument is ready before it is relied on.

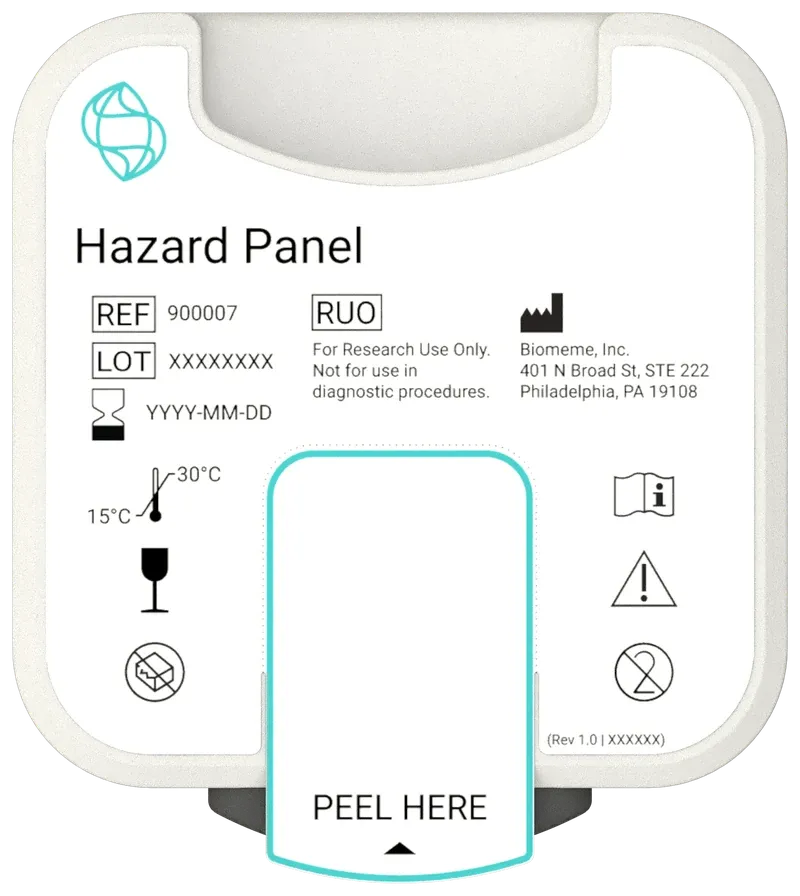

Hazard Panel
Engineered for the rapid identification of 17 critical biothreats in less than 15 minutes. A nucleic acid amplification test panel for biosurveillance, run on single-use cartridges with shelf-stable lyophilized reagents.

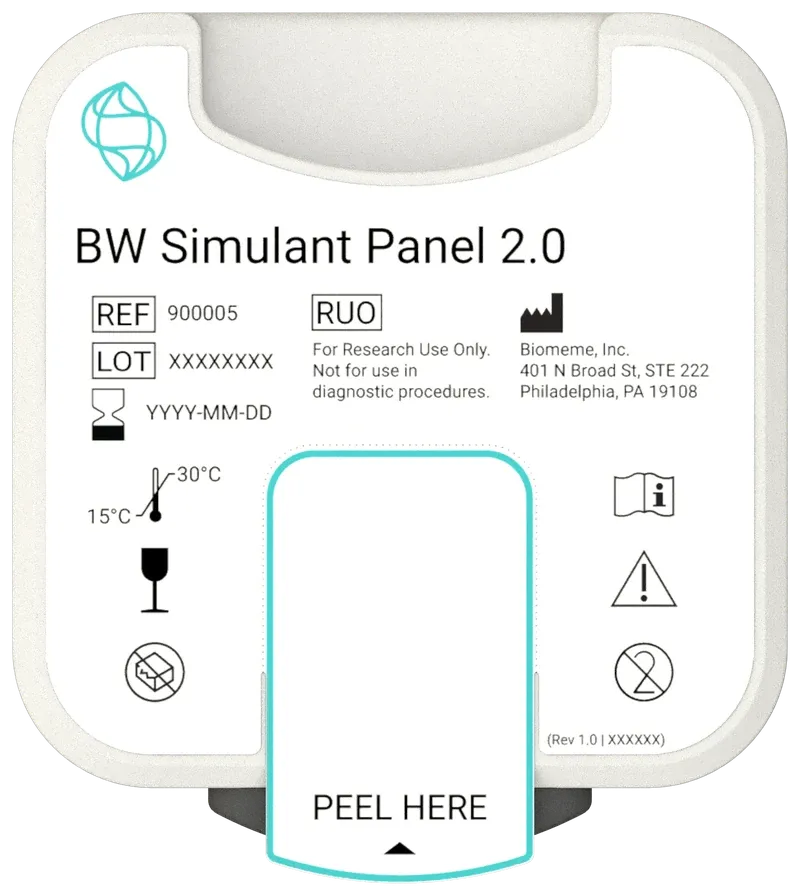

BW Simulant Panel
Identifies four common biowarfare simulant organisms for realistic training exercises, without the risk of handling actual BSL2–4 biothreats. Same single-use cartridges and the same user workflow.

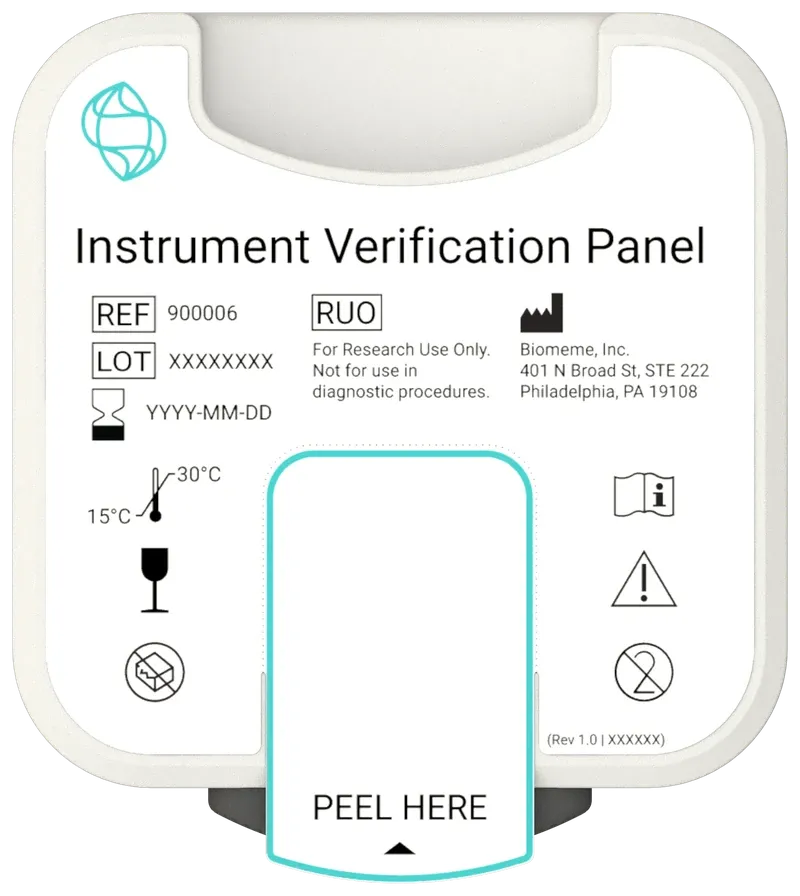

Instrument Verification Kit
Straightforward performance checks with clear pass/fail results, verifying the instrument’s functionality and readiness for biowarfare agent identification. Ideal for routine assessment.
Cartridges are shelf-stable, single-use consumables with lyophilized reagents, and Biomeme lists a 2-year assay shelf life.
SampleDirect Kit for Environmental Samples
Five each of a fixed-volume liquid transfer pipette, swab-dropper bottle, and SampleDirect prep device.
Pre-Filter Kit for Environmental Samples
Five each of a 1 mL syringe and 5 µm pre-filter attachment, for environmental samples that need pre-filtration before running on a Biomeme/5 panel.
Panel orders already include the collection components needed to run their tests. These kits restock them for extended environmental sampling. Ask us about panels and kits when you request information.
Carried, powered, connected
A ruggedized, portable package that combines enhanced multiplexing, rapid isothermal amplification and wireless connectivity, with secure connectivity for any mission.
Dust & water protected
Rated IP65.
User-swappable COTS
Commercial off-the-shelf (COTS) batteries the operator can swap.
Ready in under a minute
Instrument set-up time <1 minute. No preventative maintenance required.
USB-C · BLE · WiFi · ATAK
Wi-Fi and Bluetooth Low Energy for real-time data sync and secure integrations, plus USB-C.
ATAK plugin
A dedicated companion plugin for tactical deployment and situational awareness.
Biomeme Cloud
Secure data management, analytics and data sharing, local export, and a Web API for LIMS and custom workflows.
Two chemistries, one line
The Biomeme/5 runs DTECT® isothermal amplification on Biomeme/5 cartridges; the Franklin ISP runs its own ISP cartridges. Each has its own page.
Biomeme/5
- Chemistry
- DTECT® isothermal
- Test compatibility
- Biomeme/5 cartridges
- Sample prep
- Integrated, simplified
- User interface
- Integrated touchscreen & buttons
Franklin ISP
- Chemistry
- Real-time PCR thermocycler
- Test compatibility
- ISP cartridges
- Sample prep
- Integrated sample prep
Franklin Real-Time PCR
- Chemistry
- Real-time PCR thermocycler
Biomeme/5 specs
Key specifications.
| Detection | |
|---|---|
| Detection technology | DTECT Isothermal |
| Targets detected | Up to 60 |
| Max samples per run | 1 |
| Time to result | ~12 minutes |
| Results type | Quantitative & Qualitative |
| Raw data available | Yes (Ct/Cq values) |
| Workflow | |
| Sample prep | Simplified sample prep; integrated sample prep |
| Instrument set-up time | <1 Minute |
| Training required | Minimal |
| Physical | |
|---|---|
| Device weight | 2 lbs / 0.9 kg |
| Device dimensions | 7.8 in L x 3.8 in W x 2.7 in H |
| Device volume | 80 in³ / 1310 cm³ |
| IP rating | Dust & Water Protected (IP65) |
| Operation | |
| Power requirements | User-swappable COTS |
| User interface | Integrated touchscreen & buttons |
| Preventative maintenance | No preventative maintenance required |
| Data integration | USB-C, BLE, WiFi, ATAK |
|---|---|
| Data management | Biomeme Cloud, Local Export, API |
| ATAK plugin | Dedicated companion plugin for tactical deployment and situational awareness |
| Biomeme Cloud | Secure data management, advanced analytics, data sharing |
| Web API | Programmatic access for integration with LIMS and custom workflows |
| Cartridges | |
|---|---|
| Test compatibility | Biomeme/5 Cartridges |
| Test cartridge | Lyophilized; shelf-stable, single-use. No cold chain required. |
| Assay shelf life | 2 Years |
| Panels & kits | |
| Hazard Panel | Rapid identification of 17 critical biothreats in less than 15 minutes |
| BW Simulant Panel | Identifies four common biowarfare simulant organisms |
| Instrument Verification Kit | Clear pass/fail results |
| SampleDirect Kit | Five each of a fixed-volume liquid transfer pipette, swab-dropper bottle, and SampleDirect prep device |
| Pre-Filter Kit (optional) | Five each of a 1 mL syringe and 5 µm pre-filter attachment |
| Standard warranty | 1-year standard warranty (Biomeme) |
|---|---|
| Extended warranty | +1-year or +4-years (Biomeme) |
| Training | On-site training (Biomeme) |
| Intended use | Research Use Only. Not currently for use in diagnostic procedures. |
| Export regulations | ITAR |
ExportThese defense articles are controlled for export under the International Traffic in Arms Regulations (ITAR), administered by the U.S. Department of State, Directorate of Defense Trade Controls.
Datasheet, service & platforms
The Biomeme/5 datasheet, how we support the instruments we deliver, and the Franklin platforms in the same Biomeme line.
Biomeme/5 datasheet
Key specifications for the Biomeme/5 in a two-page sheet.
Product questionsRequest information
Ask us about the Biomeme/5, its panels and sampling kits, warranty and on-site training.
ServiceRepair Depot
OEM-certified service and support on every product we deliver. When a repair or calibration falls outside our in-house scope, we coordinate directly with the third-party manufacturer and manage the logistics end to end.
Biomeme platformFranklin ISP
Real-time PCR thermocycler with integrated sample prep.
Biomeme platformFranklin Real-Time PCR
Biomeme’s Franklin real-time PCR thermocycler.
Biomeme/5 questions
What is DTECT®?
How fast is a result, and how many targets can it identify?
What sample types does it handle?
Do the cartridges need refrigeration?
How do teams train without live agents?
How do I confirm the instrument is ready?
Does it use Franklin ISP cartridges or Go-Strips?
Does it work with ATAK?
Can the Biomeme/5 be used for diagnosis?
Is it export-controlled?
What warranty does it carry?
Put DTECT® at the point of need
Tell us about your mission and the samples you work with. Ask us about the Biomeme/5, its Hazard, Simulant and Verification panels, sampling kits, warranty and on-site training.
