Catalytic combustion (CC) detection for combustible gases and vapors
-

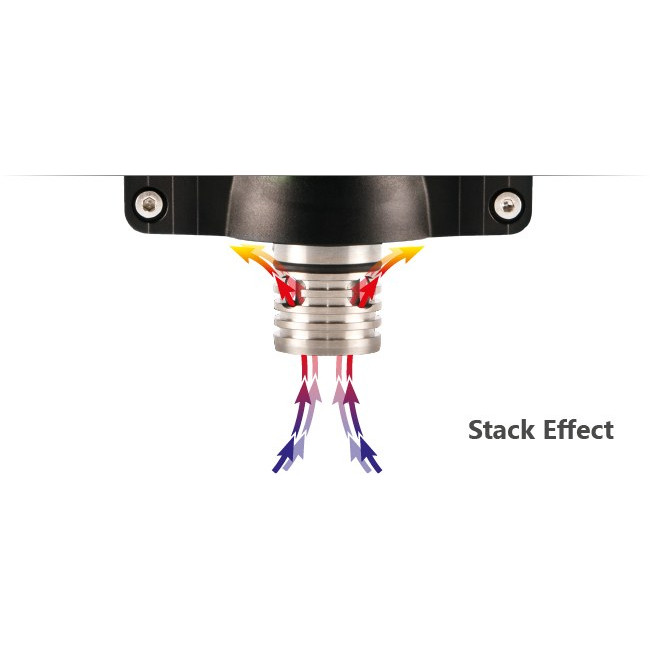

Short response time due to stack effect
-
2.2-inch color display with alarm indication (red backlight)
-
4-20 mA analog signal transmission
-
Automatic temperature compensation
-
IP64 protection class (dust and water resistant)
-
ATEX certified for Ex Zone 1
-
SIL 2/3 hardware compliance
-
Smart Sensor technology for easy replacement
-
One-person adjustment via three onboard buttons
-
Two status LEDs for operating status indication
-
Multicolor backlit display with menu system
-
Test gas insertion via flow adapter
CC28 D
$0.00

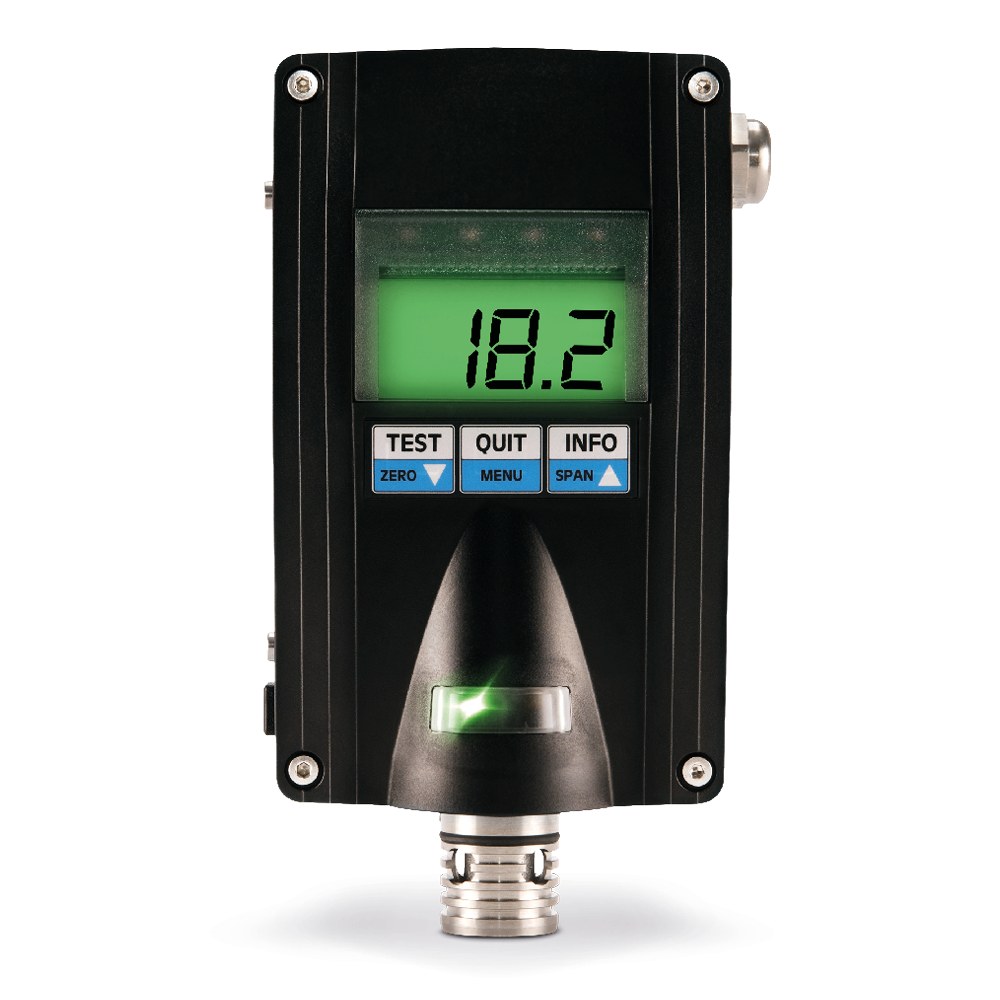

The GfG CC28 D is a catalytic combustion transmitter for monitoring flammable gases in ATEX Ex Zone 1 areas, featuring a 2.2-inch display and IP64 protection.
In stock
The CC28 D is a reliable and economical transmitter for monitoring flammable gases and vapors in Ex zones. It uses catalytic combustion (CC) to detect combustible gases such as methane, propane, and hydrogen. Features include a 2.2-inch color display showing current measured values, 4-20 mA analog signal transmission, IP64 protection class, ATEX certification for Ex Zone 1, and SIL 2/3 hardware compliance. The device offers short response times due to stack effect technology, automatic temperature compensation, long-life sensors (5-year expected lifetime), and easy sensor replacement via Smart Sensor technology. Measuring ranges: 0-100% LEL and 0-4% by volume (NH3). Service and settings are performed intuitively using three buttons directly on the device.
Description
CC28 D
The CC28 D is a reliable and economical transmitter for monitoring flammable gases and vapors in Ex zones. It uses catalytic combustion (CC) to detect combustible gases such as methane, propane, and hydrogen. Features include a 2.2-inch color display showing current measured values, 4-20 mA analog signal transmission, IP64 protection class, ATEX certification for Ex Zone 1, and SIL 2/3 hardware compliance. The device offers short response times due to stack effect technology, automatic temperature compensation, long-life sensors (5-year expected lifetime), and easy sensor replacement via Smart Sensor technology. Measuring ranges: 0-100% LEL and 0-4% by volume (NH3). Service and settings are performed intuitively using three buttons directly on the device.
Features
Specifications
- Measuring principle
- catalytic combustion (CC)
- Application
- combustible gases and vapors
- Display
- color 2.2 inch, touchbutton interface
- Signal transmission
- 4-20 mA
- Protection class
- IP64
- Expected sensor lifetime
- 5 years
- ATEX certification
- II 2G Ex demb [ib] IIC T4 Gb
- Functional Safety
- SIL 2/3 (hardware)
