Categories: Area Gas Monitors, Area-Gas Monitors, Gas Detection, Gas Detection, Oil & Gas Brand: Honeywell

BW RIGRAT

Name: BW RIGRAT
Brand: Honeywell

$0.00

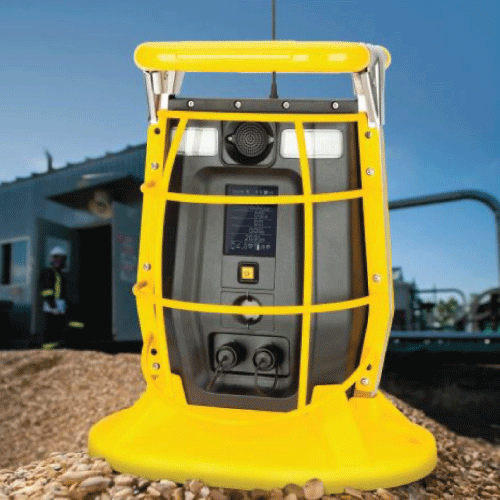

The Honeywell BW RigRat is a portable, one-button transportable multi-gas area monitor that alerts workers to nearby gas threats.

In stock

The Honeywell BW RigRat brings simple, user-friendly operation to transportable multi-gas area monitoring — place it nearby and it alerts workers to area gas threats so they can respond.

One-button operation means it can be turned on and deployed with no expertise or additional training required.

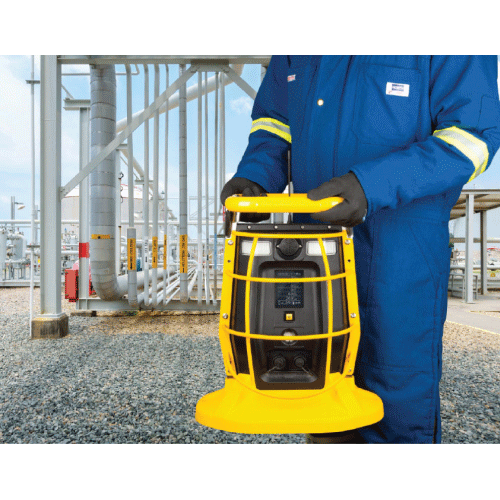

Convenient handles, a lightweight build, and a carrying strap make it easy to move around a job site as monitoring needs change.

Contact FarrWest for a quote.

Description

BW RIGRAT

Transportable Multi-gas Area Monitor

Honeywell BW RigRat brings a new level of user-friendliness to transportable multi-gas area monitoring, so your people can work with confidence in hazardous areas. Simply place the monitor nearby, and it will alert workers to area gas threats so they can take action

Grab and go. Like other Honeywell BW products, Honeywell BW RigRat is engineered for ease, with one-button operation. Simply turn it on and it’s ready to deploy- no expertise required. Convenient handles and a carrying strap make it easy to take with you.

Unlike some transportable area monitors, Honeywell BW RigRat is fully self-contained – with no need to repurpose your personal gas detectors for an area monitoring application. Instead, continue using your personal detectors to monitor workers’ breathing zone, while using Honeywell BW RigRat to monitor an area. It is so easy to use that workers can operate it with confidence, trusting it to alert them to gas threats in their proximity

Features

Up to 8 weeks of runtime on a single
charge
Up to six slots for interchangeable gas sensors
Integrated Noise sensor and Metrological data sensors
Enhanced configurations with programmable input and output

Easy to Use

One button operation, just grab and go. Also, simple setup with a smartphone. Easy mobile app for alarm set points calibration records and more.

Compatible

Use with the Honeywell Touchpoint Plus controller for visibility on Honeywell BW™ RigRat monitors and workers’ personal detectors.

Wireless Safety Perimeter

Position several Honeywell BW RigRat monitors to form a wireless safety perimeter with line power for extended runtime in the field

Remote Monitoring

Use with Honeywell’s remote monitoring software to see gas readings, location and other data from any device with an internet connection — for fast, informed decisions. Add an optional noise sensor or meteorological sensor.

Specifications

Size: 15.8 x 11.4 x 18.5 in. / 40.0 x 29.0 x 47.0 cm
Weight: 17.6 lb / 8 kg
Running Time: 8 weeks for low-power model; other models vary by configuration
Alarms: Red/yellow/green LED alarm; buzzer alarm 108 dBA @ 1 m; on-screen
indication of alarm conditions
IP Rating: IP65 for pumped models; IP67 for diffusion models
Wireless
ISM license free band: Bluetooth Low Energy Module (BT 4.2 / 5.0), 2.4 GHz, in default; Mesh Module: IEEE 802.15.4 868 MHz / 915MHz /2.4 GHz (optional); Wi-Fi Module: 802.11 b/g/n 2.4 GHz (optional)
Datalogging: Complete gas sensors and instrument information for at least 4 months at
one minute intervals
Radio Module & Range: ISM license free band; Bluetooth Low Energy Module (BT 4.2 / 5.0), 2.4 GHz, in default; Mesh Module: IEEE 802.15.4 868 MHz / 915MHz /2.4 GHz (optional); Wi-Fi Module: 802.11 b/g/n 2.4 GHz (optional)
Safety Certifications
cETLus Class I Division; 1; Group A, B, C, D; T4: IEC EX/ATEX; I M1 Ex ia I Ma; II 1G Ex ia da IIC T4 Ga
For LELIR/CO2 sensor installed: I M1 Ex ia I Ma; II 2G Ex ia da db IIC T4 Gb; 1G Ex ia da IIC T4 Ga
Humidity: 5% to 95% relative humidity (non-condensing)

Sensor Specifications

Gas Monitor	Range	Resolution	Temperature Range
Combustible Gases (IR)	0-100% LEL 0-100% vol.	1% LEL 0.1% vol.	-40 to +140° F -40 to +60° C
Combustible Gases (LEL)	0-100% LEL	1% LEL	-40 to +140° F -40 to +60° C
CARBON DIOXIDE (CO2)	0-5% vol. 100 ppm	0.01% vol. 100 ppm	-4 to +131° F -20 to +50° C
CARBON DIOXIDE (CO2) (EXT. RANGE)	0-100% vol	0.1% vol	-4 to +131° F -20 to +50° C
VOLATILE ORGANIC COMPOUNDS (VOC)	0-2000 ppm	0.1 ppm	-4 to +131° F -20 to +50° C
CARBON MONOXIDE (CO)	0-500 ppm	1 ppm	40 to +140° F -40 to +60° C
CARBON MONOXIDE (CO) (EXT. RANGE)	0-2000 ppm	10 ppm	-4 to +131° F -20 to +50° C
CARBON MONOXIDE (CO) (H2 RESISTANT)	0-1000 ppm	0-1000 ppm	4 to +140° F -20 to +60° C
HYDROGEN SUFLIDE (H2S)	0-100 ppm	0-100 ppm	-40 to +140° F -40 to +60° C

HYDROGEN SUFLIDE (H2S) (EXT. RANGE)	0-100% LEL	1% LEL	-40 to +140° F -40 to +60° C
SULFUR DIOXIDE (SO2)	0-20 ppm	0.1 ppm	-40 to +140° F -40 to +60° C
OXYGEN (O2)	0-30% vol.	0.1% vol.	-40 to +140° F -40 to +60° C
NITRIC OXIDE (NO)	0-250 ppm	0.5 ppm	-4 to +131° F -20 to +50° C
NITROGEN DIOXIDE (NO2)	0-20 ppm	0.1 ppm	-4 to +131° F -20 to +50° C
HYDROGEN CYANIDE (HCN)	0-50 ppm	0.5 ppm	-4 to +131° F -20 to +50° C
AMMONIA (NH3)	0-100 ppm	1 ppm	-4 to +131° F -20 to +50° C
CHLORINE (CL2)	0-50 ppm	0.1 ppm	-4 to +131° F -20 to +50° C

Resources

RIGRAT Datasheet

RIGRAT Manual

Media

Honeywell BW Icon & Honeywell BW RigRat Introduction

Honeywell BW RigRat Area Gas Detector – Features and Benefits

Introducing the Honeywell BW RigRat: Transportable Multi-Gas Area Monitor
