TTC: H*(10) dose rate equivalent measurement from background up to 10 Sv/h (1000 rem/h)
-
VLD1: H*(10) dose rate equivalent measurement from 10 nSv/h to 1 mSv/h (1 µrem/h to 100 mrem/h)
-
Fast start up time: <15 sec
-
Multiple CSP™ probe host controller
-
Mapping applications with GPS, Barcode or RFID reader
-
Multiple usability levels via profile and user management
-
Easy data transfer and instrument setup with standard PC web browser
-
Background subtraction mode
-
Timer/Scaler for better MDA
-
Large data storage
-
Traceability: When, How, Who, Where for each record
-
Wired or wireless probe connection
-
Large control buttons to accommodate use with gloves
-
Large color touch screen
-
Easy to read display in all light conditions
-
Waterproof to 1 meter depth
-
Rechargeable batteries with no memory effect
-
Always visible dose-rate display for better user safety
-
Standard Bluetooth® headset connection
-
Loud audio alarm and vibrator
-
Free and easy to upgrade software via PC connection
Colibri TTC / VLD
$0.00

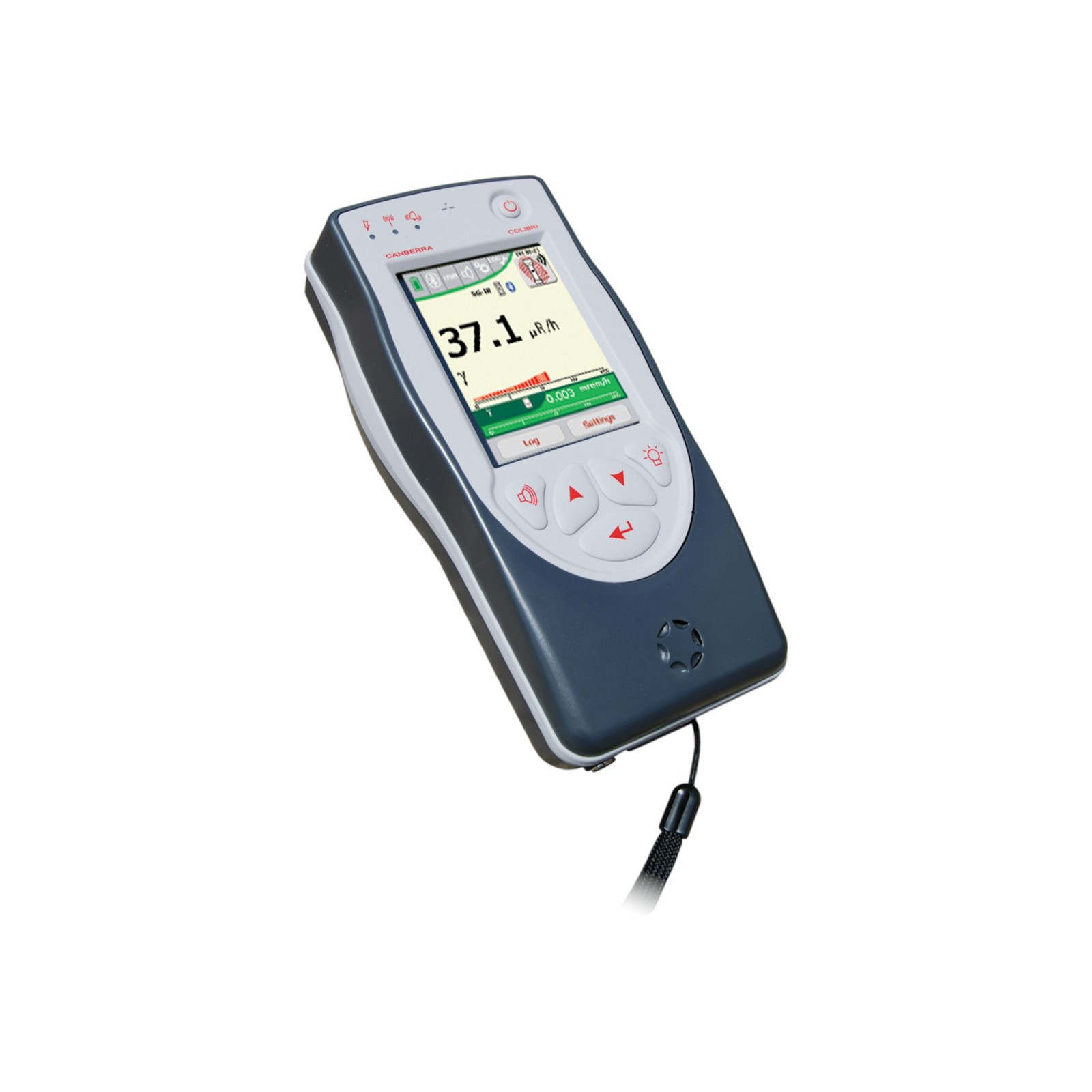

The Colibri TTC/VLD is a hand-held health physics communication platform designed to lower dose exposure for HP technicians and workers in radiation areas.
In stock

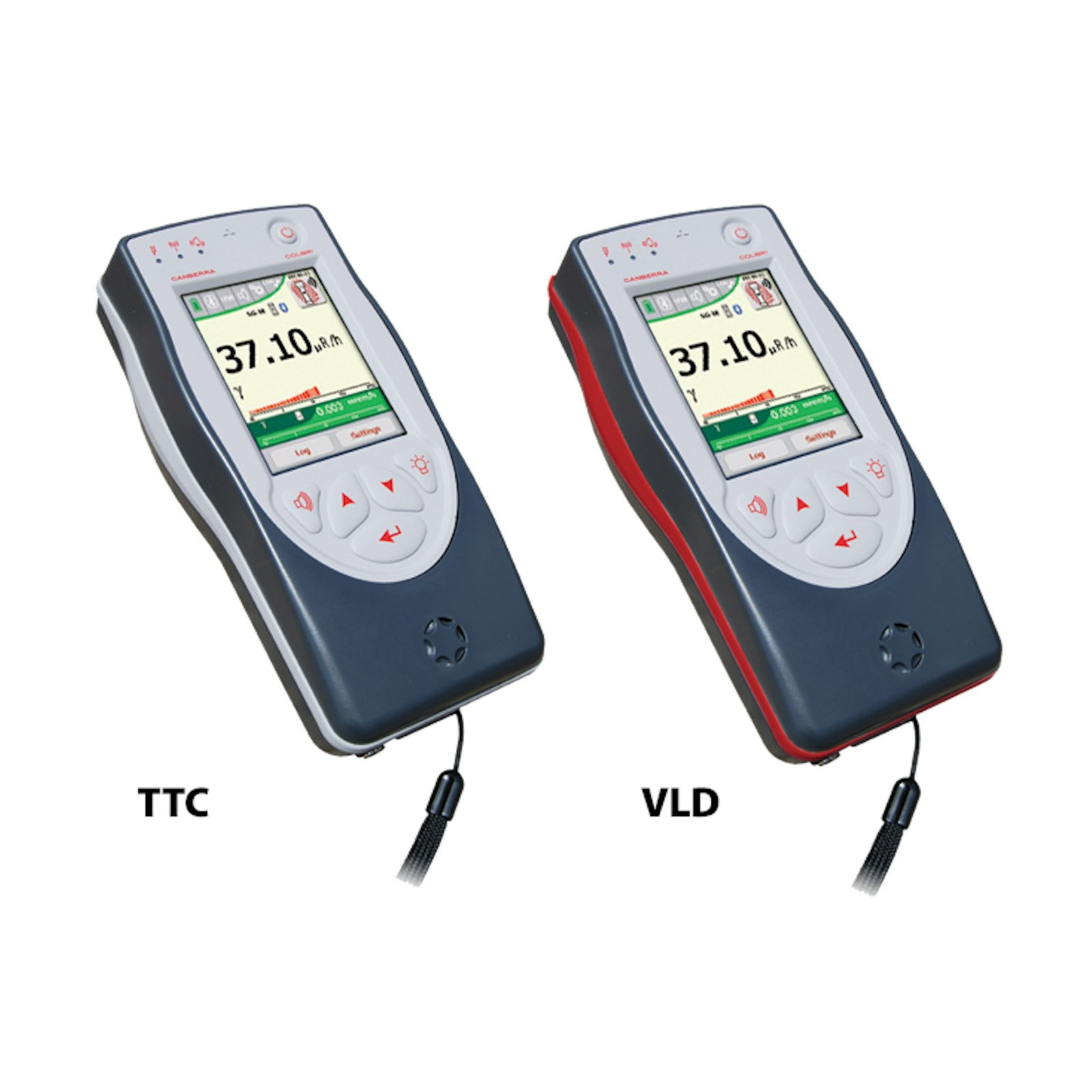

The Colibri TTC & VLD is a comprehensive hand-held health physics communication platform designed to lower dose exposure of HP technicians and workers in radiation areas. Available in two versions: TTC (grey gasket) for measurements up to 10 Sv/h (1000 rem/h) and VLD (red gasket) for very low dose measurements from 10 nSv/h (1 µrem/h). Features include fast startup (<15 sec), large color touch screen, waterproof design, wireless probe connection, GPS/barcode/RFID mapping, extensive data storage with traceability, rechargeable batteries, and wireless data collection from pre-positioned detectors to minimize time in radiation areas.
Description
Colibri TTC / VLD
The Colibri TTC & VLD is a comprehensive hand-held health physics communication platform designed to lower dose exposure of HP technicians and workers in radiation areas. Available in two versions: TTC (grey gasket) for measurements up to 10 Sv/h (1000 rem/h) and VLD (red gasket) for very low dose measurements from 10 nSv/h (1 µrem/h). Features include fast startup (<15 sec), large color touch screen, waterproof design, wireless probe connection, GPS/barcode/RFID mapping, extensive data storage with traceability, rechargeable batteries, and wireless data collection from pre-positioned detectors to minimize time in radiation areas.
Features
Specifications
- Display Units Internal Detector
- Sv/h, Sv or rem, rem/h. H*(10) ambient gamma dose equivalent rate (according to ICRP-60)
- Display Units With external probes
- c/s, Bqeq, Sv, Sv/h, Sveq, Bqeq/cm2, Sveq/h or cpm, rem/h, rem, R, R/h, DPMeq, DPMeq/100 cm2
- Emitters
- Gamma
- Detector TTC
- Energy Compensated Geiger Mueller
- Detector VLD
- CsI(Tl) with energy compensation
- Sensitivity 137Cs TTC
- 0.73 c/s per µSv/h (438 cpm per mR/h)
- Sensitivity 137Cs VLD
- 70 c/s per µSv/h (27 kcpm per mR/h)
- Measurement Range TTC
- 0.05 µSv/h to 10 Sv/h (5 µrem/h to 1000 rem/h)
- Measurement Range VLD
- 10 nSv/h to 1 mSv/h (1 µrem/h to 100 mrem/h)
- IEC Approved Range TTC
- 3 µSv/h to 10 Sv/h (300 µrem/h to 1000 rem/h)
- IEC Approved Range VLD
- 100 nSv/h to 1 mSv/h (10 µrem/h to 100 mrem/h)
- IEC Approved Energy Range TTC
- Gamma 48 keV to 1.5 MeV
- IEC Approved Energy Range VLD
- 59 kev to 1.5 MeV
- Alarm Threshold Use
- Choice of one within a list of 10 preset and editable values
- Alarm Threshold External Probes
- 10 editable values for each unit to display, stored in probe memory
- Alarm Threshold Editable
- Each value is editable via PC setup, CSPS software and Colibri survey meter
- Display
- 3.5 in. QVGA TFT 240 * 320 with backlight
- Audible Alarm
- >85 dB at 30 cm, typical: 90 dB
- Vibrator
- Yes
- Visual
- Flashing red LED, alarm pictogram and screen display color (red)
- Keyboard
- Ruggedized silicon keyboard with six buttons: power, audio, light, up, down, enter
- Operating Controls
- Complete and automatic self test when switching on. Periodical control of main functions when in use.
- Data Storage
- Measure, selected thresholds, probe identification, serial number, time and date, calibration data and location data. 512 MB flash memory
- Batteries
- Integrated rechargeable batteries (Li-ion)
- External Charger
- 100-240 V ac/47-63 Hz
- Charge Time
- 2 hours approx
- Battery Life
- Up to 25 h (based on TTC version); display of ‘low battery’ pictogram when battery life is <1 hour
- Housing
- Molded polycarbonate housing with elastomer and Silicon keyboard. Waterproof and easy to decontaminate
- Dimensions
- 195 x 100 x 69 mm (7.6 x 3.9 x 2.7 in.) (L x W x H)
- Weight
- ~630 g depending on version and options (22.2 oz)
- Connector for Probes
- Waterproof Fisher socket
- Operating Temperature TTC
- -20 °C to +50 °C (-4 °F to 122 °F)
- Operating Temperature VLD
- -10 °C to +40 °C (14 °F to 104 °F)
- Storage Temperature TTC
- -25 °C to +60 °C (-13 °F to 140 °F)
- Storage Temperature VLD
- -25 °C to +50 °C (-13 °F to 122 °F)
- Relative Humidity INGRESS Protection
- 10% to 95% at +35 °C – IP67 (waterproof down to 1 meter (3.4 ft) during 30 min.)
- Bluetooth
- Class 2
- ANSI
- Compliant with ANSI 42.17A
- IEC
- Compliant with IEC 60846:2009 and IEC 60325 with external contamination probes. Colibri-TTC is approved to IEC 60846:2009 – Type approval N° 0111-CS-A046-11
- CE
- Meets CE requirements
- Radio/FCC
- Conform
