DJI Zenmuse XT2 Dual-Sensor Camera – FLIR Thermal + 4K Visual
The DJI Zenmuse XT2 pairs FLIR thermal imaging with a 4K visual sensor, real-time AI, and a Temp Alarm for inspection, search and rescue, and firefighting missions.
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
Overview

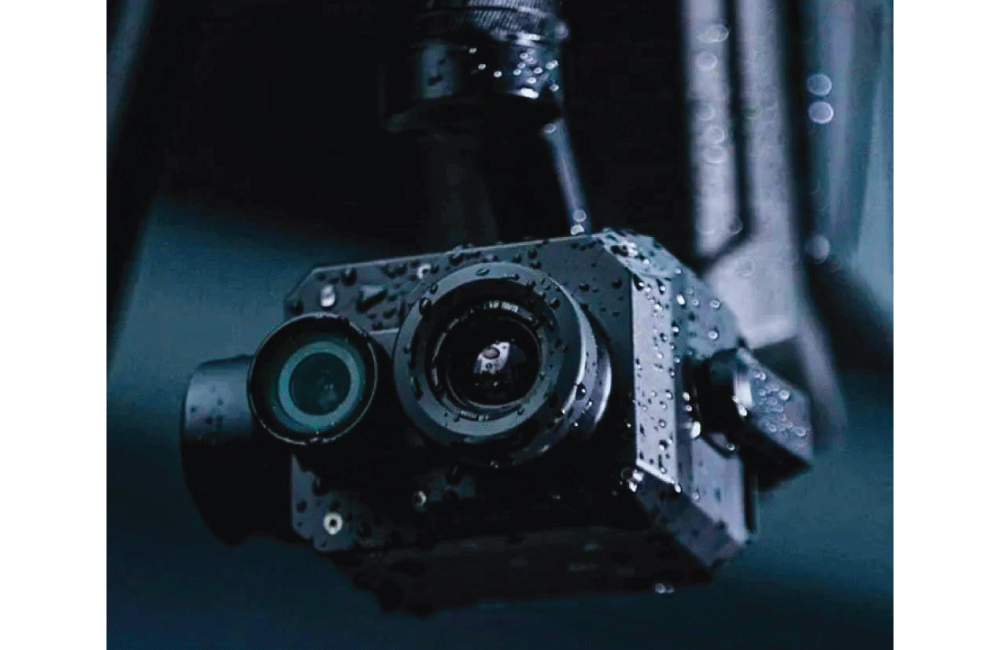

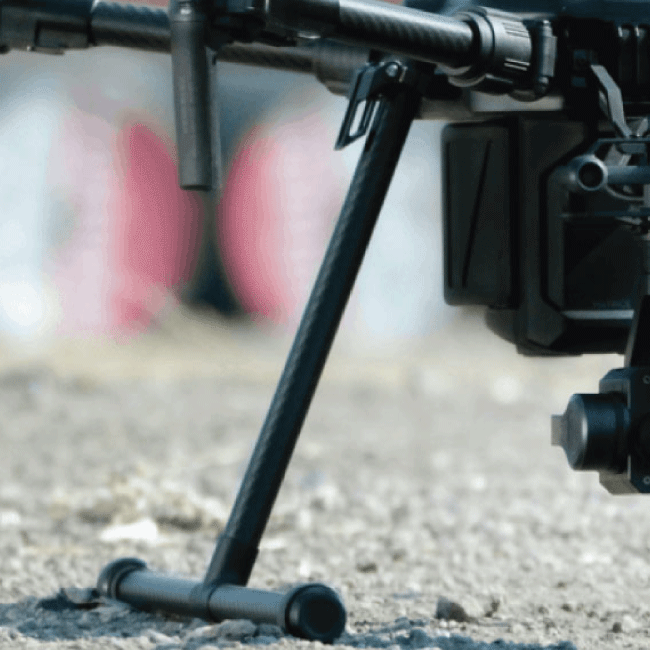

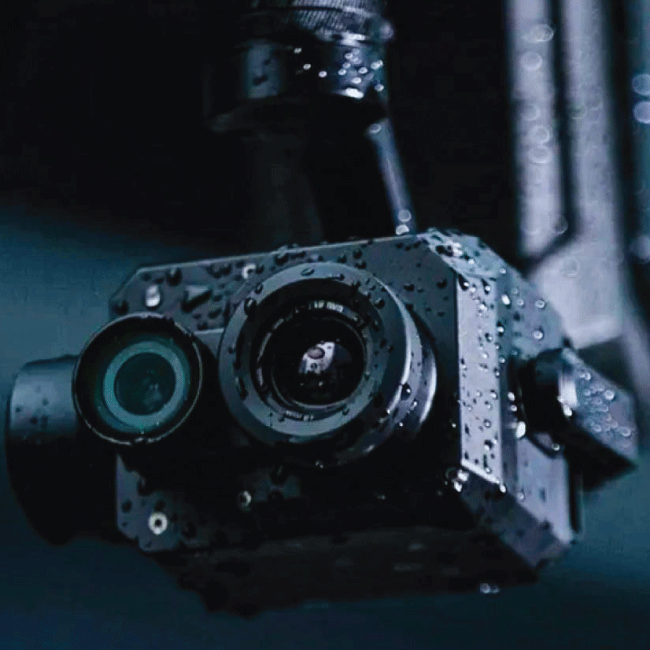

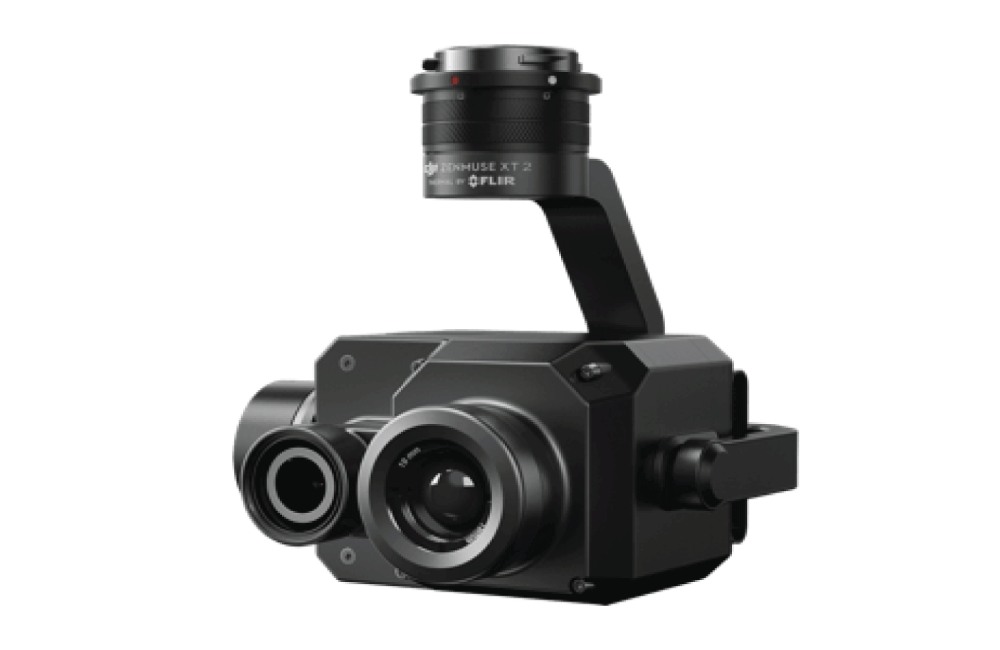

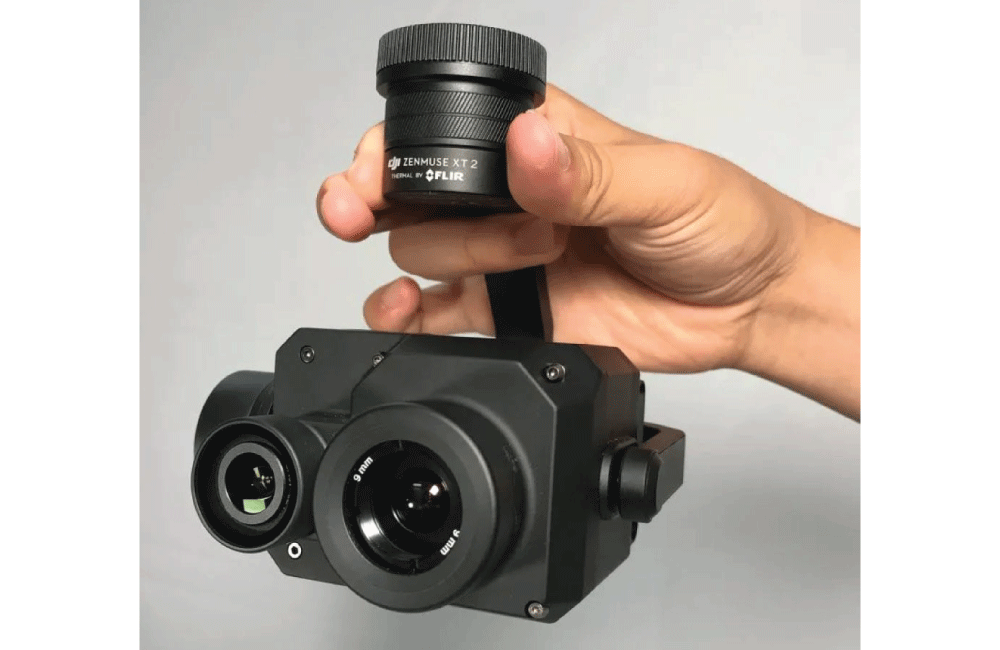

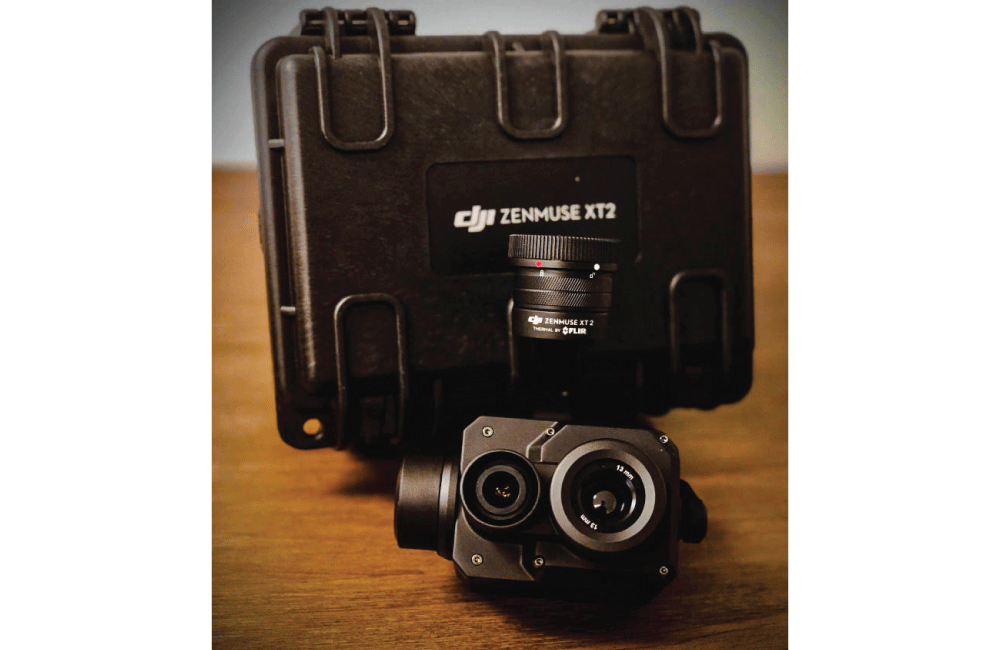

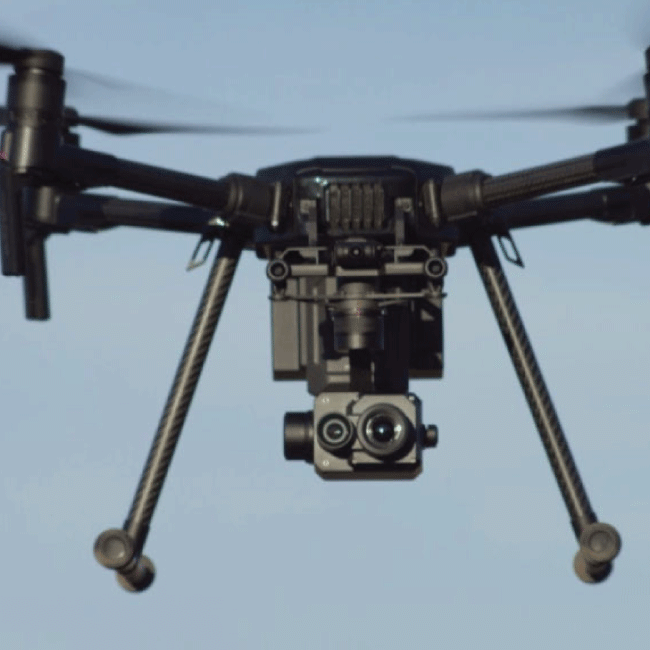

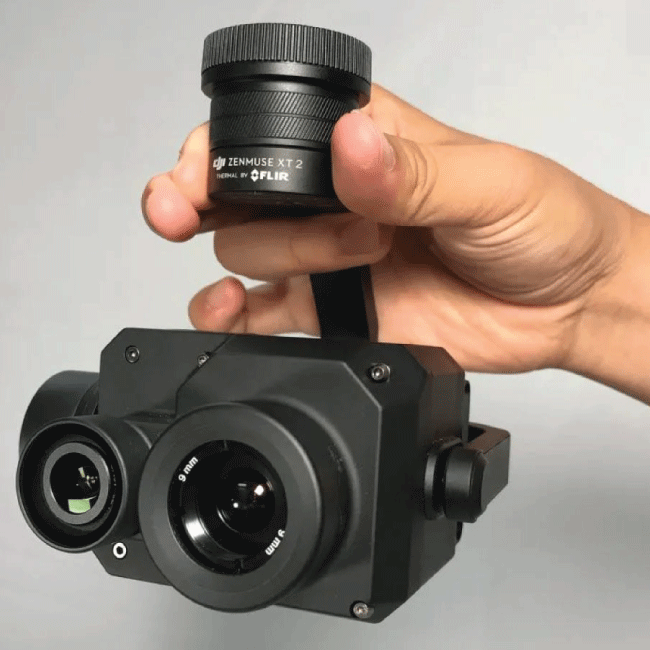

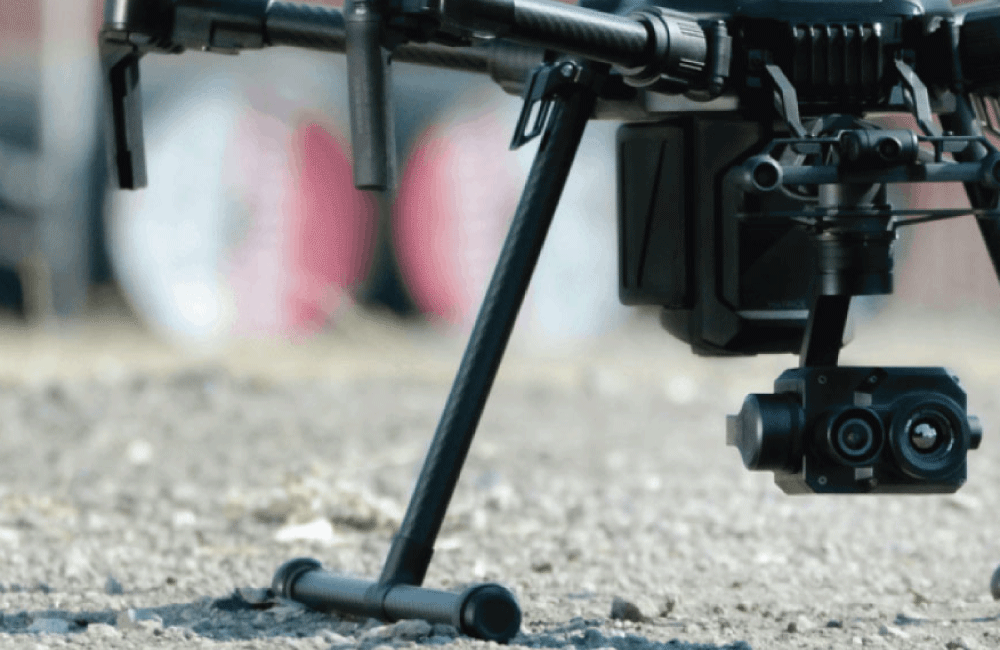

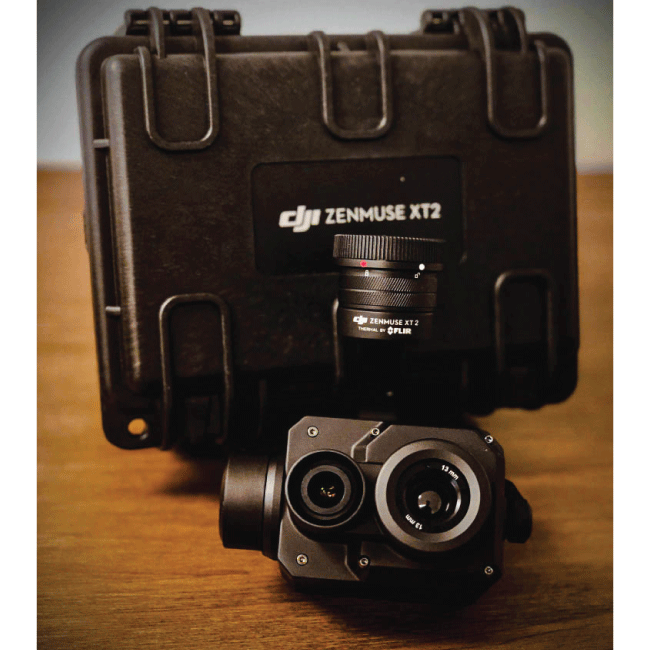

The DJI Zenmuse XT2 is a dual-sensor payload that combines FLIR thermal imaging with a 4K visual camera, built for Matrice drone platforms.
It includes real-time AI processing and a Temp Alarm feature, supporting inspection work, search and rescue operations, and firefighting missions where thermal awareness is critical.
Contact FarrWest for a quote.
- Fully integrated EO/IR camera and gimbal system

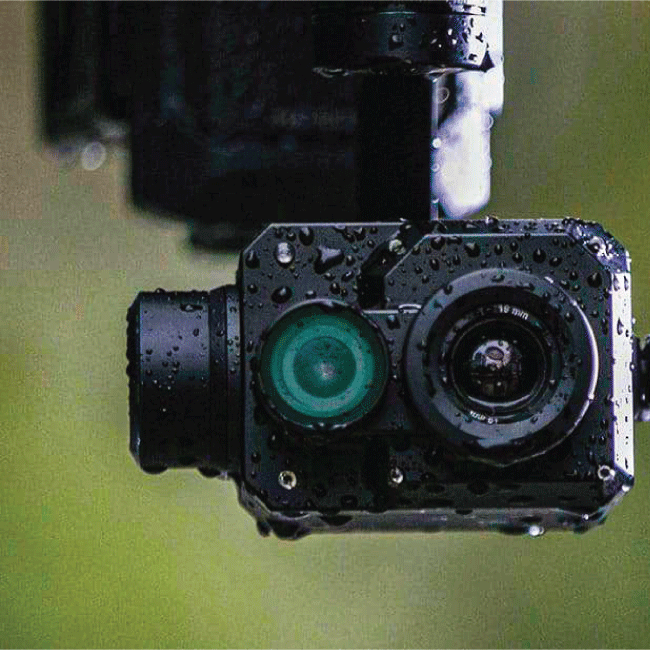

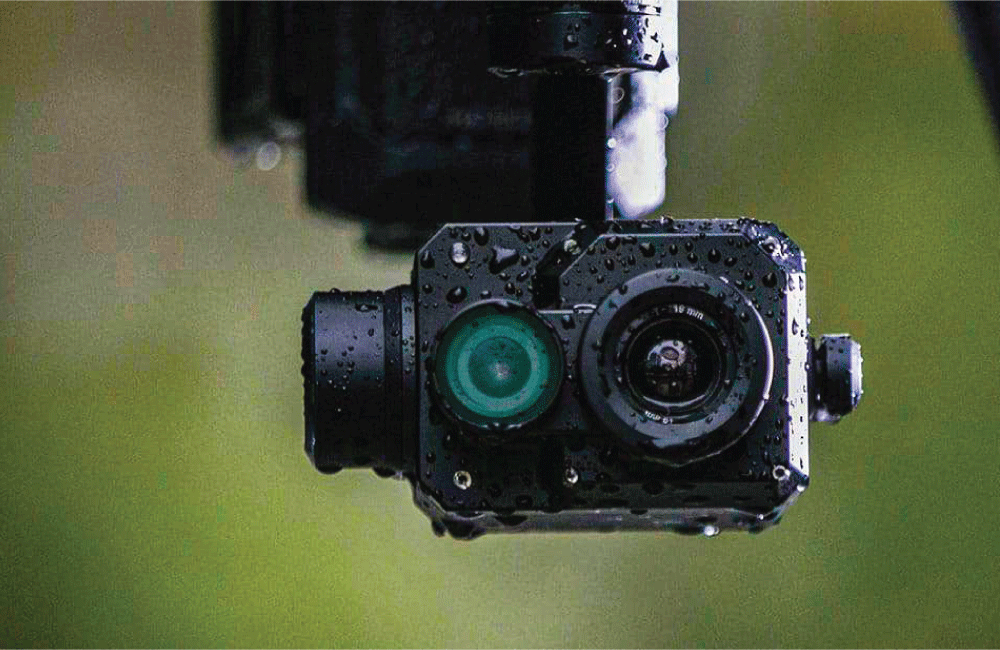

- IP44 Rated Water and Dust Resistance

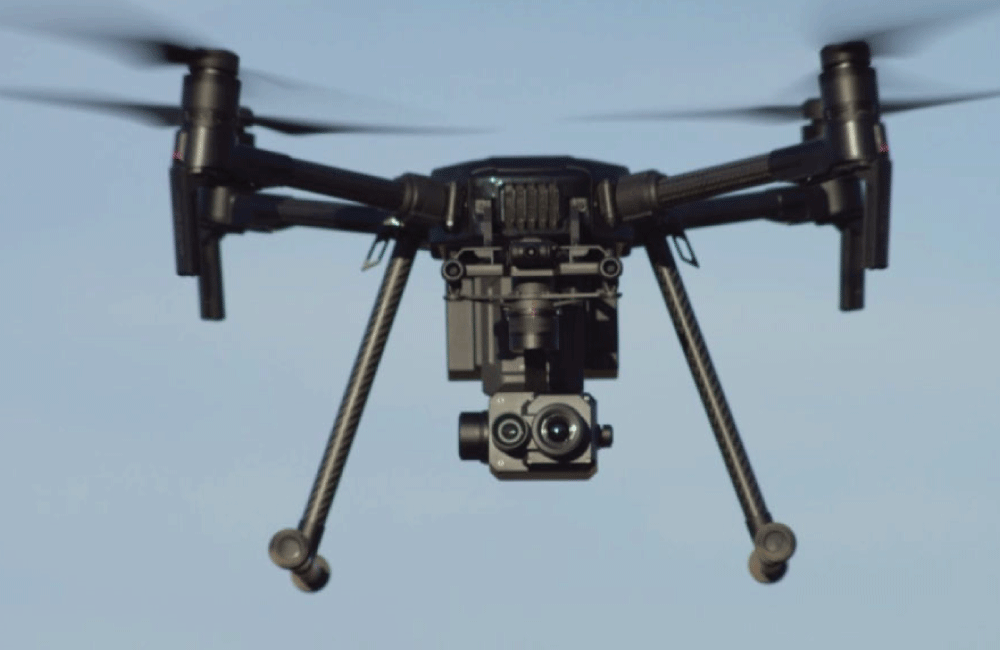

- Compatible with Matrice 200 Series, Matrice 300 Series, and Matrice 600 Pr
- Radiometric images give temperature readings for each pixel
- Multiple smart temperature features
Specifications
| Performance | |
| FPA/Digital Video Display Formats | 640×512 336×256 |
| Sensitivity (NETD) | <50 mk @ f/1.0 |
| Scene Range (High Gain) | 640×512: -25° to 135°C 336×256: -25° to 100°C |
| Scene Range (Low Gain) | -40° to 550°C |
| Angular Vibration Range | ±0.01° |
| Controllable Range | Tilt +30° to -90° Pan ±320° |
| Mechanical Range | Tilt +45° to -130° Pan ±330° Roll 90° to +60° |
| Sensor | 1/1.7" CMOS Effective Pixels 12M |
| Video Resolutions | 4K Ultra HD 3840×2160 29.97p FHD 1920×1080 29.97p |
| Physical | |
| Dimensions | With 25 mm lens 123.7×112.6×127.1 mm With other lens 118.02×111.6×125.5 mm |
| Mount | Detachable |
| Other | |
| Name | Zenmuse XT2 |
| With 25 mm lens | 123.7×112.6×127.1 mm |
| With other lens | 118.02×111.6×125.5 mm |
| Thermal Imager | Uncooled VOx Microbolometer |
| Digital Zoom | 640×512: 1x, 2x, 4x, 8x 336×256: 1x, 2x, 4x |
| Pixel Pitch | 17 μm |
| Spectral Band | 7.5-13.5 μm |
| Full Frame Rates | 30 Hz |
| Exportable Frame Rates | <9 Hz |
| File Storage | MicroSD card |
| Photo Format | JPEG, TIFF, R-JPEG |
| Video Format | 8 bit MOV, MP4 14 bit TIFF Sequence, SEQ Image Processing & Display Control Image Optimization Yes Digital Detail Enhancement Yes Polarity Control (Black Hot/White HOt) Yes Gimbal Angular Vibration Range ±0.01° Mount Detachable Controllable Range Tilt +30° to -90° Pan ±320° Mechanical Range Tilt +45° to -130° Pan ±330° Roll 90° to +60° Max Controllable Speed Tilt 90°/s Pan 90°/s |
| 8 bit | MOV, MP4 |
| 14 bit | TIFF Sequence, SEQ |
| Image Optimization | Yes |
| Digital Detail Enhancement | Yes |
| Polarity Control (Black Hot/White HOt) | Yes |
| Tilt | +30° to -90° |
| Pan | ±320° |
| Roll | 90° to +60° |
| Max Controllable Speed | Tilt 90°/s Pan 90°/s |
| Effective Pixels | 12M |
| Lens | Prime lens Focus at 8 mm FOV 57.12°× 42.44° |
| Photo Formats | JPEG |
| Video Formats | MOV, MP4 |
| 4K Ultra HD | 3840×2160 29.97p |
| FHD | 1920×1080 29.97p |
| Working Modes | Capture, Record, Playback |
| Still Photography Modes | Single Shot Burst Shooting (3/5 frames) Interval (2/3/5/7/10/15/20/30 sec) |
| Video Caption | Supported |
| Anti-Flicker | Auto, 50 Hz, 60 Hz |
| Storage | MicroSD Card Max Capacity 128 GB. UHS-3 required Recommended Model Sandisk Extreme 16/32 GB UHS-3 microSDHC Sandisk Extreme 64/128 GB UHS-3 microSDXC FAT 32 (≤32GB), exFAT (>32GB) |
| Max Capacity | 128 GB. UHS-3 required |
| Recommended Model | Sandisk Extreme 16/32 GB UHS-3 microSDHC |
Documents 2 PDFs
Media
Webinar: Introducing the DJI Zenmuse XT2 Featuring Thermal by FLIR
DJI – Introducing the Zenmuse XT2
DJI – Introducing the Zenmuse XT2
Description
DJI

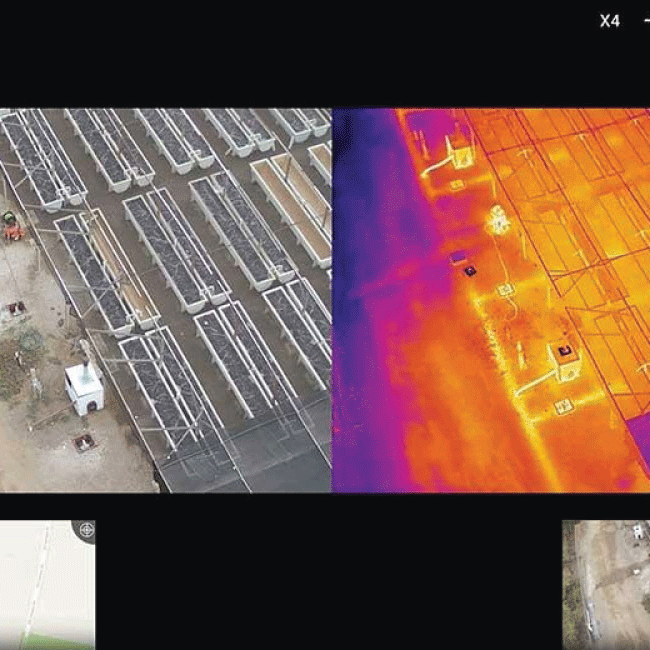

The DJI Zenmuse XT2 is a dual-sensor aerial camera system that combines a FLIR Tau 2 thermal sensor with a 4K visual camera, enabling professionals to gather actionable thermal and visual data in a single flight. Designed for use with DJI Matrice drones, the XT2 delivers unmatched performance in public safety, industrial inspection, and emergency response applications.
With advanced thermal imaging capabilities and DJI’s best-in-class gimbal stabilization, the XT2 empowers teams to detect hot spots, leaks, or structural weaknesses with pixel-level accuracy. This dual-camera solution not only reduces flight time and operational costs—it also enhances on-site decision-making with real-time intelligence.
• Temp Alarm – Auto alerts when preset temperatures are detected
• Heat Track – Lock onto and follow the hottest object in frame

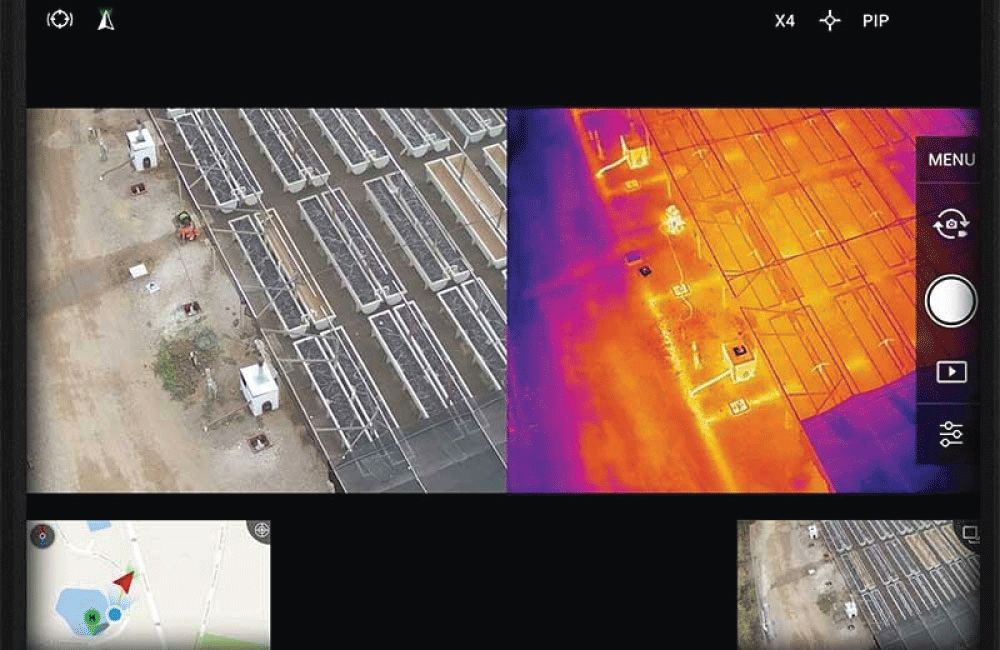

• FLIR MSX® – Enhances thermal images with visual overlays
• Isotherms – Highlights specific temperature ranges for faster analysis
• Multiple Color Palettes – Customize your thermal view for any mission
