    N-VISION OPTICS

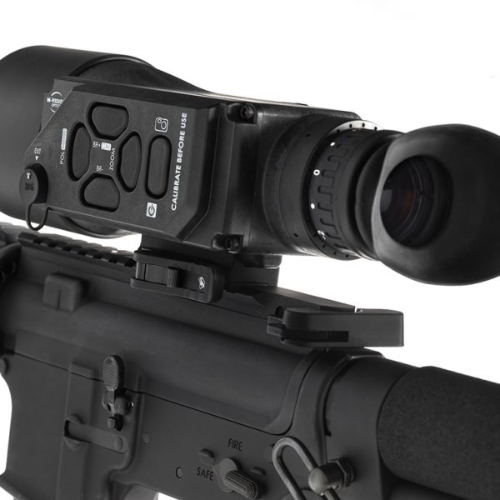

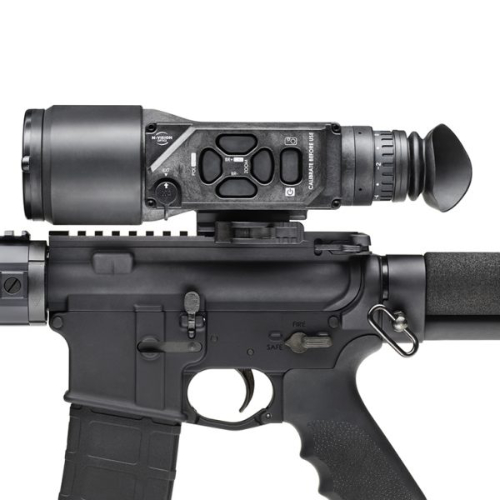

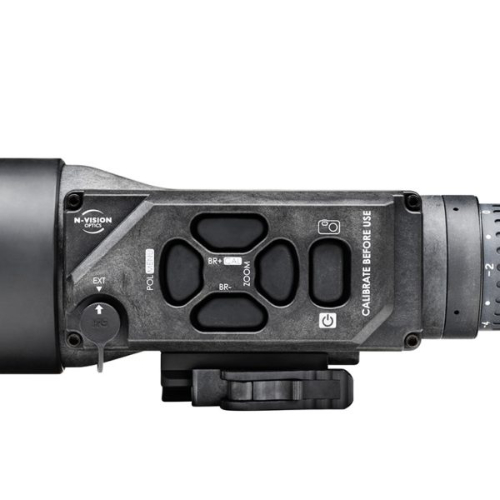

    HALO-LR Thermal Scope

    The N-VISION OPTICS HALO-LR Thermal Scope features a 12-micron 640×480 sensor with ROI image optimization and over 1-mile detection range for hunting and tactical use.

    Request a quote
    Quotes typically returned within 1 business day.
    or
    Add to Quote
    Questions? Talk to a specialist210.566.1857 · sales@farrwest.com
    Sensor Pixel
    12 um
    Detection range
    2020 yards
    Batteries
    4 CR123
    Weight
    28.2 oz (800 g)

    Overview

    The HALO-LR by N-VISION OPTICS is a thermal scope built around a 12-micron 640×480 sensor with ROI image optimization for a clear, refined thermal picture.

    It offers detection out to over 1 mile, making it a capable choice for both hunters and tactical operators.

    Contact FarrWest for a quote.

    Inside the optic

    The HALO-LR uses an uncooled vanadium oxide (VOx) microbolometer that reads the long-wave infrared band, 7.5 to 13.5 microns. It sees temperature differences regardless of light level, smoke or haze. The 9 x 7 degree field of view and fixed focus suit long-range observation, and start-up takes under four seconds. The housing is nitrogen purged to prevent internal fogging. N-Vision lists targeting, surveillance, search and rescue, perimeter control and vehicle identification among its uses.

    Getting a clean picture

    • Calibrate manually: cover the objective lens and hold BR+ (CAL) about two seconds after power-up or a big change in ambient temperature.
    • Set ROI: Full for scanning; ROI 1/2 or 1/4 sharpens the center of the image.
    • Keep CE low: N-Vision suggests contrast enhancement at 0 to 2 for average conditions.
    • Zero once: up to four reticle positions can be saved, and a factory reset leaves them intact.

    In the box and on the rail

    The standard kit includes the scope, a hard carrying case, USB cable, lens-cleaning paper, quick reference guide and four CR123 (DL123) batteries. It mounts on a MIL-STD-1913 Picatinny rail, accepts external USB power, and sends NTSC or PAL video to a monitor or recorder.

    Frequently asked questions

    How far can the HALO-LR detect a person?

    N-Vision rates typical performance on a man-size target at 2,020 yards (1,850 m) for detection, 726 yards (660 m) for recognition and 380 yards (350 m) for identification. Detection means seeing that something is there; identification takes much closer range.

    Does the HALO-LR need focusing or calibration?

    It has a fixed focus, so only the diopter (-6 to +2) is adjusted for your eye. Calibration is manual: cover the objective lens and hold the BR+ (CAL) button until the image refreshes. Do this after power-up and whenever image quality degrades or ambient temperature changes significantly.

    What batteries does the HALO-LR use?

    Four CR123 (DL123) batteries, included in the standard kit. Rechargeable CR123 cells work without adapters, but N-Vision warns that not all hold up to weapon recoil and that only approved rechargeables should be used. The scope can also run from a USB source rated at least 1A.

    • Thermal detection ranges of over a mile
    • Region of Interest (ROI) Optimization that enhances image clarity at your point of aim
    • 4 Advanced Polarity Modes:white hot, black hot, black edge detect, and white edge detect

    Specifications

    Performance
    Sensor Pixel12 um
    Resolution640 x 480
    Magnification3.5x
    Display TypeOLED
    Spectral Response7.5 um – 13.5 um
    OutputUSB or ANALOG
    Detection range2020 yards
    Recognition range726 yards
    Identification range380 yards
    Power
    Batteries4 CR123

    Media

    HALO-LR Review

    Description

    Thermal Imaging

    The HALO-LR Thermal Scope by N-VISION OPTICS sets a new benchmark for long-range thermal imaging. Equipped with a 12-micron 640 x 480 thermal core, a 50mm F1.2 objective lens, and anti-reflective germanium optics, the HALO-LR delivers unmatched clarity, precision, and thermal detection at over one mile for man-sized targets.

    Whether you’re conducting tactical surveillance, night hunting, or SAR ops, the HALO-LR provides elite-level thermal performance, user-focused customization, and reliable results at extreme distances.
