Vetter
Mini Lifting Bags (8 bar)

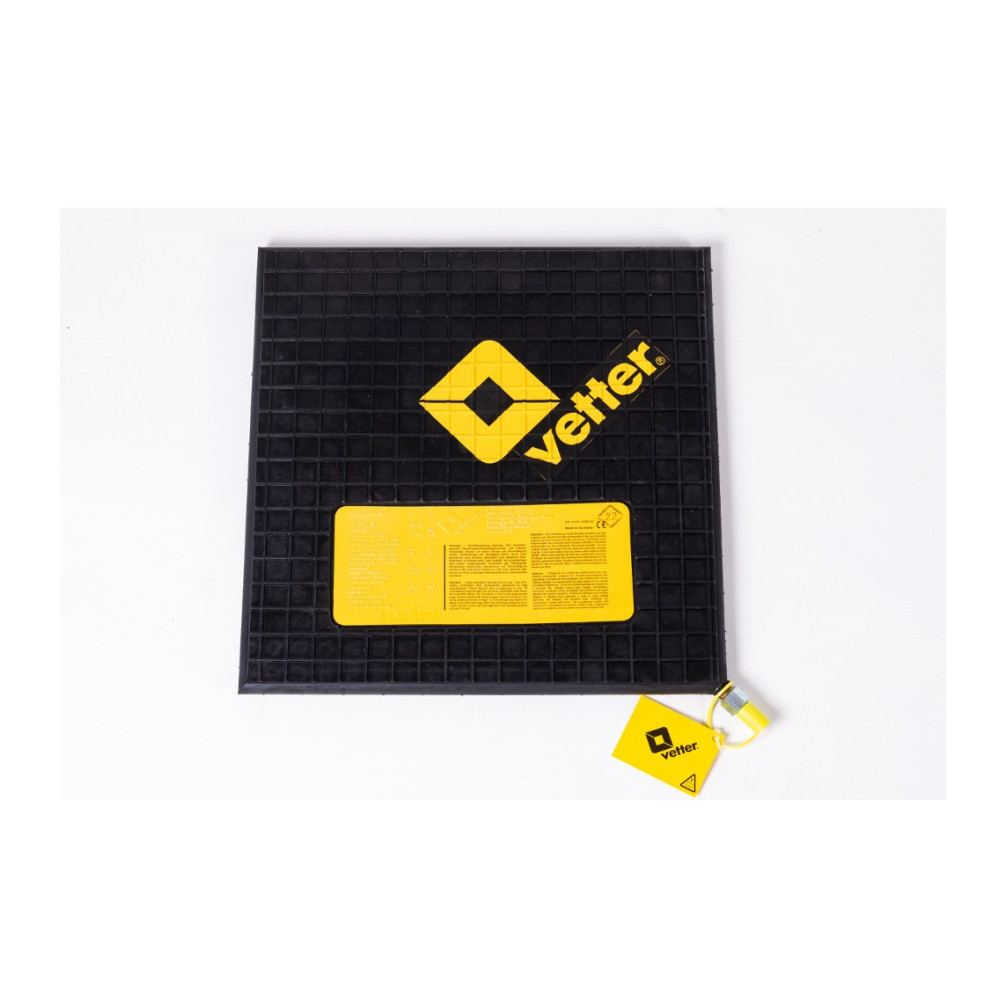

VETTER Mini Lifting Bags are compact high-pressure pneumatic bags designed for rescue operations in narrow gaps and confined spaces with heavy load lifting capabilities.
Request a quote
Quotes typically returned within 1 business day.
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
Questions? Talk to a specialist210.566.1857 · sales@farrwest.com
Overview

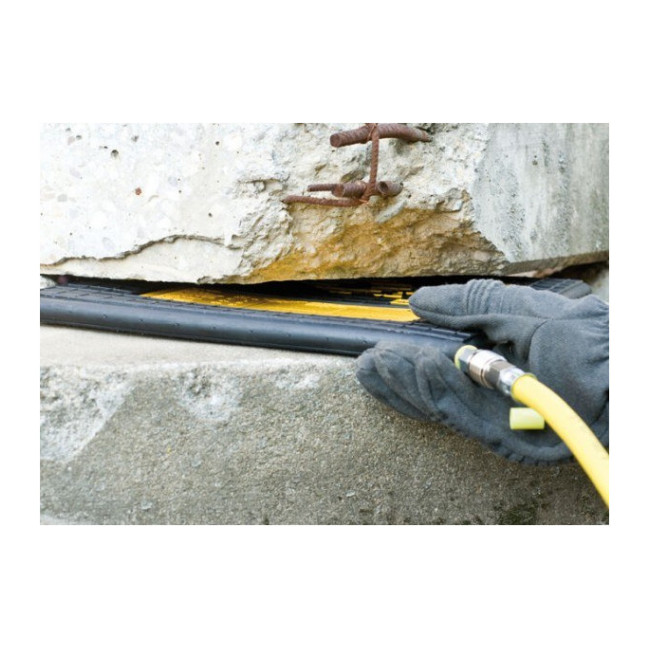

Vetter’s proven pneumatic mini lifting bags enable quick and smooth rescue of injured persons with heavy load lifting capabilities. Their rectangular shape and low insertion height allow them to fit into the narrowest cracks and gaps. The optimized surface profile masters slippery surfaces such as sand or grass. Features special safety coupling to prevent unwanted hose disengagement. Suitable for lifting, pushing, pressing, prying, and splitting operations. Maximum lifting capacity of 39.6 tons with a maximum lifting height of 40.2 cm.
- Low insertion height for narrow cracks and gaps
- Rectangular shape for pushing into narrow openings
- Large contact area capability
- Optimized surface profile for slippery surfaces
- Special safety coupling prevents hose disengagement
- Lift, push, press, prise or split applications
- Safe operation on difficult inclines
Specifications
| Performance | |
| Air requirement at working pressure [l] | 675 |
| Test pressure | 14 bar / 203,05 psi |
| burst pressure | 32 bar / 464 psi |
| operating pressure | 8 bar / 116 psi |
| Physical | |
| Length | 690 mm |
| Width | 780 mm |
| Weight | 12.2 kg |
| max. lifting height | 40,2 cm / 15,83 in |
| Other | |
| Product number | 1314002900 |
| max. lifting capacity [t] | 39,6 |
