Monitor load changes, seismic activity, and incline
-
Remote Monitoring Application for Android & iOS to monitor multiple Rescue Guardians from a single smart device
-
Stand-alone operation without smart device app
-
Vibration monitoring
-
Incline monitoring
-
Load monitoring
-
Visual alarm
-
Auditory alarm
-
Preset values for standard applications
-
Custom value adjustment and save capability
Paratech Rescue Guardian
$0.00
The Paratech Rescue Guardian is a monitoring and alarm system for technical rescue crews that tracks load changes, seismic activity, and incline.

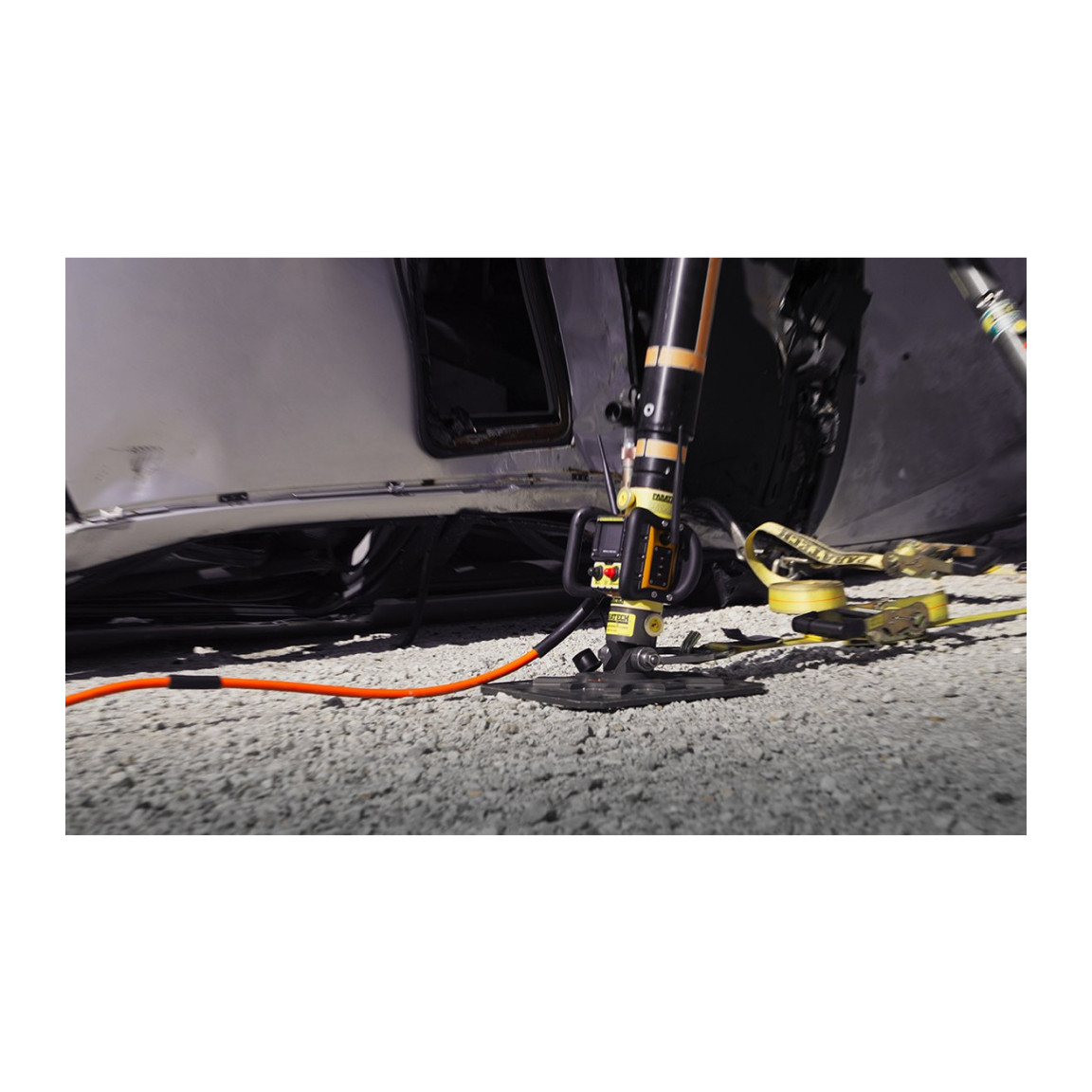

The Paratech Rescue Guardian is the most advanced monitoring and alarm system for technical rescue available. It monitors load changes, seismic activity and incline to increase the safety of rescue personnel and on-scene victims. Can be paired with Paratech’s Remote Monitoring Application (Android & iOS) to monitor multiple units from a single smart device, or used stand-alone. Functions as a vibration, incline, and load monitor with visual/auditory alarm capabilities. Suitable for building collapse, heavy vehicle rescue, trench rescues, earthquakes, and blackbox monitoring of active sites. Features customizable presets for standard applications.
Description
Paratech Rescue Guardian
The Paratech Rescue Guardian is the most advanced monitoring and alarm system for technical rescue available. It monitors load changes, seismic activity and incline to increase the safety of rescue personnel and on-scene victims. Can be paired with Paratech’s Remote Monitoring Application (Android & iOS) to monitor multiple units from a single smart device, or used stand-alone. Functions as a vibration, incline, and load monitor with visual/auditory alarm capabilities. Suitable for building collapse, heavy vehicle rescue, trench rescues, earthquakes, and blackbox monitoring of active sites. Features customizable presets for standard applications.
Features
Specifications
- Load Reading Capacity
- 60,000 lbs / 27215 Kgs / 266,893N
- Load Units (selectable)
- Pounds / Newtons / Kilograms
- Safety Factor
- 4 to 1
- Weight
- 6.65Lbs
- Height
- 8.75″
- Width
- 7.0″
- Depth
- 5.75″
- Display
- 2.7″
- Readability
- Symmetrical View Angle
- Display Lighting
- Front LED Lighting
- Battery Type
- 2x NCR18650B with protection circuit, 3400mAH x2
- Operational Life
- Up to 1 week continuous, (Low Power Mode)
- Battery Operation
- Hot Swappable
- Operating Temperature Range
- -10 to +50 °C
- Wireless Frequency
- BLE (Bluetooth 5.1), 2.4 GHz
- BLE Range
- BLE (Bluetooth 5) line of sight *
- Pairing
- Passcode/ NFC
- Wireless Alarm Notification
- Mobile application notifications via BLE
- Push Button Actuation Force
- 3-5lbs momentary
- Push Button Mechanical Life
- 500,000 cycles
- Switch Boots
- Silicone Rubber
- Real Time Clock Battery Life
- 2 years minimum
- Measurement Range Incline
- 360 Degrees Pitch & Roll
- Incline accuracy
- 0.1degrees
- Vibration Range
- 1-100hz
- Vibration Accuracy
- 0.1Hz
- Load Resolution
- 1lbs/1kg/10N
- Load Accuracy
- ±0.1% full scale
- Materials
- 7075 / 6061 Aluminum, Vydyne
- Water / Dust Proof Rating
- IP68
- Audible Alarm
- 95 dBA @ 10cm
- Visual Alarm
- 6x Amber LED Strobe, 2x RGB
- Application compatibility
- Android, IOS, Bluetooth 4.2 or newer
- Antenna Connections
- SMA
