Non-intrusive Smart sensor with plug-in replaceable PID sensor technology
-
Wide detection range from 0-1ppm up to 0-5,000ppm for VOC and toxic gases
-
LED display for current readings and fault/calibration status
-
Automatic calibration with guided instructions via LED display
-
AutoZero calibration function for sensor zeroing
-
AutoSpan calibration function for span adjustment
-
Magnetic programming switches for non-intrusive operator interface
-
Menu-driven operation without area de-classification requirement
-
4-20mA analog output with linear full-scale range correspondence
-
Modbus RS-485 serial output for continuous gas reading and fault status
-
Microprocessor-supervised encapsulated electronics
-
Internal intrinsically safe barrier circuit
-
Class I Division 1 and Zone 1 explosive atmosphere approval
-
Field-replaceable intelligent plug-in sensor
-
Modular mechanical design with splash guard adapter and integral filter
-
100% encapsulated circuitry with gold-plated connections
-
Automatic recognition of gas type, units, full-scale range, and calibration data
-
Disassembled PID sensor cell for lamp cleaning or replacement
-
Extensive I/O circuit protection and on-board power supplies
-
Program Mode for configuration and diagnostics
-
Signal Output Check diagnostic function
-
Restore Factory Defaults feature
PI-700
$0.00

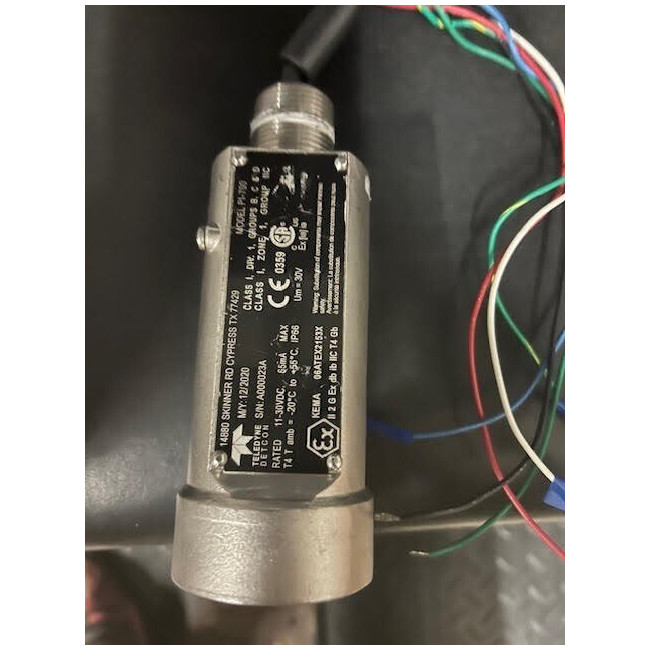

The Teledyne Detcon PI-700 is a fixed VOC gas sensor with PID technology designed for detecting and monitoring volatile organic compounds and toxic gases in hazardous areas.
In stock
Teledyne Detcon Model PI-700 VOC gas sensors are non-intrusive ‘Smart’ sensors designed to detect and monitor a wide range of VOC and Toxic gases in air. Features include PID (Photo-Ionization Detector) sensor technology, LED display showing current readings and status, 4-20mA analog output, Modbus RS-485 serial interface, and automated calibration with magnetic programming switches. Fully encapsulated microprocessor-based Intelligent Transmitter Module (ITM) housed in explosion-proof casting. Class 1 Division 1 Groups A,B,C,D and Class 1 Zone 1 Group IIC rated. Modular design with replaceable plug-in sensors and accessories.
Description
PI-700
Teledyne Detcon Model PI-700 VOC gas sensors are non-intrusive ‘Smart’ sensors designed to detect and monitor a wide range of VOC and Toxic gases in air. Features include PID (Photo-Ionization Detector) sensor technology, LED display showing current readings and status, 4-20mA analog output, Modbus RS-485 serial interface, and automated calibration with magnetic programming switches. Fully encapsulated microprocessor-based Intelligent Transmitter Module (ITM) housed in explosion-proof casting. Class 1 Division 1 Groups A,B,C,D and Class 1 Zone 1 Group IIC rated. Modular design with replaceable plug-in sensors and accessories.
Features
Specifications
- Sensor_Technology
- PID (Photo-Ionization Detector)
- Detection_Range
- 0-1ppm up to 0-5,000ppm
- Ionization_Potential_Sensitivity
- < 10.6eV
- Output_Types
- 4-20mA DC and Modbus RS-485
- Display
- Four character alpha/numeric LED
- Programming_Interface
- Magnetic switches (non-intrusive)
- Operating_Voltage
- 11.5-30VDC (24VDC typical)
- Electrical_Classification
- Class I Division 1 Groups A, B, C, D; Class I Zone 1 Group IIC
- Approvals
- ATEX & IECEx approved for II 2G Ex db ib IIC T4 Gb
- Dielectric_Strength
- 500VRMS between circuit and enclosure for minimum 1 minute at maximum test current of 5mA
- Maximum_Safe_Location_Voltage
- Um=30V
- Housing_Material
- Electro polished 316 Stainless Steel
- Mounting
- ¾” Female NPT threaded connection
- Primary_Components
- PI-700 Intelligent Transmitter Module (ITM), Intelligent Plug-in Sensor, Splash Guard Adapter with Integral Filter, Splash Guard
- Sensor_Orientation
- Vertically oriented pointing straight down
