Honeywell · Multi-gas monitor

Honeywell QRAE 3

Name: Honeywell QRAE 3 – Wireless 4-Gas Monitor for Industrial and Emergency Response
Brand: Honeywell

Compact monitor for one to four gases

Oxygen, combustibles and toxic gases including hydrogen sulfide, carbon monoxide, sulfur dioxide and hydrogen cyanide, in a strong, protective, concussion-proof case run from two buttons. Built for confined space entry and general safety and compliance work, in pumped or diffusion models, with a wireless option available.

Request a quote

Download datasheet (PDF)

4Up to four field-replaceable sensors

IP-65/67Water- and dust-resistant case

95dBMulti-tone buzzer at 30 cm, typical

98ftSample through tubing, pumped version

Two Honeywell QRAE 3 four-gas monitors: a diffusion unit behind and a pumped unit with external filter in front, both showing CO, H2S, LEL and O2 readings

Front: pumped, external filterRear: diffusion

The entry routine

One monitor, check to log

Confined space entry is a core QRAE 3 application. Here is how its features line up with an entry, from the pre-shift check to the record at the end of the day.

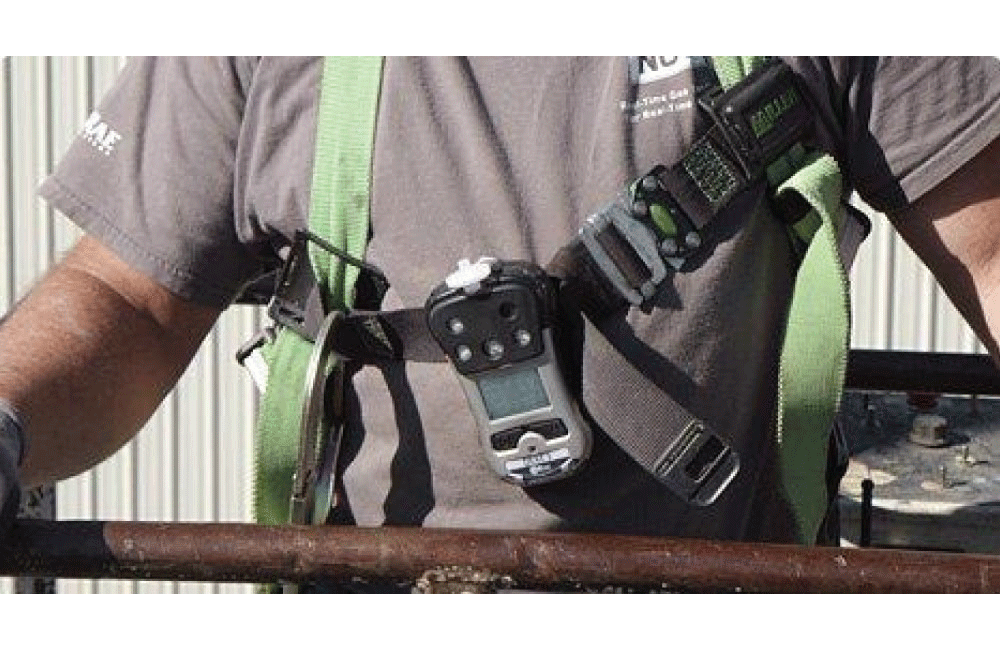

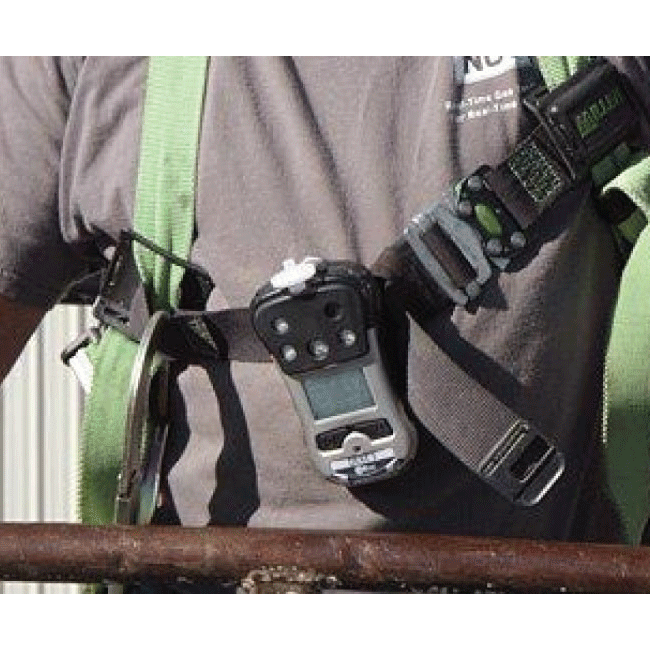

Worker in a fall-protection harness with a QRAE 3 monitor clipped to the chest strap

Clipped to the harness, display facing out

Simple by design

A large graphical, icon-driven display and an intuitive, simple-to-operate two-button interface, with easy access to the pump, sensors, filter and battery compartment.

1
Before the shift
Bump test and calibrate

Two-point calibration for zero and span can be done manually, or hands-off with the AutoRAE 2 Automatic Test and Calibration System, an optional accessory.
2
At the opening
Sample the space first

The pumped version draws its sample in through tubing, and has a built-in pump. It also carries a pump stall alarm.
3
In the space
Wear it, watch it, hear it

A stainless-steel alligator clip is the standard attachment. The large graphic display can rotate 180º, automatically or on demand, and an alarm comes through as sound, vibration, flashing red LEDs and an on-screen indication.
4
Topside · wireless option
Watch from outside

On units with the wireless option, live readings and alarm status reach a remote monitor, including the Man Down Alarm with pre-alarm. Additional equipment and/or software licenses may be required to enable remote wireless monitoring and alarm transmission.
5
After the shift
Keep the record

Datalogging runs continuously. Download the data and set up or upgrade the instrument on a PC via the Travel Charger, and manage devices with Honeywell SafetySuite.

Two versions

Pumped or diffusion: pick by the job

Diffusion and pumped versions are available for all configurations, and so are wireless and non-wireless options. What changes is how the sample reaches the sensors, plus size, weight, sealing and runtime.

Version 01

Diffusion

Air reaches the sensors on its own. The lighter of the two, with the higher ingress rating and the longer runtime.

Sampling: Diffusion
IP rating: IP-67
Weight: 12.9 oz365 g with Li-ion battery and clip
Size: 140 mm x 82mm x 42mm

Running time, continuous

Non-wireless

14 hours

With wireless

10 hours

Version 02

Pumped

A built-in pump pulls the sample in, through tubing when you need to reach into a space before entering it.

Sampling: Built-in pumpCan sample through tubing up to 98ft (30m)
IP rating: IP-65
Weight: 14.5 oz410 g with Li-ion battery, clip, and external filter
Size: 145 mm x 82 mm x 42mm

Running time, continuous

Non-wireless

11 hours

With wireless

8 hours

Pumped only: pump stall alarm, and pump status on the display.

Non-wirelessWith wirelessAll battery specifications at 68° F (20° C); lower temperatures and alarm conditions will affect runtime.

Alarms & display

Hard to miss, easy to read

Honeywell calls it unmistakable five-way local and remote wireless notification of alarm conditions. In plain terms: the monitor tells the wearer in several ways at once, and on wireless units it can tell someone else too.

You hear it

Multi-tone 95dB buzzer, at 11.8" / 30 cm, typical.

You feel it

A vibration alarm, felt as well as heard.

You see it

Flashing red LEDs.

You read it

On-screen indication of alarm conditions, with a diagnostic alarm and display message for low battery.

Man Down, with a pre-alarm

Man Down Alarm with pre-alarm and real-time remote wireless notification, so on wireless units the people topside know as well. Additional equipment and/or software licenses may be required to enable remote wireless monitoring and alarm transmission.

Alarm behaviour: latching, non latching or manual override

Latching
Non latching
Manual override

WIRELESS · MAN DOWNBATT

COppm

H₂Sppm

0.0

LEL%LEL

O₂%

20.9

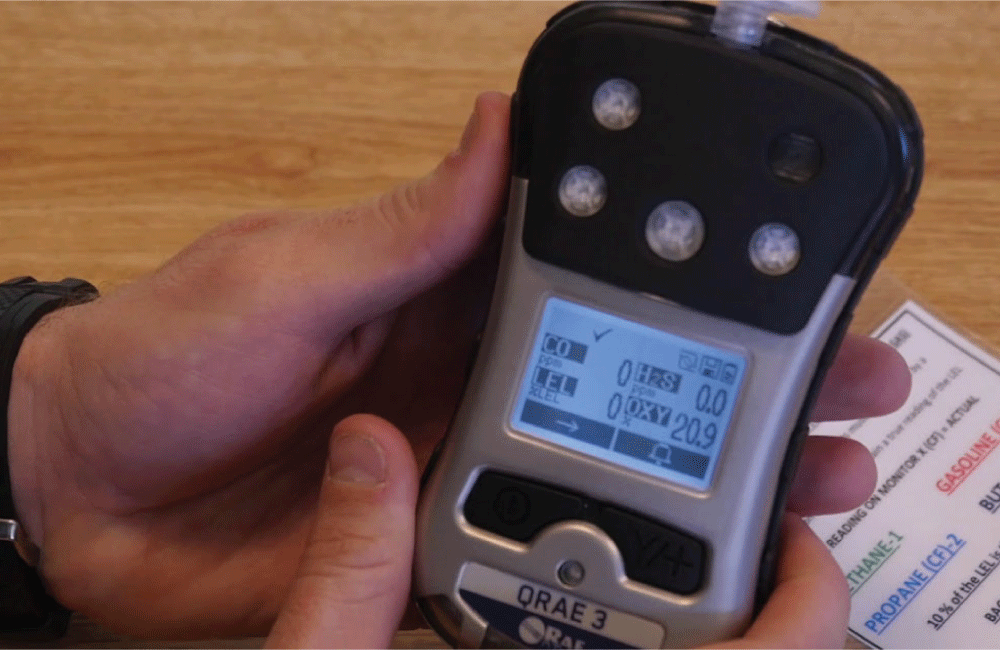

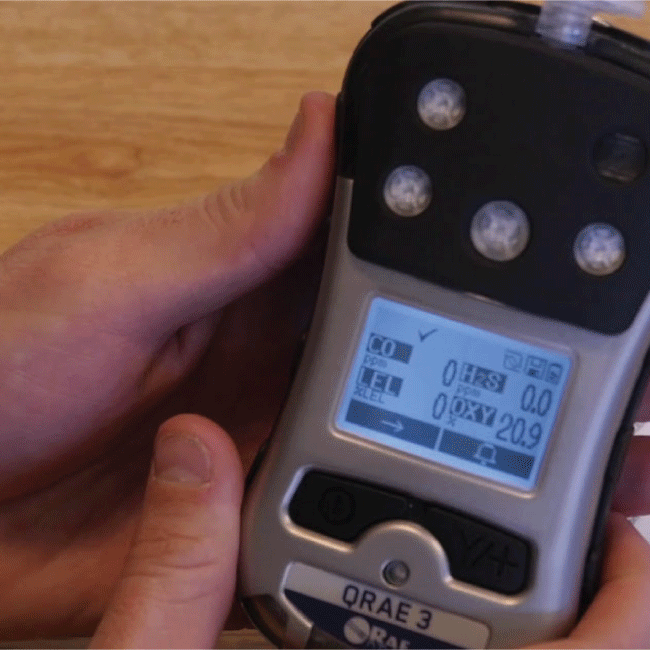

Monochrome graphic display (128 x 80) · 1.57" W x 1.06" H (40 x 27 mm) with backlighting · two-button operation

What the screen shows

Real-time reading of gas concentrations
STEL, TWA, peak, and minimum values
Battery status, and pump status if equipped with pump
Wireless on/off and wireless reception quality
Man Down and policy enforcement indicators

Wireless option available

Readings that reach the people outside

Wireless is an option, not a given: wireless and non-wireless options are available for all configurations. Where it is fitted, a built-in RF modem sends data and status over a dedicated RAE Systems mesh network, so readings and alarm status can be watched 24/7 from a distance.

QRAE 3 with wireless

Mesh RAE Systems Dedicated Wireless Network · ISM license free band, 868Mhz or 900Mhz

ToEchoView Host

LOS > 650 ft (200 m)

ToProRAE Guardian and RAEMesh Reader

LOS > 650 ft (200 m)

ToProRAE Guardian and RAELink3 Mesh

LOS > 330 ft (100 m)

Typical wireless range, line of sight, receiving >80%. Additional equipment and/or software licenses may be required to enable remote wireless monitoring and alarm transmission.

What travels

Real-time instrument readings and alarm status, 24/7. Honeywell's point: better incident visibility, and it can improve response time.

Man Down

Man Down Alarm with real-time remote wireless notification.

The trade-off

Wireless costs runtime: 14 hours continuous non-wireless vs 10 hours with wireless on the diffusion version; 11 hours vs 8 hours pumped.

Approvals

FCC Part15, ANATEL.

Sensors

Up to four gases, chosen for the work

Up to four field-replaceable sensors: a catalytic bead for combustibles, a liquid electrolyte oxygen sensor and electrochemical toxic sensors. Default range and resolution for each gas are shown below.

O₂

Oxygen

Range: 0 to 30.0%
Resolution: 0.1%

Liquid electrolyte3-year warranty

LEL

Combustible

Range: 0 to 100% LEL
Resolution: 1% LEL

Catalytic bead, built-in Correction Factor library3-year warranty

Carbon monoxide

Range: 0 to 500 ppm
Resolution: 1 ppm

Electrochemical3-year warranty

H₂S

Hydrogen sulfide

Range: 0 to 100 ppm
Resolution: 0.1 ppm

Electrochemical3-year warranty

SO₂

Sulfur dioxide

Range: 0 to 20 ppm
Resolution: 0.1 ppm

Electrochemical1-year warranty

HCN

Hydrogen cyanide

Range: 0 to 50 ppm
Resolution: 0.2 ppm

Electrochemical1-year warranty

Sensor warranties are against factory defects. Tell us which gases you need to monitor and we will work out the configuration with you.

Applications

Plant floor to fireground

Confined space entry, and general safety and compliance work across a range of settings.

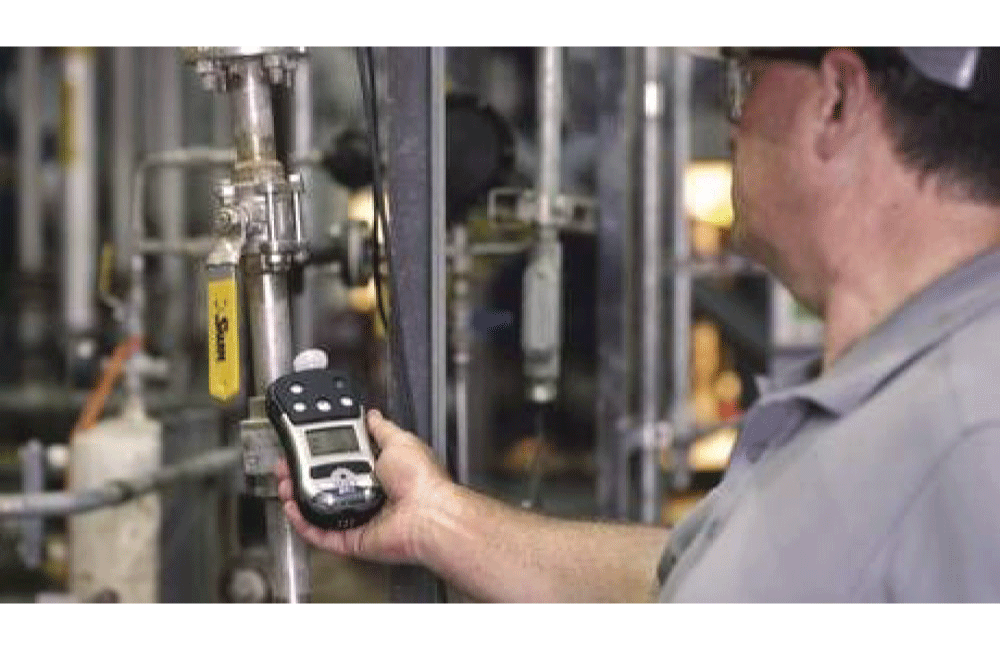

Plant worker checking pipework with a handheld QRAE 3 monitor

Industrial safety

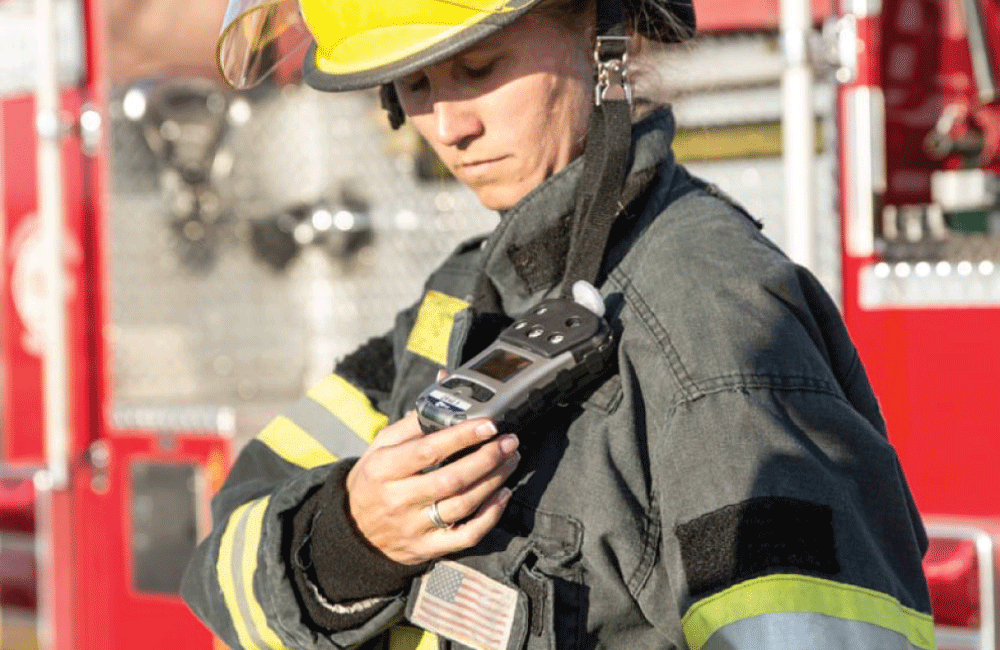

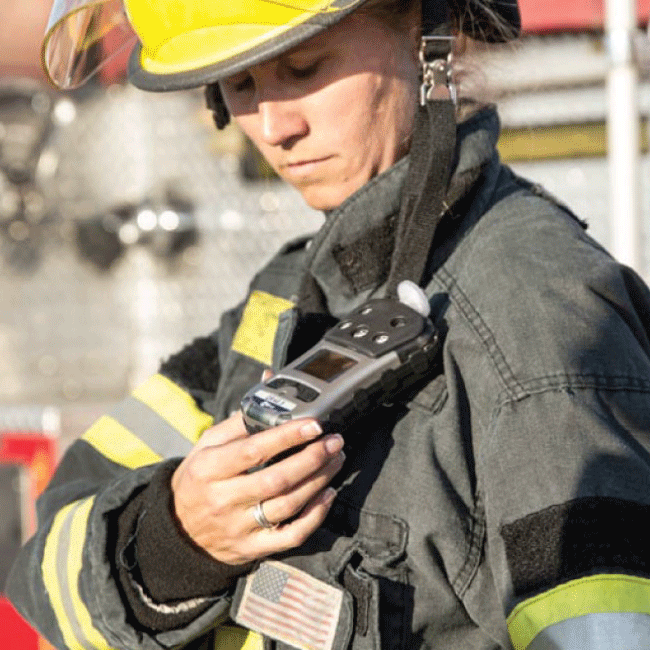

Firefighter in turnout gear beside an engine, reading a QRAE 3 worn on the chest

Fire and emergency response

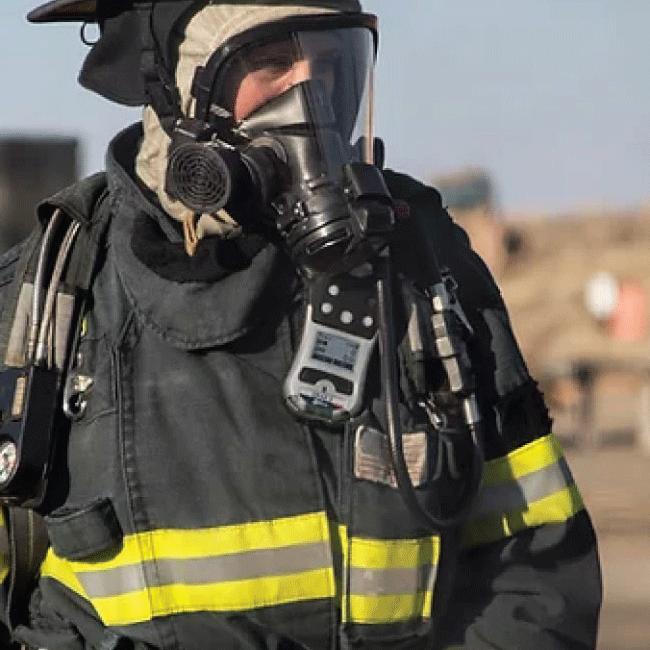

Firefighter in an SCBA mask with a QRAE 3 monitor on the chest

Fireground “Toxic Twins” detection

Confined space entry
Industrial safety
Oil and gas
Fireground “Toxic Twins” detection
Environmental
Fire and Emergency response

Specifications

Key specifications

Download the datasheet under Service & resources for the full document.

Physical
Size	Diffusion: 140 mm x 82mm x 42mm Pumped: 145 mm x 82 mm x 42mm
Weight	Diffusion: 12.9 oz (365 g with Li-ion battery and clip) Pumped: 14.5 oz (410 g with Li-ion battery, clip, and external filter)
IP rating	Pumped: IP-65 Diffusion: IP-67
Case	IP-65/67 water- and dust-resistant case; strong, protective, concussion-proof design
Attachments	Stainless-steel alligator clip Swivel belt clip (optional) Pouch (optional)
Sampling & calibration
Sampling pump	Built-in pump or diffusion Can sample through tubing up to 98ft (30m)
Calibration	Two-point calibration for zero and span (manual, or automatic with AutoRAE 2)
Environment
Temperature	-4° to 122° F (-20° to 50° C) for T4 temperature code
Humidity	0% to 95% relative humidity (non-condensing)
EM immunity	EMI and ESD test: 100MHz to 1GHz 30V/m, no alarm Contact: ±4kV Air: ±8kV, no alarm

Battery
Battery	Rechargeable Li-ion
Running time	14 hours continuous non-wireless, diffusion 11 hours continuous non-wireless, pumped 10 hours continuous with wireless, diffusion 8 hours continuous with wireless, pumped All battery specifications at 68° F (20° C); lower temperatures and alarm conditions will affect runtime.
Data
Datalogging	Continuous datalogging (3 months for 4 sensors at 1-minute intervals, 24/7) User-configurable datalogging intervals (from 1 to 3,600 seconds)
Communication & data download	Data download and instrument set-up and upgrades on PC via Travel Charger Wireless data and status transmission via built-in RF modem (optional)
Device management	Device Management with Honeywell SafetySuite

Display & controls
Display graphic	Monochrome graphic display (128 x 80) Display size: 1.57" W x 1.06" H (40 x 27 mm) with backlighting Automatic or on-demand screen rotation
Keypad	Two-button operation
Direct readout	Real-time reading of gas concentrations Battery status Pump status (if equipped with pump) Wireless on/off and wireless reception quality STEL, TWA, peak, and minimum values Man Down and policy enforcement indicators
Languages	Arabic, Chinese, Czech, Dutch, English, French, German, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, and Swedish (language must be changed through ProRAE Studio II)
Alarms
Alarms	Multi-tone 95dB buzzer (at 11.8"/ 30 cm, typical), vibration alarm, and flashing red LEDs and on-screen indication of alarm conditions Alarms: latching, non latching or manual override Additional diagnostic alarm and display message for low battery Pump stall alarm (pumped version only) Man Down Alarm with pre-alarm and real-time remote wireless notification

Availability	Wireless and non-wireless options available for all configurations. Additional equipment and/or software licenses may be required to enable remote wireless monitoring and alarm transmission.
Wireless network	Mesh RAE Systems Dedicated Wireless Network
Wireless frequency	ISM license free band, 868Mhz or 900Mhz
Wireless approvals	FCC Part15, ANATEL
Wireless range (typical)	EchoView Host: LOS > 650 ft (200 m) ProRAE Guardian and RAEMesh Reader: LOS > 650 ft (200 m) ProRAE Guardian and RAELink3 Mesh: LOS > 330 ft (100 m) Receiving >80%

Sensors	Up to four field-replaceable sensors: LEL: Catalytic bead for combustibles (built-in Correction Factor library) Oxygen: Liquid electrolyte O2 Toxic: electrochemical for H2S, CO, SO2, HCN

Default sensor specifications	Range	Resolution
Oxygen (O2)	0 to 30.0%	0.1%
Combustible	0 to 100% LEL	1% LEL
Carbon monoxide (CO)	0 to 500 ppm	1 ppm
Hydrogen sulfide (H2S)	0 to 100 ppm	0.1 ppm
Sulfur dioxide (SO2)	0 to 20 ppm	0.1 ppm
Hydrogen cyanide (HCN)	0 to 50 ppm	0.2 ppm

Tell us which gases you need and we will confirm the configuration.

Hazardous area approval
US and Canada	Classified for use in Class I, Division 1, Groups A, B, C and D
Europe	IECEx/ATEX (II 1G Ex ia IIC T4)
Warranty
Warranty	2-year warranty on device 3-year warranty on LEL, O2, CO, H2S sensors 1-year warranty on SO2, HCN sensors Against factory defects.

Service & resources

Warranty, repair and the datasheet

Honeywell's warranty terms for the QRAE 3, the datasheet, and FarrWest warranty service, calibration and repair for your Honeywell instruments.

2-yearwarranty on device

3-yearwarranty on LEL, O2, CO, H2S sensors

1-yearwarranty on SO2, HCN sensors

Against factory defects

FarrWest service

Honeywell warranty service

FarrWest is a Honeywell Authorized Service Provider for BW and RAE Systems gas detection. Call to confirm coverage for your model.

Warranty service FarrWest service

Calibration & repair

Instruments covered by a Honeywell Service Made Simple Enhanced agreement are repaired, calibrated and returned by the FarrWest Repair Depot in San Antonio, Texas.

Repair Depot Honeywell

QRAE 3 datasheet

Features, specifications, default sensor ranges and warranty.

PDF

FAQ

Questions we get on the phone

Should I choose the pumped or the diffusion QRAE 3?

Choose by how you sample. The pumped version has a built-in pump and can sample through tubing up to 98ft (30m); it adds a pump stall alarm. The diffusion version is lighter (12.9 oz vs 14.5 oz), carries IP-67 rather than IP-65, and runs longer: 14 hours continuous non-wireless vs 11 hours pumped.

Is every QRAE 3 wireless?

No. A wireless option is available: wireless and non-wireless options are available for all configurations, and wireless data and status transmission uses an optional built-in RF modem. Additional equipment and/or software licenses may be required to enable remote wireless monitoring and alarm transmission. Tell us how you plan to monitor and we will spec it accordingly.

Which gases can it monitor?

Up to four at a time, from oxygen (O2), combustibles, hydrogen sulfide (H2S), carbon monoxide (CO), sulfur dioxide (SO2) and hydrogen cyanide (HCN). The sensors are field-replaceable. Default ranges and resolutions are in the Sensors section and the Specifications tab.

How long does the battery last?

On the rechargeable Li-ion battery: 14 hours continuous non-wireless (diffusion), 11 hours non-wireless (pumped), 10 hours with wireless (diffusion) and 8 hours with wireless (pumped). All battery specifications are at 68° F (20° C); lower temperatures and alarm conditions will affect runtime.

Is it approved for hazardous locations?

Honeywell lists it as classified for use in Class I, Division 1, Groups A, B, C and D; for Europe, IECEx/ATEX (II 1G Ex ia IIC T4). Temperature is -4° to 122° F (-20° to 50° C) for T4 temperature code.

How is it bump tested and calibrated?

Calibration is two-point, for zero and span, done manually or automatically with the AutoRAE 2 Automatic Test and Calibration System, which supports fully automated bump testing and calibration. AutoRAE 2 is an optional accessory; ask us about it when you request a quote.

What does the warranty cover, and who services it?

Honeywell lists a 2-year warranty on the device, 3-year on LEL, O2, CO and H2S sensors, and 1-year on SO2 and HCN sensors, against factory defects. FarrWest is a Honeywell Authorized Service Provider for BW and RAE Systems gas detection. Instruments covered by a Honeywell Service Made Simple Enhanced agreement are repaired, calibrated and returned by our Repair Depot; see Honeywell warranty service. Not every service level is available for every product, so call 210.566.1857 to confirm coverage for your model.

Why FarrWest

Buying from FarrWest

Cooperative contracts

Next step

Spec a QRAE 3 for your entries

Tell us the gases you need, pumped or diffusion, and whether you want the wireless option. We will come back with the right configuration for your team.
