Honeywell RAE Systems · Portable multi-gas monitor

Honeywell MultiRAE Lite

Name: Honeywell MultiRAE Lite – Wireless One-to-Six Gas Monitor for VOCs, Combustibles & Toxic Gases
Brand: Honeywell

One-to-six-gas monitor, pumped or diffusion

Built for personal protection and leak detection, the MultiRAE Lite comes in pumped and diffusion versions and offers the broadest selection of sensor options in its class. Configure it for exactly the gases your job and your compliance requirements call for, with wireless as an option.

Request a quote

1 to 6Gases per monitor

Over 25Sensor options

IP-65 / IP-67Pumped / diffusion

6 monthsDatalog, 5 sensors

Honeywell MultiRAE Lite diffusion model (left) and pumped model with top gas inlet and external filter (right), yellow rubber boots

Diffusion · Pumped

Choose your version

Pumped or diffusion: decide first

The two versions share a display, alarms and most of the sensor list, but not all of it. The sampling method decides which sensors you can fit, whether AutoRAE 2 can test and calibrate the monitor, and how much it weighs on a belt. Pick the version before you pick the gases.

Side by sideSame display, same keypad, same yellow boot. Different sampling, sensors and weight.

PGM-6208

Pumped

PGM-6208D

Diffusion

Sampling

Built-in pump. Average flow rate, pumped: 250 cc/min. Auto shutoff in low-flow conditions.

Diffusion. Instead of a single gas inlet at the top, there are five inlets on the back side, as well as an extra alarm buzzer and LEDs.

Size

7.6" H x 3.8" W x 2.6" D (193 x 96.5 x 66 mm)

6.9" x 3.8" x 2.2" (175 x 96.5 x 56 mm)

Weight

31 oz (880 g)

26.8 oz (760 g)

Ingress protection

IP-65

IP-67

PID for VOCs (10.6 eV)

Yes0 to 1,000 ppm, 1 ppm resolution

NoThe PID sensor requires a pumped configuration

NDIR combustibles (%LEL / %Vol. methane)

Yes

NoNDIR combustible sensors require the pumped version

Catalytic LEL, CO2 NDIR, electrochemical

Yes

EtO-C ext. range, H2, H2S ext. range

YesDiffusion only

AutoRAE 2 bump test & calibration

YesFully automatic bump testing and calibration

NoAutoRAE 2 supports the pumped version only

Runtime, rechargeable Li-ion*

~12-hr. standard · ~18-hr. extended duration

~18-hr. standard · ~28-hr. extended duration

Extra in the box

3 spare external filters · 10 charcoal filters (reduce CO sensor's cross-sensitivity to VOCs) · PID sensor cap removal tool · Technical Note TN-106 with ionization energies and correction factors for 300+ VOCs

Common kit only (see In the box)

* Runtimes are for non-wireless monitors. Alkaline adapter with 4 x AA batteries: ~6-hr. (pumped) / 8-hr. (diffusion) runtime.

PGM-6208

Choose pumped when

You need VOC readings from a PID sensor.
You want NDIR combustible sensing for methane in %LEL or %Vol.
You want fully automatic bump testing and calibration in an AutoRAE 2 system.

PGM-6208D

Choose diffusion when

You want the smaller, lighter body: 26.8 oz against 31 oz for the pumped model.
You need the IP-67 rating rather than IP-65.
You need the extended-range EtO-C, H2 or extended-range H2S sensors, which are diffusion only.
You want more runtime per charge: ~18-hr. against ~12-hr. on the standard pack (non-wireless).

One to six gases

Start with what you need, fit what the job asks

The MultiRAE Lite is a one-to-six-gas monitor. It can be configured to exactly meet the detection needs and compliance requirements of different countries, industries and applications, from one to six gases.

1Single gas

2Gases

3Gases

4Gases

5Gases

6Gases · with the CO + H2S combo sensor

Over 25 interchangeable sensor optionsSix gases require the CO + H2S combination sensor, which reads both CO and H2S from a single sensor position.

Both versions

Toxics & oxygen

Electrochemical sensors for toxic gases and oxygen. 20+ electrochemical sensors are available on the Lite, including a CO + H2S combination sensor.

O2
CO
H2S
CO + H2S
NH3
Cl2
ClO2
SO2
NO
NO2
HCN
PH3
HCHO
CH3-SH
EtO
H2 · diffusion
H2S ext. · diffusion
EtO-C ext. · diffusion

Catalytic: both · NDIR: pumped

Combustibles

Catalytic and NDIR sensors for combustibles. The catalytic LEL sensor fits either version; the NDIR methane sensors require the pumped version.

Catalytic LEL: 0 to 100% LEL · 1% LEL
NDIR methane: 0 to 100% LEL · 1% LEL
NDIR methane: 0 to 100% Vol. · 0.1% Vol.

Pumped only

VOCs by PID

A photoionization detector for volatile organic compounds. The pumped kit ships with Technical Note TN-106: ionization energies and correction factors for 300+ VOCs.

VOC 10.6 eV: 0 to 1,000 ppm · 1 ppm
2-point calibration

Both versions

Carbon dioxide

An NDIR sensor for CO2, available on both the pumped and diffusion versions.

CO2 NDIR: 0 to 50,000 ppm · 100 ppm

Intelligent sensors

Intelligent sensors store calibration data, so they can be swapped in the field. The sensors are interchangeable and field-replaceable; RAE Systems recommends calibrating sensors on installation. Tell us the gases you monitor and the version you need, and we will spec the build with you.

Sensors & power

Replacement sensors and batteries

MultiRAE-series sensors and power packs we list that match the Lite's ranges. Mind the version: the PID and NDIR combustible sensors need the pumped Lite.

Electrochemical

Alkaline runtime is for non-wireless monitors.

Alarms & awareness

Five ways to know

Unmistakable five-way local and remote notification of alarm conditions, including a Man Down Alarm with pre-alarm. Four channels are on the monitor itself; the fifth reaches commanders and safety officers when the wireless option is fitted.

01 · Local

Audible

95 dB @ 30 cm.

02 · Local

Vibration

Vibration indication of alarm conditions.

03 · Local

Visible

Flashing bright red LEDs. The diffusion version adds an extra alarm buzzer and LEDs.

04 · Local

On-screen

On-screen indication of alarm conditions, with STEL, TWA, peak and minimum values.

05 · Optional

Wireless remote

Real-time remote notification of alarms and Man Down to the safety team.

Wireless is optional

Add it when the job needs it

Wireless and non-wireless configurations are available. With the optional built-in RF modem, the Lite gives commanders and safety officers real-time access to instrument readings and alarm status from any location, for better situational awareness and faster incident response.

Additional equipment and/or software licenses may be required to enable remote wireless monitoring and alarm transmission. Ask us which network fits your site.

Transmission: Wireless data and alarm status transmission via built-in RF modem (optional)
Network: ProRAE Guardian Real-Time Wireless Safety System or EchoView Host-based Closed-Loop System
Range (typical): To RAELink3 Mesh modem ~330 feet (100 meters)
To EchoView Host, RAEMesh Reader or RAEPoint ~200 meters
To Wi-Fi Access Point 330 feet (100 meters)
Optional radios: Integrated wireless modem, integrated BLE modem, integrated Wi-Fi modem (all optional on the Lite)
Frequency: ISM license free band. IEEE 802.15.4 Sub 1GHz - Wi-Fi 802.11 b/g

Field use

Easy to read, easy to keep running

A large icon-driven display, a datalog that runs for months, and maintenance designed around replaceable sensors and a plug-and-play battery.

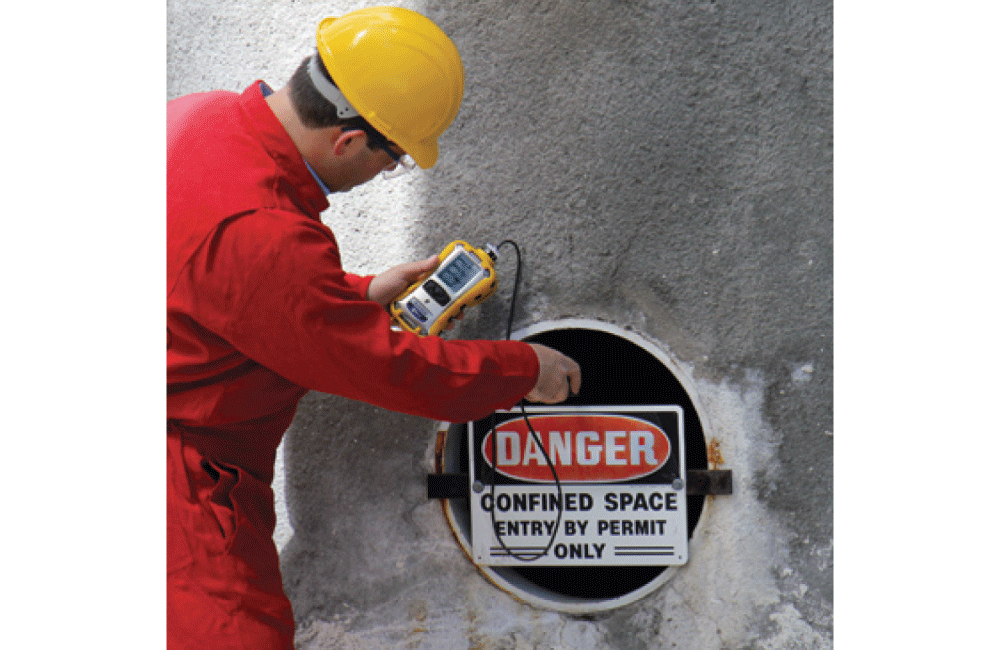

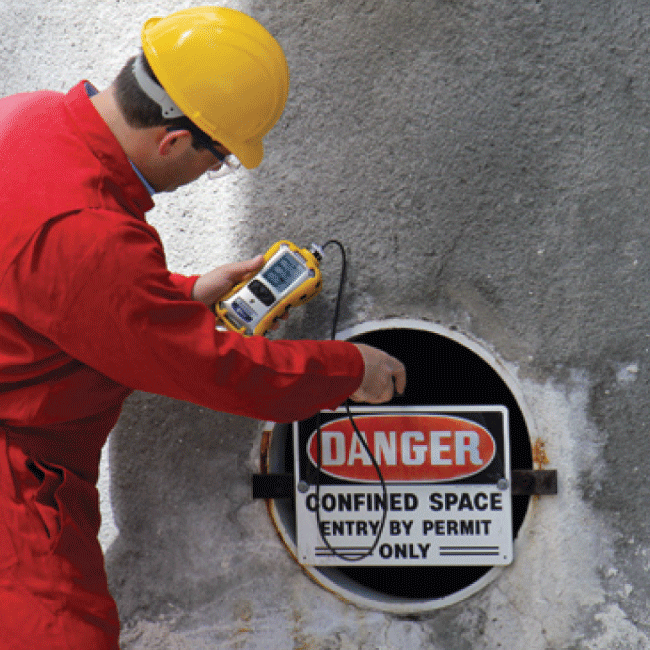

Worker in a hard hat and red coveralls testing a confined-space hatch with a MultiRAE Lite and sampling tube

Confined space testing with the MultiRAE Lite

01
Large graphical display
Monochrome graphical LCD display (128 x 160) with backlighting and an automatic screen "flip" feature. Easy-to-use, icon-driven user interface with three keys: MODE, Y/+ and N/-.
02
Continuous datalogging
6 months for 5 sensors at 1-minute intervals, 24/7. User-configurable datalogging intervals from 1 to 3,600 seconds.
03
Replaceable sensors, plug-and-play battery
Easy maintenance with replaceable sensors and a plug-and-play battery; intelligent sensors can be swapped in the field. Pump replacement is a service job: only authorized personnel should replace the pumps.
04
AutoRAE 2 (pumped version)
Fully automatic bump testing and calibration, plus data download and instrument set-up through the AutoRAE 2 Automatic Test and Calibration System.
05
Device management
Device Management with Honeywell SafetySuite.

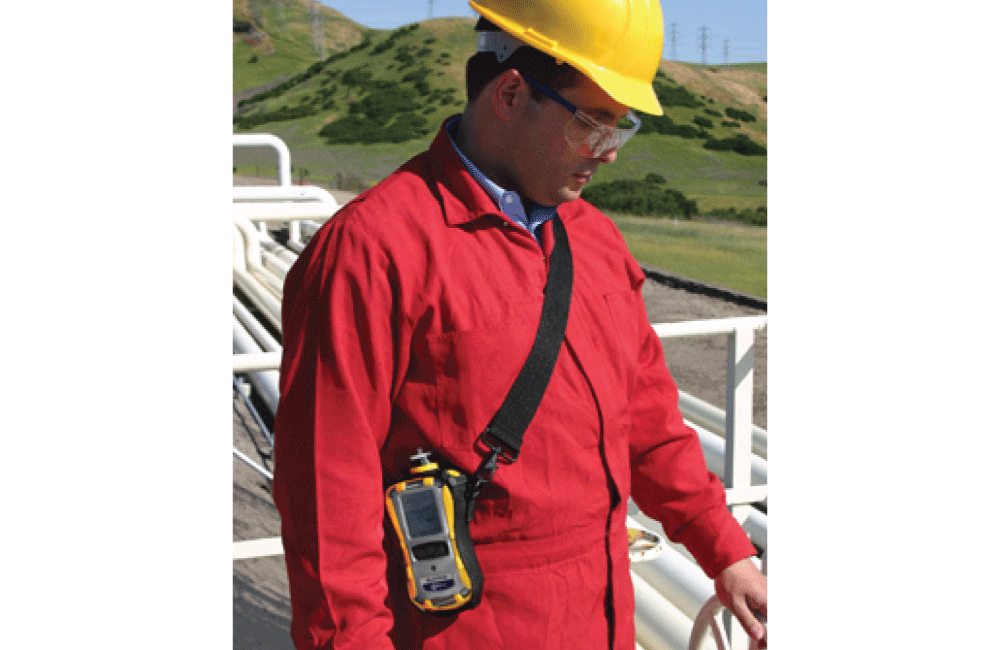

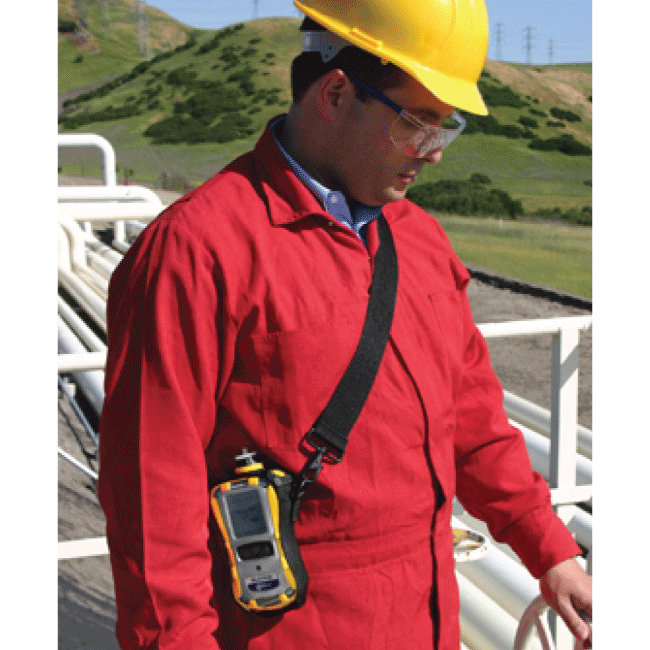

Worker in red coveralls wearing a MultiRAE Lite on a shoulder strap beside industrial piping

Applications

Personal protection and leak detection

Honeywell positions the MultiRAE Lite for personal protection and multi-gas leak detection in industries such as those below, and for fire overhaul.

Chemical
Food and beverage
Oil and gas (downstream)
Pharmaceutical
Telecommunications
Wastewater treatment
Fire overhaul

Specifications

Key specifications

Instrument
Models	PGM-6208 (pumped) and PGM-6208D (diffusion)
Size	Pumped model: 7.6" H x 3.8" W x 2.6" D (193 x 96.5 x 66 mm) Diffusion model: 6.9" x 3.8" x 2.2" (175 x 96.5 x 56 mm)
Weight	Pumped model: 31 oz (880 g) Diffusion model: 26.8 oz (760 g)
Sampling	Built-in pump or diffusion
Pump flow	Average flow rate, pumped: 250 cc/min. Auto shutoff in low-flow conditions
Calibration	Automatic with AutoRAE 2 Test and Calibration System (pumped version only) or manual
Display & controls
Display	Monochrome graphical LCD display (128 x 160) with backlighting. Automatic screen "flip" feature
Backlight	Activated automatically in dim ambient lighting conditions, when monitor is in alarm, or with a button press
Display readout	Real-time reading of gas concentrations; PID measurement gas and correction factor; Man Down Alarm on/off; visual compliance indicator; battery status; datalogging on/off; wireless on/off and reception quality. STEL, TWA, peak, and minimum values
Keypad	3 operation and programming keys (MODE, Y/+, and N/-)
Languages	Arabic, Chinese, Czech, Danish, Dutch, English, French, German, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, and Turkish
Environment
Operating temperature	-4° to 122°F (-20° to 50°C)
Humidity	0% to 95% relative humidity (non-condensing)
Dust & water	IP-65 (pumped); IP-67 (diffusion) ingress protection rating

Sensor	Range	Resolution	Note
Photoionization (PID)
VOC 10.6 eV	0 to 1,000 ppm	1 ppm	Pumped version only
Combustibles & CO2
Catalytic LEL	0 to 100% LEL	1% LEL
NDIR (0-100% LEL methane)	0 to 100% LEL	1% LEL	Pumped version
NDIR (0-100% Vol. methane)	0 to 100% Vol.	0.1% Vol.	Pumped version
Carbon dioxide (CO2) NDIR	0 to 50,000 ppm	100 ppm
Electrochemical
Ammonia (NH3)	0 to 100 ppm	1 ppm
Carbon monoxide (CO)	0 to 500 ppm	1 ppm
CO, ext. range	0 to 2,000 ppm	10 ppm
CO, H2-compensated	0 to 2,000 ppm	10 ppm
CO + H2S combo	0 to 500 ppm / 0 to 200 ppm	1 ppm / 0.1 ppm	Two-gas combination sensor
Chlorine (Cl2)	0 to 50 ppm	0.1 ppm
Chlorine dioxide (ClO2)	0 to 1 ppm	0.03 ppm
Ethylene oxide (EtO-A)	0 to 100 ppm	0.5 ppm
Ethylene oxide (EtO-B)	0 to 10 ppm	0.1 ppm
Ethylene oxide (EtO-C), ext. range	0 to 500 ppm	10 ppm	Diffusion only
Formaldehyde (HCHO)	0 to 10 ppm
Hydrogen (H2)	0 to 1,000 ppm	10 ppm	Diffusion only
Hydrogen cyanide (HCN)	0 to 50 ppm	0.5 ppm
Hydrogen sulfide (H2S)	0 to 100 ppm	0.1 ppm
H2S, ext. range	0 to 1,000 ppm	1 ppm	Diffusion only
Methyl mercaptan (CH3-SH)	0 to 10 ppm	0.1 ppm
Nitric oxide (NO)	0 to 250 ppm	0.5 ppm
Nitrogen dioxide (NO2)	0 to 20 ppm	0.1 ppm
Oxygen (O2)	0 to 30% Vol.	0.1% Vol.
Oxygen (Liq O2)	0 to 30% Vol.	0.1% Vol.
Phosphine (PH3)	0 to 20 ppm	0.1 ppm
Phosphine H (PH3 H)	0 to 20 ppm	0.1 ppm
Sulfur dioxide (SO2)	0 to 20 ppm	0.1 ppm

Battery (specification for non-wireless monitors)
Rechargeable Li-ion	~12-hr. (pumped)/18-hr. (diffusion) runtime
Extended duration Li-ion	~18-hr. (pumped)/28-hr. (diffusion) runtime
Alkaline adapter	4 x AA batteries ~6-hr. (pumped)/8-hr. (diffusion) runtime
Data
Datalogging	Continuous datalogging (6 months for 5 sensors at 1-minute intervals, 24/7) User-configurable datalogging intervals (from 1 to 3,600 seconds)
Data download	Data download and instrument set-up and upgrades on PC via travel charger or AutoRAE 2 Automatic Test and Calibration System (pumped version only)
Device management	Device Management with Honeywell SafetySuite

Alarms
Alarm notification	Wireless remote alarm notification; audible (95 dB @ 30 cm), vibration, visible (flashing bright red LEDs), and on-screen indication of alarm conditions
Man Down	Man Down Alarm with pre-alarm and real-time remote wireless notification
Wireless (optional)
Wireless	Wireless data and alarm status transmission via built-in RF modem (optional). Additional equipment and/or software licenses may be required to enable remote wireless monitoring and alarm transmission.
Network	ProRAE Guardian Real-Time Wireless Safety System or EchoView Host-based Closed-Loop System
Range (typical)	MultiRAE Lite to RAELink3 Mesh modem ~330 feet (100 meters) MultiRAE Lite to EchoView Host, RAEMesh Reader or RAEPoint ~200 meters MultiRAE Lite to Wi-Fi Access Point - 330 feet (100 meters)
Frequency	ISM license free band. IEEE 802.15.4 Sub 1GHz - Wi-Fi 802.11 b/g
Radio module	Supports RM900A
Wireless approvals	FCC Part 15

Safety certifications
CSA	Class I, Division 1, Groups A, B, C and D, T4 / Class II, Division 1, Groups E, F, G T85°C
ATEX	II 1G Ex ia IIC T4 Ga / 2G Ex ia d IIC T4 Gb with IR Sensor installed / I M1 Ex ia I Ma
IECEx	Ex ia IIC T4 Ga / Ex ia d IIC T4 Gb with IR Sensor installed / I M1 Ex ia I Ma
IECEx / ANZEx	Ex ia IIC T4 Ga / Ex ia d IIC T4 Gb with IR Sensor installed / Ex ia I Ma
Performance
Performance tests	LEL CSA C22.2 No. 152; ISA-12.13.01

Standard contents	Pumped	Diffusion
Monitor with sampling mode, sensors, battery, and wireless options as specified; protective rubber boot, external filter, and belt clip installed	Yellow rubber boot	Yellow rubber boot
Travel charger / PC communications adapter	Yes	Yes
AC adapter	Yes	Yes
PC communication cable	Yes	Yes
Calibration adapter	Yes	Yes
Toolkit	Yes	Yes
QuickStart Guide	Yes	Yes
Calibration and test certificate	Yes	Yes
Alkaline battery adapter	Included with rechargeable configurations only	Included with rechargeable configurations only
3 spare external filters	Yes	No
10 charcoal filters (reduce CO sensor's cross-sensitivity to VOCs)	Yes	No
PID sensor cap removal tool	Yes	No
Technical Note TN-106 with ionization energies and correction factors for 300+ VOCs	Yes	No
Desktop charging / PC communications cradle	No	No
Pelican case	Optional	Optional

Runtimes are for non-wireless monitors.

Service & resources

Keep it calibrated, keep it covered

Honeywell warranty service and calibration and repair through FarrWest, plus the datasheet for your files.

Sensor warranty highlights

Four years on Liq O2 sensors
Three years on CO and H2S sensors

Other components, sensors and consumables carry shorter terms; see the manufacturer's warranty terms for the full list.

Pump service

Only authorized personnel should replace the pumps. Any attempt to change the pump will void the warranty. Contact us or Honeywell about pump replacement.

Warranty service

Honeywell warranty service

Warranty claims and repairs on your Honeywell monitor, handled through FarrWest.

Learn more Calibration & repair

Repair Depot

Calibration and repair.

Learn more Honeywell

MultiRAE Lite datasheet

Features and specifications.

PDF

FAQ

Common questions

Should I choose the pumped or the diffusion MultiRAE Lite?

Choose the pumped version (PGM-6208) if you need a PID sensor for VOCs, NDIR combustible sensors, or automatic bump testing and calibration with AutoRAE 2. Choose the diffusion version (PGM-6208D) for the smaller, lighter body (26.8 oz against 31 oz), the IP-67 rating, longer runtime per charge, or the diffusion-only sensors: EtO-C extended range, H2 and H2S extended range. See the side-by-side comparison.

Can the diffusion version measure VOCs?

Not with a PID. The PID sensor requires a pumped configuration, so VOC monitoring by photoionization needs the pumped MultiRAE Lite.

How many gases can it monitor at once?

One to six. Six gases require the CO + H2S combination sensor, which reads both CO and H2S from a single sensor position. There are over 25 interchangeable sensor options to choose from.

Is wireless included?

Wireless is optional. Wireless and non-wireless configurations are available, and additional equipment and/or software licenses may be required to enable remote wireless monitoring and alarm transmission. Tell us how you want readings shared and we will quote the right configuration.

Does it work with AutoRAE 2?

Yes, the pumped version. AutoRAE 2 supports the MultiRAE Lite pumped version only.

Can the MultiRAE Lite do benzene-specific measurement?

No. The benzene-specific cartridge can only be used on MultiRAE and MultiRAE Pro models equipped with a 9.8 eV lamp. The Lite's PID is the 10.6 eV sensor.

How long does the battery last?

For non-wireless monitors: ~12 hours pumped / 18 hours diffusion on the rechargeable Li-ion pack, ~18 / 28 hours on the extended-duration pack, and ~6 / 8 hours on the alkaline adapter with 4 x AA batteries.

Can I replace the pump myself?

No. Only authorized personnel should replace the pumps, and any attempt to change the pump will void the warranty. Contact us or your Honeywell Distribution Center. See also Repair Depot and Honeywell warranty service.

Does a charging cradle come with it?

No. Both Lite kits ship with a travel charger / PC communications adapter, AC adapter and PC communication cable; a desktop charging cradle is not included. See In the box for the full list.

Why FarrWest

Buying from FarrWest

Cooperative contracts

Next step

Spec your MultiRAE Lite

The Lite is built to your configuration. Tell us pumped or diffusion, the gases you need to see, and whether you want wireless, and we will come back with a build and a quote.

Request a quote

Call 210.566.1857

Or email sales@farrwest.com

Honeywell MultiRAE Lite

Pumped or diffusion: decide first

Pumped

Diffusion

Choose pumped when

Choose diffusion when

Start with what you need, fit what the job asks

Toxics & oxygen

Combustibles

VOCs by PID

Carbon dioxide

Replacement sensors and batteries

O2 sensor

CO sensor

H2S sensor

LEL sensor

SO2 sensor

NH3 / Cl2 sensors

VOC sensor 10.6 eV

NDIR methane LEL

Li-ion battery pack

Alkaline adapter

Five ways to know

Audible

Vibration

Visible

On-screen

Wireless remote

Add it when the job needs it

Easy to read, easy to keep running

Large graphical display

Continuous datalogging

Replaceable sensors, plug-and-play battery

AutoRAE 2 (pumped version)

Device management

Personal protection and leak detection

Key specifications

Keep it calibrated, keep it covered

Honeywell warranty service

Repair Depot

MultiRAE Lite datasheet

Common questions

Buying from FarrWest

BuyBoard & PCA vendor

Honeywell Authorized Service Provider

Woman-owned, HUB-certified

Related equipment

Compare MultiRAE, Lite and Pro

Honeywell QRAE 3 Portable 4-Gas Monitor

Honeywell MultiRAE 6-Gas Monitor with PID

Spec your MultiRAE Lite

CONTACT US
