Broadest PID sensor range in its class with 0 to 5,000 ppm range and 0.1 ppm resolution
-
25 intelligent interchangeable sensor options
-
Optional wireless capability with real-time access to instrument readings and alarm status from any location
-
Man Down Alarm with real-time remote wireless notification
-
Highly versatile and customizable
-
Compliant with MIL-SPEC-810G performance standard
-
Fully automatic bump testing and calibration with AutoRAE 2
-
Continuous datalogging for 6 months with 5 sensors at 24/7 operation
-
Automatic screen flip feature on graphical LCD display
-
Built-in pump with 250cc/min average flow rate
Honeywell Authorized Service Provider
Honeywell warranty service, now at FarrWest.Repair, calibration and warranty service for Honeywell gas detection, performed in our San Antonio depot.
Warranty service details →MultiRAE PID sensor (10.6 eV, VOC)
$0.00
Honeywell MultiRAE PID sensor is a plug-in VOC detection module for industrial hygiene, leak detection, and HazMat response across multiple industries.
In stock

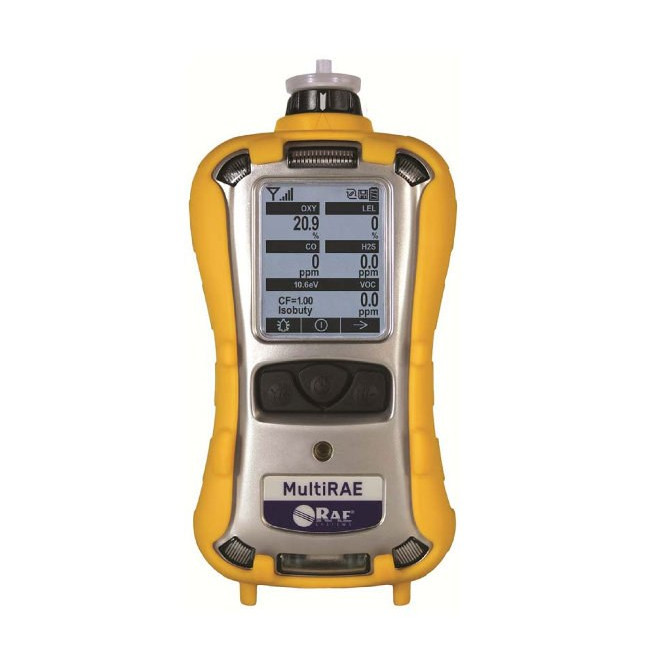

The MultiRAE is an advanced portable chemical detector featuring a 10.6 eV PID sensor for volatile organic compound (VOC) detection with exceptional range (0-5,000 ppm) and 0.1 ppm resolution. This wireless-capable six-gas monitor supports 25 intelligent interchangeable sensor options including PID, NDIR for combustibles and CO2, ammonia, chlorine, formaldehyde, and phosphine. Ideal for industrial hygiene, personal protection, leak detection, and HazMat response across aviation, chemical, environmental, oil and gas, pharmaceutical, and shipping industries. Features include MIL-SPEC-810G compliance, automatic bump testing and calibration with AutoRAE 2, continuous datalogging (6 months for 5 sensors), Man Down Alarm with wireless notification, rechargeable Li-ion battery (12-18 hour runtime), and real-time wireless access to readings and alarm status.
Description
MultiRAE PID sensor (10.6 eV, VOC)
The MultiRAE is an advanced portable chemical detector featuring a 10.6 eV PID sensor for volatile organic compound (VOC) detection with exceptional range (0-5,000 ppm) and 0.1 ppm resolution. This wireless-capable six-gas monitor supports 25 intelligent interchangeable sensor options including PID, NDIR for combustibles and CO2, ammonia, chlorine, formaldehyde, and phosphine. Ideal for industrial hygiene, personal protection, leak detection, and HazMat response across aviation, chemical, environmental, oil and gas, pharmaceutical, and shipping industries. Features include MIL-SPEC-810G compliance, automatic bump testing and calibration with AutoRAE 2, continuous datalogging (6 months for 5 sensors), Man Down Alarm with wireless notification, rechargeable Li-ion battery (12-18 hour runtime), and real-time wireless access to readings and alarm status.
Features
Specifications
- SIZE
- 7.6″Hx3.8″Wx2.6″D(193×96.5x66mm)
- WEIGHT
- 31 oz(880g)
- SENSORS
- 25 intelligent interchangeable field-replaceable sensors including PID for VOCs, electrochemical sensors for toxic gases and oxygen, combustible LEL and NDIR sensors, and CO2 NDIR sensor
- BATTERY_OPTIONS_RUNTIME_RECHARGE_TIME
- Rechargeable Li-ion (~12-hr. runtime, <6-hr. recharge time); Extended duration Li-ion (~18-hr. runtime, <9-hr. recharge time); Alkaline adapter with 4 x AA batteries (~6-hr. runtime)
- DISPLAY
- Monochrome graphical LCD display (128×160) with backlighting. Automatic screen “flip” feature. Real-time reading of gas concentrations; PID measurement gas and correction factor; Man Down Alarm on/off, visual compliance indicator; battery status; datalogging on/off, wireless on/off and reception quality. STEL, TWA, peak, and minimum values
- KEYPAD_BUTTONS
- 3 operation and programming keys (Mode, V/+ and N/-)
- SAMPLING_CALIBRATION
- Built-in pump. Average flow rate: 250cc/min. Auto shutoff in low-flow conditions. Automatic with AutoRAE 2 Test and Calibration System or manual. Wireless remote alarm notification, audible (95dB @ 30cm), vibration, visible (flashing bright red LEDs), and on-screen indication of alarm conditions. Man Down Alarm with pre-alarm and real-time remote wireless notification
- DATALOGGING
- Continuous datalogging (6 months for 5 sensors at 1-minute intervals, 24/7). User-configurable datalogging intervals (from 1 to 3,600 seconds)
- COMMUNICATION_DATA_DOWNLOAD
- Data download and instrument set-up and upgrades on PC via desktop charging and PC comm. cradle, travel charger, or AutoRAE 2 Automatic Test and Calibration System. Wireless data and alarm status transmission via built-in RF modem (optional)
- WIRELESS_NETWORK
- ProRAE Guardian Real-Time Wireless Safety System or EchoView Host-based Closed-Loop System. MultiRAE to RAELink3 Mesh modem – 330 feet (100 meters). MultiRAE to EchoView Host, RAEMesh Reader or RAEPoint – 660 feet (200 meters). MultiRAE to Wi-Fi Access Point – 330 feet (100 meters)
- OPERATING_TEMPERATURE
- -4°to122°F(-20°to50°C)
- HUMIDITY
- 0% to 95% relative humidity (non-condensing)
- INGRESS_PROTECTION
- IP-65 ingress protection rating (dust-tight and waterproof against hosing jets coming from all directions)
- PID_SENSOR_VOC_10.6_EV_EXT_RANGE_RANGE
- 0 to 5,000 ppm
- PID_SENSOR_VOC_10.6_EV_EXT_RANGE_RESOLUTION
- 0.1 ppm
