Honeywell RAE Systems / Model PGM-6228
MultiRAE
Wireless portable six-gas monitor with advanced VOC detection capability
A pumped multi-gas monitor you build around the job from 25 intelligent interchangeable sensor options, including PID for VOCs, NDIR for combustibles and CO2, and electrochemical sensors for toxic gases and oxygen. Six readings require the CO + H2S combination sensor, which reads both CO and H2S from a single sensor position. Honeywell positions it for industrial hygiene, personal protection, leak detection and HazMat response.
25Sensor options
0–5,000 ppmPID range, 0.1 ppm res.
IP-65Ingress rating
31 oz880 g, pumped

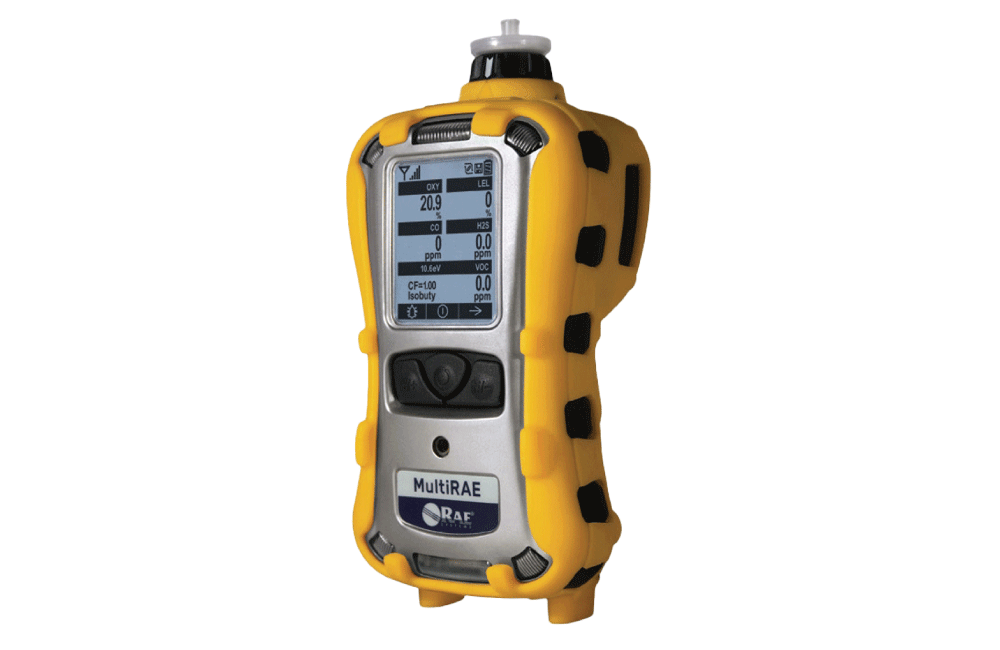

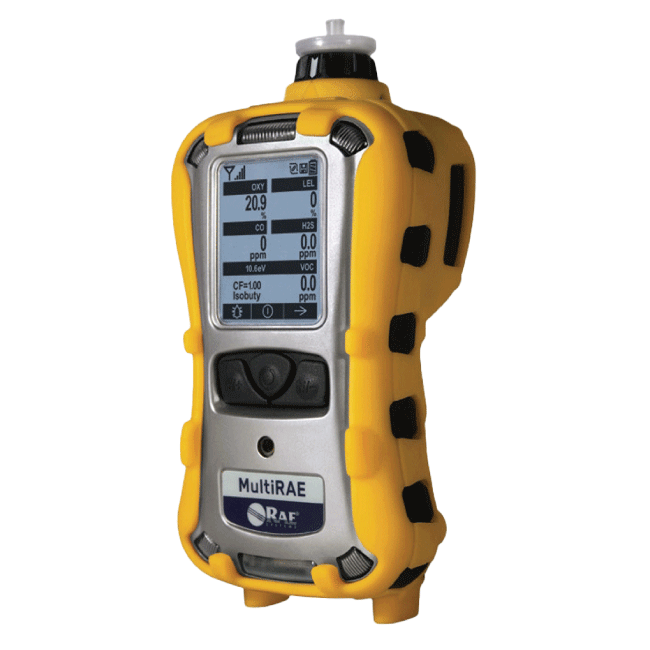

Front view · 10.6 eV PID unit
Sensors
Six readings. Twenty-five sensors.
The MultiRAE family can display readings from one to six sensors, depending on the configuration. Below are the 25 sensor options, grouped into five families, with range and resolution. Sensors marked “Sold separately” also have their own product page as replacement parts.
Six readings
Six readings take the CO + H2S combo sensor
A two-gas combination sensor is required for a 6-gas configuration. That sensor is the carbon monoxide (CO) + hydrogen sulfide (H2S) combo. That one sensor reads both CO and H2S from a single sensor position.
The unit pictured above reads oxygen, LEL, CO, H2S and VOC.
VOC0.0ppm · PID
LEL0% · catalytic
OXY20.9% vol
SO20.0ppm
One CO + H2S combo sensor
CO0ppm · combo
H2S0.0ppm · combo
PID · VOCs
1 sensorPhotoionization detection for volatile organic compounds. The PID sensor requires a pumped configuration; this model has a built-in pump.
| Sensor | Range | Resolution | Product page |
|---|---|---|---|
| VOC 10.6 eV (ext. range) | 0 to 5,000 ppm | 0.1 ppm |
On-board library: 190 VOCs
Catalytic LEL
1 sensorCombustible gas as a percentage of the lower explosive limit.
| Sensor | Range | Resolution | Product page |
|---|---|---|---|
| Catalytic LEL | 0 to 100% LEL | 1% LEL | Sold separately → |
On-board library: 55 combustible gases
NDIR · infrared
3 sensorsNon-dispersive infrared for methane, as %LEL or %Vol., and for carbon dioxide.
| Sensor | Range | Resolution | Product page |
|---|---|---|---|
| NDIR (0-100% LEL methane) | 0 to 100% LEL | 1% LEL | Sold separately → |
| NDIR (0-100% Vol. methane) | 0 to 100% Vol. | 0.1% Vol. | |
| Carbon dioxide (CO2) NDIR | 0 to 50,000 ppm | 100 ppm |
Oxygen
2 sensorsElectrochemical oxygen sensors, standard or Liq O2.
| Sensor | Range | Resolution | Product page |
|---|---|---|---|
| Oxygen (O2) | 0 to 30% Vol. | 0.1% Vol. | Sold separately → |
| Oxygen (Liq O2) | 0 to 30% Vol. | 0.1% Vol. |
Electrochemical · toxic gases
18 sensorsElectrochemical sensors for toxic gases. The CO + H2S combo reads both gases from one sensor position.
| Sensor | Range | Resolution | Product page |
|---|---|---|---|
| Carbon monoxide (CO) | 0 to 500 ppm | 1 ppm | Sold separately → |
| Carbon monoxide (CO), ext. range | 0 to 2,000 ppm | 10 ppm | |
| Carbon monoxide (CO), H2-comp. | 0 to 2,000 ppm | 10 ppm | |
| CO + hydrogen sulfide (H2S) comboReads CO and H2S from a single sensor position. Required for six readings. | 0 to 500 ppm (CO) / 0 to 200 ppm (H2S) | 1 ppm (CO) / 0.1 ppm (H2S) | |
| Hydrogen sulfide (H2S) | 0 to 100 ppm | 0.1 ppm | Sold separately → |
| Ammonia (NH3) | 0 to 100 ppm | 1 ppm | Sold separately → |
| Chlorine (Cl2) | 0 to 50 ppm | 0.1 ppm | Sold separately → |
| Chlorine dioxide (ClO2) | 0 to 1 ppm | 0.03 ppm | |
| Ethylene oxide (EtO-A) | 0 to 100 ppm | 0.5 ppm | |
| Ethylene oxide (EtO-B) | 0 to 10 ppm | 0.1 ppm | |
| Formaldehyde (HCHO) | 0 to 10 ppm | 0.05 ppm | |
| Hydrogen cyanide (HCN) | 0 to 50 ppm | 0.5 ppm | |
| Methyl mercaptan (CH3-SH) | 0 to 10 ppm | 0.1 ppm | |
| Nitric oxide (NO) | 0 to 250 ppm | 0.5 ppm | |
| Nitrogen dioxide (NO2) | 0 to 20 ppm | 0.1 ppm | |
| Phosphine (PH3) | 0 to 20 ppm | 0.1 ppm | |
| Phosphine (PH3 H) | 0 to 20 ppm | 0.1 ppm | |
| Sulfur dioxide (SO2) | 0 to 20 ppm | 0.1 ppm | Sold separately → |
- Rule 01 · Six readingsSix readings require the CO + H2S combination sensor, which reads both CO and H2S from a single sensor position.
- Rule 02 · PIDThe PID sensor requires a pumped configuration. The MultiRAE has a built-in pump.
- Rule 03 · %Vol. NDIRIf a %Vol. NDIR sensor is installed, a catalytic bead %LEL sensor must also be installed for CSA certification.
- Rule 04 · No empty slotsIf you remove a sensor and do not replace it, a MultiRAE “dummy” sensor must be installed in that slot.
- Rule 05 · Field swapsIntelligent sensors store calibration data, so they can be swapped in the field. RAE Systems recommends calibrating sensors on installation.
In the field
Built for the hose-down, read in any hand
Honeywell calls the MultiRAE highly versatile and customizable. The body that carries those sensors is rated dust-tight and protected against water jets, and the display turns itself the right way up.

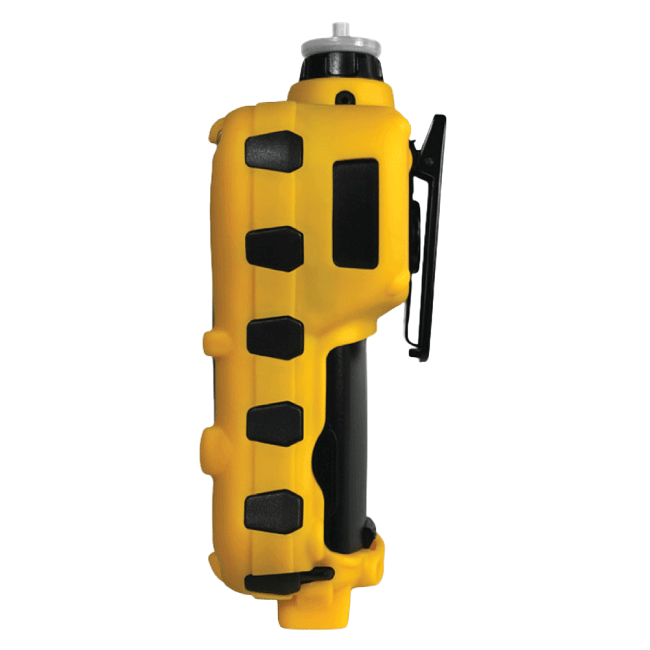

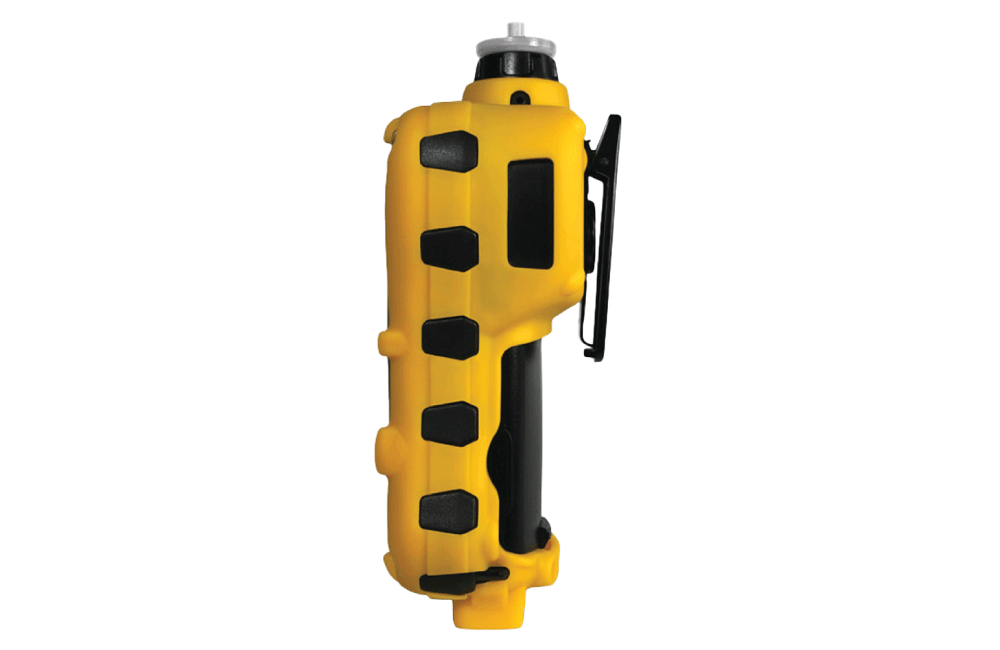

Three-quarter view · protective rubber boot
- 01
IP-65 ingress protection rating
Dust-tight and waterproof against hosing jets coming from all directions.
- 02
MIL-STD-810G and 461F compliant
Performance tests also include LEL CSA C22.2 No. 152 and ISA-12.13.01.
- 03
-4° to 122°F (-20° to 50°C)
Operating temperature, at 0% to 95% relative humidity (non-condensing).
- 04
Monochrome graphical LCD, 128 x 160
Backlit, with an automatic screen “flip” feature. Readout includes STEL, TWA, peak and minimum values, and the PID measurement gas and correction factor.
- 05
19 languages
Arabic, Chinese, Czech, Danish, Dutch, English, French, German, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish and Turkish.
Applications
Where Honeywell puts it to work
- Industrial hygiene
- Personal protection
- Leak detection
- HazMat response
- Aviation (wing tank entry)
- Chemical
- Environmental
- Oil and gas
- Pharmaceutical
- Shipping/marine
- Clandestine drug labs
Alarms
Five ways to know
Unmistakable five-way local and remote wireless notification of alarm conditions, including Man Down Alarm. Alarm mode is your choice: Auto Reset or Latched.
- 01
Audible
95 dB @ 30 cm.
- 02
Vibration
Vibration alert.Disabled whenever the alkaline adapter is used.
- 03
Visible
Flashing bright red LEDs.
- 04
On-screen
On-screen indication of alarm conditions.
- 05
Wireless remote
Wireless remote alarm notification, on units ordered with the optional wireless capability.
Man Down Alarm
A 3D gravity sensor that notices when you stop moving
The MultiRAE has a 3D gravity sensor that can track the slightest motion of the instrument in any direction. Man Down Alarm comes with a pre-alarm and real-time remote wireless notification. These are the default settings:
- SettingOff / On
Off by default.
- Motionless time30 s
By default.
- Warning time30 s
By default.
- AlarmPre-alarm + alarm
With real-time remote wireless notification.
Note: when a MultiRAE is connected to an AutoRAE 2, truck mount, or desktop cradle, the Man Down alarm feature is disabled.
Wireless (optional)
Readings at the command post
Wireless and non-wireless configurations are available. With the optional built-in RF modem, commanders and safety officers get real-time access to instrument readings and alarm status from any location, for better situational awareness and faster incident response.
Wireless range (typical)
- MultiRAE to EchoView Host, RAEMesh Reader or RAEPoint~660 ft (200 m)
- MultiRAE to RAELink3 Mesh modem~330 ft (100 m)
- MultiRAE to Wi-Fi Access Point~330 ft (100 m)
0 ft330 ft660 ft
Typical ranges. Additional equipment and/or software licenses may be required to enable remote wireless monitoring and alarm transmission.
- Networks
ProRAE Guardian or EchoView Host
ProRAE Guardian Real-Time Wireless Safety System, or EchoView Host-based Closed-Loop System.
- Radio
Sub 1GHz mesh + Wi-Fi
ISM license free band. IEEE 802.15.4 Sub 1GHz, Wi-Fi 802.11 b/g. Supports RM900A.
- Short range
Integrated BLE modem (optional)
Up to 15 ft (5 m) for BLE.
- Fleet
Honeywell SafetySuite
Device Management with Honeywell SafetySuite.
Power & upkeep
Swap the pack, keep the shift
The MultiRAE battery packs are plug-and-play and can be replaced on the go without tools. Three power options, and the consumables we stock to keep it running.

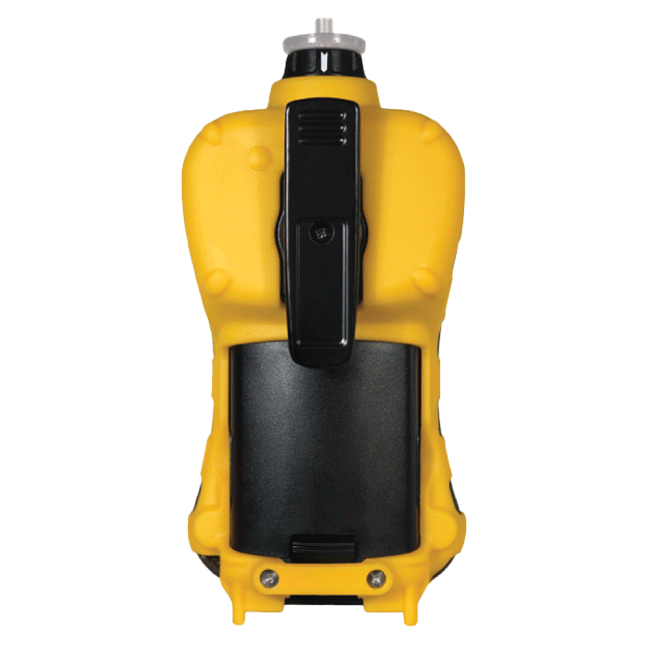

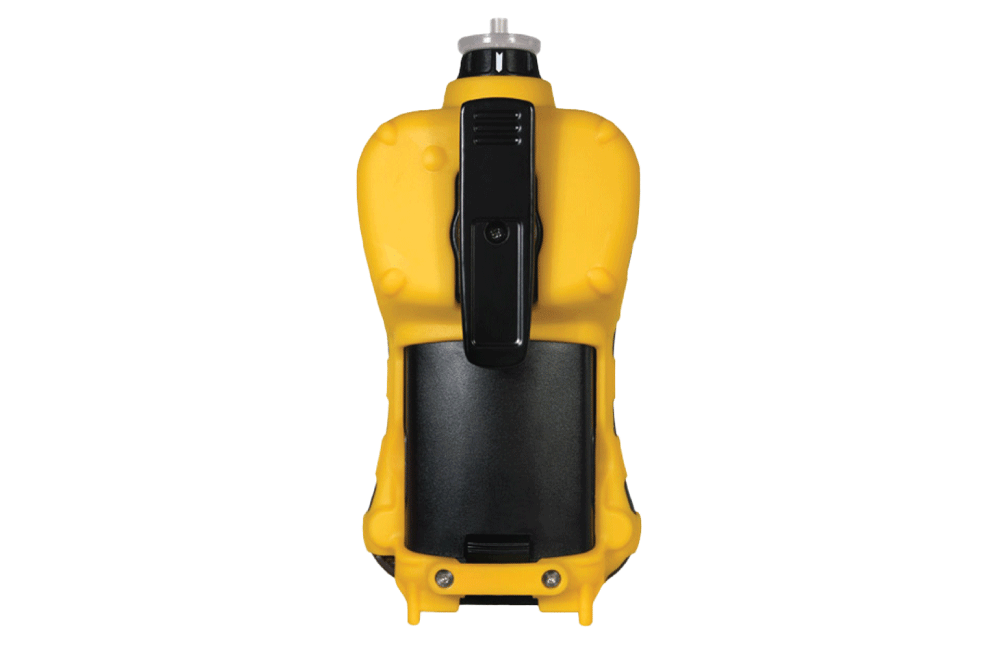

Rear view · plug-in battery pack below the belt clip
- Extended duration Li-ion~18-hr. runtime · < 9-hr. recharge
- Rechargeable Li-ion~12-hr. runtime · < 6-hr. recharge
- Alkaline adapter, 4 x AA~6-hr. runtime
Runtimes are for non-wireless monitors. The alkaline adapter takes four AA alkaline batteries (use only Duracell MN1500); alkaline batteries cannot be recharged, and the vibration alarm is disabled whenever the alkaline adapter is used.
Battery · M01-3053-000
Li-ion rechargeable battery pack
Standard duration rechargeable Li-ion battery. ~12-hr. runtime, < 6-hr. recharge time.
View product Battery · M01-3054-000Alkaline battery adapter
One is supplied with each instrument; this is a spare or replacement. Holds 4 x AA batteries, ~6-hr. runtime.
View product Consumable · pumped unitsExternal filters
If a filter is dirty or clogged, unscrew it from the black gas inlet adapter, discard it and fit a new one.
View product- Bump & calibrate
AutoRAE 2
Fully automatic bump testing and calibration with AutoRAE 2, or manual calibration. Policy enforcement can require calibration and/or bump tests at set intervals (disabled by default).
- Interval
At least every 180 days
The MultiRAE must be calibrated if it does not pass a bump test, or at least once every 180 days, depending on use and sensor exposure to poisons and contaminants.
- Datalogging
6 months, 5 sensors
Continuous datalogging at 1-minute intervals, 24/7, with user-configurable intervals from 1 to 3,600 seconds. Data are retained in non-volatile memory.
- Pump service
Authorized personnel only
Only authorized personnel should replace the pump, and any attempt to change it yourself voids the warranty. Contact Honeywell or your Honeywell Distribution Center, or ask our Repair Depot how we can help.
Specifications
Key specifications
Model PGM-6228.
| Physical | |
|---|---|
| Model | PGM-6228. Wireless and non-wireless configurations are available. |
| Size | 7.6" H x 3.8" W x 2.6" D (193 x 96.5 x 66 mm) |
| Weight | 31 oz (880 g) |
| Sampling | Built-in pump. Average flow rate: 250 cc/min. Auto shutoff in low-flow conditions |
| Display & controls | |
| Display | Monochrome graphical LCD display (128 x 160) with backlighting. Automatic screen “flip” feature. |
| Display readout | Real-time reading of gas concentrations; PID measurement gas and correction factor; Man Down Alarm on/off; visual compliance indicator; battery status; datalogging on/off; wireless on/off and reception quality. STEL, TWA, peak, and minimum values |
| Keypad buttons | 3 operation and programming keys (Mode, Y/+, and N/-) |
| Languages | Arabic, Chinese, Czech, Danish, Dutch, English, French, German, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, and Turkish |
| Environment | |
| Operating temperature | -4° to 122°F (-20° to 50°C) |
| Humidity | 0% to 95% relative humidity (non-condensing) |
| Dust & water resistance | IP-65 ingress protection rating (dust-tight and waterproof against hosing jets coming from all directions) |
| Performance tests | MIL-STD-810G and 461F compliant. LEL CSA C22.2 No. 152; ISA-12.13.01 |
| 25 intelligent interchangeable field-replaceable sensors including PID for VOCs, electrochemical sensors for toxic gases and oxygen, combustible LEL and NDIR sensors, and CO2 NDIR sensor | ||
|---|---|---|
| Sensor | Range | Resolution |
| PID | ||
| VOC 10.6 eV (ext. range) | 0 to 5,000 ppm | 0.1 ppm |
| Combustible | ||
| Catalytic LEL | 0 to 100% LEL | 1% LEL |
| NDIR (0-100% LEL methane) | 0 to 100% LEL | 1% LEL |
| NDIR (0-100% Vol. methane) | 0 to 100% Vol. | 0.1% Vol. |
| Carbon dioxide | ||
| Carbon dioxide (CO2) NDIR | 0 to 50,000 ppm | 100 ppm |
| Toxic & oxygen | ||
| Ammonia (NH3) | 0 to 100 ppm | 1 ppm |
| Carbon monoxide (CO) | 0 to 500 ppm | 1 ppm |
| Carbon monoxide (CO), ext. range | 0 to 2,000 ppm | 10 ppm |
| Carbon monoxide (CO), H2-comp. | 0 to 2,000 ppm | 10 ppm |
| CO + hydrogen sulfide (H2S) combo | 0 to 500 ppm (CO) / 0 to 200 ppm (H2S) | 1 ppm (CO) / 0.1 ppm (H2S) |
| Chlorine (Cl2) | 0 to 50 ppm | 0.1 ppm |
| Chlorine dioxide (ClO2) | 0 to 1 ppm | 0.03 ppm |
| Ethylene oxide (EtO-A) | 0 to 100 ppm | 0.5 ppm |
| Ethylene oxide (EtO-B) | 0 to 10 ppm | 0.1 ppm |
| Formaldehyde (HCHO) | 0 to 10 ppm | 0.05 ppm |
| Hydrogen cyanide (HCN) | 0 to 50 ppm | 0.5 ppm |
| Hydrogen sulfide (H2S) | 0 to 100 ppm | 0.1 ppm |
| Methyl mercaptan (CH3-SH) | 0 to 10 ppm | 0.1 ppm |
| Nitric oxide (NO) | 0 to 250 ppm | 0.5 ppm |
| Nitrogen dioxide (NO2) | 0 to 20 ppm | 0.1 ppm |
| Oxygen (O2) | 0 to 30% Vol. | 0.1% Vol. |
| Oxygen (Liq O2) | 0 to 30% Vol. | 0.1% Vol. |
| Phosphine (PH3) | 0 to 20 ppm | 0.1 ppm |
| Phosphine (PH3 H) | 0 to 20 ppm | 0.1 ppm |
| Sulfur dioxide (SO2) | 0 to 20 ppm | 0.1 ppm |
A two-gas combination sensor is required for a 6-gas configuration. The CO + H2S combo reads both CO and H2S from a single sensor position.
| Power | |
|---|---|
| Battery options, runtime & recharge |
|
| Battery part numbers | Standard duration rechargeable Li-ion battery (PN: M01-3053-000); extended-duration rechargeable Li-ion battery (PN: M01-3055-000); alkaline battery pack for four standard AA-sized batteries (PN: M01-3054-000) |
| Alarms & calibration | |
| Alarms | Wireless remote alarm notification; audible (95 dB @ 30 cm), vibration, visible (flashing bright red LEDs), and on-screen indication of alarm conditions. Man Down Alarm with pre-alarm and real-time remote wireless notification |
| Calibration | Automatic with AutoRAE 2 Test and Calibration System or manual |
| Data | |
| Datalogging | Continuous datalogging (6 months for 5 sensors at 1-minute intervals, 24/7). User-configurable datalogging intervals (from 1 to 3,600 seconds) |
| Communication & data download | Data download and instrument set-up and upgrades on PC via desktop charging and PC comm. cradle, travel charger, or AutoRAE 2 Automatic Test and Calibration System. Wireless data and alarm status transmission via built-in RF modem (optional) |
| Wireless network | ProRAE Guardian Real-Time Wireless Safety System or EchoView Host-based Closed-Loop System |
|---|---|
| Wireless range (typical) |
|
| Wireless frequency | ISM license free band. IEEE 802.15.4 Sub 1GHz, Wi-Fi 802.11 b/g |
| Radio module | Supports RM900A |
| Wireless approvals | FCC Part 15 |
| BLE | Integrated BLE Modem (Optional); up to 15 ft (5 m) for BLE |
Additional equipment and/or software licenses may be required to enable remote wireless monitoring and alarm transmission.
| Safety certifications | |
|---|---|
| CSA | Class I, Division 1, Groups A, B, C and D, T4 Class II, Division 1; Groups E, F, G; T85°C |
| ATEX | II 1G Ex ia IIC T4 Ga 2G Ex ia d IIC T4 Gb with IR Sensor installed I M1 Ex ia I Ma |
| IECEx | Ex ia IIC T4 Ga Ex ia d IIC T4 Gb with IR Sensor installed I M1 Ex ia I Ma |
| IECEx / ANZEx | Ex ia IIC T4 Ga; Ex ia d IIC T4 Gb with IR Sensor installed; Ex ia I Ma |
| Warranty | |
| Manufacturer warranty |
|
| Standard contents |
|
|---|
Resources & service
Documents and support
The MultiRAE datasheet and FarrWest service for your Honeywell instrument: warranty work, calibration and repair.
Honeywell
MultiRAE datasheet
Features, instrument and sensor specifications, certifications and warranty.
Service · WarrantyHoneywell warranty service
FarrWest is a Honeywell Authorized Service Provider for BW and RAE Systems. Coverage depends on the model and agreement.
Service · Repair DepotCalibration & repair
Calibration and repair at the FarrWest Repair Depot. For pump service, ask us how we can help.
FAQ
Questions we get on the phone
How many gases can one MultiRAE monitor at once?
Up to six, and six readings require the CO + H2S combination sensor, which reads both CO and H2S from a single sensor position. A two-gas combination sensor is required for a 6-gas configuration. The MultiRAE family can display readings from one to six sensors (including dual sensor), depending on the configuration.
Is wireless standard?
No, it is optional. Wireless and non-wireless configurations are available. The optional built-in RF modem works with ProRAE Guardian or EchoView Host networks, Wi-Fi is 802.11 b/g, and an integrated BLE modem is also optional. Additional equipment and/or software licenses may be required to enable remote wireless monitoring and alarm transmission.
Can I swap sensors myself?
Yes. Intelligent sensors store calibration data, so they can be swapped in the field; RAE Systems recommends calibrating sensors on installation, and you should always calibrate the MultiRAE after replacing the sensor module. A slot cannot be left empty: if you remove a sensor without replacing it, install a MultiRAE “dummy” sensor.
How long does the battery last?
Rechargeable Li-ion: ~12-hr. runtime, < 6-hr. recharge time. Extended duration Li-ion: ~18-hr. runtime, < 9-hr. recharge time. Alkaline adapter with 4 x AA batteries: ~6-hr. runtime. These figures are for non-wireless monitors. Packs are plug-and-play and can be replaced on the go without tools.
Is Man Down always on?
No. Man Down is off by default, with a 30-second motionless time and 30-second warning time by default once enabled. It is disabled while the MultiRAE is connected to an AutoRAE 2, truck mount, or desktop cradle.
How often does it need calibration?
The MultiRAE must be calibrated if it does not pass a bump test, or at least once every 180 days, depending on use and sensor exposure to poisons and contaminants. Bump testing and calibration can be fully automatic with AutoRAE 2, or manual. Our Repair Depot handles calibration too.
Is it rated for hazardous locations?
Yes. CSA Class I, Division 1, Groups A, B, C and D, T4 and Class II, Division 1; Groups E, F, G; T85°C, plus ATEX II 1G Ex ia IIC T4 Ga and IECEx Ex ia IIC T4 Ga (Ex ia d IIC T4 Gb with IR Sensor installed). See the Certifications tab for the full list.
Who handles service, calibration and repair?
FarrWest is a Honeywell Authorized Service Provider for BW and RAE Systems gas detection. Instruments covered by a Honeywell Service Made Simple Enhanced agreement are repaired, calibrated and returned by our Repair Depot. Coverage depends on the model and agreement, so see Honeywell warranty service or call 210.566.1857 to confirm.
Why FarrWest
Buying from FarrWest
Cooperative contracts
BuyBoard & PCA vendor
FarrWest is a pre-approved vendor on BuyBoard and Purchasing Cooperative of America (PCA). Government agencies can buy on competitively-bid cooperative contracts, with no lengthy RFP.
ServiceHoneywell Authorized Service Provider
FarrWest is a Honeywell Authorized Service Provider for BW and RAE Systems gas detection, with repair and calibration in our own Repair Depot in San Antonio, Texas.
Since 2004Woman-owned, HUB-certified
Serving Hazmat, Fire, Police, EMS, and Specialty Vehicle operations nationwide since 2004, with expert support, training, and service after the sale.
Next step
Build your MultiRAE for the job
Tell us the gases you need to see and whether you want wireless. We will come back with a sensor configuration and a quote.
