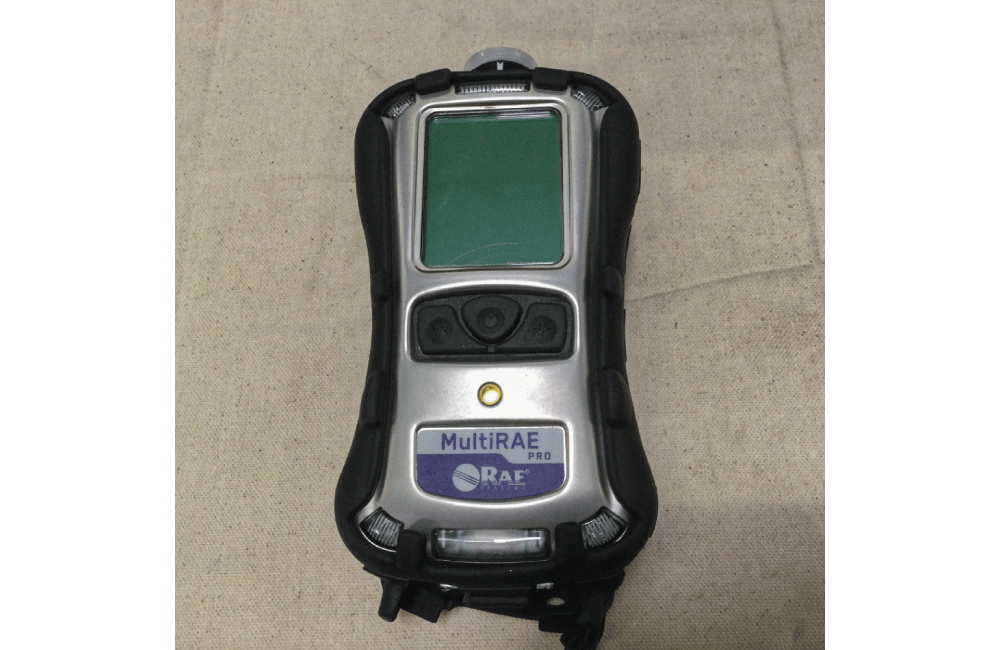

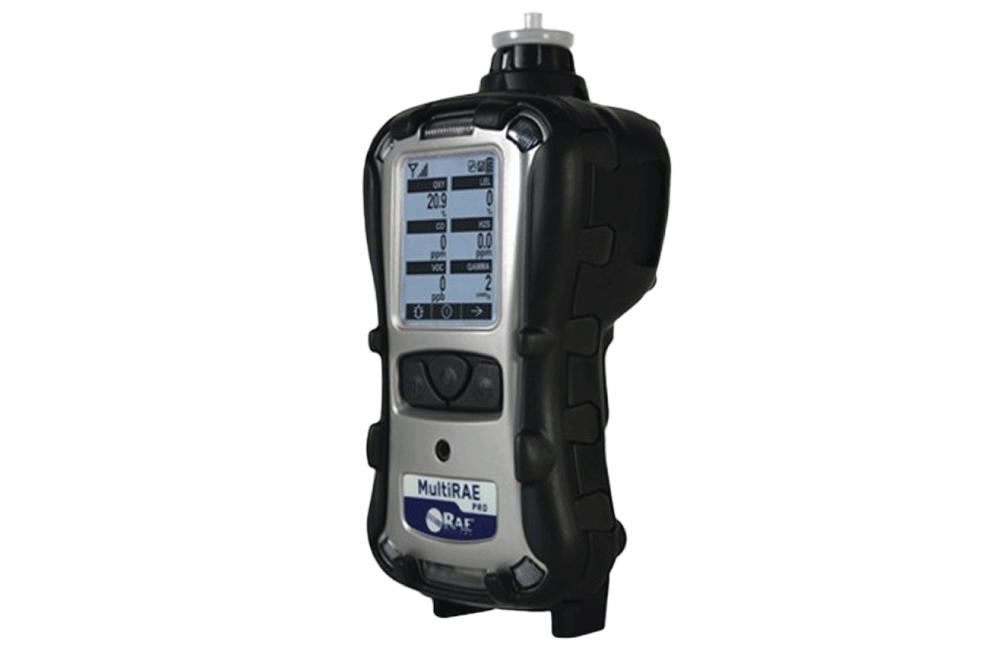

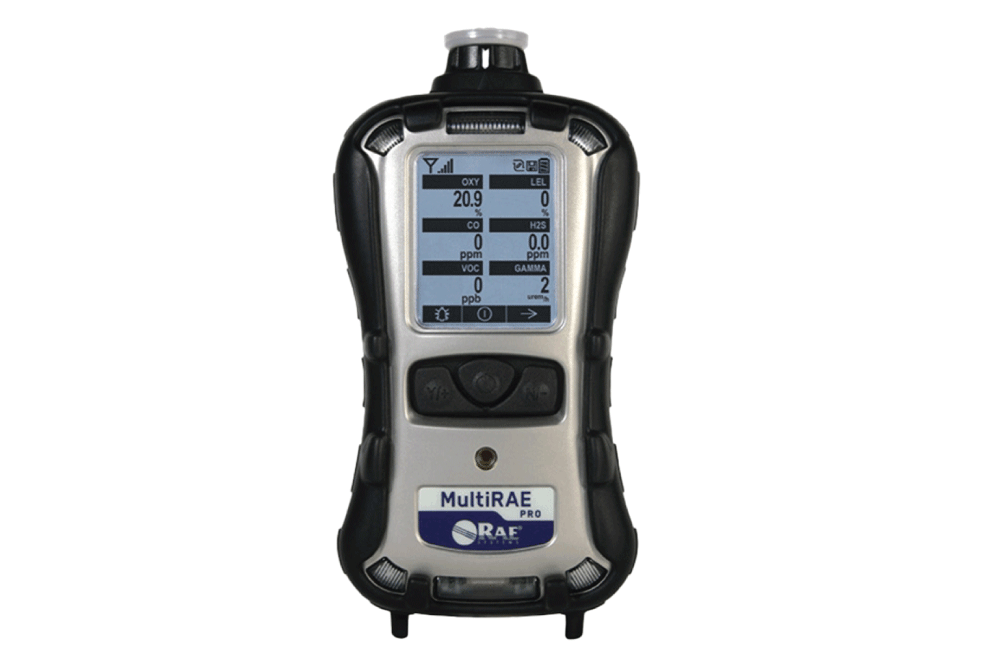

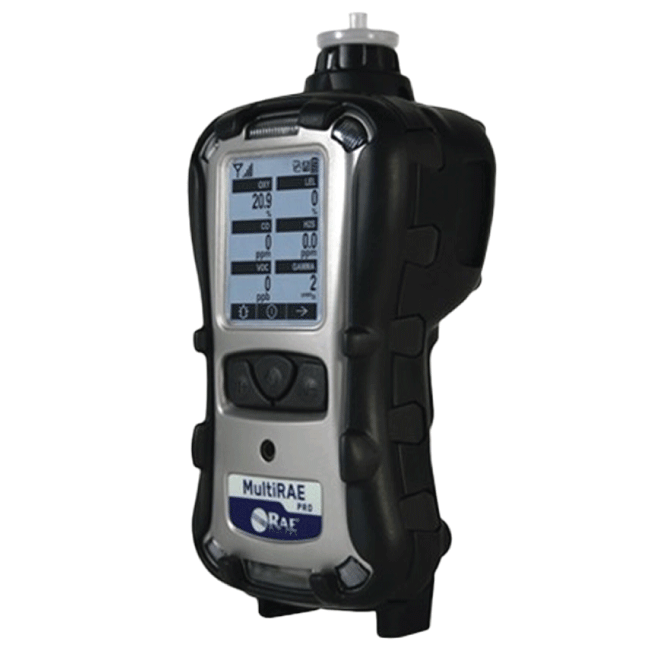

Honeywell MultiRAE Pro
Portable multi-threat radiation and chemical detector. Gamma and gas in one handheld.
The MultiRAE Pro detects gamma radiation and toxic industrial chemicals (TICs/TIMs) simultaneously, so responders can reduce the equipment footprint and work with greater agility downrange. Radiation, VOCs, oxygen, toxic and combustible gases in one configuration, with wireless as an option.
Gamma and gas on one screen
A responder walking into an unknown scene has two questions: is there something chemical in the air, and is there a radiation source? The MultiRAE Pro answers both from the same handheld, with a display for its readings, five-way alarms and a datalog.
Gamma radiation
The gamma radiation sensor is one of the instrument's interchangeable sensors, reading dose rate alongside the chemical sensors.
- Range
- 0 to 20,000 μRem/h (dose rate)
- Sensor type
- 1cc CsI (Tl) scintillator with photodiode
VOCs, oxygen, toxic & combustible gases
The rest of the configuration is built from these chemical sensor families:
- ppb and ppm PID sensors for VOCs
- Electrochemical sensors for toxic gases and oxygen
- Combustible LEL and NDIR sensors
- CO2 NDIR sensor
Display
Large graphical display with an easy-to-use, icon-driven user interface: monochrome graphical LCD (128 x 160) with backlighting and an automatic screen "flip" feature.
Alarms
Unmistakable five-way local and remote wireless notification of alarm conditions.
Datalogging
Continuous datalogging (6 months for 5 sensors at 1-minute intervals, 24/7), user-configurable from 1 to 3,600 seconds.
Calibration
Fully automatic bump testing and calibration with AutoRAE 2, or manual calibration.
The gamma sensor, and the instrument around it
On the left, the gamma sensor: its type, its dose-rate range and the display it appears on. On the right, the instrument as a whole: five-way alarm notification, Man Down Alarm and datalogging.
- 1Sense
1cc CsI (Tl) scintillator with photodiode
The gamma radiation sensor is one of the instrument's intelligent, field-replaceable sensors.
- 2Measure
Dose rate, 0 to 20,000 μRem/h
- 3Display
Real-time on the graphical display
Gamma shares the screen with the gas readings. The display also shows gas concentrations, battery status, datalogging on/off, Man Down Alarm on/off and, on wireless units, wireless on/off and reception quality.
Five ways to know
Unmistakable five-way local and remote wireless notification of alarm conditions:
- AudibleMulti-tone audible (95 dB @ 30 cm)
- VibrationVibration alarm
- VisibleFlashing bright red LEDs
- On-screenOn-screen indication of alarm conditions
- Wireless remoteWireless remote alarm notification (optional wireless configuration¹)
Over 25 sensors. Build the mix.
Over 25 intelligent, interchangeable, field-replaceable sensors, including gamma radiation and parts-per-billion PID. Pick the threats your team actually meets and build the instrument around them.
Gamma
- Gamma radiation
- 0 to 20,000 μRem/h (dose rate)
- Sensor type
- 1cc CsI (Tl) scintillator with photodiode
10.6 eV PID
- VOC 10.6 eV (ppb)
- 0 to 2,000 ppm · 10 ppb
- VOC 10.6 eV (ext. range)
- 0 to 5,000 ppm · 0.1 ppm
LEL & NDIR
- Catalytic LEL
- 0 to 100% LEL · 1% LEL
- NDIR (0-100% LEL methane)
- 0 to 100% LEL · 1% LEL
- NDIR (0-100% vol. methane)
- 0 to 100% Vol. · 0.1% Vol.
CO2 NDIR
- Carbon dioxide (CO2) NDIR
- 0 to 50,000 ppm · 100 ppm
Toxics and O2
Range shown for each sensor; resolution is in the Sensors tab of the specifications.
- Ammonia (NH3)0 to 100 ppm
- Carbon monoxide (CO)0 to 500 ppm
- CO, ext. range0 to 2,000 ppm
- CO, H2-comp.0 to 2,000 ppm
- CO + H2S combo0 to 500 ppm / 0 to 200 ppm
- Chlorine (Cl2)0 to 50 ppm
- Chlorine dioxide (ClO2)0 to 1 ppm
- Ethylene oxide (EtO-A)0 to 100 ppm
- Ethylene oxide (EtO-B)0 to 10 ppm
- Formaldehyde (HCHO)0 to 10 ppm
- Hydrogen cyanide (HCN)0 to 50 ppm
- Hydrogen sulfide (H2S)0 to 100 ppm
- Methyl mercaptan (CH3-SH)0 to 10 ppm
- Nitric oxide (NO)0 to 250 ppm
- Nitrogen dioxide (NO2)0 to 20 ppm
- Oxygen (O2)0 to 30% Vol.
- Oxygen (Liq O2)0 to 30% Vol.
- Phosphine (PH3)0 to 20 ppm
- Phosphine (PH3 H)0 to 20 ppm
- Sulfur dioxide (SO2)0 to 20 ppm
Readings that reach the command post
Wireless and non-wireless configurations are available. With the optional wireless capability, commanders and safety officers get real-time access to instrument readings and alarm status from any location¹, for better situational awareness and faster incident response.
How far the signal goes
- Transmission
- Wireless data and alarm status transmission via built-in RF modem (optional)
- Network
- ProRAE Guardian Real-Time Wireless Safety System or EchoView Host-based Closed-Loop System
- Frequency
- ISM license free band. IEEE 802.15.4 Sub 1GHz
Wi-Fi 802.11 b/g - Radio module
- Supports RM900A
- Man down
- Man Down Alarm with real-time remote wireless notification
- Fleet
- Device Management with Honeywell SafetySuite
¹ Wireless is a configuration option, not standard. Additional equipment and/or software licenses may be required to enable remote wireless monitoring and alarm transmission. Battery runtimes on this page are for non-wireless monitors.
Where teams put it to work
- 01HazMat response
- 02Homeland security
- 03Civil defense (search and rescue)
- 04Military
- 05Semiconductor manufacturing
- 06Environmental
Spares and swaps
Replacement sensors, power options and sampling accessories with their own product pages.
MultiRAE CO sensor (0-500 ppm)
Carbon monoxide (CO), 0 to 500 ppm, 1 ppm resolution.
View productMultiRAE H2S sensor (0-100 ppm)
Hydrogen sulfide (H2S), 0 to 100 ppm, 0.1 ppm resolution.
View productMultiRAE O2 sensor (0-30 vol%)
Oxygen (O2), 0 to 30% Vol., 0.1% Vol. resolution.
View productMultiRAE combustible LEL sensor (0-100% LEL)
Catalytic LEL, 0 to 100% LEL, 1% LEL resolution.
View productMultiRAE IR (NDIR) combustible sensor
NDIR (0-100% LEL methane), 0 to 100% LEL, 1% LEL resolution.
View productMultiRAE SO2 sensor
Sulfur dioxide (SO2), 0 to 20 ppm, 0.1 ppm resolution.
View productMultiRAE NH3 / Cl2 "exotic" sensors
Ammonia (NH3) 0 to 100 ppm; chlorine (Cl2) 0 to 50 ppm.
View productMultiRAE Li-ion rechargeable battery pack
Rechargeable Li-ion (~12-hr. runtime, < 6-hr. recharge time), runtime for non-wireless monitors.
View productMultiRAE alkaline battery adapter
Alkaline adapter with 4 x AA batteries (~6-hr. runtime), runtime for non-wireless monitors.
View productMultiRAE external filters / water-stop filter
Sampling accessory: external filters and water-stop filter.
View productAsk us about the right sensor configuration for your job.
Key specifications
Model PGM-6248. Download the datasheet in Service & documents for the full document.
| Physical | |
|---|---|
| Size | 7.6" H x 3.8" W x 2.6" D (193 x 96.5 x 66 mm) |
| Weight | 31 oz (880 g) |
| Sensors | Over 25 intelligent interchangeable field-replaceable sensors including gamma radiation, ppb and ppm PID sensors for VOCs, electrochemical sensors for toxic gases and oxygen, combustible LEL and NDIR sensors, and CO2 NDIR sensor |
| Display & controls | |
| Display | Monochrome graphical LCD display (128 x 160) with backlighting Automatic screen "flip" feature |
| Display readout |
|
| Keypad buttons | 3 operation and programming keys (Mode, Y/+, and N/-) |
| Languages | Arabic, Chinese, Czech, Danish, Dutch, English, French, German, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, and Turkish |
| Sampling & calibration | |
| Sampling | Built-in pump. Average flow rate: 250 cc/min. Auto shutoff in low-flow conditions |
| Calibration | Automatic with AutoRAE 2 Test and Calibration System or manual |
| Environment | |
| Operating temperature | -4° to 122°F (-20° to 50°C) |
| Humidity | 0% to 95% relative humidity (non-condensing) |
| Dust and water resistance | IP-65 ingress protection rating |
| Alarms | |
|---|---|
| Alarms | Wireless remote alarm notification; multi-tone audible (95 dB @ 30 cm), vibration, visible (flashing bright red LEDs), and on-screen indication of alarm conditions |
| Man down | Man Down Alarm with pre-alarm and real-time remote wireless notification |
| Data | |
| Datalogging |
|
| Communication and data download |
|
| Device management | Device Management with Honeywell SafetySuite |
| Battery options, runtime and recharge time | |
|---|---|
| Rechargeable | Rechargeable Li-ion (~12-hr. runtime, < 6-hr. recharge time) |
| Extended duration | Extended duration Li-ion (~18-hr. runtime, < 9-hr. recharge time) |
| Alkaline | Alkaline adapter with 4 x AA batteries (~6-hr. runtime) |
| Runtime note | Specification for non-wireless monitors. |
| Configurations | Wireless1 and non-wireless configurations are available |
|---|---|
| Wireless network | ProRAE Guardian Real-Time Wireless Safety System or EchoView Host-based Closed-Loop System |
| Wireless range (typical) | |
| To RAELink3 Mesh modem | ~330 feet (100 meters) |
| To EchoView Host, RAEMesh Reader or RAEPoint | ~660 feet (200 meters) |
| To Access Point | ~ 330 feet (100 meters) |
| Radio | |
| Wireless frequency | ISM license free band. IEEE 802.15.4 Sub 1GHz Wi-Fi 802.11 b/g |
| Wireless approvals | FCC Part 15 |
| Radio module | Supports RM900A |
1 Additional equipment and/or software licenses may be required to enable remote wireless monitoring and alarm transmission.
| CSA | Class I, Division 1, Groups A, B, C and D, T4 Class II, Division 1, Groups E, F, G T85°C |
|---|---|
| ATEX | II 1G Ex ia IIC T4 Ga 2G Ex ia d IIC T4 Gb with IR Sensor installed I M1 Ex ia I Ma |
| IECEx | Ex ia IIC T4 Ga Ex ia d IIC T4 Gb with IR Sensor installed I M1 Ex ia I Ma |
| IECEx/ANZEx | Ex ia IIC T4 Ga Ex ia d IIC T4 Gb with IR Sensor installed Ex ia I Ma |
| Performance tests | MIL-STD-810G and 461F compliant. LEL CSA C22.2 No. 152; ISA-12.13.01 |
| Sensor | Range | Resolution |
|---|---|---|
| Radiation | ||
| Gamma | 0 to 20,000 μRem/h (dose rate) | Sensor type: 1cc CsI (Tl) scintillator with photodiode |
| Photoionization detector (PID) | ||
| VOC 10.6 eV (ext. range) | 0 to 5,000 ppm | 0.1 ppm |
| VOC 10.6 eV (ppb) | 0 to 2,000 ppm | 10 ppb |
| Combustible | ||
| Catalytic LEL | 0 to 100% LEL | 1% LEL |
| NDIR (0-100% LEL methane) | 0 to 100% LEL | 1% LEL |
| NDIR (0-100% vol. methane) | 0 to 100% Vol. | 0.1% Vol. |
| Carbon dioxide | ||
| Carbon dioxide (CO2) NDIR | 0 to 50,000 ppm | 100 ppm |
| Electrochemical | ||
| Ammonia (NH3) | 0 to 100 ppm | 1 ppm |
| Carbon monoxide (CO) | 0 to 500 ppm | 1 ppm |
| Carbon monoxide (CO), ext. range | 0 to 2,000 ppm | 10 ppm |
| Carbon monoxide (CO), H2-comp. | 0 to 2,000 ppm | 10 ppm |
| CO + hydrogen sulfide (H2S) combo | CO 0 to 500 ppm H2S 0 to 200 ppm | CO 1 ppm H2S 0.1 ppm |
| Chlorine (Cl2) | 0 to 50 ppm | 0.1 ppm |
| Chlorine dioxide (ClO2) | 0 to 1 ppm | 0.03 ppm |
| Ethylene oxide (EtO-A) | 0 to 100 ppm | 0.5 ppm |
| Ethylene oxide (EtO-B) | 0 to 10 ppm | 0.1 ppm |
| Formaldehyde (HCHO) | 0 to 10 ppm | 0.05 ppm |
| Hydrogen cyanide (HCN) | 0 to 50 ppm | 0.5 ppm |
| Hydrogen sulfide (H2S) | 0 to 100 ppm | 0.1 ppm |
| Methyl mercaptan (CH3-SH) | 0 to 10 ppm | 0.1 ppm |
| Nitric oxide (NO) | 0 to 250 ppm | 0.5 ppm |
| Nitrogen dioxide (NO2) | 0 to 20 ppm | 0.1 ppm |
| Oxygen (O2) | 0 to 30% Vol. | 0.1% Vol. |
| Oxygen (Liq O2) | 0 to 30% Vol. | 0.1% Vol. |
| Phosphine (PH3) | 0 to 20 ppm | 0.1 ppm |
| Phosphine (PH3 H) | 0 to 20 ppm | 0.1 ppm |
| Sulfur dioxide (SO2) | 0 to 20 ppm | 0.1 ppm |
| Liq O2 sensors | Four years on Liq O2 sensors |
|---|---|
| CO and H2S sensors | Three years on CO and H2S sensors |
| Non-consumables & LEL | Two years on non-consumable components and catalytic LEL sensors |
| Everything else | One year on all other sensors, pump, battery, and other consumable parts |
Datasheet, warranty & repair
The MultiRAE Pro datasheet and the FarrWest warranty and repair service for Honeywell instruments.
MultiRAE Pro datasheet
Overview, features, instrument and sensor specifications, certifications and warranty.
Honeywell · WarrantyWarranty service
Warranty service for Honeywell instruments, handled through FarrWest.
FarrWest · Repair DepotCalibration & repair
Calibration and repair through the FarrWest Repair Depot.
Questions before you configure
Does the MultiRAE Pro detect radiation and gas at the same time?
Is wireless standard?
How long does the battery last?
Which sensors can it carry, and can I change them?
Is it rated for hazardous locations?
How is it calibrated and bump tested?
What is the warranty, and who services it?
Buying from FarrWest
BuyBoard & PCA vendor
FarrWest is a pre-approved vendor on BuyBoard and Purchasing Cooperative of America (PCA). Government agencies can buy on competitively-bid cooperative contracts, with no lengthy RFP.
ServiceHoneywell Authorized Service Provider
FarrWest is a Honeywell Authorized Service Provider for BW and RAE Systems gas detection, with repair and calibration in our own Repair Depot in San Antonio, Texas.
Since 2004Woman-owned, HUB-certified
Serving Hazmat, Fire, Police, EMS, and Specialty Vehicle operations nationwide since 2004, with expert support, training, and service after the sale.
Configure a MultiRAE Pro for your team
Tell us which threats you need on one screen, whether you need gamma, and whether readings have to reach a command post. We will come back with a sensor configuration and a quote.
