The STREAMLIGHT ProTac Rail Mount HL-X is a 1,000 lumen weapon light for carbines with remote and tail-cap switching options.

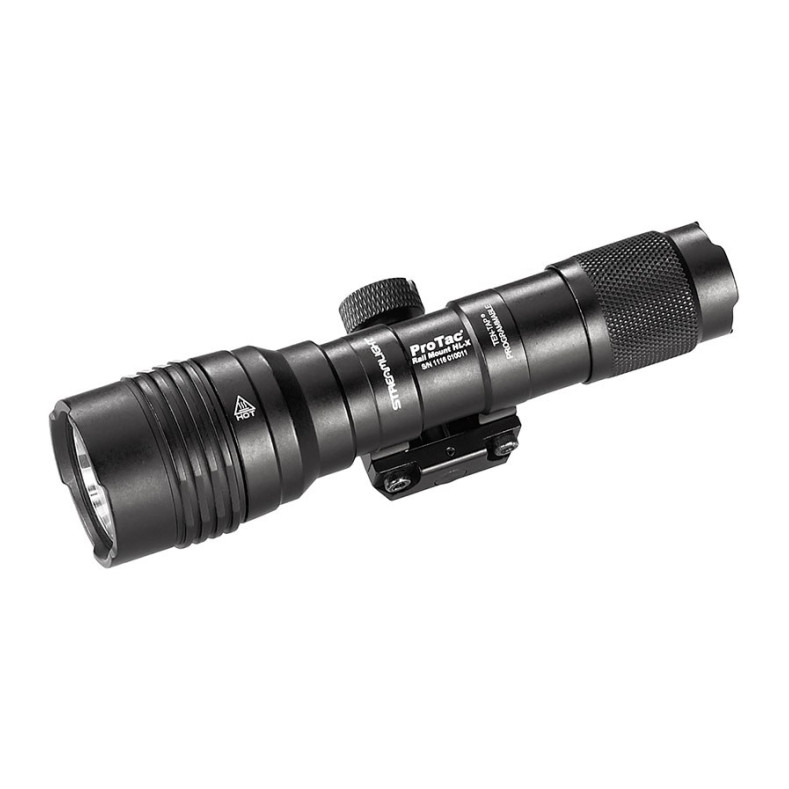

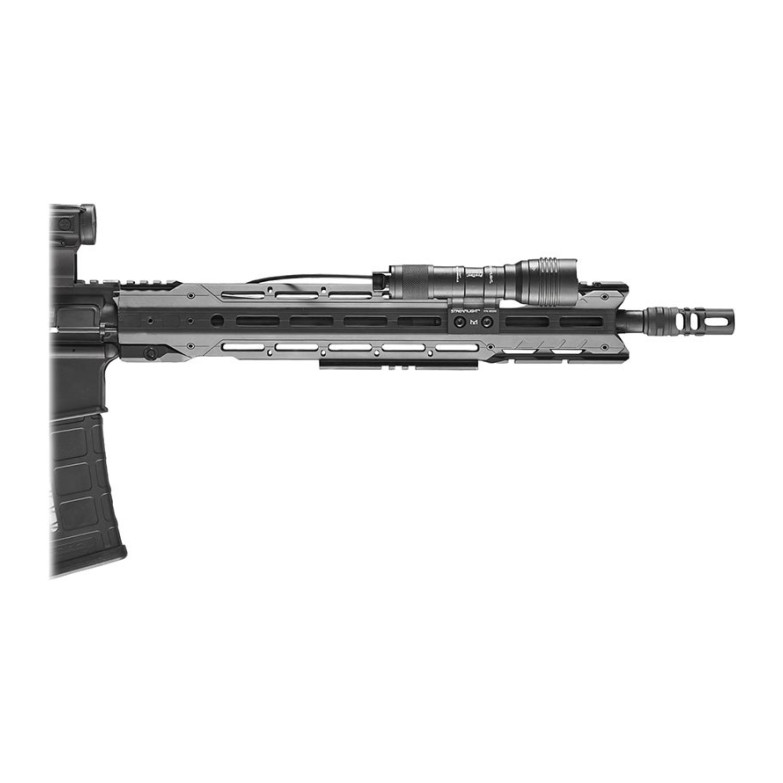

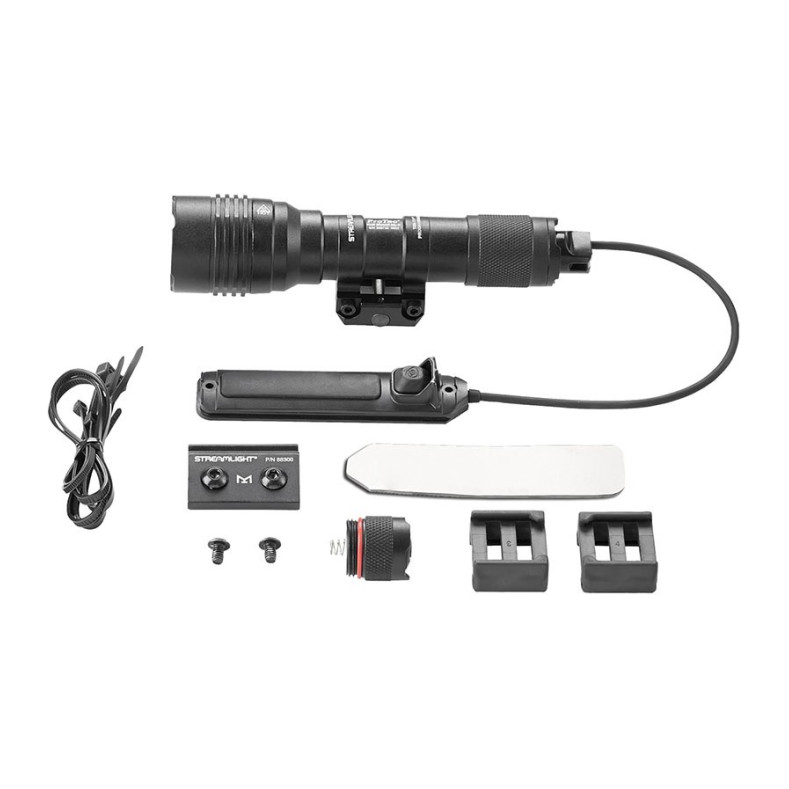

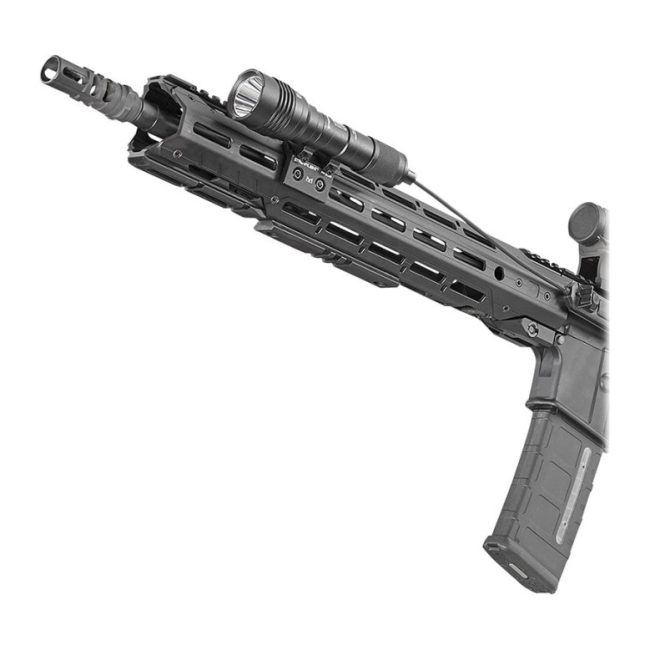

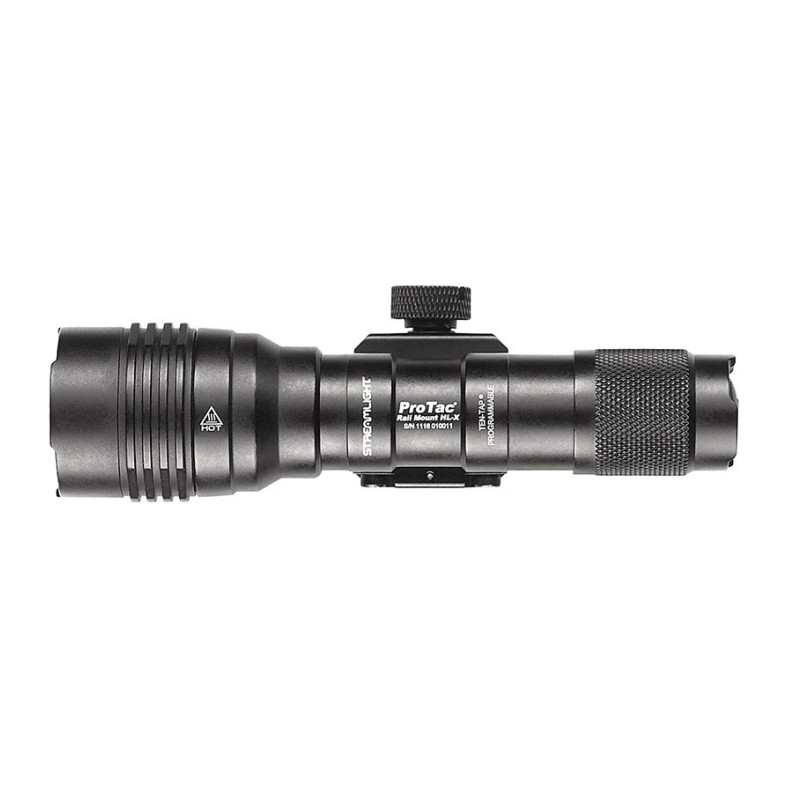

The ProTac® Rail Mount HL-X is a 1,000 lumen weapon-mounted light featuring a fixed mount for MIL-STD-1913 (Picatinny) rails or with the included M-LOK® mount allowing for alternative mounting options to M-LOK® and M-LOK® compatible rail systems. It uses either a remote pressure switch or a standard push-button tail cap switch, and can run on multiple battery types. TEN-TAP® Programming allows for selection of three different operating programs: high/strobe, high only, or low/high. Features durable anodized aluminum construction with impact-resistant tempered glass lens, IP67-rated waterproofing with standard switch, and includes remote pressure switch, push-button tail cap switch, remote retaining clips, double-sided tape, zip ties, and M-LOK® mount.
| Performance | |
| Lumens (High) | 1,000 |
| Lumens (Low) | 60 |
| Beam Distance (High) | 447 meters |
| Beam Distance (Low) | 111 meters |
| Candela (High) | 50,000 |
| Candela (Low) | 3,100 |
| Power | |
| Battery Type | SL-B26 Rechargeable Battery Pack, CR123A Lithium |
| Battery Quantity (Min) | 1 |
| Battery Quantity (Max) | 2 |
| Run Time (High) [SL-B26] | 1.75 h |
| Run Time (Low) [SL-B26] | 24.00 h |
| Strobe Run Time [SL-B26] | 3.50 h |
| Run Time (High) [CR123A] | 1.25 h |
| Run Time (Low) [CR123A] | 21.00 h |
| Strobe Run Time [CR123A] | 2.50 h |
| Physical | |
| Length (Max) | 5.43 in (13.79 cm) |
| Weight (Max) | 6.90 oz (195.61 g) |
| Weight (Min) | 6.40 oz (181.44 g) |
| Colors | Black |
