PVS-14 (Gen 3 Alpha, Green Phosphor)
The N-VISION OPTICS PVS-14 (Gen 3 Alpha, green phosphor) is a versatile night vision monocular using a Gen 3 Auto-Gated image intensifier for improved low-light clarity.
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
- Range Focus
- 25cm to infinity
- Battery
- 1 AA
- Weight
- 350 g
- Operating Temperature
- -51˚ C to +50˚C
Overview
The PVS-14 is a versatile and durable night vision monocular built around a Generation 3 Auto-Gated image intensifier of Alpha grade.
It uses thin-filmed, green phosphor technology for improved light amplification and clarity in low-light conditions, making it a solid choice for military, law enforcement, and tactical use.
Contact FarrWest for a quote.
- Variable gain control
- Waterproof
- Compact, rugged design
- Single AA battery
- Hand-Held,helmet-mountable or weapon-mountable
- Automatic brightness control (ABC)
Specifications
| Performance | |
| Range Focus | 25cm to infinity |
| Resolution | 64 lp/mm (min) |
| Power | |
| Battery | 1 AA |
| Physical | |
| Weight | 350 g |
| Other | |
| Diopter Focus | -6 to +2 |
| Operating Temperature | -51˚ C to +50˚C |
| Storage Temperature | -51˚ C to +85˚C |
| Field of View | 40˚ |
| Image Intensifier | Generation 3 Alpha Auto-Gated Image Intensifier |
| Signal to Noise | 25 (minimum) |
Documents 1 PDF
Description
Night Vision Monocular

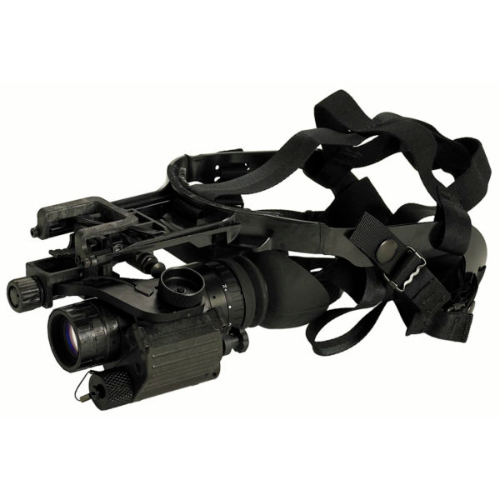

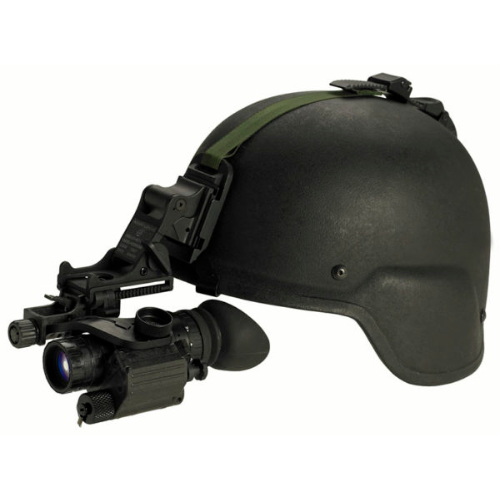

The PVS-14 is a multi-purpose night vision monocular in service with militaries and government agencies worldwide. Featuring the most advanced U.S. made Generation 3 image intensifier tubes, the PVS-14 features variable gain control and bright light automatic shut off. The PVS-14 may be hand-held, head/helmet mounted, or weapon mounted.

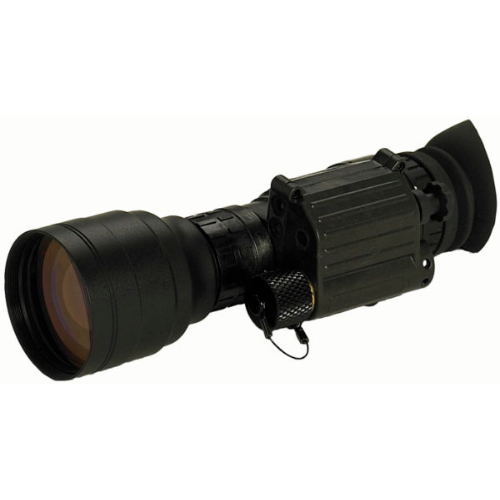

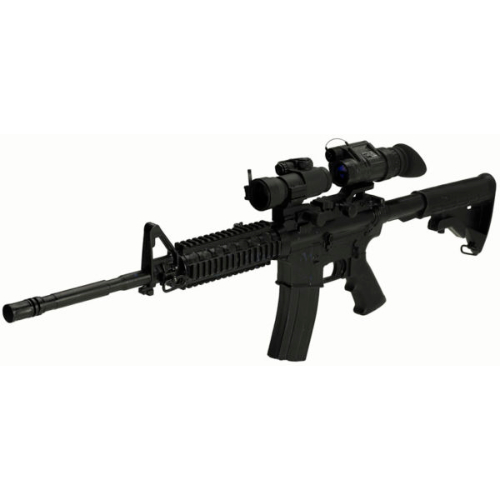

Optional N-Vision Optics accessories such as dual mounts, weapon mounts, and magnifier lenses make the PVS-14 extremely versatile. Each unit ships with: adapter (j-arm), sacrificial window, demist shield, eyecup, lens cap, neckcord, soft carry case, lens cleaning paper, battery, user manual.
