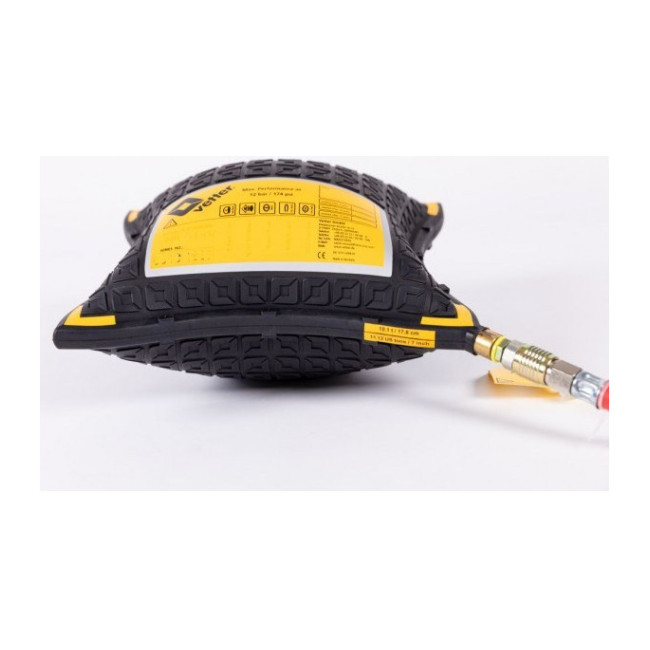

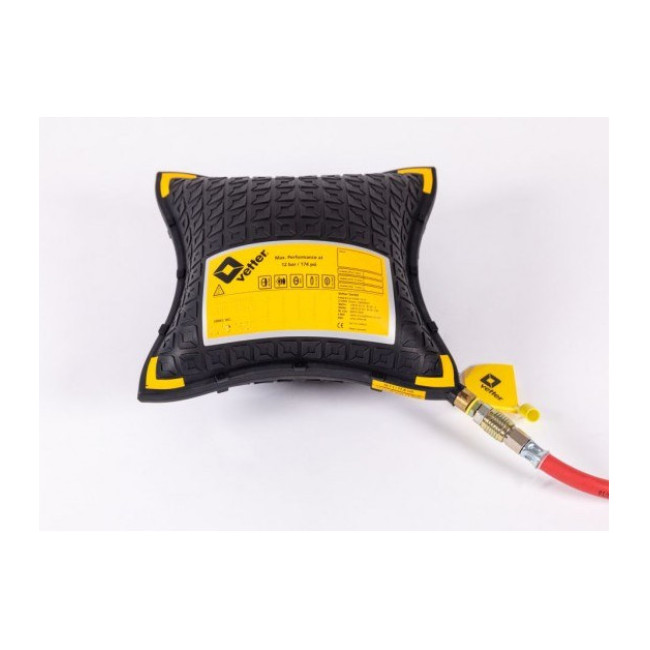

S.Tec Lifting Bags V5
Vetter S.Tec Lifting Bags V5 are next-gen pneumatic lifting bags for rescue operations, offering 12-bar power and 2.5 cm insertion height.
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
Overview
S.Tec Lifting Bags V5 represent the next generation of high-pressure lifting bags by Vetter, optimized for rescue operations. Features include dynamic 12-bar lifting power (compared to conventional 8-bar bags), an ultra-flat insertion height of just 2.5 cm (0.98 inch) for access to narrow gaps and openings, and an intelligent surface profile allowing safe stacking of two bags with lateral visibility of maximum lifting power and height. Available in 14 different sizes (square or rectangular) with lifting capacities from 1 to 102 tons. Configurable with 4 different controllers (deadman and fitting versions) and multiple compressed air sources.
- 14 different lifting bag sizes (square or rectangular shaped) with lifting power up to 102 tons
- Dynamic 12-bar lifting power
- Insertion height of 2.5 cm for narrow gaps and openings
- Intelligent surface profile for safe stacking
- Lateral readability of maximum lifting power and lifting height
- Available with 4 controller types (2 deadman versions, 2 fitting)
- Compatible with multiple compressed air sources
Specifications
| Performance | |
| Air requirement at working pressure [l] | 23,2 |
| Test pressure | 18 bar / 261,07 psi |
| burst pressure | 48 bar / 696,18 psi |
| operating pressure | 12 bar / 174,05 psi |
| Physical | |
| Length | 200 mm |
| Width | 255 mm |
| Weight | 1.3 kg |
| max. lifting height | 12,1 cm / 4,76 in |
| Other | |
| Product number | 1316000300 |
| max. lifting capacity [t] | 4,6 |
