Alpha/Beta surface contamination measurement
-
100 cm² Phoswich scintillation detector
-
Belongs to CSP™ family
-
Calibration via PC
-
Easy removable grid for decontamination
-
Ergonomic counting mode selector on probe body
-
New probe angle for hands contamination free

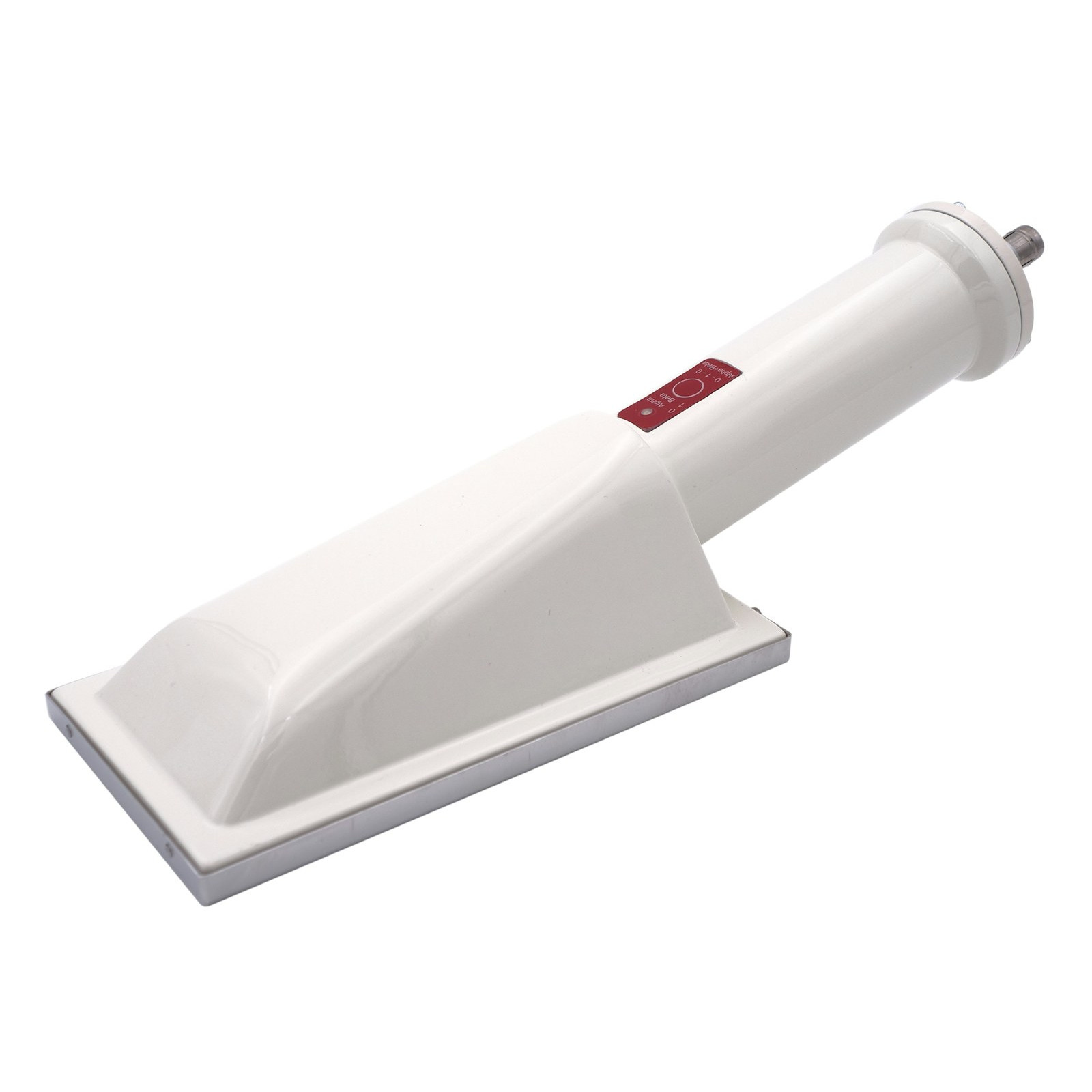

SAB-100 Alpha/Beta Probe
$0.00
The Mirion Technologies SAB-100 is a 100 cm² alpha/beta surface-contamination probe for use with any CSP survey meter.
In stock
The SAB-100 probe for measurement of surface contamination is designed to be used with any CSP survey meter. Its phoswich detector with 100 cm² detection area makes it an ideal tool for direct measurement of alpha and beta emitters. Features include: push-button counting mode selector (alpha only, beta only, alpha+beta), removable protection grid for decontamination, removable entrance window on metallic frame for easy service, and firmware upgrade capability via USB. The probe includes an ergonomic design with new probe angle for hands contamination-free operation. Part of Canberra’s Smart Probe (CSP) family with plug-and-play capabilities. Available with Mylar window (SAB-100) or Mylar window with protective grid (SAB-100R). Connects to CSP compatible survey meters via 1.5, 10, or 20 meter CSP cable.
Description
SAB-100 Alpha/Beta Probe
The SAB-100 probe for measurement of surface contamination is designed to be used with any CSP survey meter. Its phoswich detector with 100 cm² detection area makes it an ideal tool for direct measurement of alpha and beta emitters. Features include: push-button counting mode selector (alpha only, beta only, alpha+beta), removable protection grid for decontamination, removable entrance window on metallic frame for easy service, and firmware upgrade capability via USB. The probe includes an ergonomic design with new probe angle for hands contamination-free operation. Part of Canberra’s Smart Probe (CSP) family with plug-and-play capabilities. Available with Mylar window (SAB-100) or Mylar window with protective grid (SAB-100R). Connects to CSP compatible survey meters via 1.5, 10, or 20 meter CSP cable.
Features
Specifications
- Unit to display
- depending on survey meter c/s, Bq, Bq/cm² or CPM, DPM, DPM/100 cm²
- Emitters
- Alpha and Beta
- Detector
- ZnS(Ag) adhered to 0.5 mm thick plastic scintillation material
- Detection area
- 102 cm² (68 x 150 mm)
- Removable aluminized Mylar® entrance window on metallic frame, thickness
- 6 μm
- Protection grid transparency
- 83%
- Measurement range
- 0 to 10 000 c/s, 0 to 600 kcpm
- Activity equivalent range
- depends on calibration emitter. Conversion coefficients are factory set with Pu-239 for alpha channel and with Co-60 for beta channel
- Dead time
- 2 μs
- Energy range
- Alpha > 3 MeV, Beta > 150 KeV
- Gamma sensitivity for Cs-137
- <35c/s per µGy/h
- Background – ambient ≤ 100 nSv/h (10 µR/h)
- Alpha < 0.05 c/s (<3.0 cpm), Beta < 5.0 c/s. (<300 cpl)
- Sunlight effect
- no effect up to 80 000 lux
- Alpha to Beta (Pu-239)
- < 5%
- Beta to Alpha (Sr-90, Y-90)
- < 0.1%
- Display
- provided by survey meter
- Alarm Setpoints
- 10 values for each unit to display. Saved in probe memory. They can be edited with CSPS and PC
- Default alarm threshold
- is chosen in a list by use of survey meter keypad
- Power
- supplied by survey meter or PC (low voltage only): +5 V
- Consumption
- 15 mA maximum
- Housing
- painted aluminium steel
- Dimensions
- length (with connector) x width (detector) x height (detector): 318.5 x 99 x 102 (12.5 x 3.9 x 4 in)
- Weight
- < 710 g (25 oz) without cable
- Temperature
- -20 °C to +50 °C (-4 °F to 113 °F) use and storage
- Relative humidity
- 10% to 93% at 35 °C
- Cleaning
- housing easy to decontaminate
- IP
- IP20
- EMC
- conform
- CE
- meets CE requirements
- IEC60325
- meets standard requirements
