Compatible with both GX-3R and GX-3R Pro
-
Stand alone use with no PC required
-
Automatically charge, bump test, and/or calibrate
-
Auto on/off of gas detector
-
3 separate gas inputs
-

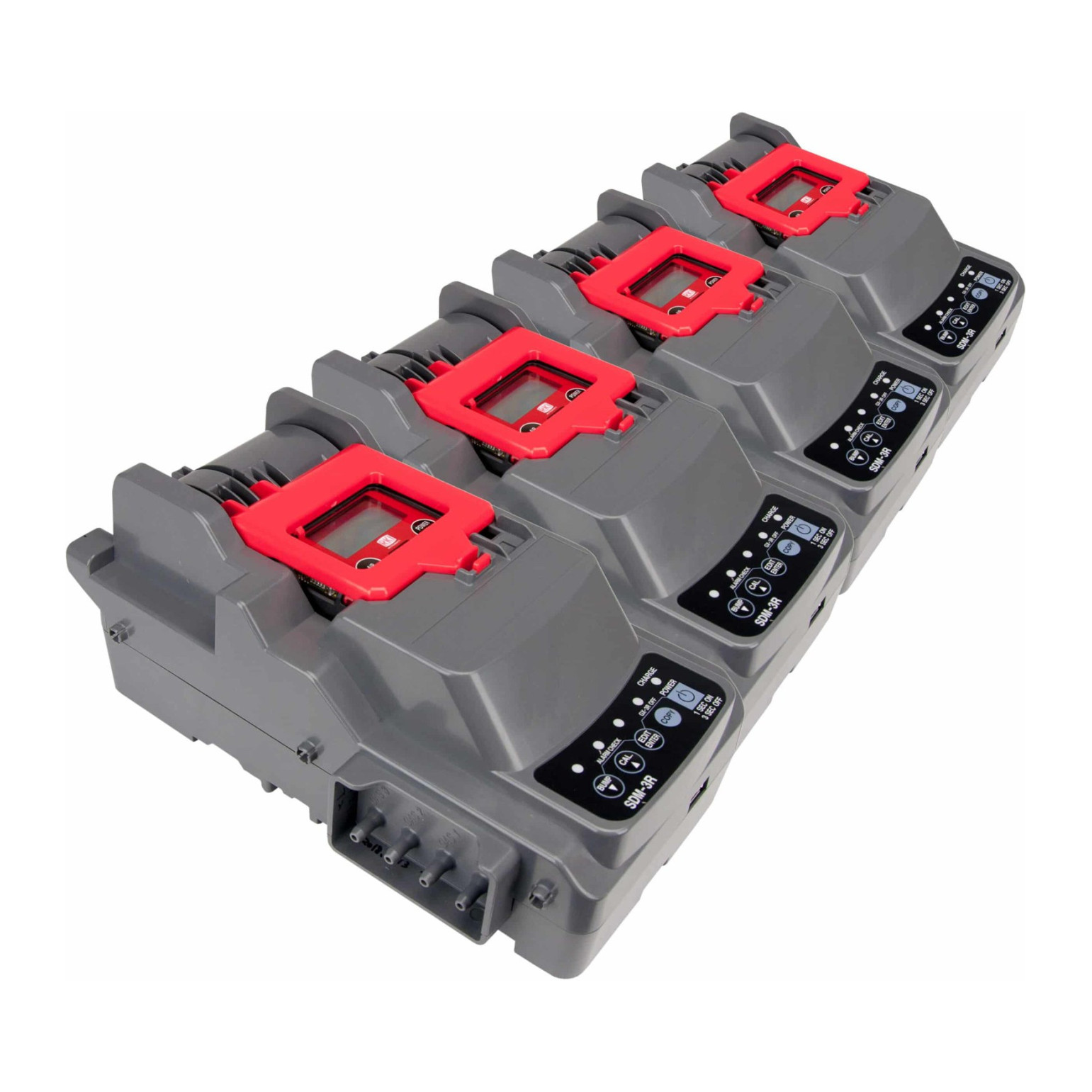

Multiple modules (10 max) can use one set of calibration equipment
-
Save Bump Test, Calibration, and Alarm Check records to USB flash drive, computer, or network
-
Includes PC software for viewing/archiving bump test, calibration records, and event data
-
PC-controlled use with multiple modules connected to a PC (10 max)
-
Automatic calibration/bump test option
-
Configure GX-3R (Pro) parameters
-
Archive data to network location
-
Software controlled data retrieval
-
Windows 7, 8, and 10 compatible
-
Modular design with easy snap together assembly
-
Manifold capability to reduce demand flow regulators and gas cylinder requirements
SDM-3R calibration / docking station
$0.00

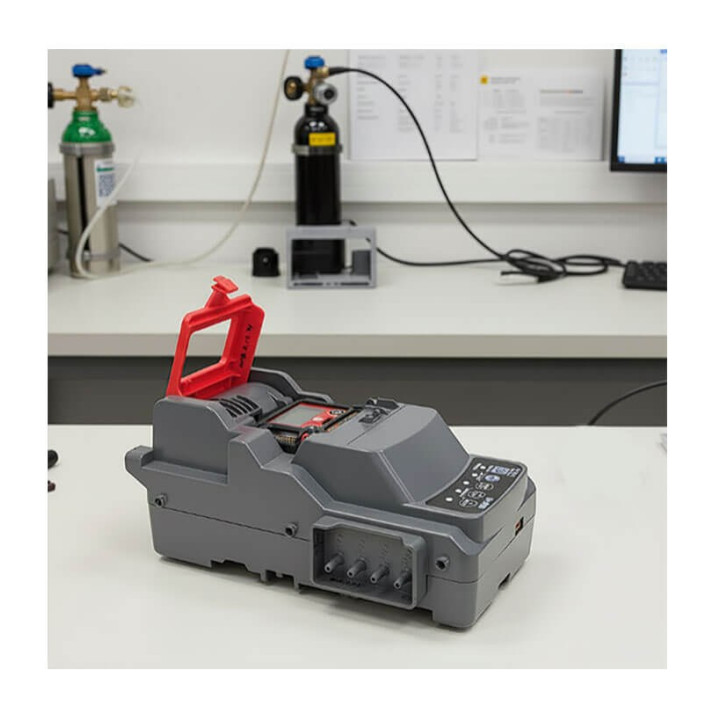

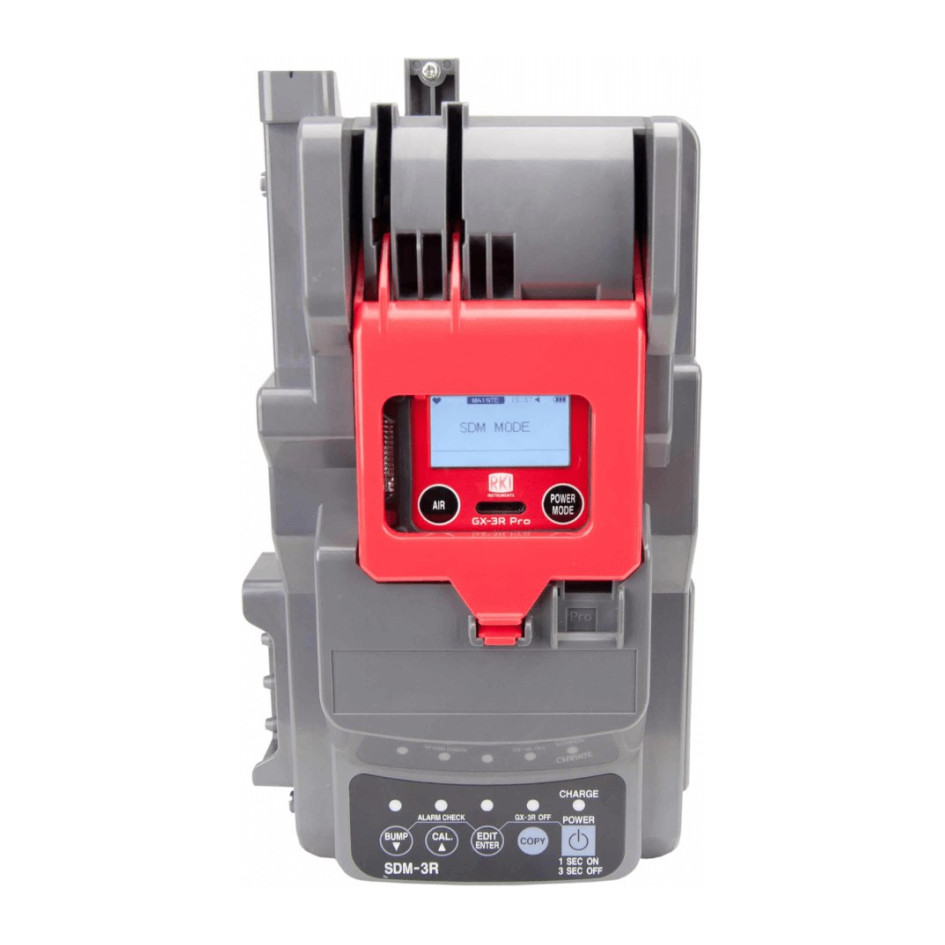

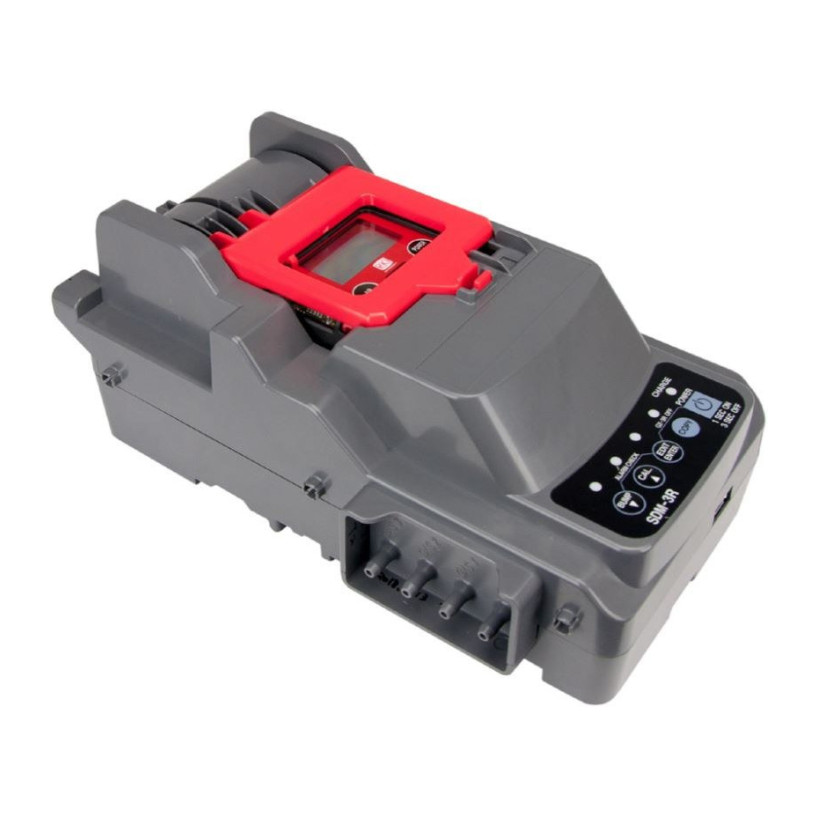

The RKI Instruments SDM-3R is a standalone calibration and docking station that automatically charges, calibrates, and bump tests GX-3R and GX-3R Pro portable gas monitors.
In stock
The SDM-3R is a versatile calibration and docking station that automates service of GX-3R and GX-3R Pro portable gas monitors. It can be used standalone for charging, calibration, and bump testing with records stored automatically, or connected to a computer via USB for software-controlled management of up to 10 instruments simultaneously. Features include automatic on/off of gas detector, 3 separate gas inputs, and compatibility with both modular and single configurations. Records can be saved to USB flash drive, computer, or network location. Includes PC software for viewing/archiving bump test, calibration records, and event data.
Description
SDM-3R calibration / docking station
The SDM-3R is a versatile calibration and docking station that automates service of GX-3R and GX-3R Pro portable gas monitors. It can be used standalone for charging, calibration, and bump testing with records stored automatically, or connected to a computer via USB for software-controlled management of up to 10 instruments simultaneously. Features include automatic on/off of gas detector, 3 separate gas inputs, and compatibility with both modular and single configurations. Records can be saved to USB flash drive, computer, or network location. Includes PC software for viewing/archiving bump test, calibration records, and event data.
Features
Specifications
- Input Power
- AC Adapter with 100 – 240 VAC, 47-63 Hz, 0.4A input and 5.99 VDC, 2A output provided as standard.
- Environmental Conditions
- For Indoor Use Only, 0° C to 40° C, below 95% Relative Humidity, Non-Condensing
- Applicable Instruments
- GX-3R and GX-3R Pro
- Maximum Number of Records Saved
- Stand Alone: 200 calibrations, or 214 bump test, or 469 alarm check records; PC program Controlled: Unlimited records
- Ports
- 3 Calibration gas, 1 fresh air and 1 exhaust
- Standard Accessories
- AC Adapter, USB Flash Drive, Inlet Air Filter, 10 Foot Long Exhaust Tube, One 3 Foot Long Tube for GAS Fitting, USB Cable Type A to Type B
- Warranty
- 1 year
