IntelliDoX docking module
Honeywell IntelliDoX docking module is an automated bump test and calibration system for gas detectors that tracks compliance and integrates with Safety Suite software.
- Woman-owned · HUB-certified
- Tax-exempt & POs accepted
- Calibration & repair
Overview
The IntelliDoX Docking Module is part of Honeywell’s automated instrument management system designed to support multiple gas detectors including BW Solo, BW Ultra, BW MaxXTII, BW Clip Series, BW Clip4, and BW MicroClip Series. Each module features an independent LCD and keypad for standalone operation, enabling automated bump tests, alarm setpoint reconfiguration, and detector parameter adjustments. Modules can be ganged together to perform different activities simultaneously while sharing power, network, and calibration gas. The system integrates with Fleet Manager II and Honeywell Safety Suite software for data analysis, compliance reporting, and automated email notifications.
- Enables bump test tracking, email notices and easy recordkeeping for improved compliance
- Performs the quickest bump test in the industry for increased uptime and no wasted calibration gas
- Enables the ability to change alarm set points, set a noncompliance indicator when a bump test is due, and adjust other parameters for maximum flexibility
- Easy setup with a network or USB drive — no tools required

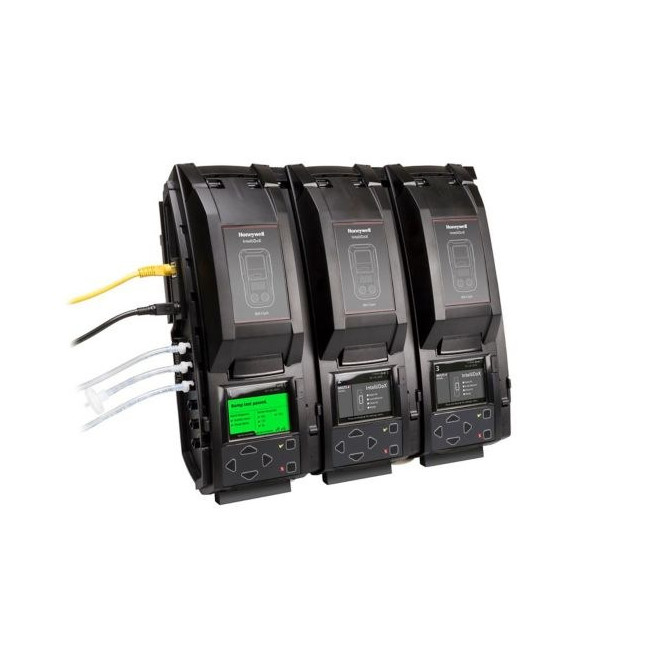

- Expandable to five docking modules that can operate independently, while sharing power, network connection and calibration gas
- Easy data transfer — by Ethernet or USB — from docking module to computer
- Device management with Honeywell Safety Suite
Specifications
| Performance | |
| Flow Rate | 350 mL/min |
| Power | |
| Power Supply | 12 V / 8.33A ITE Power Supply |
| Physical | |
| Weight | 1.91 kg |
| Connectivity | |
| Wireless Technology | Direct cable (RJ-45 10/100 Base T port) |
| Data Storage Capacity | 2 gallon (US) per day |
| Approvals & Warranty | |
| Standards | EMC Directive 2014/30/EU |
| Warranty | Full two year warranty |
| Other | |
| User Options | Adjust display settings |
Honeywell Authorized Service Provider
Calibration, repair & warranty service in our San Antonio depot.
