Ball bearing
-
Large top hole easily accepts 3 large carabiners
-
Designed for 11 mm to 13 mm ropes
-
Precision machined aluminum side plates and 3″ sheaves
-
Sealed bearings
-
Double pulleys include a becket

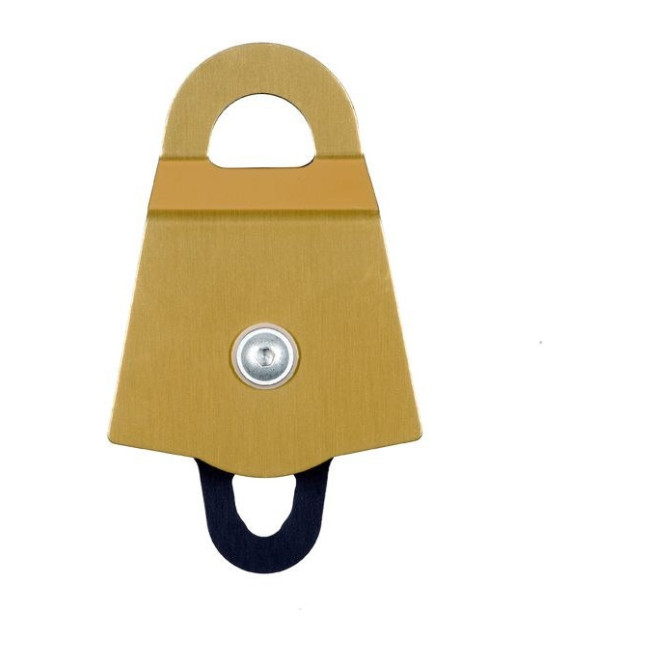

SMC 3″ Double Prusik-Minding Pulley
$0.00
PMI SMC 3″ Double Prusik-Minding Pulley is an aluminum pulley system designed for building progress-capture haul systems in rescue operations.
In stock
The unique shape of SMC’s aluminum side plates allow the efficient use of Prusik hitches as a belay or progress capture device. Constructed with a 3″ diameter sheave running on a high efficiency ball bearing. Low profile fasteners help eliminate the possibility of the pulley snagging. Pulley will accommodate up to 13 mm rope. Features sealed bearings, large top hole for 3 large carabiners, precision machined aluminum construction, and double pulleys with becket. NFPA 1983 (2012) compliant and made in USA.
Description
SMC 3″ Double Prusik-Minding Pulley
The unique shape of SMC’s aluminum side plates allow the efficient use of Prusik hitches as a belay or progress capture device. Constructed with a 3″ diameter sheave running on a high efficiency ball bearing. Low profile fasteners help eliminate the possibility of the pulley snagging. Pulley will accommodate up to 13 mm rope. Features sealed bearings, large top hole for 3 large carabiners, precision machined aluminum construction, and double pulleys with becket. NFPA 1983 (2012) compliant and made in USA.
Features
Specifications
- Weight
- 1.30 lbs (590 g)
- Size
- 3″
- Color
- Gold
- Tread
- 2.46″
- Sheave
- 2.97″
- MBS
- 48 kN (10,790 lbf)
- Height
- 2.20″ (5.6 cm)
- Width
- 4.17″ (10.6 cm)
- Length
- 7.10″ (18 cm)
- Compliant
- BERRY COMPLIANT, NFPA 1983 (2012)
