Description

LOGOS IMGAGING

SOSTÓS II

The SOSTÓS II 10”x10” by Logos Imaging is the most compact and lightweight digital radiography (DR) imaging system in the company’s advanced lineup—engineered for maximum portability and performance in tight or tactical environments. Featuring a glass-free SOSTÓS II flat panel imager, this system delivers exceptional 16-bit image clarity with the added benefit of near ground-level imaging. Weighing just 2.8 lb and only 0.6 inches thick, the SOSTÓS II is Logos Imaging’s smallest and lightest DR panel to date.

Designed for rapid deployment and solo operation, the full system fits into a custom backpack configuration weighing under 11 lb (5 kg)—making it ideal for single-operator missions, tight-access inspections, and dismounted EOD operations. The SOSTÓS II delivers best-in-class mobility and performance, allowing professionals to deploy quickly and capture precise imagery in the most challenging environments.

Features

IP67 and Glass-Free
3mm bottom and side border with 83% Fill Factor
Under 11 lb (5kg) in typical backpack setup
AED mode with no on-site connection needed

Technology

Amorphous Silicon with TFT

Weight

2.8 LB (1.3kg) including battery

Battery Life

3 Hours (2 batteries in a kit)

Dimensions (Panel)

11.14” x 11.14” x 0.6” (283 x 283 x 15 mm)

Pixel Area

10.1” x 10.1” (258 x 258 mm)

Pixel Size

168 μm

Limiting Resolution

2.98 lp/mm

AD Conversion

16 Bits

Communitcations Interface

Wireless IEEE 802.11ac Wired LAN

Communications Range

Wireless 150 m with standard antenna*; Wired 25 m with standard
cable reel; Additional network options available

Resources

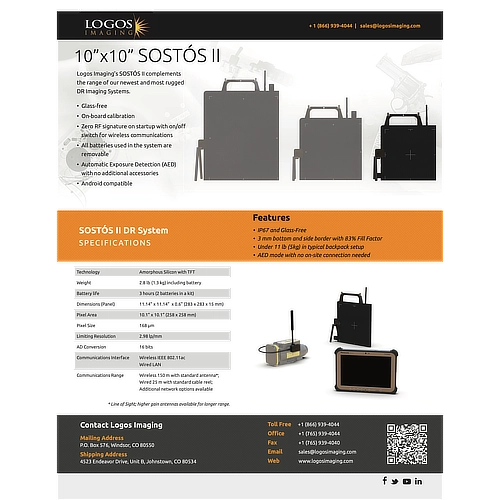

SOTSÓS II Specsheet
