FLIR SUGV 325
Carry the Future: Mission-Ready, Superior Mobility
A single-person-lift robot for dismounted and mobile operations. Weighing approximately 20 lb (9.1 kg) in its lightest operational configuration, the SUGV is easily carried and deployed while on the move, then tailored to the job with a suite of modular payloads, including a highly dexterous 5-DOF manipulator.
Carried in. Set down. Driving.

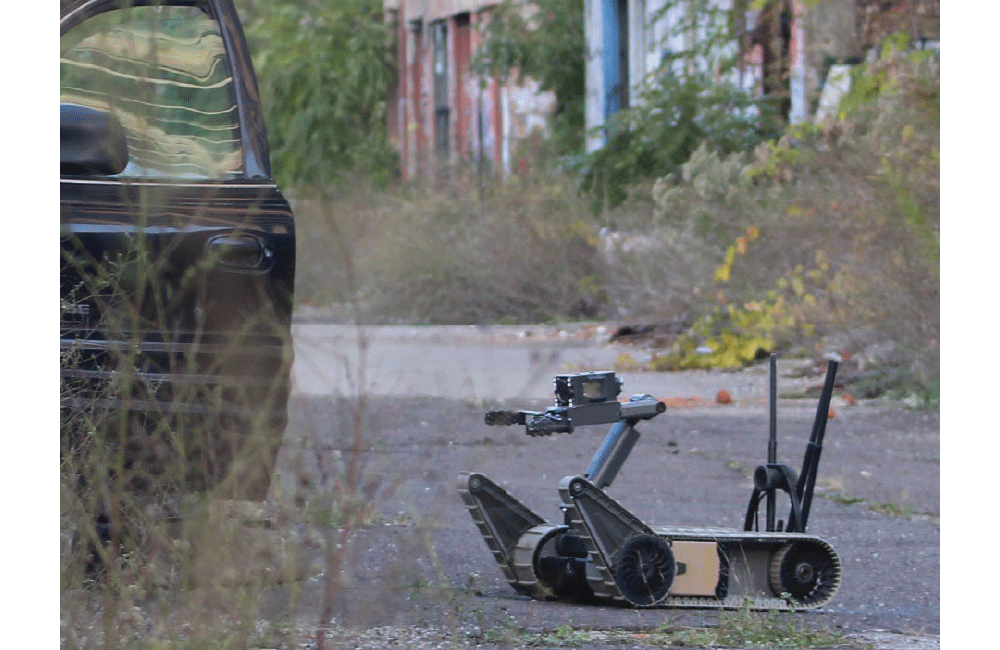

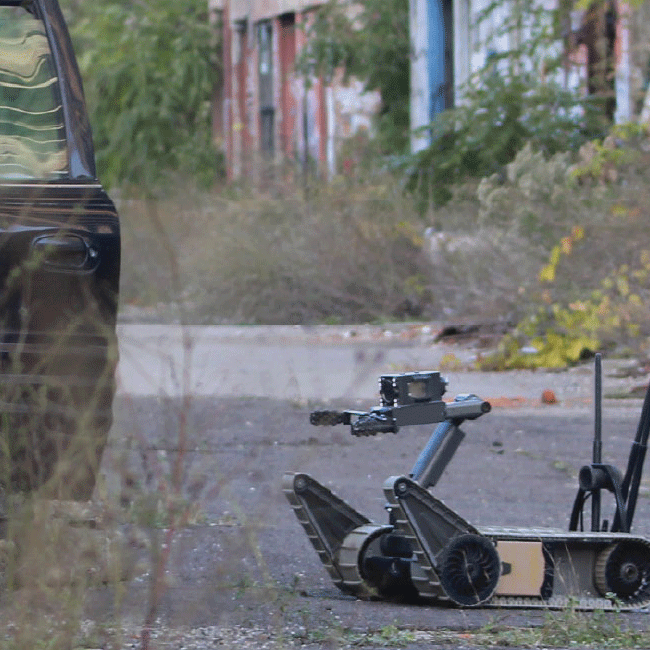

SUGV 325 in the field
One person. One robot.
SUGV 325 is a single-person-lift robot, offering a versatile solution for dismounted and mobile operations. Here is how carrying and deploying it fits together.
-
01 · Pack
Stow the system
The SUGV Dismounted Pack is designed to support dismounted operations, with dedicated storage compartments that secure robot, controller, batteries, and extra gear.
Optional accessory -
02 · Carry
Single-person lift
Weighing approximately 20 lb (9.1 kg) in its lightest operational configuration, the SUGV is easily carried and deployed while on the move.
-
03 · Drive
Over the obstacle
With articulating flippers, SUGV overcomes challenging terrain and obstacles including stairs, at speeds up to 7 mph (11.3 kph) with a zero radius turn.
-
04 · Observe
Eyes and ears forward
HD visible, LWIR and stitched 360-degree cameras, infrared and white lights, and two-way audio communication, driven from the uPoint® tablet and hand controller.
Two weights, two bases
Lightest operational configuration.
Weight (No batteries).
Payload weights are listed separately in the specifications.
Battery choice sets the clock
Utilizing in-service batteries, SUGV can maintain operations for up to eight hours (with two BB-2590 batteries).
Configure it for the mission
An IOP-compliant payload architecture accommodates a wide range of payloads and accessories, enabling multiple different mission-profiles. Start from the base robot's sensors, then add only what the job needs.

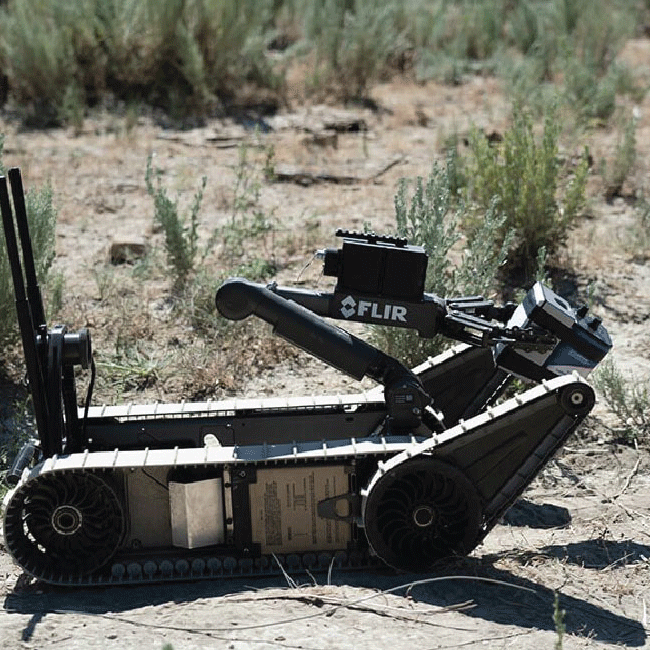

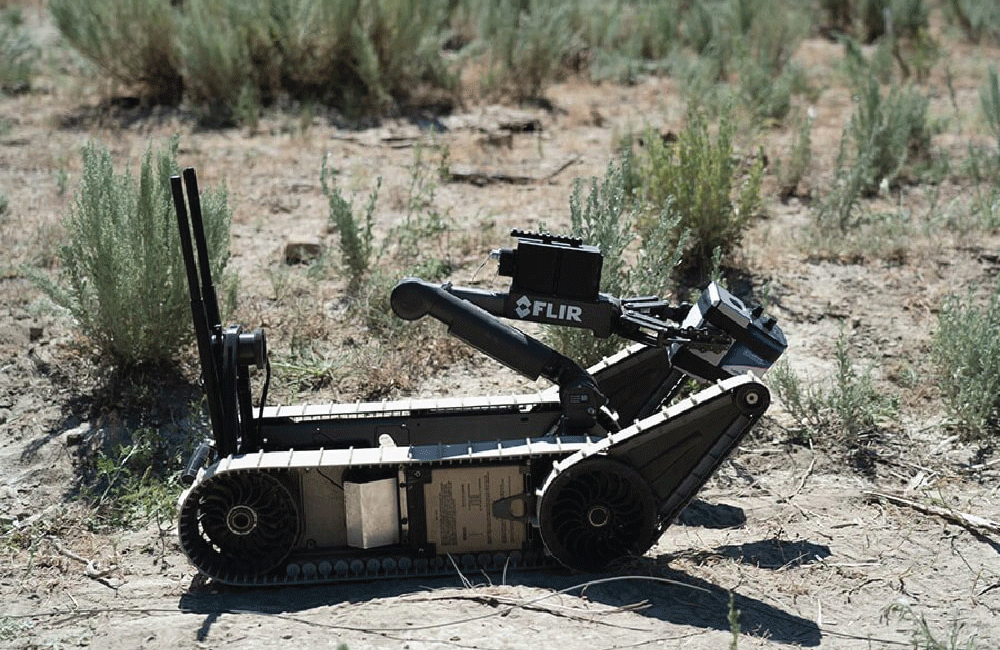

Shown with the optional manipulator payload
On the robot
SUGV serves as a mobile ground system equipped with an array of sensors including HD visible, LWIR, and stitched 360-degree cameras, infrared and white lights, and two-way audio communication.
Awareness- 01HD Camera
- 02LWIR Camera
- 03Stitched 360° Camera
- 04Two-way Audio
- 01White Light
- 02NIR

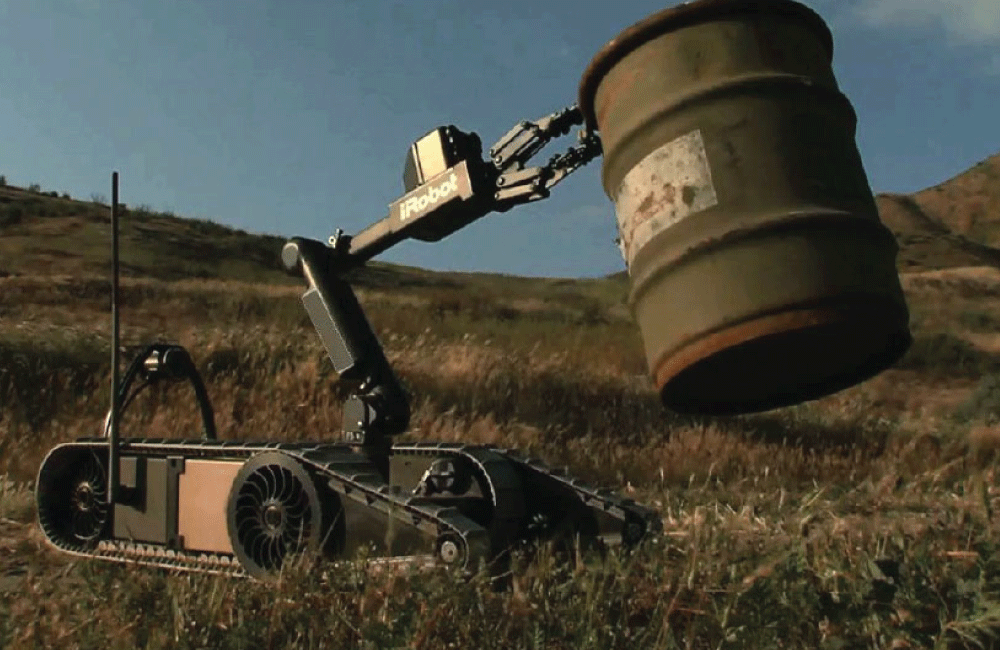

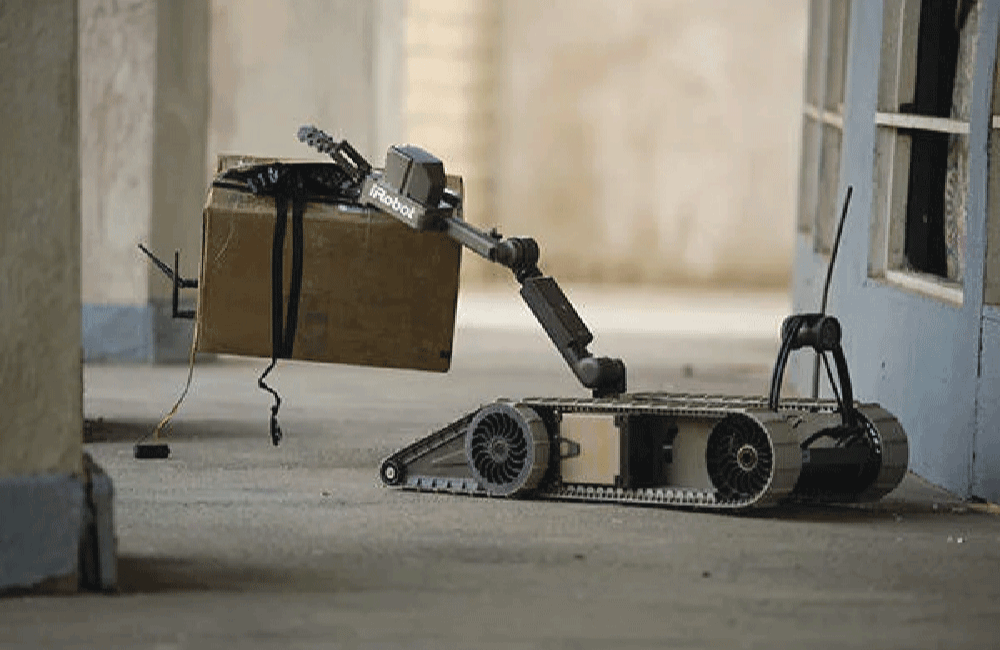

When outfitted with the optional manipulator payload, the SUGV can lift up to 20 lb (9.1 kg).
Manipulator
Highly dexterous 5-DOF arm with a toolless mission module interface.
- 5 DOF
- Lifts up to 20 lb (9.1 kg)
30x Zoom Mission Module
30x optical zoom.
- 30x optical zoom
- 1.3 lb (0.6 kg)
IOP Plate
Configurable interface based on IOP mounting standard.
Mission Module Adapter
Allows Mission Modules to be mounted directly to the chassis.
SUGV Dismounted Pack
Designed to support dismounted operations. Dedicated storage compartments that secure robot, controller, batteries, and extra gear.
Payloads and accessories are optional. They are not standard equipment; tell us the configuration you need when you request a quote.
Stairs, slopes, obstacles
With articulating flippers, SUGV overcomes challenging terrain and obstacles including stairs. The mobility envelope at a glance.
Front view, flippers folded
In its lightest operational configuration, the SUGV 325 weighs about 20 lb (9.1 kg).
One controller. One network.
The uPoint® Multi-Robot Control System features a tablet with touchscreen control as well as a hand controller, and SUGV joins a Wave Relay® MANET alongside operators and observers.
- 01
Tablet plus hand controller
uPoint® pairs touchscreen control on a tablet with a hand controller.
- 02
Scales to your tablet
Scales to various Android tablet sizes.
- 03
Nett Warrior and ATAK
Nett Warrior and ATAK compatible.
- 04
Wave Relay® MANET
Connects to the Wave Relay® MANET, to form a robust network in which robots, operators, and observers seamlessly operate together.
Robots, operators, and observers seamlessly operate together on the Wave Relay® MANET. Schematic only, not to scale.
SUGV 325 specs
| Weight & power | |
|---|---|
| Weight (No batteries) | 17.9 lb (8.1 kg) |
| Lightest operational configuration | Approximately 20 lb (9.1 kg) |
| Runtime |
|
| Mobility | |
| Speed | Up to 7 mph (11.3 kph) |
| Agility | Zero radius turn |
| Vertical obstacles | 12” (30.5 cm) |
| Stair climbing | Up to 45° |
| Slopes |
|
| Environment | |
| Temperature range | -4°F to 122°F (-20°C to 50°C) |
| Rating | IP-67 |
| Sensors | |
|---|---|
| Awareness |
|
| Illumination |
|
| Control | |
|---|---|
| Controller | The uPoint® Multi-Robot Control System features a tablet with touchscreen control as well as a hand controller. |
| Tablets | Scales to various Android tablet sizes. |
| Compatibility | Nett Warrior and ATAK compatible. |
| Network | |
| Compatible | Connects to the Wave Relay® MANET, to form a robust network in which robots, operators, and observers seamlessly operate together. |
| Manipulator (optional payload) | |
|---|---|
| Degrees of freedom | 5 DOF |
| Interface | Toolless Mission Module Interface |
| Lift | Lifts up to 20 lb (9.1 kg) |
| 30x Zoom Mission Module | |
| Zoom | 30x optical zoom |
| Weight | 1.3 lb (0.6 kg) |
| Accessories | |
| IOP Plate | Configurable interface based on IOP mounting standard. |
| Mission Module Adapter | Allows Mission Modules to be mounted directly to the chassis. |
| SUGV Dismounted Pack | Designed to support dismounted operations. Dedicated storage compartments that secure robot, controller, batteries, and extra gear. |
