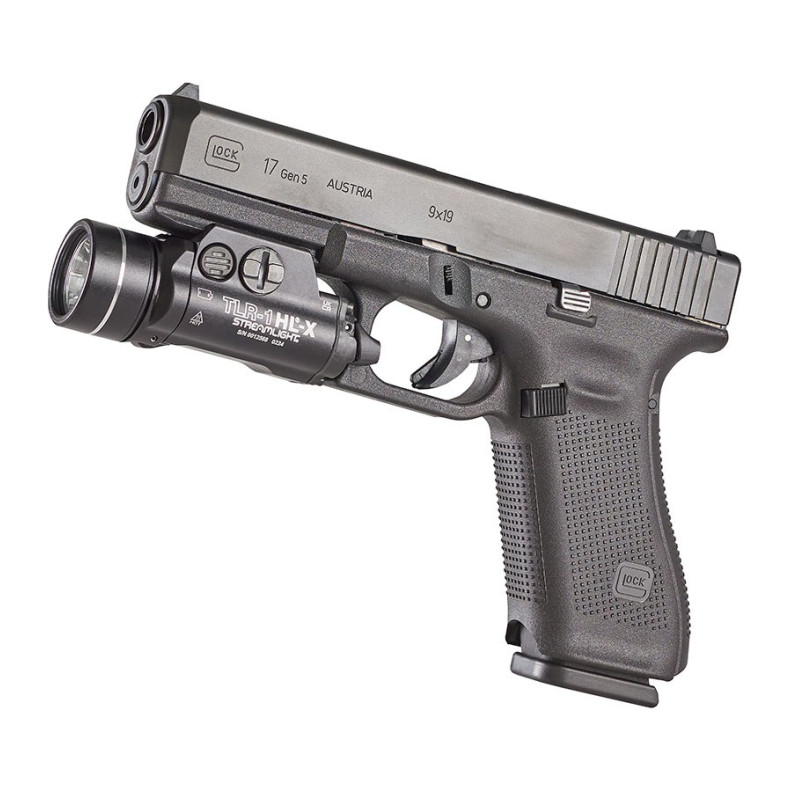

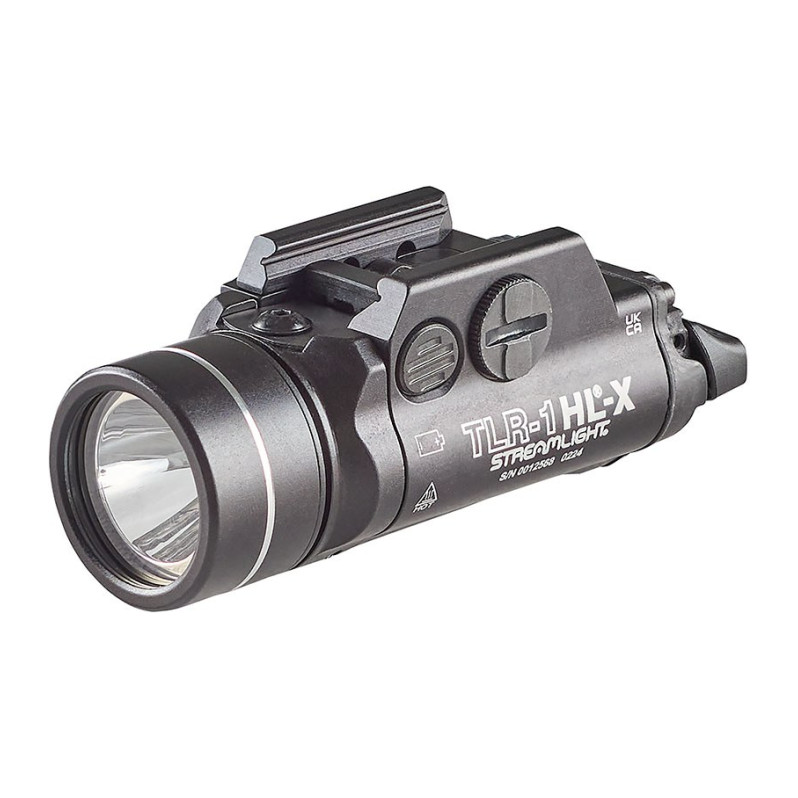

The Streamlight TLR-1 HL-X USB is a rechargeable rail-mounted weapon light delivering 1,500 lumens for full-size and compact handguns.

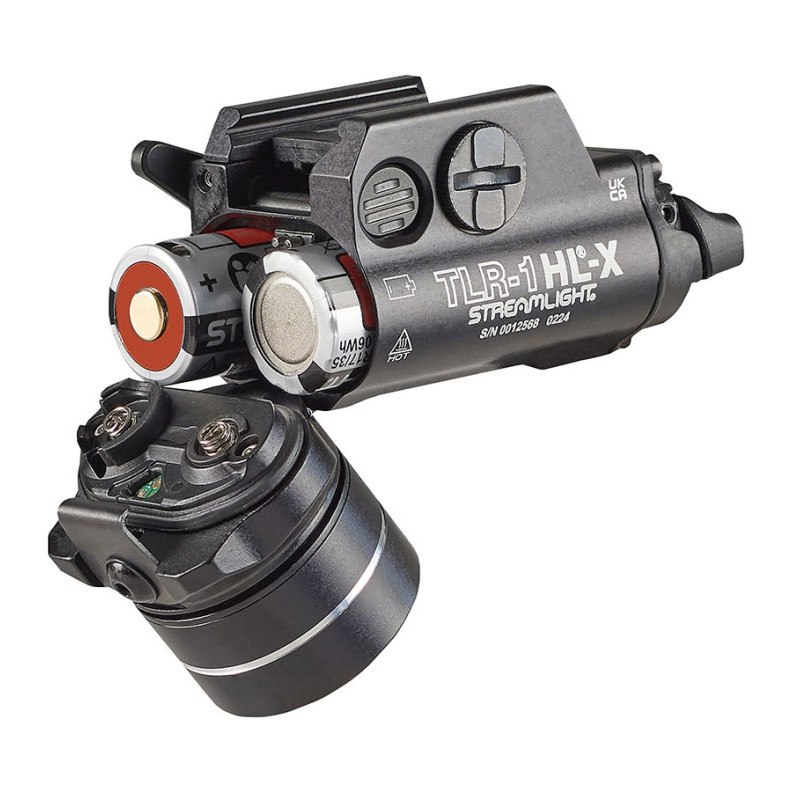

The TLR-1 HL-X provides a powerful 1,500-lumen peripheral beam with 20,000 candela and 283m beam distance. Features multi-fuel capability using either Streamlight SL-B9 protected Li-Ion USB-C rechargeable battery packs (1,500 lumens, 1 hour runtime) or CR123A lithium batteries (1,000 lumens, 1.5 hour runtime). Front-loading battery compartment allows rapid battery replacement without removing the light from the firearm. Rail-grip clamp system securely attaches/detaches quickly and safely with no tools. Includes keys for a variety of full-size and compact-railed handguns. Features user-programmable strobe, ambidextrous momentary/constant-on operation, and IPX7 waterproofing. Machined 6000 Series aircraft aluminum with black anodized finish. Assembled in the USA with limited lifetime warranty.
| Performance | |
| Lumens (High) | 1,500 |
| Beam Distance (High) | 283 meters |
| Candela (High) | 20,000 |
| Lumens (High) [CR123A] | 1,000 |
| Beam Distance (High) [CR123A] | 245 meters |
| Candela (High) [CR123A] | 15,000 |
| Power | |
| Run Time (High) | 1.00 h |
| Battery Type | SL-B9 Rechargeable Battery Pack, CR123A Lithium |
| Battery Quantity (Max) | 2 |
| Run Time (High) [CR123A] | 1.50 h |
| Physical | |
| Length (Max) | 3.45 in (8.76 cm) |
| Weight (Max) | 5.19 oz (147.13 g) |
| Weight (Min) | 4.94 oz (140.05 g) |
| Colors | Black |
